Z63-P9B049Bluetooth ANC Headphones

User’s Manual Model No: B049 Important safety instruction If used in the correct method, this design and production of this product can ensure your personal safety completely. However, any inappropriate use may lead to potential risk and danger of electric shock or fire hazard. Please read all the safety instructions before installing and using the product. In particular, attention shall be given to the following information: 1. It needs to be stored or used in the ambient temperature. 2. It shall not be placed in water or wet locations. 3. It can’t be disposed randomly for it may cause environmental pollution. 4. Without approval, It shall not be disassembled or repaired. 5. The built-in lithium battery can’t be disposed in the fire or other places to prevent causing fire hazards. 6. It shall be cleaned with dry cloth. 7. Whenever there is damage, it needs to be repaired by professional personnel. Charging the battery Fully charge the battery for about 3 hours before using the battery for the first time. 1. Plug the smaller end of USB charging cable into the Micro-USB interface of the connector. 2. Next, plug the other end of USB charging cable into other power charging devices or a computer with the power on. 1.1 Functions Operation. Feature Device Status Operation Details Power on Power off Press and hold the power button for3s. Under power off status, press and hold the power button for 3 seconds, then the headphone will turn on, and with prompt “Ding Dong” tone. Blue LED light will flash. Power off Power on Press and hold the power button for3s. Under power on status, press and hold the power button for 3 seconds, then the headphone will turn off, and with prompt “Dang Dong” tone. The red LED will light on for 2s then off. Pairing & Connection. Software by using: B049 Feature Device Status Operation Details Enter in pair Power off Press and hold the power button for 5s. Under power off status, press and hold the power button for 5s, then the headphone will entering pairing mode, it will prompt“Du Du”tone, the LED Red and Blue blinking alternation Pairing Pairing Release the power button LED Red and Blue blinking continue time 5 mins Pair Successful Pairing Release the power button “Di Dong” tone withslow flash blue LED light Calling（PC） Communication by using ：QQ，Skp，MSN Feature Device Status Operation Details Volume Up Calling Short press the “+”button Voice “Du” when maximum volume & “Di” tone when volume over 85 dB Volume Down Calling Short press the “-”button Voice “Du” when minimum volume Calling（Mobile Phone） Feature Device Status Operation Details Incoming tone Incoming call Mobile phone tone happens when incoming call Cancel calling Calling Short press the power button No Answer call Incoming call Short press the power button No Reject the calling Incoming call Press and hold the power button for 2s，release the button when prompt. No End calling Calling Short press the power button No Volume Up Calling Short press the “+” button Voice “Du” when maximum volume Volume Down Calling Short press the “-” button Voice “Du” when minimum volume Re-dial for end phone number. Standby Short press the power button for 2 times. No Music Play Music player by using：Windows Media Player Feature Device Status Operation Details Volume Up Music Play Short press the “+” button Voice “Du” when maximum volume Volume Down Music Play Short press the “-” button Voice “Du” when minimum volume Pause Music Play Short press power button N/A Play Music Pause Short press power button N/A Previous Track Music Play Long press “+”button N/A Next Track Music Play Long press “+”button N/A Pairing Fail Power on N/A Auto power off after 10 mins Non-connection Power on N/A Auto power off after 10 mins ANC function Connect with your device by Bluetooth or 3.5mm audio cable Feature Connected way Operation Details ANC on / off By Bluetooth Press ANC button to turn on or off Bluetooth connected and in power on status, with prompt” ANC ON” when turn on ANC, and with prompt “ ANC OFF” when turn off ANC on / off By 3.5mm audio cable Press ANC button to turn on or off 3.5mm audio cable connected and in power on status, Remark 1) ANC function only can be used when the headphone power on. Pls make sure turn on it first 2) Plug in the 3.5mm audio cable to headphone, bluetooth disconnected automatically 2 Product Specifications 2.1 Technical Data Sheet Type Feature Description or Detail Bluetooth Version 5.0 Pair name B049 Operated distance Over 15m Transmission Range(Hz) 2402-2480 MHz Active noise cancelling (ANC) ANC effect: 30 +/-2 dB impedance 2.2KΩ Sensitivity -35 +/- 1 dB Speaker Diameter Φ40 +/- 0.3mm Frequency Response 20Hz-20KHz Impedance 32Ω +/- 15% Sensitivity/S.P.L. 120 ± 3dB（at 1K Hz,IEC318 test) Rated Power 10mW Battery Type Chargeable Li-ion Battery Capacity 500 mAh Work time 26 hours (Bluetooth on) 23 hours (Bluetooth and ANC on) Charge time 0.8-1 hours Charger current 1.5A Charge cable Plug Micro USB Length 0.8m Line in Cable Plug 3.5mm Stereo cable Length 1.2 m FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particul…

Text truncated - open the document above for the full version.

Differences Description We ShenZhen Aoni Electronic Industry Co., Ltd. state: Product： Bluetooth ANC Headphones Model Name： B049, B050, B054, B055, B056, B057, B058, B059, B060, B062, B066, B067, B068, B069, B075, B076, B077, B082, B083, B084, B085, B079 Brand Name： N/A FCC ID: Z63-P9B049 The electrical circuit design, layout, components used and internal wiring for above models are identical, only in difference appearance/color and model no. Signatory Date 2020.02.18 Signature Name: Tendy Dong Title: Manager Company: ShenZhen Aoni Electronic Industry Co., Ltd. Address: HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China

Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Z63-P9B049 Product Name: Bluetooth ANC Headphones Model name: B049, B050, B054, B055, B056, B057, B058, B059, B060, B062, B066, B067, B068, B069, B075, B076, B077, B082, B083, B084, B085, B079 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signatory Date 2020-02-18 Signature Name: Tendy Dong Title: Manager Company: ShenZhen Aoni Electronic Industry Co., Ltd. Address: HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China

Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen STS Test Services Co., Ltd., 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with ShenZhen Aoni Electronic Industry Co., Ltd. HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China (Applicant Name and address) Signatory Date: 2020-02-18 Signature Name: Tendy Dong Title: Manager Company: ShenZhen Aoni Electronic Industry Co., Ltd. Address: HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China

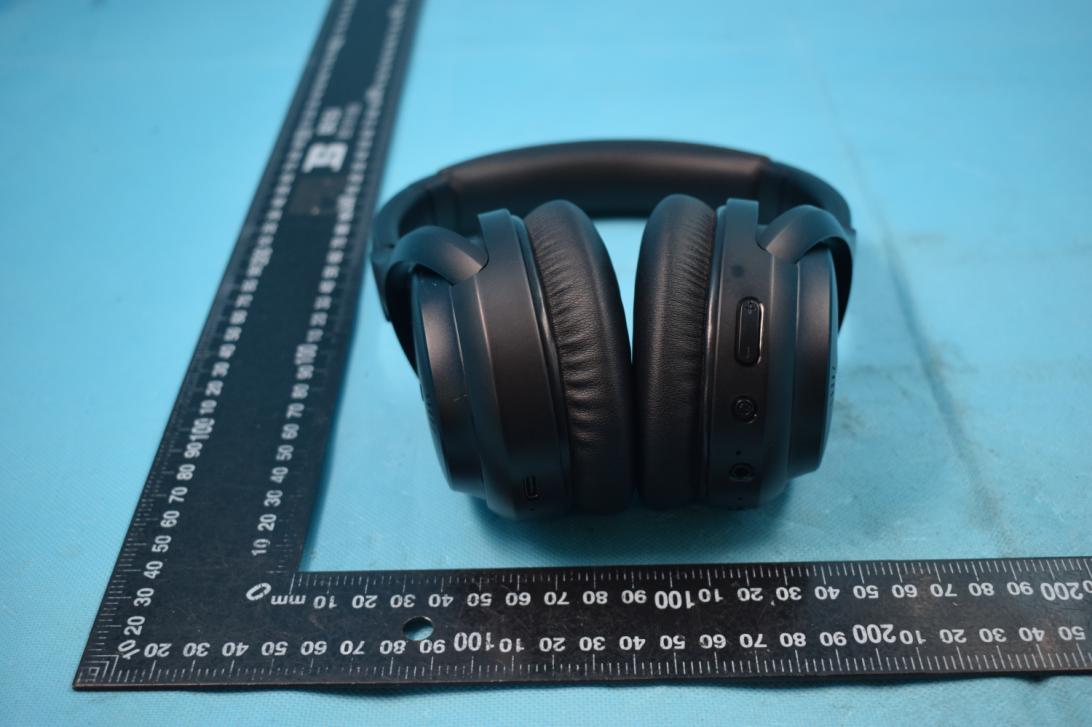

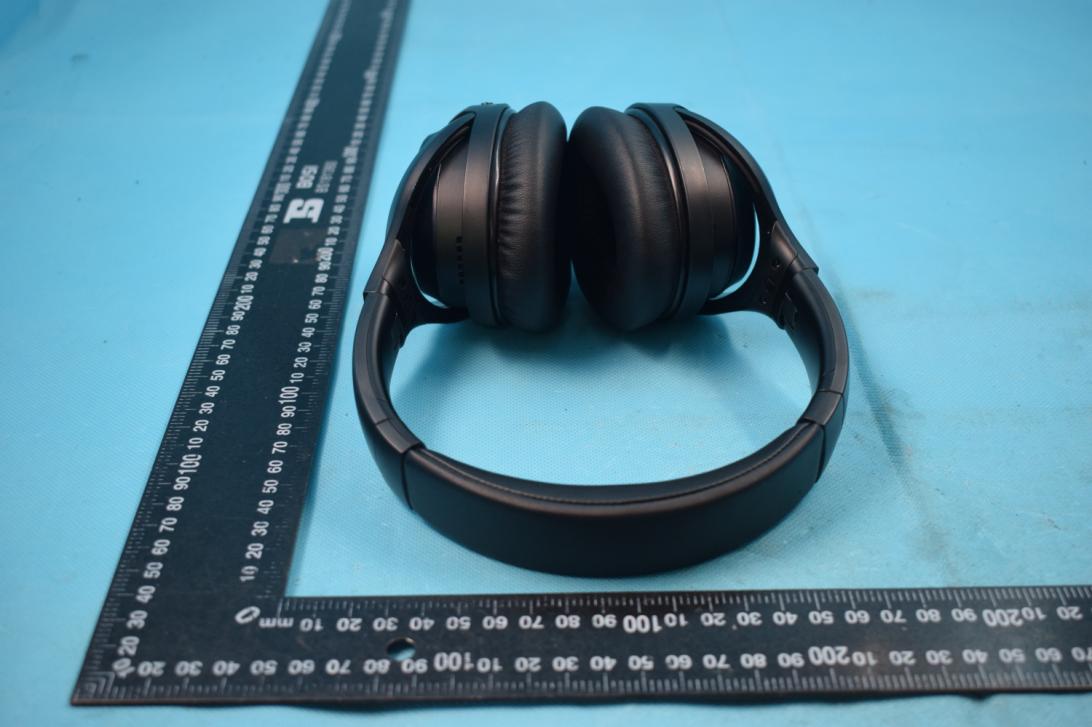

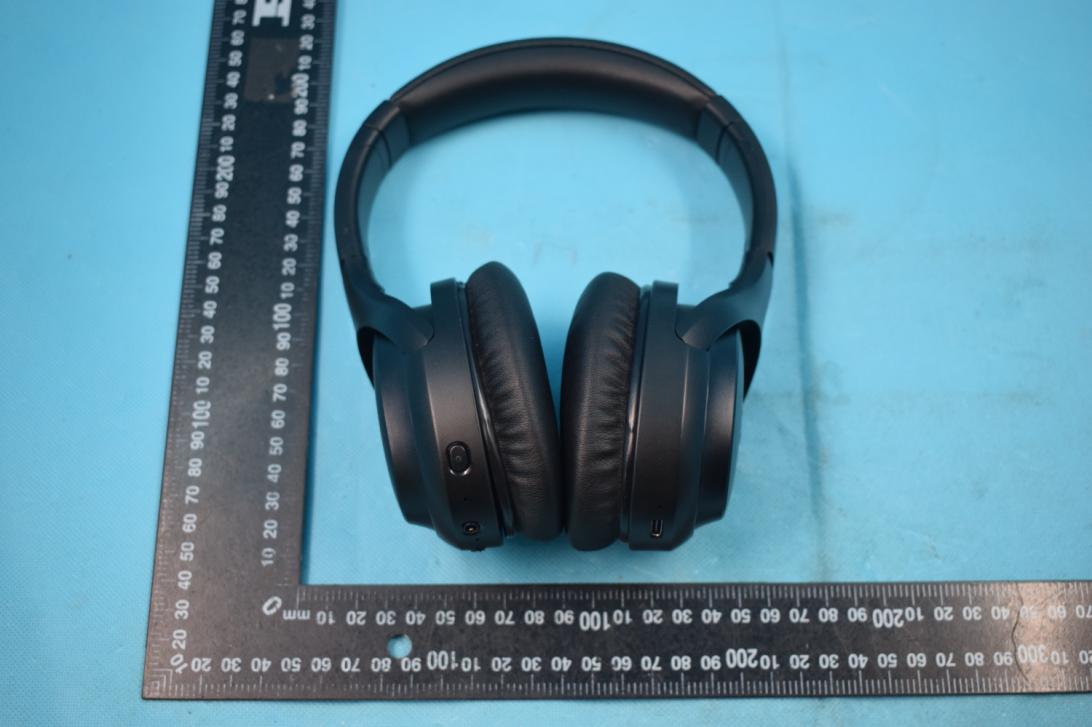

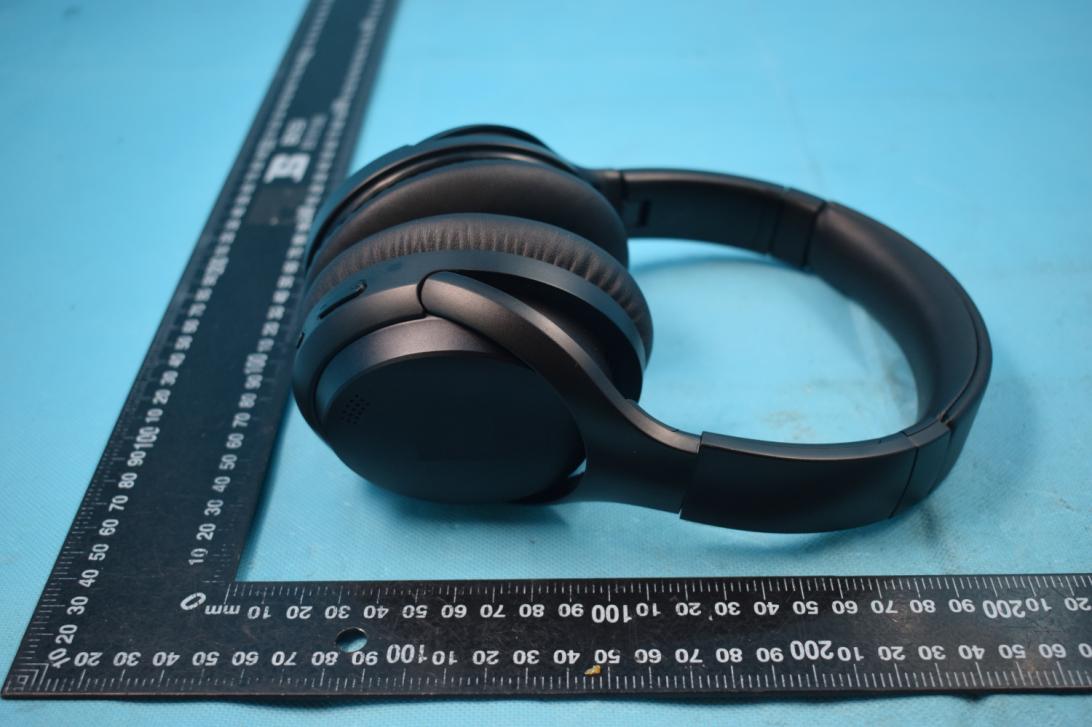

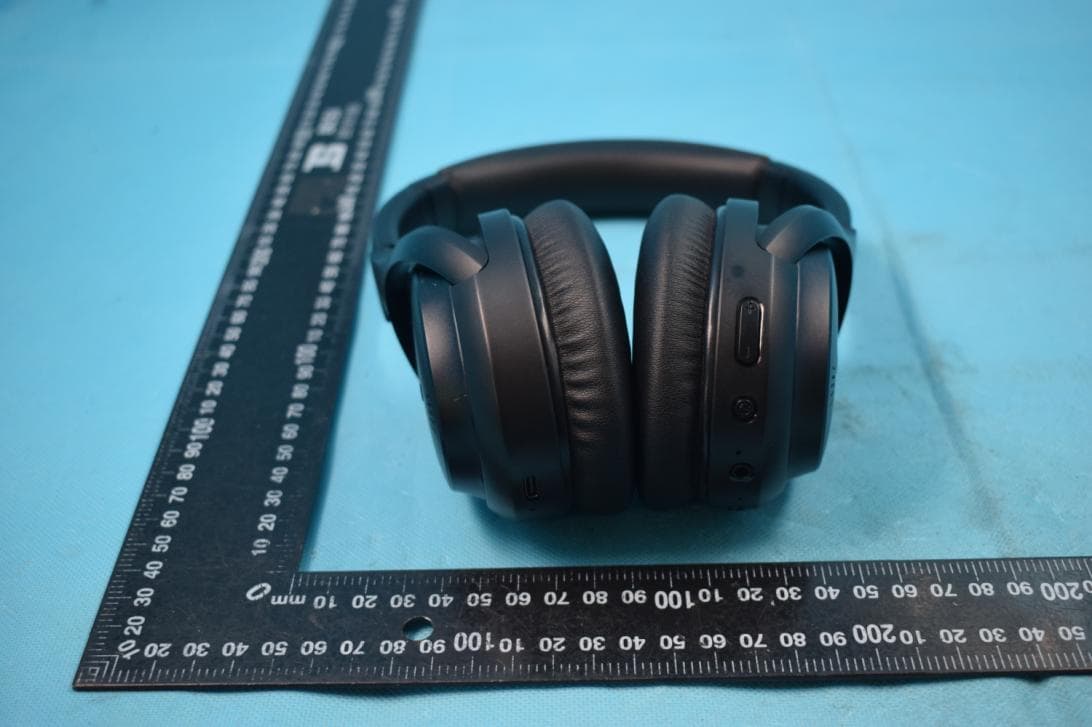

Page 1 of 4 Report No.: STS1912310 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: B049 Photo 1 Photo 2 Page 2 of 4 Report No.: STS1912310 Photo 3 Photo 4 Page 3 of 4 Report No.: STS1912310 Photo 5 Photo 6 Page 4 of 4 Report No.: STS1912310 Photo 7

PANTONE Cool Gray 9 C 3.9mm 30.4mm 22.7mm 3.0mm Manufacture:ShenZhen Aoni Electronic Industry Co., Ltd. Address:HongHui Industrial Park, 2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Manufacture:ShenZhen Aoni Electronic Industry Co., Ltd. Address:HongHui Industrial Park, 2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Bluetooth ANC Headphones Bluetooth ANC Headphones

Page 1 of 5 Report No.: STS1912310 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: B049 Photo 1 Photo 2 BT Antenna Page 2 of 5 Report No.: STS1912310 Photo 3 Photo 4 Page 3 of 5 Report No.: STS1912310 Photo 5 Photo 6 Page 4 of 5 Report No.: STS1912310 Photo 7 Photo 8 Page 5 of 5 Report No.: STS1912310 Photo 9 Photo 10

FCC ID : Z63-P9B049 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : Z63-P9B049 Maximum measured transmitter power. BT5.0+EDR The Worst Case Mode 2402-2480MHz Detector PEAK GFSK 1±1 dBm π/4-DQPSK 1±1 dBm 8DPSK 1±1 dBm Remark: The worst case gain of the antenna is 2.95dBi. Protocol Channel Frequency (GHz) Output Power to Antenna (dBm) Tune Up Power (dBm) Tune Up Power (mW) Result Limit GFSK 2.441 1.8 2 1.58 0.50 3 π/4-DQPSK 2.441 1.77 2 1.58 0.50 3 8DPSK 2.441 1.75 2 1.58 0.50 3 Threshold at which no SAR required is 0.5≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1912310W02 Issued for ShenZhen Aoni Electronic Industry Co., Ltd. HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Product Name: Bluetooth ANC Headphones Brand Name: N/A Model Name: B049 Series Model: B050, B054, B055, B056, B057, B058, B059, B060, B062, B066, B067, B068, B069, B075, B076, B077, B082, B083, B084, B085, B079 FCC ID: Z63-P9B049 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 72 Report No.: STS1912310W02 TEST RESULT CERTIFICATION Applicant’s Name ................... : ShenZhen Aoni Electronic Industry Co., Ltd. Address .................................. : HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Manufacture's Name .............. : ShenZhen Aoni Electronic Industry Co., Ltd. Address .................................. : HongHui Industrial Park,2nd LiuXian Road, Xin'An streets, District 68, Bao'an District, ShenZhen, China Product Description Product Name ........................ : Bluetooth ANC Headphones Model Name ........................... : B049 Series Model .......................... : B050, B054, B055, B056, B057, B058, B059, B060, B062, B066, B067, B068, B069, B075, B076, B077, B082, B083, B084, B085, B079 Test Standards ....................... : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date of receipt of test item ......... : 26 Dec. 2019 Date (s) of performance of tests : 26 Dec. 2019 ~ 14 Jan. 2020 Date of Issue ............................. : 14 Jan. 2020 Test Result ................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sunday Hu) Authorized Signatory : (Vita Li) Page 3 of 72 Report No.: STS1912310W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 29 4.1 LIMIT 29 4.2 TEST PROCEDURE 29 4.3 TEST SETUP 29 4.4 EUT OPERATION CONDITIONS 29 4.5 TEST RESULTS 30 5. NUMBER OF HOPPING CHANNEL 45 5.1 LIMIT 45 5.2 TEST PROCEDURE 45 5.3 TEST SETUP 45 5.4 EUT OPERATION CONDITIONS 45 5.5 TEST RESULTS 46 6. AVERAGE TIME OF OCCUPANCY 47 6.1 LIMIT 47 6.2 TEST PROCEDURE 47 6.3 TEST SETUP 47 6.4 EUT OPERATION CONDITIONS 47 6.5 TEST RESULTS 48 7. HOPPING CHANNEL SEPARATION MEASUREMEN 54 7.1 LIMIT 54 Page 4 of 72 Report No.: STS1912310W02 Table of Contents Page 7.2 TEST PROCEDURE 54 7.3 TEST SETUP 54 7.4 EUT OPERATION CONDITIONS 54 7.5 TEST RESULTS 55 8. BANDWIDTH TEST 61 8.1 LIMIT 61 8.2 TEST PROCEDURE 61 8.3 TEST SETUP 61 8.4 EUT OPERATION CONDITIONS 61 8.5 TEST RESULTS 62 9. OUTPUT POWER TEST 68 9.1 LIMIT 68 9.2 TEST PROCEDURE 68 9.3 TEST SETUP 69 9.4 EUT OPERATION CONDITIONS 69 9.5 TEST RESULTS 70 10. ANTENNA REQUIREMENT 71 10.1 STANDARD REQUIREMENT 71 10.2 EUT ANTENNA 71 Page 5 of 72 Report No.: STS1912310W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 14 Jan. 2020 STS1912310W02 ALL Initial Issue Page 6 of 72 Report No.: STS1912310W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(iii) Number of Hopping Frequency PASS -- 15.247(a)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 72 Report No.: STS1912310W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150…
