Z63-Q2C013Bluetooth Dongle

User manual 使用说明书 Bluetooth Dongle C013 蓝牙适配器C013 Catalogue 1.Overview ............................................................................................................................................ 3 2. Basic operating functions ............................................................................................................... 4 3. Indicator light ..................................................................................................................................... 4 4.Bluetooth pairing and connection .................................................................................................. 5 5.Specification ....................................................................................................................................... 6 6. FCC Statement -----------------------------------------------------------------------------------------------------7 1. Overview 包装清单Packing ： A. Bluetooth Dongle : 1台 B．User manual: 1份 USB接口 指示灯 2. 基本操作功能 Basic operation functions 1.开机Power on：将USB接口插入电脑设备供电后自动开机After inserting the USB interface into the computer equipment for power supply, it will start automatically。 2.关机Power off：拔出USB即关机。 Unplug the USB and turn it off. 3.配对状态Pairing：插入电脑后开机后，自动进入配对状态，搜索附近的蓝牙耳 机。After the computer is plugged in and turned on, it automatically enters the pairing state and searches for nearby Bluetooth earphones 4.回连loopback connection：将USB重新插入电脑后再开耳机/开耳机后再将 USB插入电脑，或超出连接距离断开重新返回连接距离后（在耳机linkloss时间 范围内），都可以回连配对过的蓝牙耳机。 The Bluetooth headset can be connected back after the USB is reinserted into the computer and then the headset is turned on or the USB is reinserted into the computer after the headset is turned on, or after the connection distance is exceeded and the USB is returned to the connection distance (within the linkloss time range of the headset) 3. 指示灯The indicator light 1，开机Power on: 绿灯闪烁Green lights flashing 2，关机Power off: 绿灯熄灭Green lights goes off 3，配对状态/未连接状态Pairing status/Unconnected status：绿灯闪烁Green lights flashing 4，已连接状态Connected state：绿灯常亮Green light normally on。 5, 耳机静音时，dongle红灯常亮，非静音时dongle绿灯常亮。 The Dongle is red when the headset is silent and green when the headset is not silent. 4. 蓝牙配对与连接Bluetooth pairing and connection A. 首次使用，先将C013插入电脑设备供电开机，进入配对状态（绿灯闪 烁）For first use, insert C013 into computer equipment, power on, and enter pairing state (green light flashing)。 B. 再将配蓝牙耳机开机并尽量靠近C013，30S左右会自动配对上；若是已 配对过，蓝牙耳机每次开机会自动回连已配对过的C013。Then turn on the bluetooth headset and try to get close to C013 . It will be automatically paired in about 30S. If it has been paired, the Bluetooth headset will automatically connect to the paired C013 each time it is turned on C. 在 电 脑端 播 放 音乐 或拨 打 电 话 ，此 时 蓝 牙耳 机 能 听 到音 乐 或 正常 通 话 When playing music or making a phone call on the computer, the Bluetooth headset can hear the music or make a normal conversation。 5. 产品规格Product specifications 蓝牙规范 Bluetooth specification 蓝牙5.0 版本Bluetooth 5.0 频率范围 Operation frequency 2.402-2.480GHz 支持协议 Supported profile A2DP HFP AVRCP 芯片方案 Chip solution 炬芯 ATS2831 使用范围 Operation range 高达10米范围UP to 10 meters CODEC SBC 净重 Net weight 约2g *以上数据均来自奥尼实验室，实际使用时间与环境及音乐不同而会有所差异 * The above data are from Oni lab, the actual use time and environment and music may vary 6. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. 尺寸 Measure 25*15.15*5mm 工作温度 Operating temperature -10—55°C 工作电压范围Operating voltage range 5.0±0.25V • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

SHENZHEN AONI ELECTRONIC CO., LTD Agent Authorization Company: SHENZHEN AONI ELECTRONIC CO., LTD Address: No.5, Bldg., Honghui Industrial Park,2nd Liuxian Road, Xin'An streets, Bao'an District, Shenzhen, China Product Name: Bluetooth Dongle Model Number(s): C013 Product Description: Bluetooth Dongle We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-05-24 Name: tendy Dong Company: SHENZHEN AONI ELECTRONIC CO., LTD

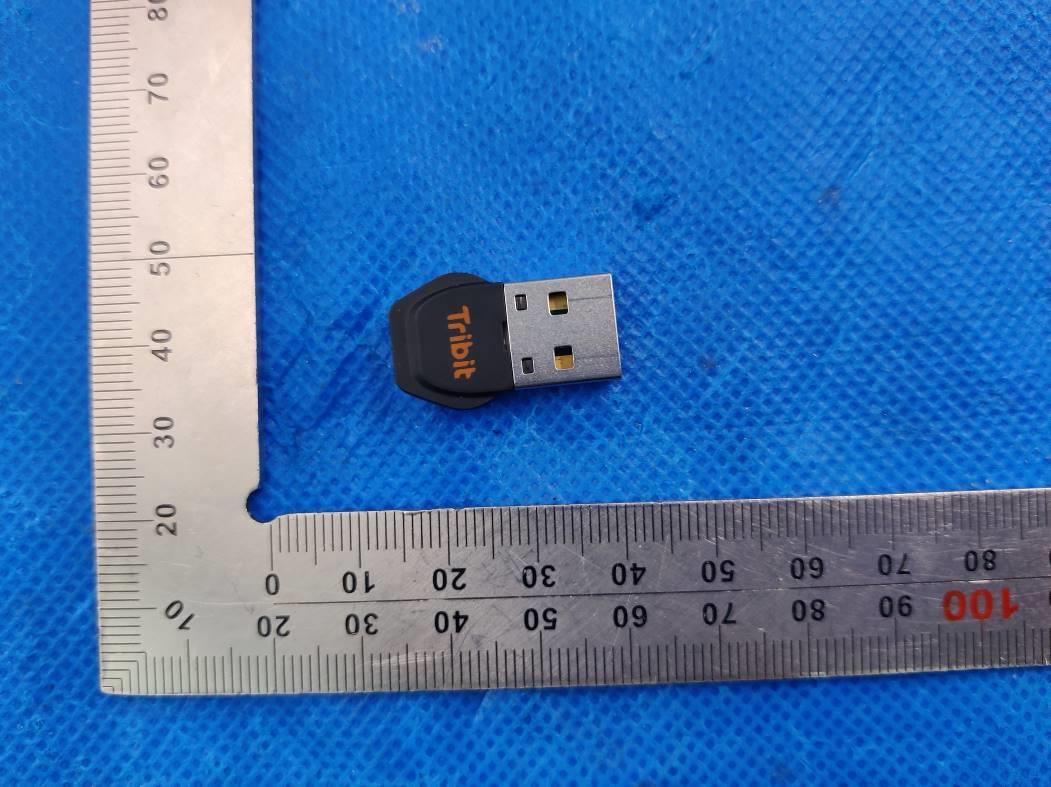

Report No.: AGC00006220501AP02 Page 1 of 3 EXTERNAL PHOTOS TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC00006220501AP02 Page 2 of 3 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC00006220501AP02 Page 3 of 3 LEFT VIEW OF EUT RIGHT VIEW OF EUT ****************************************End of Report****************************************

Bluetooth Dongle Model:C013 FCC ID:Z63-Q2C013 Made in China Manufacturer: SHENZHEN AONI ELECTRONIC CO., LTD Address: No.5,Bldg.,Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen 20mm 18mm 丝印：透明亮哑油 Bluetooth Dongle Model:C013 FCC ID:Z63-Q2C013 Made in China Manufacturer: SHENZHEN AONI ELECTRONIC CO., LTD Address: No.5,Bldg.,Honghui Industrial Park, 2nd Liuxian Road, Baoan District, Shenzhen

Report No.: AGC00006220501AP02 Page 1 of 2 INTERNAL PHOTOS OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 BT Antenna Report No.: AGC00006220501AP02 Page 2 of 2 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 ****************************************End of Report****************************************

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth Dongle Model Name C013 FCC ID Z63-Q2C013 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR&EDR: P t =-5.259dBm=0.30mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.30mW / 5mm).[√2.402GHz)]=0.093<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE: P t =-5.276dBm=0.30mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.30mW / 5mm).[√2.402GHz)]=0.093<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 44 FCC Test Report Report No.: AGC00006220501FE02 FCC ID : Z63-Q2C013 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Dongle BRAND NAME : ANC, aoni MODEL NAME : C013 APPLICANT : SHENZHEN AONI ELECTRONIC CO., LTD DATE OF ISSUE : May 23, 2022 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00006220501FE02 Page 2 of 44 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 23, 2022 Valid Initial Release Report No.: AGC00006220501FE02 Page 3 of 44 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. BANDWIDTH .................................................................................................................................................. 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 19 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 19 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 19 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 19 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 26 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 26 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 26 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 26 11. RADIATED EMISSION ................................................................................................................................. 28 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 28 11.2. TEST SETUP .......................................................................................................................................... 29 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 30 11.4. TEST RESULT ..................…

Text truncated - open the document above for the full version.

Report No.: AGC00006220501AP01 Page 1 of 2 TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC00006220501AP01 Page 2 of 2 AC POWER LINE CONDUCTED TEST SETUP RF CONDUCTED TEST SETUP ****************************************End of Report*************************************
