Z6BNC213WNETWORK CAMERA

1 User's Manual V3.26 Network Camera Please read this manual carefully before you attempt to install this product and retain it for your future reference. 2 Contents MAIN FEATURES................................................................................................................................. 5 INSTALLATION..................................................................................................................................... 8 NETWORK CAMERA SCREEN AND SETUP WINDOW............................................................ 13 Operating Bar...................................................................................................................................... 15 Viewing the camera from your mobile phone................................................................................. 17 Network Camera Setting Interface................................................................................................... 18 Camera................................................................................................................................................ 20 Camera Setup ................................................................................................................................ 20 Stream Setup ................................................................................................................................. 21 OSD Setup..................................................................................................................................... 23 Night Vision Setup (IR IPCAM) ...................................................................................................24 Network................................................................................................................................................ 25 Wireless Setup............................................................................................................................... 25 TCP/IP Setup................................................................................................................................. 27 PPPoE Setup ................................................................................................................................. 28 DDNS Setup.................................................................................................................................. 29 UPNP Setup .................................................................................................................................. 31 Alarm.................................................................................................................................................... 34 Motion Detection .......................................................................................................................... 34 Schedule Setup .............................................................................................................................. 36 Alarm Management....................................................................................................................... 37 Periodic Sending ........................................................................................................................... 39 Buffer Management ...................................................................................................................... 41 Alarm Server....................................................................................................................................... 42 FTP Server .................................................................................................................................... 42 e-Mail Server................................................................................................................................. 43 HTTP Server ................................................................................................................................. 44 SD Functions....................................................................................................................................... 45 Record on Alarm ........................................................................................................................... 45 Snapshot on Alarm ........................................................................................................................ 47 Continuous Record........................................................................................................................ 48 Snapshot at Interval....................................................................................................................... 49 SD FTP Sending............................................................................................................................ 50 Browse SD Card............................................................................................................................ 51 Format SD Card ............................................................................................................................ 52 Tools..................................................................................................................................................... 53 System Identity ............................................................................................................................. 53 User Management ......................................................................................................................... 54 Date & Time.................................................................................................................................. 55 Backup or Reset ............................................................................................................................ 56 Firmware Upgrade .......................................................................…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Ethernet AMR926JS USB2.0 Interface 30MHZ 2.4-2.4GHz J11 U1 RTC CrystalCrystal Speaker OUT DC/DC Convertor MIC In 12V POWER Adapter DDR2 DDR2 32.768KHz CMOS Sensor CCIR656 I2C WLAN Module USB NORFLASH SPI RJ45 RJ45 IRLED Board GPIO Transformer TX/RX MIC1MIC1 DDR2 SPI I2C Audio CODEC CCIR655 USB TX/RX GPIO

Shenzhen Anbash Technology CO., LTD. Area B, 4/FL, Block G, Heng Chang Rong Xinghui Technology Park, West Hua Ning Road, Da Lang Community, Bao’an District, Shenzhen, P.R.C ------------------------------------------------------------------------------------------------------- Date: 2012-04-19 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: Z6BNC213W To Whom It May Concern: This letter is to ascertain that Shenzhen Aabash Technology CO., LTD., Network Camera, NC213W has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, E-mail: : [email protected] Phone: 86-755-29407073 Fax: 86-755-23015711

Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: Z6BNC213W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: Z6BNC213W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

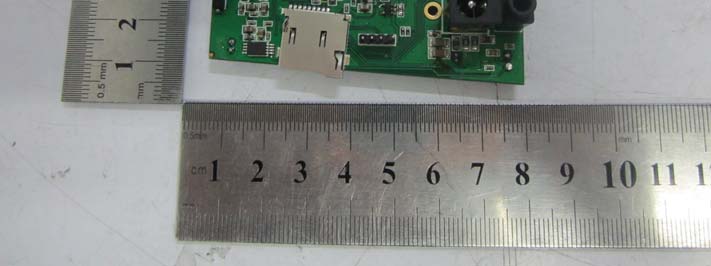

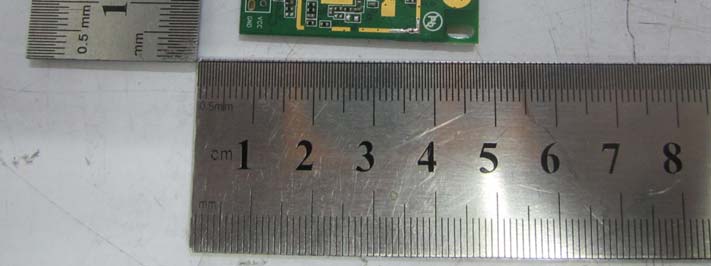

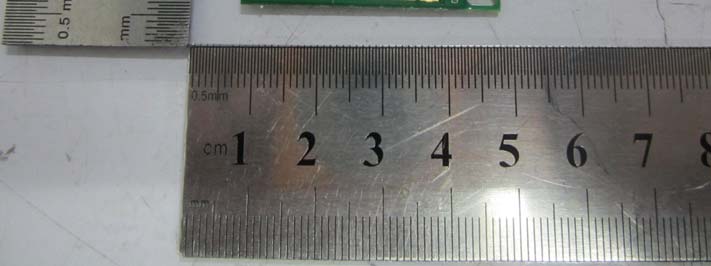

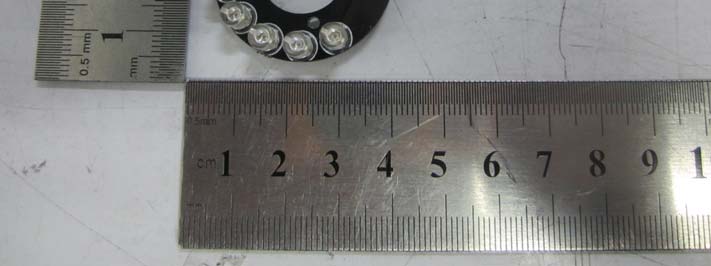

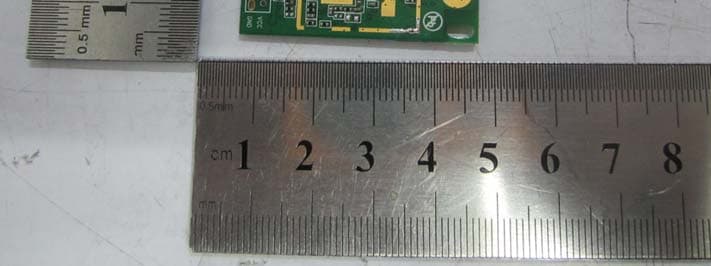

Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 Solder Board-Component View 6

Operational Description The NC213 is a Network camera provides the ability to view the cameras monitored through PC or mobile phone as a live video stream, it supports the telecommunications standard of 3GPP streaming format. All 3G enabled mobile devices and most 2G phones that support the streaming standard of 3GPP are compatible. The U11 is a CMOS image sensor, it captures the image data and the data is send to U1 on in ITU656 format. The U1 on ABIPCAMCORE1VA board is an ARM MCU including a MPEG4/H.264 CODEC, it implements all the control and TCP/IP protocol in the same time it will encode the image data come from U11. While the encoding is complete, the encoding data will be sent out in two ways. While the RJ45 is pluged, NC213 will send the compress image data by the CAT5 wire. While the RJ45 is unplugging, NC213 will send the compress image data by the WLAN Module using Wireless way. The U1 include a Ethernet MAC and PHY, the J15 include a transformer, so U1 sent compress image data to Ethernet by J15. The camera allows live the MPEG-4 and H.264 streams simultaneously. The camera features MPEG4 compression which compresses the video to make transmission faster and more efficient. The MPEG4 and MJPEG image can be transmitted at 30 frames per second. Because of its high-compression ratios, users can monitor high-quality moving images with low delay even at low bandwidths. The image size can be selected according to the network environment and application requirements. Image size can be selected from three modes: 640 x 480, 320 x 240, and 160 x 120. RF Technical Specification: Support WLAN Standards: 802.11b/g Frequency Rang: 2412-2462MHz RF Output Power: 12dBm (Conducted) Data Rate: 1-11Mbps, 6-54Mpbs Modualtion Type: CCK, QPSK, DBPSK, OFDM Base Clock Frequency: 40MHz

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- F/1500 30 1500-100000 -- -- 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result Product Name: Network Camera FCC ID: Z6BNC213W Maximum peak output power at antenna input terminal: 12.35 (dBm) Maximum peak output power at antenna input terminal: 17.179 (mW) Device category: Mobile device Prediction distance: >20 (cm) Prediction frequency: 2412 (MHz) Antenna gain (typical): 4.5 (dBi) Antenna gain (typical): 2.818 (numeric) The worst case is power density at prediction frequency at 20cm: 0.00963 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) 0.00963 (mw/cm 2 ) < 1 (mw/cm 2 ) Result: Pass

5 5 4 4 3 3 2 2 1 1 DD CC BB AA X_CAP0_D[0..7] RESET X_CAP0_D3X_CAP0_D2X_CAP0_D5DVDDS_PCLK BAYER_CLKOUT I2C_SCLRESETADVDD X_CAP0_D6 X_CAP0_D4 X_CAP0_D7 X_CAP0_D1 I2C_SDA X_CAP0_D0 I2C_SCL I2C_SDA S_PCLK BAYER_CLKOUT X_CAP0_CLK DVDD AGND AGND AGND AGND ADVDD AVDD AGND AVDD AGND 3V3 3V3 3V3 3V3 X_CAP0_D[0..7] I2C_SDA I2C_SCL BAYER_CLKOUT X_CAP0_CLK C125 0.1uF C125 0.1uF C128 0.1uF C128 0.1uF L20 10uHL20 10uH C120 10UF/6V C120 10UF/6V C63 10UF/6V C63 10UF/6V C124 0.1uF C124 0.1uF C130 10UF/6V C130 10UF/6V R6422RR6422R C127 0.1uF C127 0.1uF U11 OV7725-CSP2 U11 OV7725-CSP2 D8 F6 ADVDD A1 RSTB A2 VREFH A3 FSIN A4 SCL A5 D0 A6 DOVDD E5 D6 E6 D9 F1 D3 F2 XCLK F3 DOGND F4 D2 F5 PWDN C1 HREF B6 SDA B5 AGND B4 AVDD B3 VREFN B2 ADGND B1 PCLK E4 DVDD E3 D1 E2 D7 E1 D4 D6 D5 D1 VSYNC C6 C122 0.1uF C122 0.1uF L17 10uHL17 10uH C131 10UF/6V C131 10UF/6V R68 10K R68 10K C123 0.1uF C123 0.1uF L16 1A,60ohm@100MHz L16 1A,60ohm@100MHz C129 0.1uF C129 0.1uF Q1 BL8503-18PRM Q1 BL8503-18PRM Vss 1 Vin 3 Vout 2 5 5 4 4 3 3 2 2 1 1 DD CC BB AA UART0_TX UART0_RX ActiveLED PowerLED UART0_TX UART0_RX ActiveLED Default_Set WPSKEY WPSLED IRCUTA IRCUTB PowerLED IR_ON POWER 12V 12V 3V3 3V3 3V3 1V8 1V0 12V 12V 3V3 ALIVE_3V3 3V3 3V3 3V3 12V 12V 3V3 PGND 12V 3V3 UART0_RX UART0_TX ActiveLED Default_Set WPSKEY IRCUTA IRCUTB PowerLED WPSLED IR_ON PMU(ALIVE Domain) Power Close to GM8126 Vout = 0.8*(1+R1/R2) Active HIGH C121 10nF C121 10nF C140 10uF/25V C140 10uF/25V D6 LED-1 D6 LED-1 21 U4 BA6208 UTC U4 BA6208 UTC VCC 1 BOUT 2 GND1 3 AOUT 4 BIN 5 GND2 6 GND3 7 AIN 8 K1 TS-04MK1 TS-04M T7T7 C45 10uF/25V C45 10uF/25V C126 10nF C126 10nF C117 22uF/10V C117 22uF/10V R431KR431K C69 0.1uF C69 0.1uF J11 JACK-3-90 J11 JACK-3-90 1 3 2 C44 10uF/25V C44 10uF/25V T3T3 C47 0.01uF C47 0.01uF U10 RT8259/MP2359 U10 RT8259/MP2359 GND 2 EN 4 FB 3 SW 6 VIN 5 BST 1 T2T2 T1T1 R1910RR1910R D5 B230LA/B240A D5 B230LA/B240A R77 19.6K/1% R77 19.6K/1% D3 B230LA/B240A D3 B230LA/B240A R312RR312R C115 47uF/10V C115 47uF/10V U9 RT8259/MP2359 U9 RT8259/MP2359 GND 2 EN 4 FB 3 SW 6 VIN 5 BST 1 T8T8 R331KR331K BT1 MS614S BT1 MS614S T5T5 R76 47K R76 47K R78 4.99K/1% R78 4.99K/1% C116 22uF/10V C116 22uF/10V C138 10nF C138 10nF R35 10K R35 10K D4 B230LA/B240A D4 B230LA/B240A R74 19.6K/1% R74 19.6K/1% R57 47K R57 47K K2 TS-04MK2 TS-04M R491KR491K L21 2.2uH/GS32 L21 2.2uH/GS32 R80 10K R80 10K R73 47K R73 47K R75 24.3K/1% R75 24.3K/1% R42 10K R42 10K D7 LED-2 D7 LED-2 2 4 1 3 Q2 PMBS3904 Q2 PMBS3904 1 3 2 R53 19.6K/1% R53 19.6K/1% C88 10UF/6V C88 10UF/6V U6 RT8259/MP2359 U6 RT8259/MP2359 GND 2 EN 4 FB 3 SW 6 VIN 5 BST 1 C118 10uF/25V C118 10uF/25V R67 47K R67 47K J6 CON2 J6 CON2 R47 47K R47 47K C112 10nF C112 10nF L19 2.2uH/GS32 L19 2.2uH/GS32 R55 62K/1% R55 62K/1% C142 22uF/10V C142 22uF/10V J4 CON2 J4 CON2 R48 47K R48 47K T6T6 R79 47K R79 47K L15 2.2uH/GS32 L15 2.2uH/GS32 C119 0.1uF C119 0.1uF R411KR411K T4T4 L13 GSMA201209-U0300 L13 GSMA201209-U0300 R212RR212R R7010KR7010K D1 BAT54CD1 BAT54C Q6 AO3403 Q6 AO3403 3 1 2 L12 GSMA201209-U0300 L12 GSMA201209-U0300 C97 0.1uF C97 0.1uF C139 10nF C139 10nF C133 47uF/10V C133 47uF/10V C42 10uF/25V C42 10uF/25V 5 5 4 4 3 3 2 2 1 1 DD CC BB AA SPI_FS0 SPI_TXD SPI_TXD SPI_HOLDn SPI_SCLK SPI_FS0 SPI_WPn SPI_RXD SPI_WPnSPI_HOLDn X_SPI_RXD SPI_SCLK SPI_RXDX_SPI_RXD 3V33V33V3 SPI_FS0 SPI_SCLK SPI_TXD X_SPI_RXD Closed to connector/SPI Flash C81 0.1uF C81 0.1uF R38 10K R38 10K R4022RR4022R U3 25Q64CVS1G U3 25Q64CVS1G CS 1 DO 2 WP 3 GND 4 DI 5 CLK 6 HOLD 7 VCC 8 R39 10K R39 10K 5 5 4 4 3 3 2 2 1 1 DD CC BB AA DDR_DQ15 DDR_DQSn1 DDR_DQS1 XDDR2_DQS0 DDR_DQM1 XDDR2_DQSB0 DDR_CLK DDR_CLKn DDR_A13 XDDR2_DQS1 XDDR2_DQSB1 DDR_DQ6XDDR2_DQ6 DDR_DQ7XDDR2_DQ7 DDR_DQ10XDDR2_DQ10 XDDR2_DQ11DDR_DQ11 DDR_DQ8XDDR2_DQ8 DDR_DQ15XDDR2_DQ15 DDR_DQ13XDDR2_DQ13 DDR_DQ4XDDR2_DQ4 DDR_DQ12XDDR2_DQ12 DDR_DQ3XDDR2_DQ3 DDR_DQ1XDDR2_DQ1 DDR_DQM0XDDR2_DQM0 XDDR2_DQM1DDR_DQM1 XDDR2_DQ14DDR_DQ14 DDR_VREF XDDR2_WEBDDR_WEn XDDR2_ADDR8DDR_A8 XDDR2_ADDR11DDR_A11 XDDR2_CKEDDR_CKE XDDR2_ADDR6DDR_A6 DDR_CLK DDR_CLKn XDDR2_ADDR4DDR_A4 DDR_ODT DDR_CKE DDR_RASn XDDR2_CSBDDR_CSn DDR_CASn DDR_WEn XDDR2_CASBDDR_CASn XDDR2_RASBDDR_RASn DDR_A0 DDR_CSn DDR_A1 DDR_A2 XDDR2_CKB XDDR2_ODTDDR_ODT DDR_A4 DDR_A3 XDDR2_CK DDR_A6 DDR_A5 XDDR2_ADDR0DDR_A0 DDR_A8 DDR_A7 XDDR2_ADDR2DDR_A2 DDR_A11 DDR_A9 DDR_A10 DDR_BA0 XDDR2_ADDR12DDR_A12 XDDR2_ADDR9DDR_A9 DDR_A12 DDR_BA1 XDDR2_ADDR3DDR_A3 XDDR2_ADDR7DDR_A7 DDR_BA2 XDDR2_ADDR5DDR_A5 XDDR2_ADDR10DDR_A10 XDDR2_BA1DDR_BA1 XDDR2_ADDR1DDR_A1 XDDR2_BA2DDR_BA2 XDDR2_BA0DDR_BA0 DDR_DQ1 DDR_DQ0 DDR_DQ2 DDR_DQ3 DDR_DQ4 DDR_CLK DDR_CLKn DDR_DQ5 DDR_DQ9XDDR2_DQ9 DDR_DQS0 DDR_DQ6 DDR_DQS1 DDR_DQSn0 DDR_DQSn1 DDR_DQ7 DDR_DQS0 DDR_DQSn0 DDR_DQ8 DDR_DQ9 DDR_DQM0 XDDR2_DQ5DDR_DQ5 DDR_DQ10 DDR_A13XDDR2_ADDR13 DDR_DQ11 DDR_DQ12 XDDR2_DQ2DDR_DQ2 DDR_DQ13 DDR_DQ14 XDDR2_DQ0DDR_DQ0 DDR_VREF XDDR2_WEB XDDR2_CKB XDDR2_RASB XDDR2_ADDR[0..13] XDDR2_CK XDDR2_BA[0..2] XDDR2_CKE XDDR2_CASB XDDR2_DQ[0..15] XDDR2_CSB XDDR2_DQS[0..1] XDDR2_DQSB[0..1] XDDR2_DQM[0..1] XDDR2_ODT 1V8 1V8 1V8 1V8 1V8 XDDR2_ADDR[0..13] XDDR2_BA[0..2] XDDR2_CK XDDR2_CKB XDDR2_CKE XDDR2_CSB XDDR2_WEB XDDR2_RASB XDDR2_CASB XDDR2_DQ[0..15] XDDR2_DQS[0..1] XDDR2_DQSB[0..1] XDDR2_DQM[0..1] XDDR2_ODT ≠12mils Differential Trace Impedance 100 ohms DDR2-DRAM 5mils Signal-End Trace Impedance 50 ohms 5mils 5mils ≠12mils ≠20mils ≠20mils 10mils 5mils ≠12mils Winbond W971GG6JB-25 K4T1G164QE-HCE7 V59C1G01168QBJ25A ProMOS Samsung 1Gb Nanya NT5TU64M16DG-AC 1Gb 1Gb 1Gb Hynix HY5PS1G1631C 1Gb V59C1G01808QBJ25A x16 x16 x16 x16 x16 x81Gb C71 10UF/6V C71 10UF/6V C78 0.01uF C78 0.01uF R2522RR2522R C77 0.01uF C77 0.01uF R2422RR2422R C94 0.1uF C94 0.1uF C80 1uF C80 1uF U2 K4T1G164QE-HCE7,FBGA84 U2 K4T1G164QE-HCE7,FBGA84 VDD1 A1 NC1 A2 VSS1 A3 VSSQ2 B2 UDQS A8 VDDQ1 A9 LDQ0 G8 LDQ1 G2 LDQ2 H7 LDQ3 H3 LDQ4 H1 LDQ5 H9 LDQ6 F1 LDQ7 F9 UDQ0 C8 UDQ1 C2 UDQ2 D7 UDQ3 D3 UDQ4 D1 UDQ5 D9 UDQ6 B1 UDQ7 B9 NC2 E2 BA2 L1 NC3 R3 NC4 R7 UDQS B7 UDM B3 VSSQ4 D2 VSSQ3 B8 VSSQ1 A7 VSSQ6 E7 VSSQ7 F2 VSSQ8 F8 VSSQ5 D8 VSSQ9 H2 VSSQ10 H8 VDDQ2 …

Text truncated - open the document above for the full version.

Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I PAGE 1 OF 49 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Shenzhen Anbansh Technology CO ., LTD. Area B, 4/FL, Block G, Heng Chang Rong Xinghui Technology Park, West Hua Ning Road, Da Lang Community, Bao’an District, Shenzhen, P.R.C FCC ID: Z6BNC213W Report Concerns: Original Report Equipment Type: Network Camera Model: NC213W Report No.: STR12038237I Test Date: 2012-03-29 to 2012-04-15 Issue Date: 2012-04-17 Tested By: Jason Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I PAGE 2 OF 49 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. CONDUCTED EMISSIONS ....................................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.203 - ANTENNA REQUIREMENT................................................................................................................10 4.1 STANDARD APPLICABLE.......................................................................................................................................10 4.2 TEST RESULT........................................................................................................................................................10 5. POWER SPECTRAL DENSITY ...........................................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. 6-DB BANDWIDTH ................................................................................................................................................16 6.1 STANDARD APPLICABLE.......................................................................................................................................16 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................16 6.3 TEST PROCEDURE.................................................................................................................................................16 6.4 ENVIRONMENTAL CONDITIONS..............................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) Shenzhen Anbash Technology CO., LTD. Model: NC213W REPORT NO.: STR12038237I-1 FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
