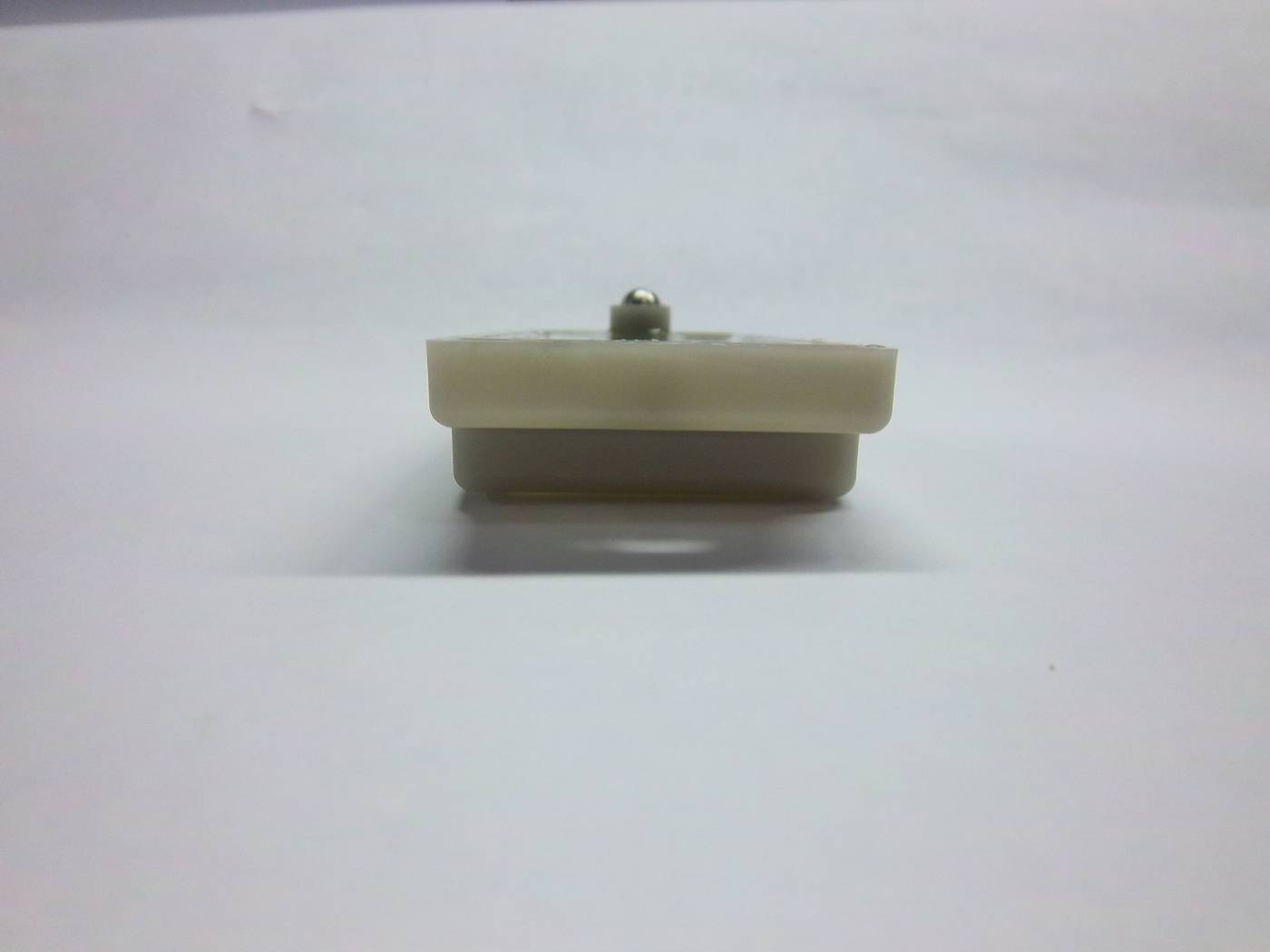

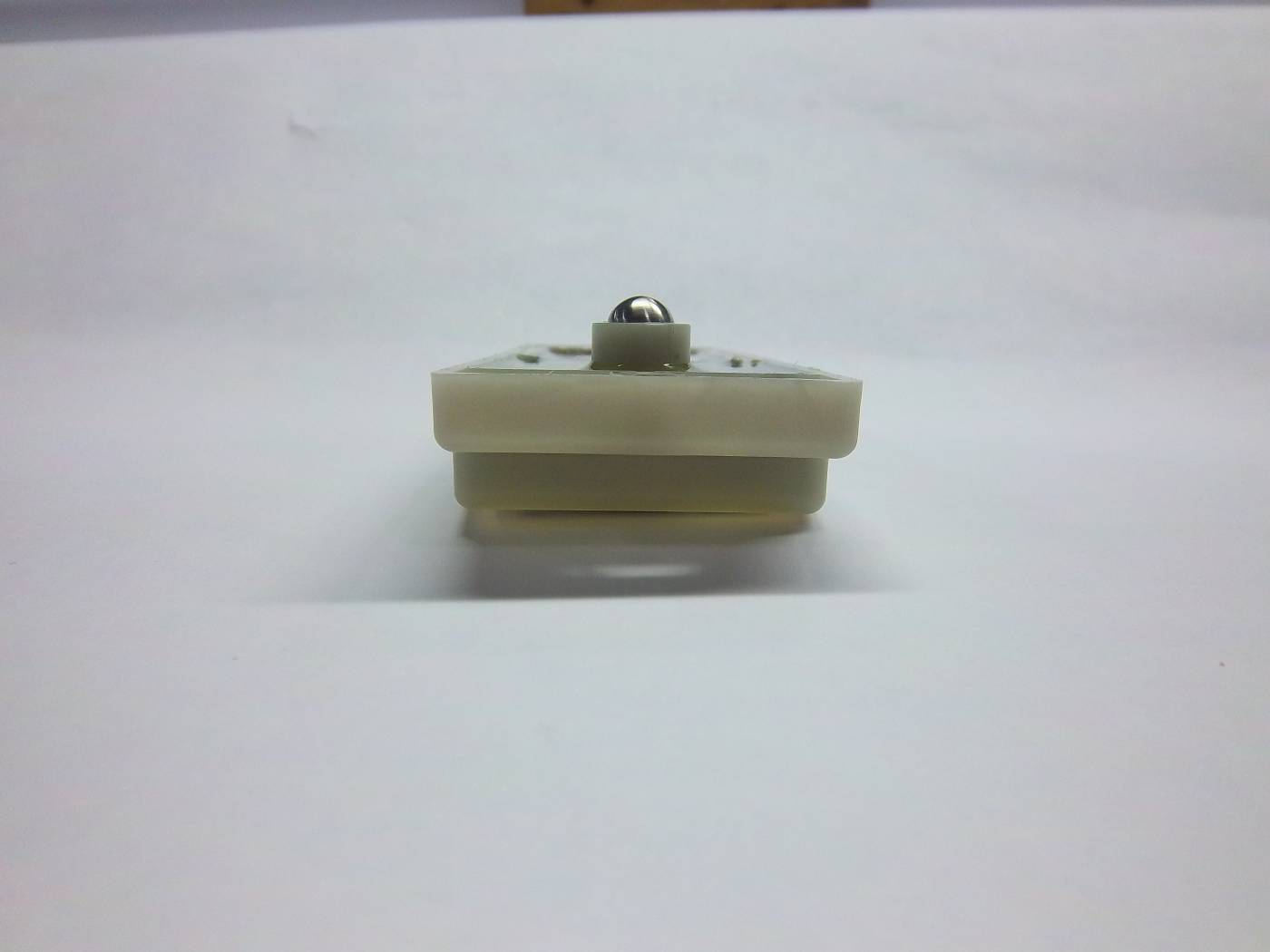

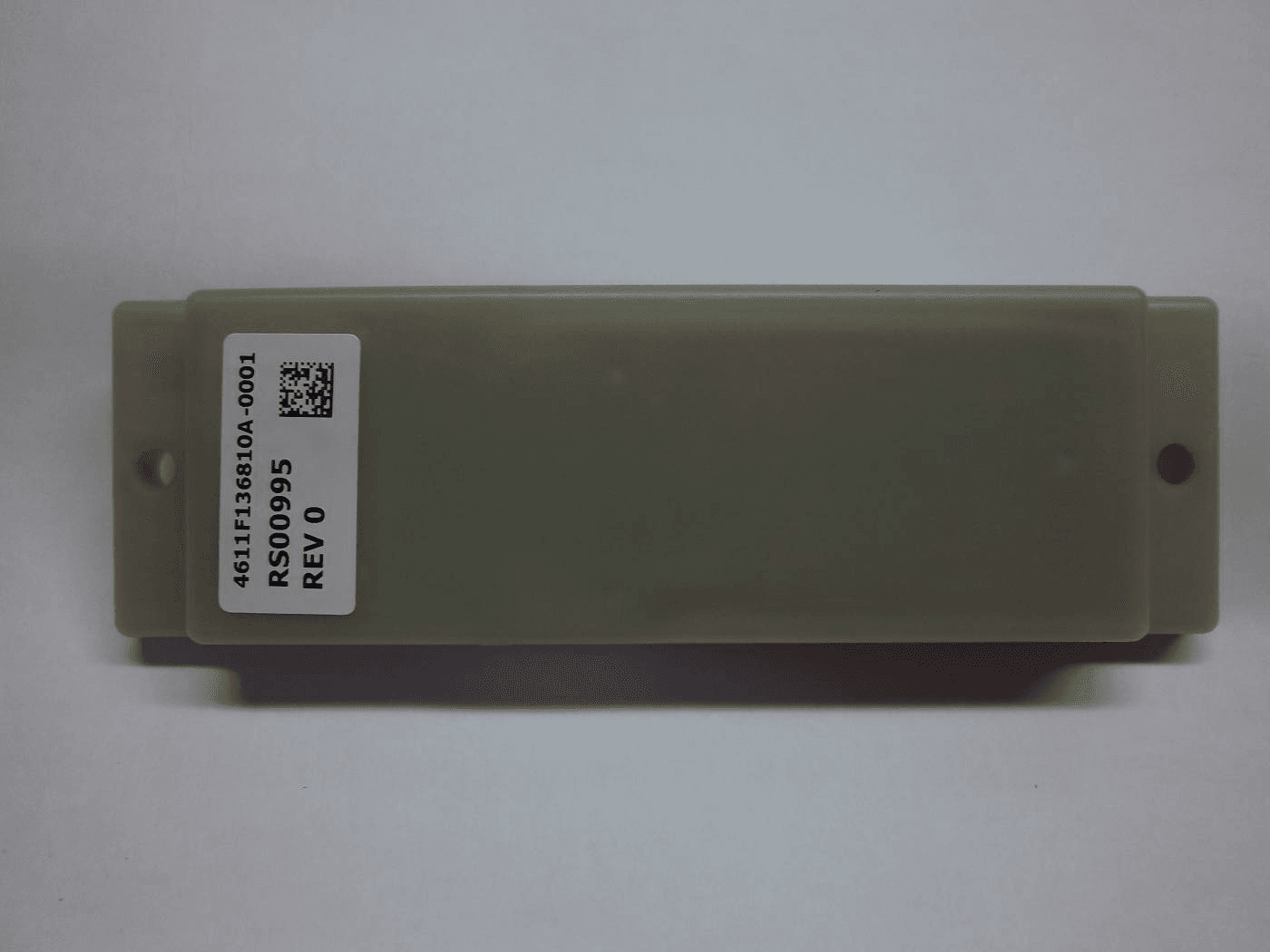

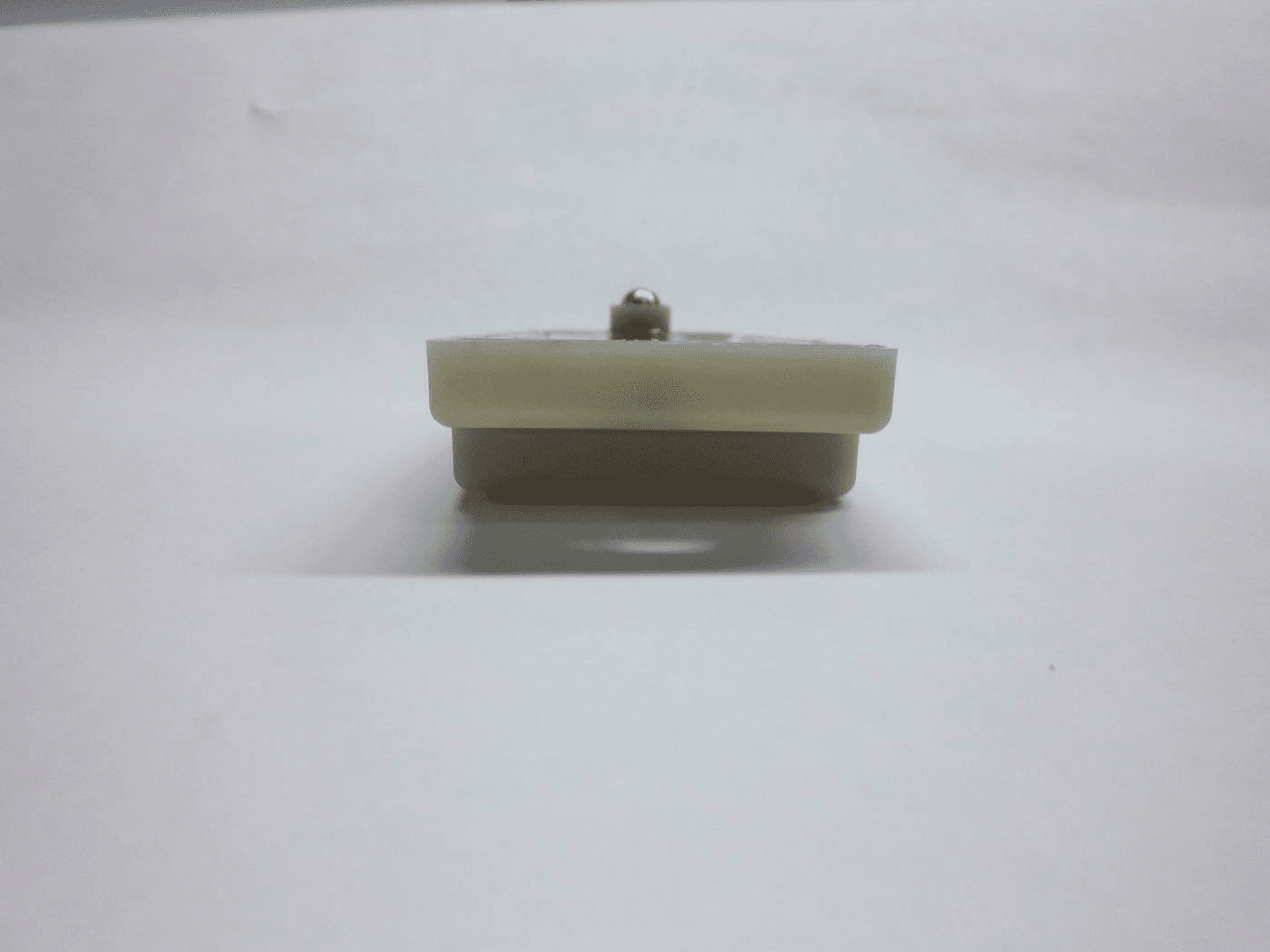

Z6NRS00995Drum Temperature Sensor

® On-Board Ready-Mix Concrete Process Control Drum Temperature Sensor Installation Instructions Revision A (Draft) Published by Verifi LLC 4992 Rialto Road West Chester, Ohio 45069    2011 Verifi LLC All rights reserved. Published 2011 http://verifitechnologies.com/ No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose except for Verifi LLC use. Verifi® and its logo are registered trademarks of W. R. Grace & Company, USA. For help with the Drum Temperature Sensor or this document, please call 513-874-3222. Verifi® Drum Temperature Sensor Installation Revision History iii Revision History Revision Revision Date (yyyy-mm-dd) Author (Initials) Location Description of Change A (Draft) 2012-02-01 DJM Initial Draft Warnings Any changes or modifications to this product not expressly approved by Verifi LLC may void your authority to operate this equipment. Verifi® PC Board Programming Instructions Table of Figures iv Table of Contents Revision History ................................................................................................................ iii Warnings ............................................................................................................................ iii Table of Contents............................................................................................................... iv Installation ........................................................................................................................... 1 Required Materials ............................................................................................................................................................ 1 Binding ................................................................................................................................................................................ 1 Installation Preparation .................................................................................................................................................... 2 Sensor Installation.............................................................................................................................................................. 2 Regulatory Compliance ...................................................................................................... 3 FCC ..................................................................................................................................................................................... 3 Industry Canada ................................................................................................................................................................ 3 Verifi® PC Board Programming Instructions Programming the Board 1 Installation Required Materials Electric Drill 9/16” drill bit Silicon adhesive (Dow Corning 732 clear sealant or equivalent is recommended.) Binding 1. With the PCS PCB powered up and in normal operation mode, install the included suitcase jumper onto JMP3. See Figure 1. Figure 1 2. Verify that LED’s D22 and D50 are lit. See Figure 1. D50 JMP3 D22 Verifi® PC Board Programming Instructions Programming the Board 2 3. Slowly swipe a magnet over the surface of the Drum Temperature Sensor. Note: The magnet must pass over the magnetic reed switch. See Figure 2. Figure 2 4. Continue to swipe the magnet over the Drum Temperature Sensor until D22 begins to flash. See Figure 1. 5. Remove the suitcase jumper from JMP3. See Figure 1. Installation Preparation 1. Drill a 9/16” hole in the drum inspection hatch. 2. Apply silicon adhesive to the potted side of the Drum Temperature Sensor. Sensor Installation 1. With the body of the sensor lined up with the long axis of the drum. Line up the Drum Temperature Sensors tip with the 9/16” hole in the inspection hatch. 2. Firmly press the Sensor into place. 3. Wipe away any excess adhesive that may squeeze out. 4. Allow the silicon adhesive to cure before returning the truck to service. Magnetic Reed Switch Verifi® PC Board Programming Instructions Programming the Board 3 Regulatory Compliance FCC FCC ID: Z6NRS00995 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada IC ID: 9523A-RS00995 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement
