Z6VXT107GPS Tracker

1 GPS TRACKER USER MANUAL UPreface Thank you for purchasing GPS Vehicle Tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or omissions in this document. 2 Content 1 Summary ------------------------------------------------------------------------------------------------- 2 2 Application ------------------------------------------------------------------------------------------------ 3 3 Hardware Description -------------------------------------------------------------------------------- 3 3.1 Front Face ------------------------------------------------------------------------------------ 3 3.2 Rear Face -------------------------------------------------------------------------------------- 4 3.3 Interior --------------------------------------------------------------------------------------- 4 4 Specifications ---------------------------------------------------------------------------------------- 4 5 SIM Card Installation ------------------------------------------------------------------ 5 6 Startup ------------------------------------------------------------------------------------- ----------- 5 7 Usage --------------------------------------------------------------------------------------------------- -- 7 8 Track Modes ---------------------------------- --------- -------- ---------------------------------------- 7 8.1 Initialization ---------------------------------- --------- -------- 7 8.2 Change Password ---------------------------------- --------- -------- 7 8.3 Authorization ---------------------------------- --------- -------- 7 8.4 Auto-Track ---------------------------------- --------- -------- 9 8.5. Tlimit Function---------------------------------- --------- -------- 8.6. GPS refurbish setting---------------------------------- --------- -------- 8.7 Reboot remotely---------------------------------- --------- -------- 8.8 Geo-fence ---------------------------------- --------- -------- 9 8.9 Movement Alert ---------------------------------- --------- -------- 11 8.10 Overspeed Alert ---------------------------------- --------- -------- 11 8.11 IMEI Checking ------------------------------ --------- -------- 12 8.12 Time differences setting ----------------------------------------------------------------- 12 8.13 SOS Function --------------------------------- --------- -------- 13 8.14 SMSLINK --------------------------------- --------- --------------------------------------13 8.15 SMSONE ----------------------------------------------------------------------------13 8.16 Low Battery Alert --------------------------- --------- -------- 14 8.17 SMS Center ------------------------------ --------- -------- 14 8.18 GSM ID ------------------------------------------------------------------ 14 8.19 Motion Sensor ------------------------------ --------- -------- 14 8.20 SD Card Function ------------------------------ --------- -------- 15 8.21 Switch on/off ------------------------------ --------- -------- 15 9 Monitoring Mode ------------------------------ --------- -------- 15 10 Talking Mode ------------------------------ --------- -------- 15 11 GPRS Setting -------------------------------------------------------------------- 16 12 Cautions --------------------------------------------------------------------- 17 3 13 Faults & Solutions --------------------------------------------------------------------- 17 1 Summary Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS,and guard against theft of Vehicle. 2 Applications z Vehicle rental / Fleet management,etc. z Protect the child / the elder / the disabled / pet,etc. z Businessmen safety. z Personnel management. z Covert tracking. 3 Hardware Description 3.1 Front Face For call USB Port,for charging and upgrade the firmware Microphone Speaker GSM indicator light Working modes indicator light GPS indicator light SOS Button Necklace holder 4 3.2 Rear Face 3.3 Interior Battery SD Card SIM Card Battery back cover 5 4 Specs. Content Specs. Dim. 80MM*56MM*22MM Weight 50g Network GSM/GPRS Band 850/1800/1900Mhz or 900/1800/1900Mhz GPS chip SIRF3 chip GSM/GPRS module Siemens MC55 or Siemens MC56 GPS sensitivity -159dBm GPS accuracy 5m Time To First Fix Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s Battery DC5V input Battery Chargeable changeable 3.7V 800mAh Li-ion battery Standby 100hours Storage Temp. -40°C to +85°C Operation Temp. -20°C to +55°C Humidity 5%--95% non-condensing 5 SIM card installation Make sure that there is no call transfer and call display is on, and PIN code off. Steps 1. Open the Battery back cover 2.Open the SIM card slot and SD card slot,and put one SIM card and one SD card 6 Pull leftwards and insert the simcard Fasten downwards ,make sure the SD card is mounted Push downwards to open the cover After SD card is mounted， Fasten the simcard ri ghtwards 7 6 Startup z Put the SIM card and SD card in place,install batteries locator will automatically boot. z After startup middle green quickly ablaze, left GMS yellow colored long bright 2 seconds, right of GPS blue lights for not bright, and 20-30 seconds in the middle of the green light will shine out 1 second for 3 seconds left GMS parade every 3 seconds, a shiny for GSM now working normally. z about 40 to 90 seconds later, this product will be receiving GPS signals on the right of the blue lights began bright 1 second destroy 3 seconds, when this product blue when the light is you can play the following Settings. (note: blue lights on time with the current GPS signals about, the current not GPS signals blue lamp will not bright. 7 Usage The tracker has three working modes: …

Text truncated - open the document above for the full version.

C BACD 65 4 3 2 1 DBA MCU GMS MODULE GPS MODULE GSM Antenna GPS Antenna DC Power

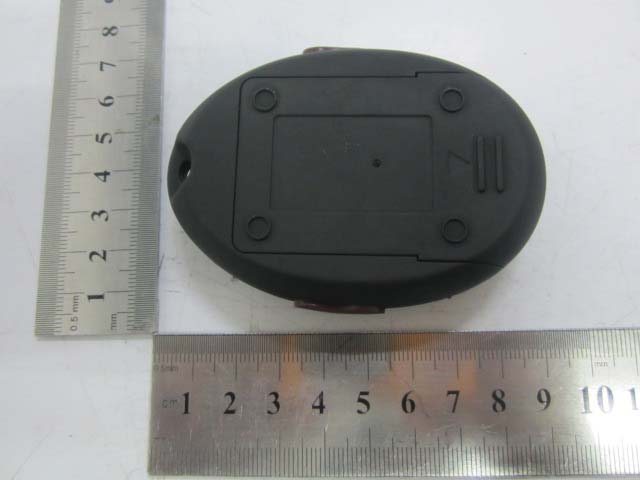

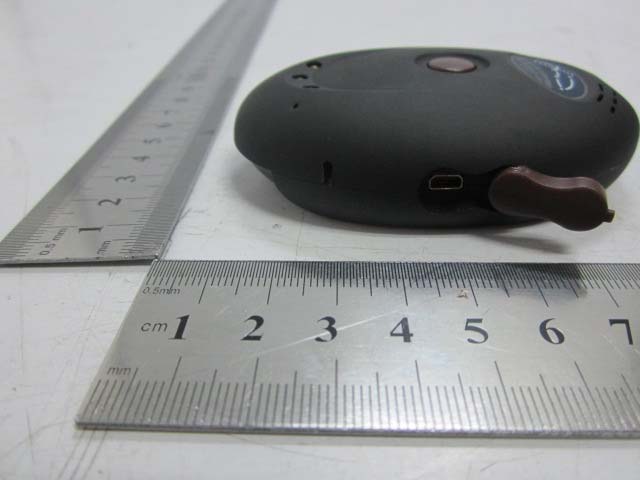

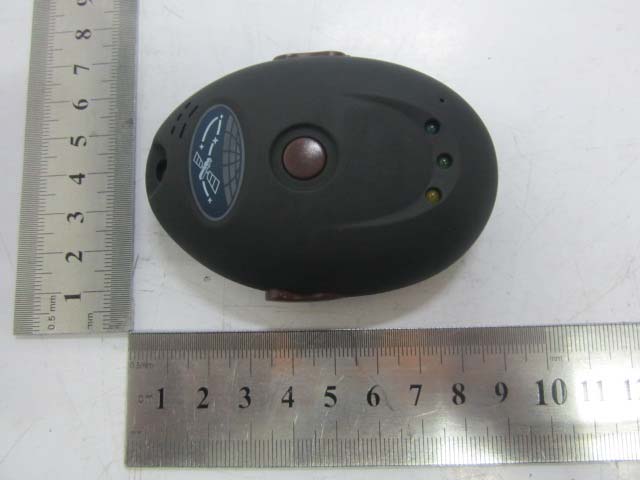

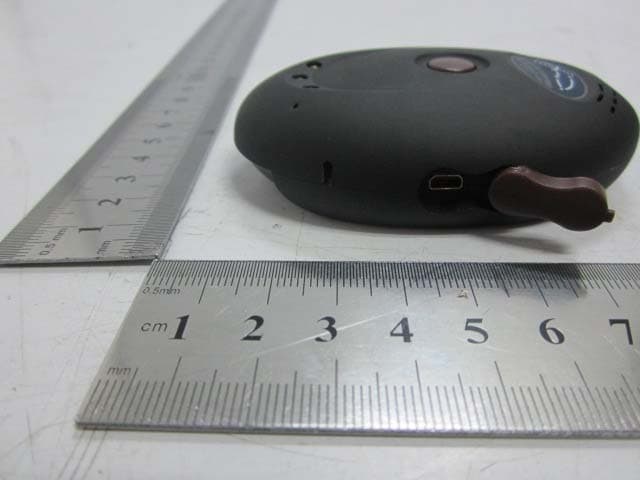

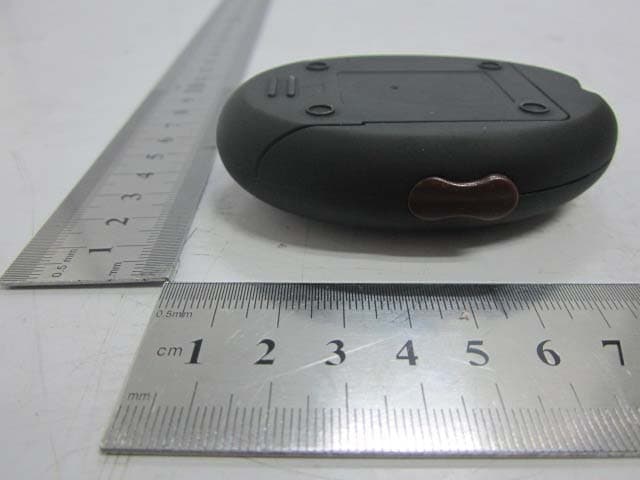

Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E EUT View 3 EUT View 4 Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E EUT View 5

Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: Z6VXT107 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: Z6VXT107 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

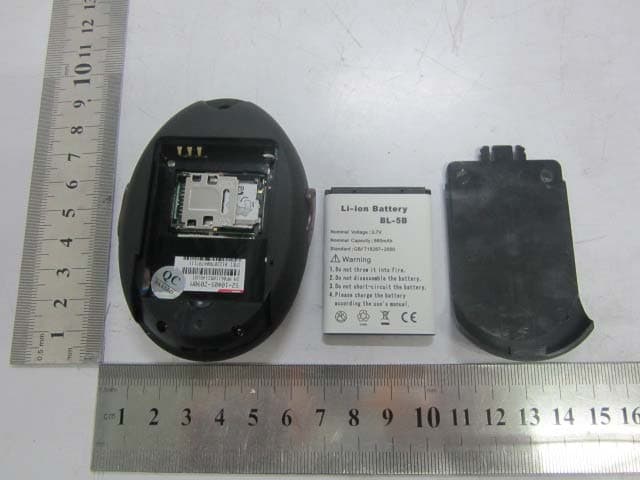

Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E Solder Board-Component View 1 Solder Board-Component View 2

Operational Description GSM module is a quad band module which support GSM/GPRS. RF circuit is based on RFMD. It works at quad bands, GSM850, and PCS1900 band. The PAM RF7161 include RF power amplifier and antenna switch for quad-band (GSM850/PCS1900) GSM/GPRS applications. The device isdesigned for use as the final portion as the transmitter section in a GSM850/ PCS1900 handset and eliminates the need for a PA-toantenna swithch module matching network. The device provides 50ohm matched input and output ports requiring no external matching components. The PNX4851 PA ramp DAC controls the output power level of the RF PA. The ramps aare stored in the designerd ramp RAM.the RTEC then asserts a strobe to transfer the first ramp to the DAC; Following each strobe,the next ramp profile is loaded, and a subsequent pulse causes the next ramp to transmit, and so on. At the end of a transmit sequence, the first ramp profile is re-selected. PA ramp DAC features include the following: - Controls PA ramp output power - Ramp values are preserved until overwritten - Each ramp has 16 values, interpolated to produce a 64-step ramp over 8.25 bits 10-bit resolution on DAC values

No.NameSpectrial DescriptionPlaceNumber 1 capacitance 0402/10PC111 C118 CA1173 2 capacitance 0402/22PC9 C10 C13 C15 4 3 capacitance 0402/30PC5 C6 C106 C1074 4 capacitance 0402/100PC2 C24 C253 5 capacitance 0402/102C4 C11 C1213 6 capacitance 0402/103C1 C1202 7 capacitance 0402/104 C3 C7 C8 C12 C14 C17 C19 C20 C21 C34 C112 C114 C115 C116 C119 C20218 8 capacitance 0402/105C22 C232 9 capacitance 1206/106C16 C18 C205 E1034 10 capacitance 100UF/10V B#E1 E1022 11 capacitance 470UF/6V V#E2 E3 2 12 resistance 0402/0RR5 R11 R34 R36 R2025 13 resistance 0402/100RR15 R432 14 resistance 0402/680RR7 R82 15 resistance 0402/1KR9 R10 R16 R23 R31 R33 R40 R41 R48 D 10 16 resistance 0402/1.8KR37 R1152 17 resistance 0402/2.2KR39 R53 R54 R554 18 resistance 0402/4.7KR81 R822 19 resistance 0402/10K R1 R2 R6 R17 R20 R22 R29 R35 R38 R42 R44 R52 R62 R72 R200 R20116 20 resistance 0402/22K R30 R45 R463 21 resistance 0402/24.9K ±1%R13 R502 22 resistance 0402/36KR47 1 23 resistance 0402/47KR3 R4 R21 R26 R27 R326 24 resistance 0402/68KR49 R512 25 resistance 0402/62K ±1%R141 26 LED/DIPф3.0MM/DIPD1 1 27 LED/DIPф3.0MM/DIPD81 28 LED/DIPф3.0MM/DIPD91 29 diodeRB521S-30 (0402)D4 D52 30 diodeIN4007/SMDD3 1 31 LED603 D6 1 32 diodeIN5817/SMDD71 33 audion2907Q21 34 audion3265Q1 Q32 35 MOSMOS2303MOS1 MOS22 36 Micф6.0MM -38DBMMIC11 37 inductance 0603/10UHL3 L42 38 inductance 0402/100NHL100 L1012 39 inductance 0603/47NHL51 40 ICLPC2134 PQFPU21 41 ICSP706RE 3.3V SOP-8U11 42 ICXT3442DU61 43 ICXC62FP3302 SOP-89U1011 44 ICXC6209F332MR 23-5U2011 45 ICCN3066 CSPCN11 46 ICHWD2190UA11 48 crystal11.0592M/ф2.0MMY1001 49 crystal32.768K/ф2.0MMY11

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (Agilent 8960) measures the GSM device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. z For GSM 850 band： PCL = 5, PWR = 33 +/‐ 1dBm z For PCS 1900 band： PCL = 5, PWR = 30 +/‐ 1dBm Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a Agilent 8960 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

Report No.: 11BS001R-HP-US-P03V01 Page: 1 of 89 SAR Test Report Product Name : GPS Tracker Model No. : XT107 FCC ID : Z6VXT107 Applicant : Shenzhen Xexun Technology Co., Ltd. Address : F/7, GuangRong Building, DuoLi Industrial Estate, MeiHua Rd., ShangMeiLin, FuTian District, ShenZhen, China Date of Receipt : 01/11/2011 Date of Test : 01/11/2011 Issued Date : 02/11/2011 Report No. : 11BS001R-HP-US-P03V01 Report Version : V1.1 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 11BS001R-HP-US-P03V01 Page: 2 of 89 Test Report Certification Issued Date: 02/11/2011 Report No.: 11BS001R-HP-US-P03V01 Product Name : GPS Tracker Applicant : Shenzhen Xexun Technology Co., Ltd. Address : F/7, GuangRong Building, DuoLi Industrial Estate, MeiHua Rd., ShangMeiLin, FuTian District, ShenZhen, China Manufacturer : Shenzhen Xexun Technology Co., Ltd. Address : F/7, GuangRong Building, DuoLi Industrial Estate, MeiHua Rd., ShangMeiLin, FuTian District, ShenZhen, China Model No. : XT107 FCC ID : Z6VXT107 Brand Name : XEXUN EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR ̺ 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.304 W/kg Body: 0.343 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Robin Wu) Approved By : (Engineering Supervisor: Marlin Chen) Report No.: 11BS001R-HP-US-P03V01 Page: 3 of 89 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan:VCCI Report No.: 11BS001R-HP-US-P03V01 Page: 4 of 89 TABLE OF CONTENTS DescriptionPage 1. General Information ................................................................................................. 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 7 2. SAR Measurement System ...................................................................................... 8 2.1. DASY5 System Description ................................................................................. 8 2.1.1. Applications ..................................................................................................... 9 2.1.2. Area Scans ...................................................................................................... 9 2.1.3. Zoom Scan (Cube Scan Averaging) ................................................................ 9 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ........................................... 9 2.2. DASY5 E-Field Probe ........................................................................................ 10 2.2.1. Isotropic E-Field Probe Specification ............................................................. 10 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 11 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 11 2.5. Robot ................................................................................................................. 12 2.6. Light Beam Unit ................................................................................................. 12 2.7. Device Holder .................................................................................................... 13 2.8. SAM Twin Phantom ........................................................................................... 13 3. Tissue Simulating Liquid ....................................................................................... 14 3.1. The composition of the tissue simulating liquid ................................................. 14 3.2. Tissue Calibration Result ................................................................................... 15 3.3. Tissue Dielectric Parameters for Head and Body Phantoms ............................. 16 4. SAR Measurement Procedure ............................................................................... 17 4.1. SAR System Validation ...................................................................................... 17 4.1.1. Validation Dipoles .......................................................................................... 17 4.1.2. Validation R…

Text truncated - open the document above for the full version.

Report No.: 11BS001R-HP-US-P03V01 Page: 60 of 89 Appendix D. Probe Calibration Data Report No.: 11BS001R-HP-US-P03V01 Page: 61 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 62 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 63 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 64 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 65 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 66 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 67 of 89 Appendix E. Dipole Calibration Data Report No.: 11BS001R-HP-US-P03V01 Page: 68 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 69 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 70 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 71 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 72 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 73 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 74 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 75 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 76 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 77 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 78 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 79 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 80 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 81 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 82 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 83 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 84 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 85 of 89 Appendix F. DAE Calibration Data Report No.: 11BS001R-HP-US-P03V01 Page: 86 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 87 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 88 of 89 Report No.: 11BS001R-HP-US-P03V01 Page: 89 of 89

A B C D A B C D 1 2 3 4 5 6 C106 30P Y100 11.0592M C107 30P 1 2 3 U101 XC62FP3302 E102 100UF C114 104 C115 104 C116 104 L100 100NH MIC1 CA117 10P D1 C112 104 E103 106 L101 100NH C118 10P C111 10P C119 104 E1 100UF C120 103 C121 102 R115 2.2K E2 470UF E3 470UF C3 104 1 P0.21 2 P0.22 3 RTXC1 4 P1.19 5 RTXC2 6 VSS 7 V3A 8 P1.18 9 P0.25 10 P0.26 11 P0.27 12 P1.17 13 P0.28 14 P0.29 15 P0.30 16 P1.16 17 P0.31 18 VSS 19 P0.00 20 P1.31 21 P0.1 22 P0.2 23 V3 24 P1.26 25 VSS 26 P0.3 27 P0.4 28 P1.25 29 P0.5 30 P0.6 31 P0.7 32 P1.24 33 P0.8TXD1 34 P0.9RXD1 35 P0.10 36 P1.23 37 P0.11 38 P0.12 39 P0.13 40 P1.22 41 P0.14 42 VSS 43 V3 44 P1.21 45 P0.15 46 P0.16 47 P0.17 48 P1.20 49 VBAT 50 VSS 51 V3 52 P1.30 53 P0.18 54 P0.19 55 P0.20 56 P1.29 57 RESET 58 P0.23 59 VSSA 60 P1.28 61 XTAL2 62 XTAL1 63 VREF 64 P1.27 U2 LPC2131 L3 10UH/0603 L4 10UH/0603 1 SM/VCC 3 SM/CLK 5 21 2 SM/RST 4 GND 6 SM/IO 20 7 SD/D2 8 SD/D3 9 SD/CMD 10 SD/VCC 11 SD/CLK 12 SD/GND 13 SD/D0 14 SD/D1 15 SD/CD 16 SD/GND SD-SM1 SD-SM R2 10k R3 47k R4 47k R5 10k R6 10k C5 30P Y1 32.768k C6 30P R9 1K R10 1K R20 10k R21 47k R22 10K 1 2 PW1 1 2 SOS1 R26 47K R27 47K C14 104 C15 22p R62 10k R13 24.9k R14 62k R15 100R R17 10K C34 104 R72 10k R47 36k R50 24.9k R19 0R R79 * R81 2.2K R82 2.2K 1 2 3 4 5 6 7 8 U6 12F509I C11 102 C12 104 R11 0R C7 104 1 2 3 4 5 6 7 8 U1 706E 1 PWRKEY 2 PWRKEY_OUT 3 DTR 4 RI 5 DCD 6 DSR 7 CTS 8 RTS 9 TXD 10 RXD 11 DISP_CLK 12 DISP_DATA 13 DISP_DC 14 DISP_CS 15 VDD_EXT 16 NRESET 17 GND 18 GND 19 MIC_P 20 MIC_N 21 SPK_P 22 SPK_N 23 LINEIN_R 24 LINEIN_L 25 ADC 26 VRTC 27 DBG_TXD 28 DBG_RXD 29 GND 30 SIM_VDD 31 SIM_DATA 32 SIM_CLK 33 SIM_RST 34 SIM_PRESENCE 35 PMW1 36 PMW2 37 SDA 38 SCL 39 GND 40 GPIO1 41 GPIO2 42 GPIO3 43 GPIO4 44 GPIO5 45 GND 46 GND 47 GPIO6 48 GPIO7 49 GPIO8 50 GPIO9 51 GPIO10 52 NETLIGHT 53 GND 54 GND 55 VBAT 56 VBAT 57 VBAT 58 GND 59 GND 60 RF_ANT 61 GND 62 GND 63 GND 64 GND 65 GND 66 STATUS 67 GPIO11 68 GPIO12 SIM2 SIM900 R7 680R R8 680R R23 1K D2 1K R24 * D4 ESD5Z5.UT1G R25 * R28 * C8 104 R29 10k C9 22P C10 22P C13 22P ANT1 Q2 2907 R38 10k R39 2.2K R40 1K R42 10k R52 10K Q1 3265 R54 2.2K R55 2.2K D9 R56 10K MIC2+ [1] MIC2- [1] 4.2V [1,2,3] XTAL1 [1] XTAL2 [1] XTAL1 [1] XTAL2 [1] VDD3.3 [1,2] V3.3A [1] VSSA [1] SD-CLK [1] SD-CLK [1] SD-SSEL1 [1] SD-MOSI [1] SD-MOSI [1] SD-MISO [1] SD-MISO [1] SD-VDD [1] SD-MISO [1] SD-VDD [1] SD-MOSI [1] SIM_CLK [1] SIM_VCC [1] SIM_IO [1] SIM_RST [1] RTXC1 [1] RTXC2 [1] RTXC1 [1] RTXC2 [1] V3.3A [1] VDD3.3 [1,2] VDD3.3 [1,2] GPRS_TXD0 [1,2] GPRS_RXD0 [1,2] RES [1] VSSA [1] GPS_TXD [2] GPS_RXD [2] SD-CLK [1] SD-SSEL1 [1] VDD3.3 [1,2] VDD3.3 [1,2] SHAKE_IN [2] KEY_SOS [1] KEY_POWER [1] VDD3.3 [1,2] LED_POWER [1] LED_POWER [1] SDA [1] G [1,2] SD_WP SD-SSEL1 [1] KEY_POWER [1] BATT_VOLTAGE [1] 4.2V [1,2,3] BATT_VOLTAGE [1] KEY_SOS [1] GPS_POWER [2] GPRS_POWER [1] GPRS_DTR [1] RES [1] BATT_CHARGE [1] BATT_CHARGE [1] VDD5V [2] V3.3A [1] 4.2V [1,2,3] VDD3.3 [1,2] GPRS_RXD0 [1,2] GPRS_TXD0 [1,2] VDD3.3 [1,2] VDD3.3 [1,2] CLK [1] GPRS_RESET [2] VDD [1] VDD [1] SDA [1] CLK [1] VDD3.3 [1,2] 4.0V [1,2] VDD3.3 [1,2] GPRS_TXD0 [1,2] GPRS_RXD0 [1,2] GPRS_DTR [1] GPRS_INT [1] GPRS_INT [1] VDD3.3 [1,2] GPRS_POWER [1] VDD3.3 [1,2] MIC2+ [1] MIC2- [1] 4.2V [1,2,3] SIM_VCC [1] SIM_CLK [1] SIM_IO [1] SIM_RST [1] SIM_VCC [1] SIM_IO [1] SIM_RST [1] SIM_CLK [1] SIM_IO [1] 4.0V [1,2] VDD3.3 [1,2] VDD3.3 [1,2] G [1,2] RES [1] VDD3.3 [1,2] DAT [1] DAT [1] AUDIO_POWER [3] VDD3.3 [1,2] SPP [3] SPN [3] 4.2V [1,2,3] 4.2V [1,2,3] GPS_LED [2] A B C D A B C D 1 2 3 4 5 6 R202 0R R201 10K R200 10K C1 103 1 2 3 4 5 U201 XC6209F332MR C202 104 C203 104 C205 106 C206 104 R1 10K GND SIG GND J1 C2 100p C4 102 1 RXB 2 TXB 3 1PPS 4 TXA 5 RXA 6 GND 7 GPIO10 8 GPIO0 9 GPIO1 10 RRPWRUP 11 ON_OFF 12 VBACK_UP 13 VIN 14 GPIO14 15 GPIO15 16 GPIO13 17 GND 18 BOOTSEL 19 VOUT 20 GND 21 RF_IN 22 GND GPS1 GPS22 L5 47NH R18 * 1 2 3 4 5 6 7 8 13 14 USB1 D3 IN4007 R16 1K R41 1K MOS1 MOS2303 D5 RB521S-30 R30 22K MOS2 MOS2303 Q3 3265 R31 1K R32 47K R33 1K 1 TEMP 2 ISET 3 GND 4 VIN 5 VIN 6 BAT 7 BAT 8 DONE 9 CHRG 10 FB 11 CN1 CN3066 R34 0R R35 1.8K R36 0R C16 106 C17 104 C18 106 C19 104 D6 R37 1.8K 1 2 3 BAT1 3P D7 IN5817 SHAKE1 R43 100R R44 10K D8 R53 2.2K VDD3.3 [1,2] GPS_RXD [1,2] GPS_TXD [1,2] V_BAT [2] 4.2V [1,2,3] GPS_POWER [1] GPS_3.3V [2] GPS_ANT [2] GPS_ANT [2] GPS_3.3V [2] V_BAT [2] GPS_TXD [1,2] GPS_RXD [1,2] VDD3.3 [1,2] 4.2V [1,2,3] GPRS_RXD0 [1] GPRS_TXD0 [1] GPS_TXD [1,2] VDD5V [1,2] G [1] BAT+ [2] 4.2V [1,2,3] VDD5V [1,2] 4.2V [1,2,3] 4.0V [1] GPRS_RESET [1] VDD5V [1,2] BAT+ [2] BAT+ [2] VDD5V [1,2] BAT+ [2] SHAKE_IN [1] VDD3.3 [1,2] VDD3.3 [1,2] GPS_LED [1] D 1 SHUTDOWD 2 BYPASS 3 +IN 4 -IN 5 VO1 6 VDD 7 GND 8 VO2 UA1 R45 22k R46 22k C20 104 C21 104 C22 105 R48 1k R49 68k R51 68k C23 105 SP1 C24 100P SPK+ [3] SPK+ [3] AUDIO_POWER [1] SPP [1] SPN [1] 4.2V [1,2]

Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I PAGE 1 OF 51 FCC PART 22H&24E FCC PART 22H&24E Measurement and Test Report For Shenzhen Xexun Technology Co., Ltd. F/7, GuangRong Building, DuoLi Industrial Estate, MeiHua Rd., ShangMeiLin, FuTian District, ShenZhen, China FCC ID: Z6VXT107 Report Concerns: Original Report Equipment Type: GPS Tracker Model: XT107 Report No.: STR11108018I Test Date: 2011-10-20 to 2011-10-29 Issue Date: 2011-11-02 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I PAGE 2 OF 51 FCC PART 22H&24E TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. RF EXPOSURE .........................................................................................................................................................7 3.1 STANDARD APPLICABLE.........................................................................................................................................7 3.2 TEST RESULT..........................................................................................................................................................7 4. RF OUTPUT POWER ..............................................................................................................................................8 4.1 STANDARD APPLICABLE.........................................................................................................................................8 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.3 TEST PROCEDURE...................................................................................................................................................8 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. EMISSION BANDWIDTH .....................................................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. OUT OF BAND EMISSION AT ANTENNA TERMINAL .................................................................................20 6.1 STANDARD APPLICABLE.......................................................................................................................................20 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................20 6.3 TEST PROCEDURE.................................................................................................................................................20 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................20 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................20 7. SPURIOUS RADIATION EMISSIONS................................................................................................................37 7.1 MEASUREMENT UN…

Text truncated - open the document above for the full version.

Shenzhen Xexun Technology Co., Ltd. Model: XT107 REPORT NO.: STR11108018I FCC PART 22H&24E EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Spurious Radiation Test Setup (30MHz - 1GHz) Spurious Radiation Test Setup (Above1G) …

Text truncated - open the document above for the full version.
