Novarum Mobile 4.9 User Manual Copyright Novarum, Inc. 2011 Novarum Mobile 49 User Manual 1.0 Introduction Novarum Mobile v1.0 is the world’s first mobile 802.11n compatible MIMO intelligent ra- dio for the public safety 4.9 GHz band. It is based on a unique combination of Ubiqui- ti’s M5 MIMO radio and Novarum’s mobile roaming firmware. It provides a high power, MIMO, state-of-the-art intelligent radio that provides powerful wireless communication and roaming features. Novarum Mobile v1.0 maximizes the wireless performance of Ubiquiti M Series products which are based on IEEE 802.11n. This guide presents the detailed description of the Novarum Mobile operating system version 1.0 which is based on the v5.2 M Series products provided by Ubiquiti Net- works, Inc. All the Novarum Mobile based devices support the following infrastructure operating modes: Station (Wireless Client); Station WDS (Wireless Client Repeater); Access Point ; Access Point WDS (Repeater). All the Novarum Mobile based devices support the following network modes: Transpar- ent Layer2 bridge; Router. It can be configured as both a fixed base station and as a mobile client device capable of communication while in vehicular motion. This manual documents the parameters that can be set for a specific network applica- tion. Access to this parameters is restricted to Novarum, which will custom configure every customer unit. Customers are prevented from directly changing any of these pa- rameters. Novarum’s Mobile 49 units are restricted to 10 MHz channels in the 4.9 public safety band with 20 dBm output power. A range of external antennas are avail- able for both fixed and mobile applications. FCC ID:Z7B-MOBILE49 THIS DEVICE COMPLIES WITH PART 15 and 90 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY IN- TERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDE- SIRED OPERATION. Novarum Mobile 4.9 User Manual Copyright Novarum, Inc. 2011 2.0 Configuration Parameters Each of the web management pages (listed below) contains parameters that affect a specific aspect of the device. None of these pages are directly end user accessible but represent the possible configurations Novarum can supply. [Main] page displays current status of the device and the statistical information. [Wireless] page contains the controls for a wireless network configuration, while covering basic wireless settings which define operating mode, output power, associating details and data security options. Configuration Management Menu Administration and monitoring tools [Network] page covers the configuration of network operating mode, IP settings, packet filtering routines and network services (i.e. DHCP Server). [Advanced] page settings are dedicated for more precise wireless interface control. Air- Max feature and 802.11n specific parameters can be set in this page. Also advanced page includes external signal LED and traffic shaping settings. [Services] page covers the configuration of system management services like SNMP, NTP, System Log, Ping Watchdog and SSH/Telnet server. [System] page contains controls for system maintenance routines, dedicated for admin- istrator account management, device customization, firmware upgrade and configura- tion backup. Web management interface language can be changed in this page also. There are useful network administration and monitoring [Tools] available in every page also: Antenna alignment tool; Site survey tool (also available in AP mode); Ping; Traceroute; Speed test utility (not yet available); 2.1 Main Page The Main Page displays a summary of link status information, current values of basic configuration settings (depending on operating mode), network settings and information, traffic statistics of all the interfaces. Novarum Mobile 4.9 User Manual Copyright Novarum, Inc. 2011 Status Device Name: displays the customizable name (ID) of the Novarum Mobile v1.0 based device. Device Name (Host Name) will be represented in registration screens of the Router Operating Systems and discovery tools. Current Status of the Novarum Mobile v1.0 powered Access Point Wireless Mode: displays the radio interface operating mode. Novarum Mobile v1.0 pow- ered device supports infrastructure wireless networking solution. Access Point (or Ac- cess Point WDS) and Station (or Station WDS) operating modes can be set depending on the network topology requirements. SSID: is the Name of the 802.11 Service Set (established by the Access Point the sta- tions are connected to): Device Name and Wireless Mode While operating in Station mode, displays the SSID of the Access Point where the No- varum Mobile v1.0 powered device has associated. While operating in Access Point mode, displays the SSID of the Novarum Mobile v1.0 powered device. Security: This is the current security setting. "None" value is displayed if wireless securi- ty is disabled. WPA or WPA2 values are displayed if the corresponding wireless security method is used. More information is provided in the Wireless section. Uptime: This is the running total of time the device has been running since last power up (reboot) or software upgrade. The time is expressed in days, hours, minutes and se- conds. Date: indicates the current system date and time, expressed in the form ìyear-month- day hours:minutes:secondsî. Accurate system date and time is retrieved from the Inter- net services using NTP (Network Time Protocol). System date and time will be set to inaccurate default values after each reboot cycle if NTP is not enabled as most of the Novarum Mobile based devices have no autonomous power supply for the internal clock. Channel/Frequency: This is the operating frequency of the 802.11 Service Set (hosted by AP) the client is connected to. 802.11 Channel number corresponds to the operating frequency. More information about the supported channels is provided in the Wire…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: ___November 4, 2011_____ Subject: Confidentiality Request for: ___FCC ID: Z7B-MOBILE49______ Pursuant to FCC 47 CRF 0.457(d) and 0.459, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: __Proprietary documentation____ ______Novarum______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, By: __________________________ ___Sandi McEnery ______________ (Signature/Title 2 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

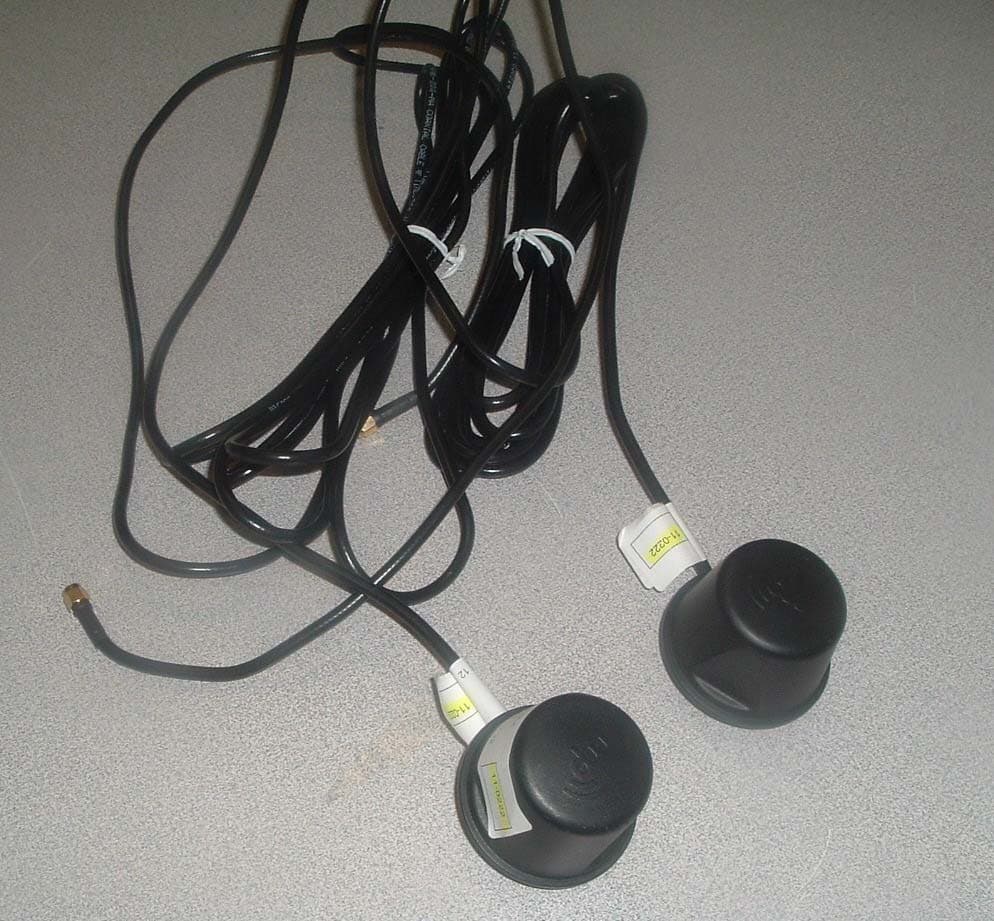

U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 1 of 1 Annex 1- Antenna Photographs Figure 1. Antenna Photograph

U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 1 of 3 Annex 2 - External Photographs Photo 1. Top View 1 U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 2 of 3 Photo 2.Bottom View U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 3 of 3 Photo 3. Top View without POE Cover

U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 1 of 1 Equipment Label Photograph of Equipment Label. Label will go here No greater than 1.25” x 1.75” Novarum Mobile Client Model: Novarum Mobile 49 FCC ID: Z7B-MOBILE49

U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 1 of 2 Annex 3 - Internal Photographs Photo 1 Top Side U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 2 of 2 Photo 1 Bottom Side

91 E. Tasman Dr. | San Jose, CA 95134 | U.S.A. | Tel. 1-408-942-3085| Fax 1-408-351-4973. Tune Up Procedure The RocketM5 units undergo a manufacturing calibration program and test routine following printed circuit board assembly on a per unit basis. The routine encompasses the following: -Programming I/Q chain offsets -Programming and testing target output power levels per tested compliance limits within 1dB tolerance -Testing carrier offset in +/- 10ppm tolerance -Testing data throughput and overall receiver performance levels to internal specification -Testing current consumption within +/-100mA of spec

U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 1 of 1 Maximum Public Exposure to RF (MPE) CFR 15.247 (i) The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S, of 1 mW/cm 2 at a distance, d, of 20 cm from the EUT. Therefore, for: Highest Gain Antenna= 6 dBi Peak Power (Watts) = 0.195 (from Table 9 of Test Report) Gain of Transmit Antenna = 6 dB i = 3.981, numeric (from Table 4 of Test Report) d = Distance = 20 cm = 0.2 m S = (PG/ 4πd 2 ) = EIRP/4A = 0.195(3.981)/4*π*0.2*0.2 = 0.7763/0.503 = 1.543 W/m 2 = (W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.1543 mW/cm 2 which is << less than 1 mW/cm 2

Page 1 of 35 Application For Title 47 FCC Part 2, Subpart J, and FCC Part 90, Subpart Y Certification for Private Land Mobile Radio Services and ANSI/TIA-603-C-2003, Equipment Measurement and Performance Standards. Novarum, Inc. Novarum Mobile 49 4945 - 4985 MHz Transmitter FCC ID: Z7B-MOBILE49 UST Project No: 11-0222 November 3, 2011 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 35 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: UNITED STATES TECHNOLOGIES, INC. (Agent Responsible For Test): By: Name: George Yang Title: Laboratory Manager- Test Engineer Date: November 30, 2011 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of U.S. Technologies. The results contained in this report are subject to the adequacy and representative character of the sample provided. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 3 of 35 MEASUREMENT/TECHNICAL REPORT This report concerns (check one): Original grant X Class II change_____ Equipment type: Transceiver Type of Modulation: OFDM Power Setting: 20 dBm Antenna Gain: 6 dBi Peak out power: 22.90 dBm Max daterate: 100 Mbps Channel bandwidth: 10 MHz Note: The EUT was tested with the settings above for all testing. Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 4 of 35 TABLE OF CONTENTS Paragraph Title Page 1 General Information...........................................................................................................6 1.1 Product Description......................................................................................................6 1.2 Related Submittal(s)/Grant(s)......................................................................................6 2 Test and Measurements...................................................................................................7 2.1 Configuration of Tested System..................................................................................7 2.2 Characterization of Tested System.............................................................................7 2.3 Test Facility....................................................................................................................7 2.4 Test Equipment.............................................................................................................7 2.5 Modifications to Equipment under Test (EUT)...........................................................7 2.6 Antenna Description...................................................................................................12 2.7 RF Power Output (FCC Section 2.1046, 90.1215).................................................13 2.8 Power Spectral Density (2.1047(a) & 90.242(b) (8))..............................................17 2.9 Occupied Bandwidth (FCC Section 2.1049, 90.209, 90.210)..............................21 2.10 Mask M per FCC Part 90.210...................................................................................21 2.11 Spurious Emissions at Antenna Terminals (FCC 2.1051, 2.1057, 90.210)........25 2.12 Frequency Stability (FCC 2.1055, 90.213(a)).........................................................28 2.12.1 Frequency Stability Requirements....................................................................28 2.12.2 Frequency Stability Test Data...........................................................................28 2.13 Field Strength of Spurious Radiation (FCC Section 2.1053, 2.1057, 90.210)....29 2.14 RF Exposure Requirements (1.1310 & 2.1091)......................................................31 2.14.1 Maximum Public Exposure to RF (MPE), Minimum Distance requirements31 2.15 Unintentional Radiator, Radiated Emissions (CFR 15.109 (a))............................32 2.16 Unintentional Radiator Power Lines Conducted Emissions (CFR 15.107).........34 2.17 Measurement Uncertainty..........................................................................................35 2.17.1 Conducted Emissions Measurement Uncertainty...........................................35 2.17.2 Radiated Emissions Measurement Uncertainty..............................................35 U.S. Tech Test Report: FCC Part 90 Certification FCC ID: Z7B-MOBILE49 Report Number: 11-0222 Issue Date: November 3, 2011 Customer: Novarum, Inc. Model: Novarum Mobile 49 Page 5 of 35 List of Figures Figure Title Page Figure 1 - Test Configuration.......................................................................................................8 Figure 2 - Photograph of Spurious Radiation Test Setup, (Front View).................................9 Figure 3 - Photograph of Spurious Radiation Test Setup, Rear View....................................9 Figure 4 - Conducted Power - Low Channel............................................................................14 Figure 5 - Conducted Power- Mid Channel.............................................................................15 Figure 6 - Conducted Power- High Channel............................................................................16 Figure 7 - Peak Power Spectral Density- Low channel..........................................................18 Figure 8 - Peak Power Spectral Density- Mid Ch…
