Z7H-EMBZ2531PAUSBUSB Dongle

EMB-Z2531PA-USB EMB-Z2531PA-USB Datasheet FCC ID: Z7H-EMBZ2531PAUSB The device complies with part 15 of the FCC Rules. Operation is subjected to the following 2 conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Document information Versions & Revisions VersionDateAuthorComments 1.005/09/11Augusto SalaPreliminary version References RefVersionDateAuthorTitle FCC ID: Z7H-EMBZ2531PAUSB Brand: Embit Model: EMB-Z2531PA-USB/xx; EMB-Z2531/xx; EMB-Z2531PA/xx; EMB-Z2531USB/xx; EMB-Z2531- USB/xx; EMB-Z2531PAUSB/xx; NETCE001/xx (just different commercial type names) /xx stands from EUT with integral antenna or EUT with antenna connector Power supply: 4 to 6 VDC Transmission frequency: 2405 – 2480 MHz Other certifications: CE The device complies with part 15 of the FCC Rules. Operation is subjected to the following 2 conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The device complies with the FCC's Rf exposure requirements for USB dongles. Sar complance for body-worn operation is based on a separationdistance of 0.5 cm between the unit and the body of the user. End-user must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest report SAR value is : 0.99 W/kg Index 1 Description...................................................................................2 1.1 Specifications............................................................................................2 1.2 Applications...............................................................................................2 1.3 Block diagram............................................................................................3 1.4 Microcontroller...........................................................................................3 1.5 Antenna.....................................................................................................3 1.5.1PIFA antenna radiation diagrams..........................................................................4 1.5.2Antenna selection (PIFA/external)........................................................................6 1.6 Power Amplifier / Low Noise Amplifier.......................................................6 1.7 Firmware....................................................................................................7 1.7.1 Power Amplifier interface.....................................................................................7 1.7.2 Switches and LEDs..............................................................................................7 1.7.3 USB pull-up..........................................................................................................7 1.8 Developing tools........................................................................................7 2 Mechanical data............................................................................8 2.1 Size............................................................................................................8 2.2 Antenna positioning...................................................................................8 2.3 Notes.........................................................................................................8 3 On board devices..........................................................................9 4 Electrical characteristics...............................................................9 4.1 Absolute Maximum Ratings.......................................................................9 4.2 Operating Conditions.................................................................................9 4.3 Power Consumption...................................................................................9 4.4 RF Characteristic.......................................................................................9 4.5 Limitations...............................................................................................10 5 Compliance: Introduction.............................................................11 6 Compliance: Important information..............................................11 7 Compliance: CE specific...............................................................13 7.1 Output power...........................................................................................13 8 Compliance: FCC specific.............................................................13 8.1 FCC Data..................................................................................................13 8.2 Output power...........................................................................................14 8.3 802.15.4 channel 26....…

Text truncated - open the document above for the full version.

EXTERNAL PHOTOS – NOT APPLICABLE THE EUT IS SOLD WITHOUT ANY ENCLOSURE.

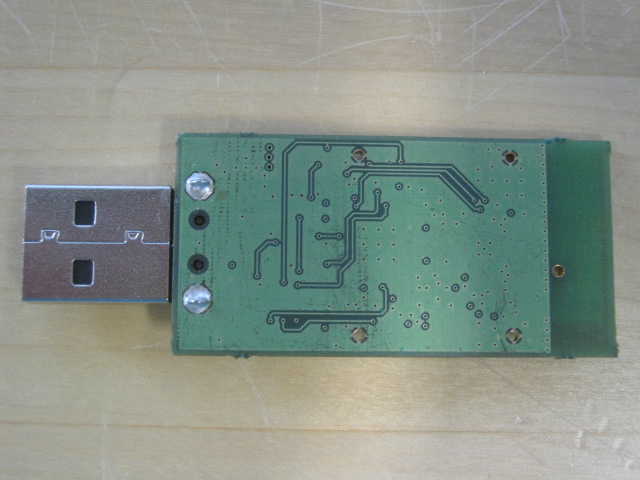

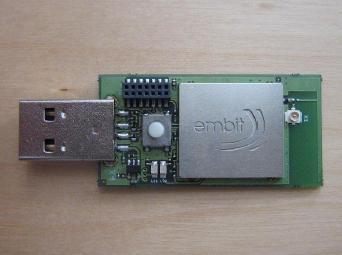

INTERNAL PHOTOS

401 TRFCC_15.247 Page 1 of 40 FCCTR_111255-2 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] TEST REPORT APPLICANT: EMBIT s.r.l EMBEDDED & WIRELESS SOLUTION Via Emilia Est, 911 – 41100 Modena (MO) Italy Tel. +39 059 371714 Fax +39 059 3680498 E-mail: [email protected] EUT DESCRIPTION USB DONGLE EUT TRADEMARK EMBIT EUT MODEL EMB-Z2531PA-USB/xx; EMB-Z2531/xx; EMB-Z2531PA/xx; EMB-Z2531USB/xx; EMB-Z2531-USB/xx; EMB-Z2531PAUSB/xx; NETCE001/xx (just different commercial type names) /xx stands from EUT with integral antenna or EUT with antenna connector REFERENCE STANDARDS : 47 CFR FCC part 15.247 Part 15.203, part 15.205, part 15.207, part 15.209 TEST REPORT NUMBER FCCTR_111255-1 TEST REPORT ISSUE DATE 28/02/2012 TESTING LABORATORY Prima Ricerca & Sviluppo S.r.l. Via Campagna, 92 -22020 Faloppio (Co) –Italy TESTING LOCATION As Above DATE OF TEST SAMPLE RECEIPT 11/10/2011 DATE OF TEST 11/10/2011 - 17/10/2011 TESTED BY Massimo Maltempi APPROVED BY Vincenzo La Fragola The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have be obtained. Reproduction of this Test Report, should not be reproduced, except in full, without the written authorization of the Laboratory 402 TRFCC_15.247 Page 2 of 40 FCCTR_111255-2 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] CONTENTS Page 0. Release Control Record ............................................................................................... 2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ......................... 3 1.1 Technical data ....................................................................................................... 3 1.2 Associated antenna description ............................................................................. 4 1.3 Ports identification ................................................................................................. 4 1.4 Auxiliary equipment ............................................................................................... 4 2. TEST CONDITIONS ..................................................................................................... 5 2.1 Operating test modes and test conditions ............................................................. 5 2.2 Test overview ........................................................................................................ 5 3. REFERENCE STANDARD FOR PERFORMED TESTS .............................................. 6 4. Summary of test results ................................................................................................ 7 4.1 Emission tests ....................................................................................................... 7 5. TEST RESULTS ........................................................................................................... 8 6. L L I I S S T T O O F F E E Q Q U U I I P P M M E E N N T T U U S S E E D D ..................................................................................... 38 7. EUT TECHNICAL DOCUMENTATION ....................................................................... 39 7.1 Wiring diagrams ................................................................................................... 39 7.2 Technical manual ................................................................................................ 39 7.3 Photographic documentation ............................................................................... 40 0. RELEASE CONTROL RECORD TEST REPORT NUMBER REASON OF CHANGE DATE OF ISSUE FCCTR_111255-0 Original Release 28/02/2012 FCCTR_111255-1 Added List of Instruments 05/04/2012 FCCTR_111255-2 Added a new EUT model 17/04/2012 FCCTR_111255-2 Complete revision of antenna list 03/08/2012 403 TRFCC_15.247 Page 3 of 40 FCCTR_111255-2 Prima Ricerca & Sviluppo S.r.l. – Capitale Sociale € 50.000 i.v. Codice Fiscale e Partita IVA 02635860139 – Uff. registro di COMO - n.REA CO270979 Sede: I-22020 Faloppio (Co) – Via Campagna, 92 – Tel +39 031.3500011 Fax +39 031.991309 www.primaricerca.it; [email protected] 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) Brand name: EMBIT Manufacturer: EMBIT s.r.l EMBEDDED & WIRELESS SOLUTION Type of Equipment : Digital Modultion Transmitter Model name or number : EMB-Z2531PA-USB/xx; EMB-Z2531/xx; EMB-Z2531PA/xx; EMB-Z2531USB/xx; EMB-Z2531-USB/xx; EMB-Z2531PAUSB/xx; NETCE001/xx (just different commercial type names) /xx stands from EUT with integral antenna or EUT with antenna connector Serial number : Test Sample FCC ID : Z7H-EMBZ2531PAUSB Country of manufacturer: ITALY 1.1 Technical data FCC class: 47 CFR FCC Part 15 Subpart C § 15.247 Product type: Radio Equipment Radio type: Intentional radiators Power supply requirements : 2 ÷3,6 Vdc powered from USB port Frequency range : 2405 – 2480 MHz Type Modulation : QPSK RF Output Impedance : 50 Ohms Channel spacing : 5 MHz 6 dB bandwidth : 1,75 MHz Oscillator Frequencies: 4.8 GHz Channels number : 16 n. channel Frequency 1 11 2405 2 12 2410 3 13 2415 4 14 2420 5 15 2425 6 16 2430 7 17 2435 8 18 2440 9 19 2445 10 20 2450 11 21 2455 12 22 2460 13 23 2465 14 24 2470 15 25 2475 16 (not used) 26 2480 RF Output Power rating : 120.5 mW (+20.81 dBm) – High Power Setting Carrier Frequency: 2405, 2440, and 2480 MHz (Channels # 11, 18, & 26) Antenna Connector /Types :  Integral  Unique connector (RPSMA / u.FL) 404 TRFCC_15.247 Page 4 of 40 FCCTR_111255-2 Prima Ricerca & Sviluppo S.r…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOS
