Z7P-BAS0101-TPEE ALARM

Wireless bedweƫ ng alarm Product informaƟ on User manual Warranty UK 2 Thanks, |for selecƟ ng the Rodger bedweƫ ng alarm It is our experience that you will be successful by using this bedweƫ ng alarm correctly. Please read all instrucƟ ons before using the bedweƫ ng alarm. •The Rodger bedweƫ ng system is suitable for children over the age of 5 years. •When beginning the therapy, be moƟ vated, relaxed and confi dent. •Perform the alarm test so you and your child will become familiar with the operaƟ on and sound of the bedweƫ ng alarm. Repeat this before your child goes to sleep. •Make no contest of the therapy. This will cause stress and is counterproducƟ ve. •Place the bedweƫ ng alarm a certain distance from the bed, so your child has to get out of bed to switch off the alarm. •Give your child an occasional reward. A small present is a nice posiƟ ve reinforcement that your child is doing well. •Use the Rodger bedweƫ ng system every night unƟ l there have been no “wet beds” for 14 consecuƟ ve nights. •Successful treatment with the Rodger bedweƫ ng system takes from a few weeks to a few months. Persistence is the key to success. •Do your best to use the alarm every night without interrupƟ on. •If your child’s bedweƫ ng condiƟ on does not improve within 3 months, visit your doctor to rule out any medical condiƟ ons. •Do not start the therapy if important events will take place soon, i.e. moving the family or the birth of a child. •Do not wake your child at night to go to the toilet. •Never punish your child; your child is not responsible for occasional accidents. •Do not prohibit your child from drinking before going to bed. Drinking less does not decrease the likelihood of bedweƫ ng. However, it is preferable that your child does not drink coff ee, tea, or beverages containing carbonaƟ on or chocolate before going to bed. •In the early days of the treatment, a child who is a heavy sleeper might not wake up. You could choose another sound of the alarm. Another good soluƟ on could be to sleep next to your child and help your child to wake up as soon as the alarm sounds. Make sure that your child stops the alarm and goes to the toilet. In Ɵ me, your child will “tune in” and do this more independently. •If relapse occurs, another short course will usually succeed. Store all parts together for future use. Remove baƩ ery before storing. InstallaƟ on bedweƫ ng alarm •Pairing the transmiƩ er and receiver. •Put the baƩ ery in the transmiƩ er. 3 GB •Place the plug in the receiver. •Plug the receiver into an electrical outlet and switch it on by pressing the central LED buƩ on (A), which will light up green. •Press the – and + buƩ ons (B + C) simultaneously for 3 seconds. The central LED buƩ on (A) will start blinking green: within 1 minute you have to connect the two push-buƩ ons of the transmiƩ er with the metal strip (F) of the receiver. The transmiƩ er and receiver are paired when the LED lights up green and the receiver gives a sound. Extra receivers can be paired with the transmiƩ er in the same way. Seƫ ng alarm sounds: |For each alarm to make the same sound: Select the sound of your choice by pressing the SELECT- buƩ on (D). The last selected sound will be heard every Ɵ me the alarm goes off . To test the sound, connect the two push-buƩ ons of the transmiƩ er with the metal strip (F) of the receiver. This will cause the alarm to sound and the LED (A) will start blinking red. |For each alarm to make a diff erent sound: Press the AUTO-buƩ on (E). With each alarm 1 of the 8 available sounds will be heard. |Range: The range of the receiver and the transmiƩ er is maximum 30 meters (100 feet) in open air. Inside buildings, the range could be less than 30 meters (100 feet). Tips for use: •Always remove the transmiƩ er immediately from a wet pant. This extends the life of the baƩ ery and prevents damage to the pants. •When the central LED buƩ on (A) lights up orange, the baƩ ery of the transmiƩ er must be replaced. •Make sure to remove the transmiƩ er from the pants before laundering. The warranty is voided if the transmiƩ er has been in the washing-machine. •Remove the baƩ eries if the bedweƫ ng alarm system will not be used for a long Ɵ me. •Other transmiƩ ers nearby (e.g.: wireless baby-monitor, garage door openers, weather staƟ on, headset, etc.) can disturb the bedweƫ ng alarm system. Change the frequencies of the other devices or remove them. 4 |Warning: •Keep suffi cient venƟ laƟ on while applying AC power source. •Please ensure yourselves of your local laws, regarding baƩ ery disposal. Alarm test: Put the receiver into an electrical outlet (or use baƩ eries). Make sure that the receiver is switched on and volume is adjusted (+ buƩ on (C)). Connect the two push-buƩ ons of the transmiƩ er with the metal strip (F) on the receiver. This will cause the alarm to sound and the LED (A) will start blinking red. The alarm can be turned off by pushing the central LED buƩ on (A). Pants |Laundering: The pants need to be washed before use. They become more absorbent. The pants can be machine washed and tumble dried. Do not wring! Avoid fabric soŌ ener as well as chlorinated detergents. Over Ɵ me, residue may build up on the sensor contacts inside the pant. You simply need to soak the sensor pants for about 30 minutes in vinegar soluƟ on (1 cup vinegar and 2 cups water). |Pants test: •Take a cup of lukewarm saltwater (1 teaspoon salt in 1 cup water). •Click the transmiƩ er on the pant. •Put the receiver into an electrical outlet (or use baƩ eries). •Make sure that the receiver is switched on and volume is adjusted (+ buƩ on (C)). •Pour two teaspoons of this salty soluƟ on on the front of the pants. This should cause the alarm to sound and the LED (A) will start blinking red. •The alarm can be turned off by pushing the central LED buƩ on (A). ExplanaƟ on instrucƟ on pictograms 1. Plug receiver into the wall. Then turn it on and adjust the volume. 2. Pull on the underpants. 3. AƩ ach the transmiƩ er to the un…

Text truncated - open the document above for the full version.

Block diagram RF Power Amplifier and Modulator IC2: F113 MCU IC1: 9202 Internal frequency: 8MHz 1 x 3.0V Lithium battery Oscillator: 13.560MHz ANT: 433.99MHz AD Sample

Rm.2001, 20/F, Winning Centre, 29 Tai Yau Street, Sam Po Kong, Kowloon, Hong Kong

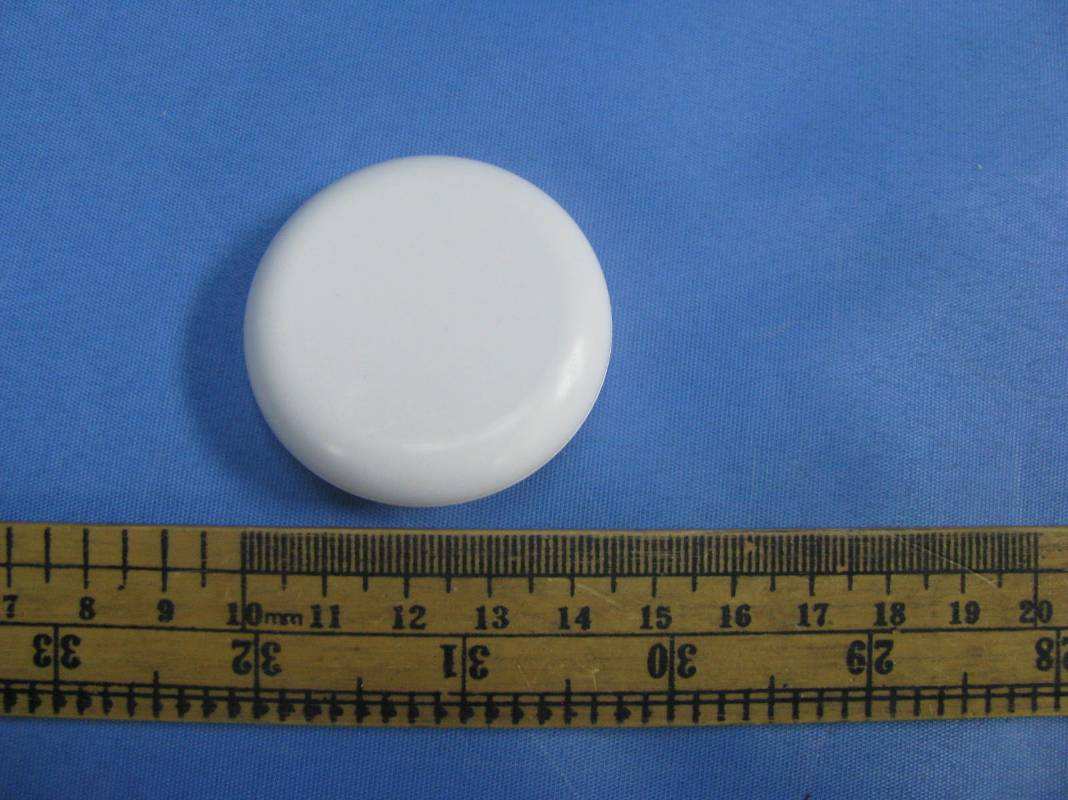

External Photos

Internal photos

transimitter Circuit Description Description Components Antenna ANT1 Oscillator X1,C7,C8,IC2 ASK Transmitter IC IC2,C13,L2,C15 AD sample R3,C1,R13,R11,Q1,R1 MCU IC1 Type of the antenna: Integral AntennaModulation Type: ASK AD sample to get the information of underware data process Function Transimit modulation RF signal Generate 433.99MHz Carrier data in ,signal to modulator,and power amplifier

1234 A B C D 4321 D C B A R3 100K 1% C8 18pF C7 18pF C1 100pF C6 10uF/6.3V C13 3.9pF C14 100pF L1 820nH L2 68nH R6 0R BT1 CR2032 XOUT XIN C10 NC C15 4.7pF C11 NC VDD R9 10K C4 0.1uF PAOUT 1 VSS 2 VDD 3 XTLOUT 4 XTLIN 5 ASK 6 IC2 F113X1 13.560MHz R5 100K C12 NC DATA AN0 VDD C5 10uF/6.3V C2 0.1uF DATA R1 4.7K ANT1 单芯导线 AN0_CTR 1 SR1 1 SR2 ANT P20/ANI0 1 P40 2 VSS 3 VDD 4 P23/X1/ANI3 5 P22/X2/ANI2 6 P34/RESET 7 P32/INTP1 8 P43 9 P21/AIN1/INTP0 10 IC1 9202 Q1 DS2301 VDD R2 4.7K R4 1M R7 1M R8 1M AN0 RF_CTR RF_CTR AN0_CTR Q2 DS2301 VDD VDD R10 100K R13 FPV201209G8R0PMT R11 FPV201209G8R0PMT E1 100uF/6.3V PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com November 30, 2011 KEEN LEAGUE MANUFACTURING LIMITED Rm.2001, 20/F, Winning Centre, 29 Tai Yau Street, Sam Po Kong, Kowloon, Hong Kong. Dear Jecfield Luk, Enclosed you will find your file copy of a Part 15 Certification (FCC ID: Z7P-BAS0101-T). For your reference, TCB will normally take another 5 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Shawn Xing Manager Enclosure • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_TXa FCC ID: Z7P-BAS0101-T Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com KEEN LEAGUE MANUFACTURING LIMITED Application For Certification (FCC ID: Z7P-BAS0101-T) Transmitter Sample Description : PEE ALARM Model: BAS0101, PA100 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-10] SZ11100289-1 Billy Li November 30, 2011 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TXa FCC ID: Z7P-BAS0101-T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TXa FCC ID: Z7P-BAS0101-T ii MEASUREMENT/TECHNICAL REPORT KEEN LEAGUE MANUFACTURING LIMITED - MODEL: BAS0101, PA100 FCC ID: Z7P-BAS0101-T November 30, 2011 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DSC - Part 15 Security Remote Control Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-10 Edition] provision. Report prepared by: Shawn Xing Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6/F, Block D, HuaHan Building, Longshan Road, Nanshan District, Shenzhen, China. Development Zone, Guangzhou, P. R.China. Phone: (86 755) 8601 6288 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TXa FCC ID: Z7P-BAS0101-T iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty.................................................................................... 6 2.6 Support Equipment List and Descripition ............................................................ 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data ...........…
