ZA2A03W1 Sensor

Contreal, LLC

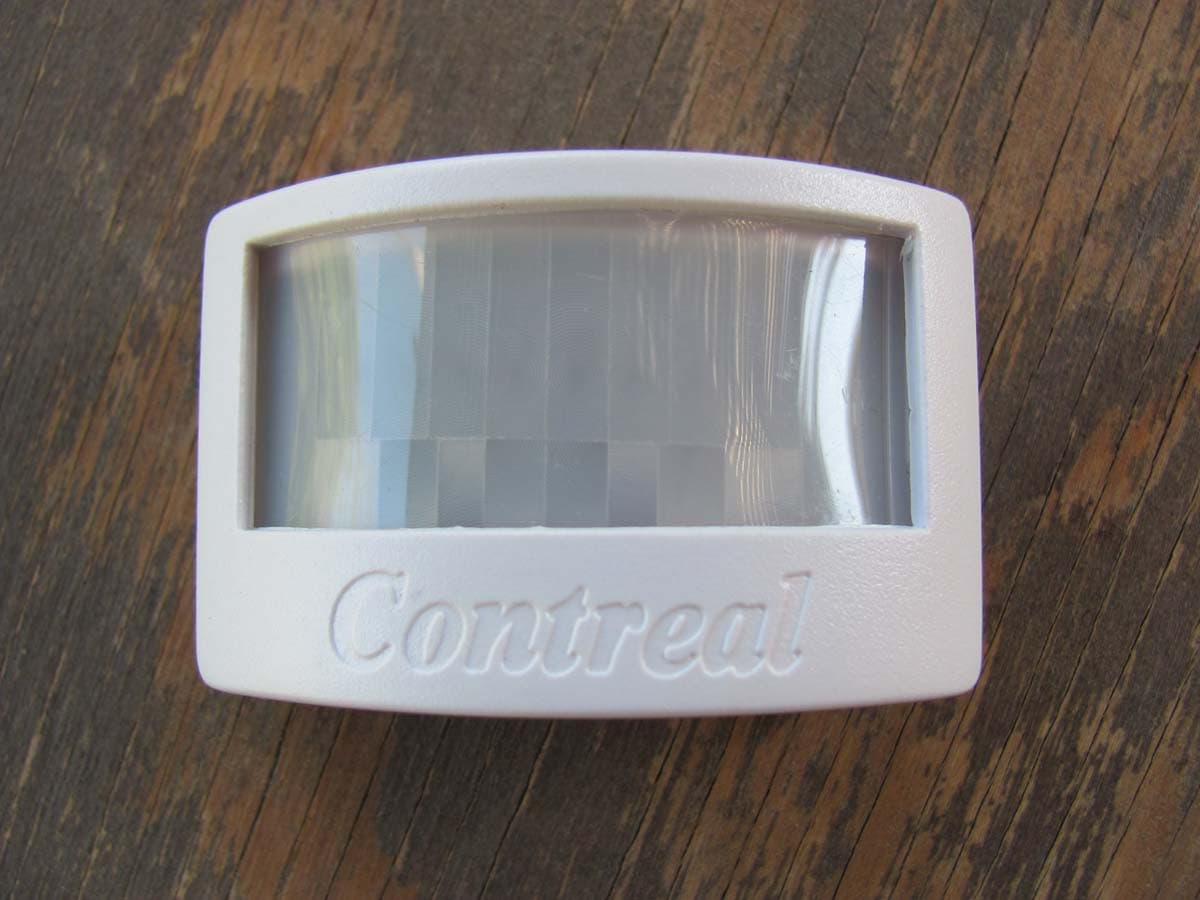

W1 Sensor - FCC ID ZA2A03 - Contreal, LLC
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Sep 09, 2012
Application Purpose
Original Equipment
Date of Application
Sep 09, 2012
Equipment Note
W1 Sensor
Frequency Range
433.92000000 - 433.92000000
Company
Contreal, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗

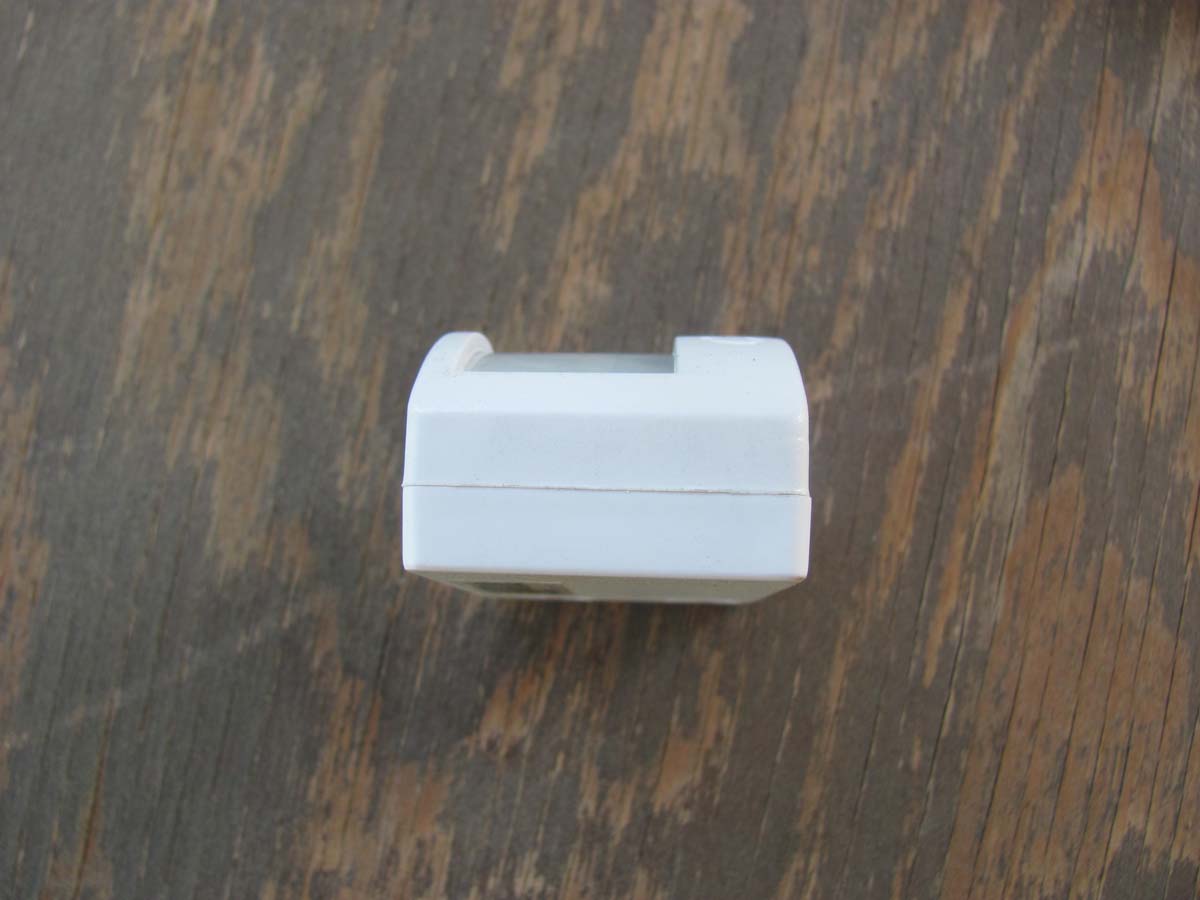

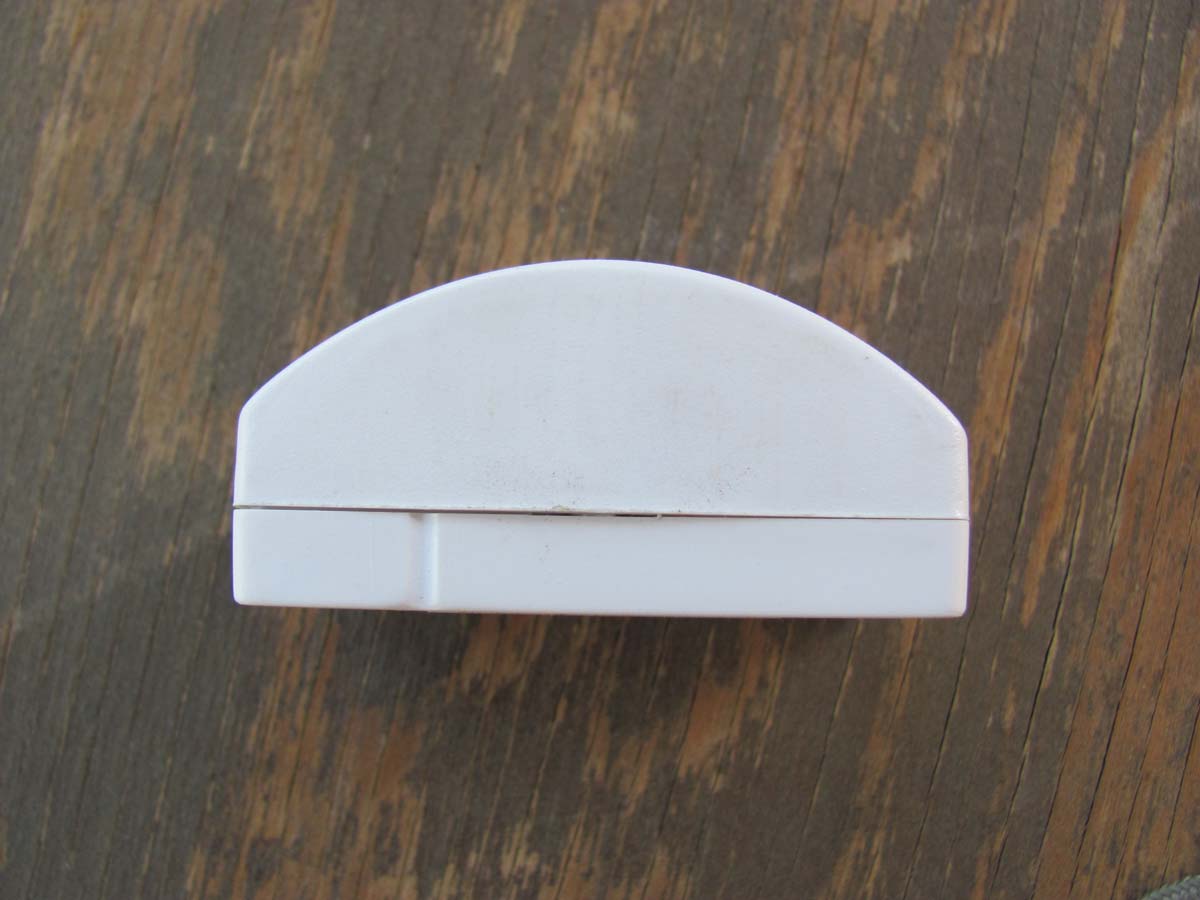

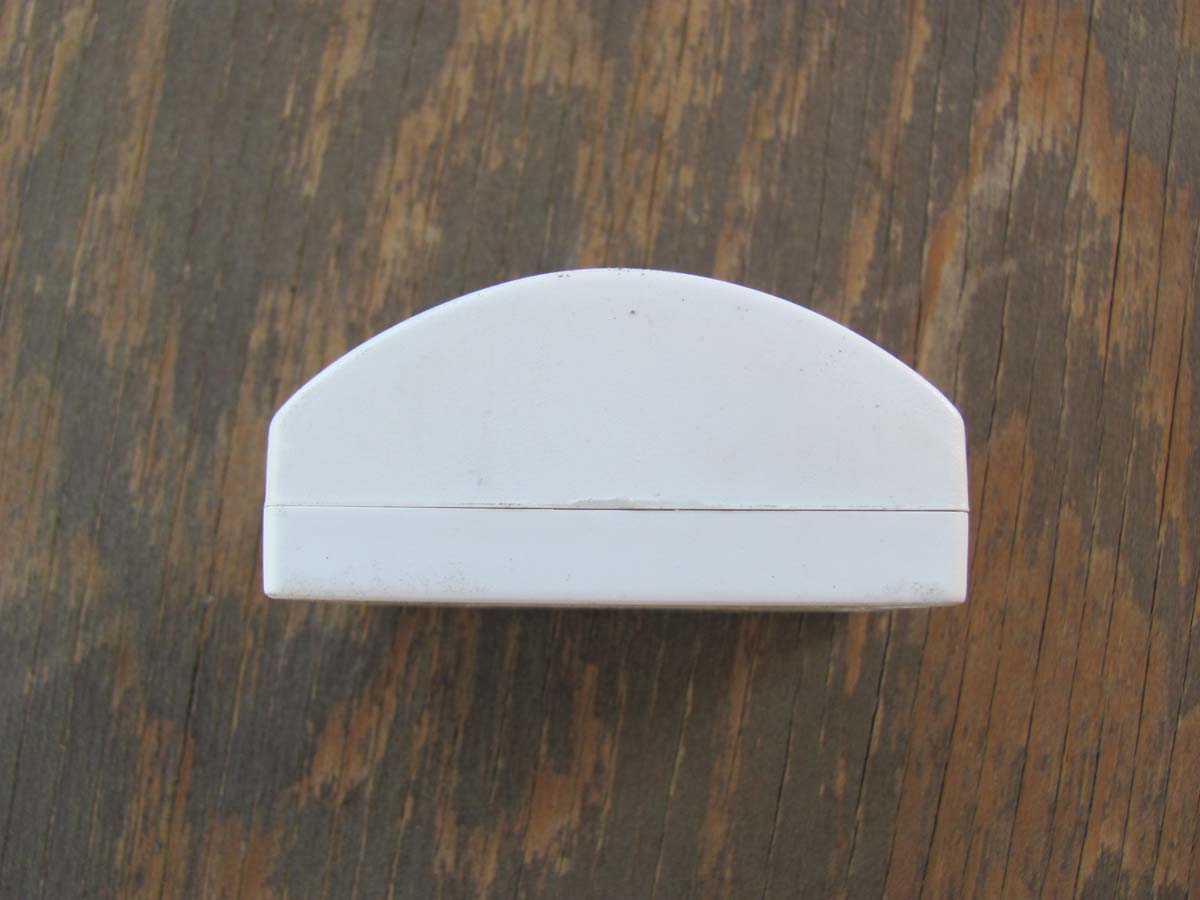

External Photos

↗
↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Contreal www.contreal.com Manual Wireless Door Sensor Wireless Motion Sensor & Model # A03D Model # A03M Limited Warranty StatementFCCFCC ID: ZA2A03This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditio ns: (1) This device may not cause harmful interference, and (2) this device must accept any interference receive d, including interference that may cause undesired operation. Important InformationThis equipment has been tested and found to comply with the limits for a class B digital device, pursua nt to part 15 of the FCC rules. These limits are designed to provide reas onable protection against harmful interference in a residential installation. This equipment generates, uses and ca n radiate radio frequency energy and if not install ed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause h armful interference to radio or television reception, which can be determin ed by turning the equipment off or on, the user is e ncouraged to try to correct the interference by one or more of the foll owing measures: * Reorient or relocate the receiving antenna* Increase the separation between the equipment and receiver * Connect the equipment into an outlet on a circuit different from that to which the receiver is connec ted * Consult the dealer or an experienced radio/TV tec hnician for help The user is cautioned that changes and modification s made to the equipment without the approval of manufa cturer could void the user’s authority to operate this equipment . Battery: This device contains Lithium battery. Do not disasse mble it, do not short circuit it. For disposing this equipment, bring it to your nearest recycling centre.Handling Precautions: Do not expose it to temperature below 0F or greater than 110F Be careful that children do not swallow any parts s uch as mounting screws, etc Never place it in microwave or any hot object as it will cause battery to explode Do not use harsh chemicals to clean itDo not drop, strike or shake itDo not disassemble itOnly let authorized personnel service it The limited warranty for the product extends for tw elve (12) months beginning on the date of purchase w ith valid proof of purchase. The limited warranty extends only to the o riginal purchaser of the product and is not assigna ble or transferable to any subsequent purchaser/end-user. The external housing shall be free of defects at the time of shi pment and, therefore, shall not be covered under this warranty . The customer shall bear the cost of shipping of t he product to Contreal service department and for shipping it bac k to customer. This warranty does not cover:Defects or damages resulting from use of the product in other than its normal and customary manner, and from abnormal conditions, improper storage, unauthorized modificat ions, unauthorized repair, unauthorized connections , misuse, neglect, abuse, alteration, improper installation, o r other acts which are not the fault of Contreal All plastic surfaces Consumables such as batteryTo obtain a warranty service, please write to servi [email protected] or write to address or call phone n umber mentioned on our website www.contreal.com Selecting a perfect location:For the most effective security, we suggest focusing on intruder path instead of windows and doors. For example, in the following layout, intrusion thru any of the 7 windo ws or 3 doors can be covered by just 2 motion sensor s. Any intruder breaking-in thru front side, either thru Window 1 o r Window 2 or Main Door, will anyway fall in the pa th of Motion Sensor 1 even if there is a blind spot near the corner of Window 2. Similarly, any intruder breaking in thru a ny opening on rear side or thru garage door will fall in the path of M otion Sensor 1. If there is a room that has nothing worth stealing, such as play area, then you can avoid putting any sensor in it Blind Spot Motion Sensor 2 Motion Sensor 1 Blind Spot Window 1 Window 2 Window 3 Window 4 Window 5 Window 6 Window 7 Main Door Garage Entrance RearDoor Garage Kitchen Family Room Play Area/ Guest Room Dining Foyer Living Installation Step 1: Mounting A motion sensor can simply be placed on top of book-shelf or can be mounted on wall. To mount it on wall:Put 2 screws on the wall such that they align with 2 holes as shown in pictureGently push the motion sensor & slide down A door sensor should be mounted similarly on door-frame, and its magnet should be mounted on door near the round notch on right side Step 2: Linking with Control PanelGo to advance menu in cPad by using “menu” button After entering password, keep pressing menu button t ill you reach “Add Wireless Sensor” Press ‘#’ for selecting this optionTrigger the sensor (by making movement in front of moti on sensor or by opening/closing door for the door s ensor) Press ‘#’ for Yes.Refer cPad manual for more detail Operating ModesMotion Sensor:When a motion is sensed by motion sensor, it blinks t he red light and communicates motion sense information to cPad. There are two patterns of LED blinking: One blink: The sensor sensed the motion and has commu nicated it to cPad Two blinks: The sensor sensed the motion but is not communicating it to cPad because same information has been communicated two times in the last 2 minutes Door Sensor: When a door is opened or closed, or panic button is pressed, this sensor blinks the red LED once and c ommunicates this information to cPad

Attestation Statements

Contreal Contreal, LLC 103 Amiable Loop, Cary, NC 27519 Ph: (860) 640 4328 www.contreal.com Aug 6, 2012 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Contreal, LLC with its office at 103 Amiable Loop, Cary, NC 27519, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Contreal product: Wireless Door & Motion Sensor under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Contreal, LLC nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Contreal, LLC will notify the Federal Communications Commission if, at any time, the situation changes causing Contreal, LLC to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 860 640 4328. Sincerely, Ritu Jain President

Attestation Statements

Contreal Contreal, LLC 103 Amiable Loop, Cary, NC 27519 Ph: (860) 640 4328 www.contreal.com Aug 6, 2012 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: TCB application submittal Gentlemen: We, Contreal, LLC, would like to declare that the application being submitted for the device with FCC ID: ZA2A03 has not been submitted to another TCB or FCC for certification. Sincerely, Ritu Jain President

Attestation Statements

Contreal Contreal, LLC 103 Amiable Loop, Cary, NC 27519 Ph: (860) 640 4328 www.contreal.com Aug 22, 2012 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This letter is to formally notify you that the following modification that was completed by Compatible Electronics, Inc. to our W1 Sensor, Model A03 during FCC certification will be implemented in production. Modification: The value of resistor R1 changed from 2 ohms to 200 ohms Sincerely, Ritu Jain President

Cover Letter(s)

Contreal Contreal, LLC 103 Amiable Loop, Cary, NC 27519 Ph: (860) 640 4328 www.contreal.com Aug 6, 2012 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, Contreal, LLC, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at 860 640 4328. Sincerely, Ritu Jain President

ID Label/Location Info

Contreal Contreal, LLC 103 Amiable Loop, Cary, NC 27519 Ph: (860) 640 4328 www.contreal.com FCC Label The entire label cannot be placed on the unit due to space constraint, so only FCC ID is displayed on the unit and the compliance statement is included in manual. FCC ID

Test Report

Report Number: B20822D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report W1 Sensor Model: A03 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15 SUBPART B and C TEST REPORT for W1 SENSOR MODEL: A03 Prepared for CONTREAL, LLC 103 AMIABLE LOOP CARY, NORTH CAROLINA 27519 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: AUGUST 24, 2012 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 11 12 46 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B20822D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report W1 Sensor Model: A03 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 6.3 Facility Environmental Characteristics 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 13 7.1.3 RF Emissions Test Results 15 7.2 Bandwidth of the Fundamental 16 7.3 Transmission Times 16 8. CONCLUSIONS 17 Report Number: B20822D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report W1 Sensor Model: A03 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B20822D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report W1 Sensor Model: A03 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 17 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: W1 Sensor Model: A03 Product Description: See Expository Statement Modifications: The EUT was modified in order to meet the specifications. Please see the list located in Appendix B. Customer: Contreal, LLC 103 Amiable Loop Cary, North Carolina 27519 Test Date(s): August 22, 2012 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions 10 kHz to 4400MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B20822D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report W1 Sensor Model: A03 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the W1 Sensor, Model: A03. The Emissions measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within th…

Text truncated - open the document above for the full version.

Test Report

Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 50 ms Center 433.92 MHz5 ms/ 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -0.78 dB 1.202405 ms 1 [T1] 27.94 dB  V 18.336673 ms 1 [T1] -0.78 dB 1.202405 ms Date: 22.AUG.2012 08:44:07 Time of Small Pulse = 1.202405 mS Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 50 ms Center 433.92 MHz5 ms/ 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 0.74 dB 3.206413 ms 1 [T1] 25.43 dB  V 200.400802  s 1 [T1] 0.74 dB 3.206413 ms Date: 22.AUG.2012 08:42:47 Time of Pulse #4 = 3.206413 ms Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 50 ms Center 433.92 MHz5 ms/ 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -2.70 dB 2.204409 ms 1 [T1] 28.35 dB  V 5.210421 ms 1 [T1] -2.70 dB 2.204409 ms Date: 22.AUG.2012 08:43:15 Time of Pulse #5 = 2.204409 ms Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 50 ms Center 433.92 MHz5 ms/ 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -0.37 dB 5.210421 ms 1 [T1] 26.47 dB  V 11.322645 ms 1 [T1] -0.37 dB 5.210421 ms Date: 22.AUG.2012 08:43:37 Time of Pulse #6 = 5.210421 ms Ref Lvl 102 dB  V Ref Lvl 102 dB  V RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 Unit dB  V P0 TDS SWT 200 ms Center 433.92 MHz20 ms/ 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 11 Delta 1 [T1] 0.08 dB 88.977956 ms 1 [T1] 27.36 dB  V 44.088176 ms 1 [T1] 0.08 dB 88.977956 ms Date: 22.AUG.2012 08:37:33 38 Total Pulses 35 Small Pulses @ 1.202405 mS = 42.084175 ms Pulse #4 @ 3.206413 mS Pulse #5 @ 2.204409 mS Pulse #6 @ 5.210421 mS Total Time = 52.705418 mS / 100 mS = 52.705418%

Contact Information

Applicant

Ritu Jain(President)
[email protected]571 213 2545Fax: 919 439 0959

Technical Contact

Compatible Electronics, Inc.Kyle Fujimoto
[email protected]714-579-0500

114 Olinda Drive · Brea, California · United States

Test Firm

Compatible Electronics, Inc.Michael Christensen
[email protected]714-579-0500Fax: 714-579-1850

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
Confidentiality
Long Term
