ZAC-T1Transmistter

Instruction manual Date : 22, Oct, 2009 Technical Index : Operation Power : 12V Dc battery Maximun transmitting power : less than 10mW Working temperature : -10 to 50 degree RF frequeny : 433.92MHz RF Modulation : ASK Modulation Instruction : 1 : Function 1.1 : Connect the 12V battery to battery socket in the emitter 1.2 : When button is pressed, will launch a high-frequency RF signals 2 : ID code select 2.1 Switch onListen the long ring from motor. 2.2 Press 2 time of P2 button continuely. Listen the sound from motor 2.3 Press the up key one time, finishing programing the motor, press up key to control the motor move upward( The first pattern of programming) or Press the down key one time, finishing programming the motor, press down key to control the motor move downward( The second pattern of programming) 2.4 The interval of pressing each button should not exceed 4 seconds, or the system will turn to the original status. 3 :Battery installation : The power of the emitter is use 12V Dc battery, method of replacing battery: open the housing cover then you can see the position of battery. When replace the new battery please ensuring correct polarity is respected . After replace the new battery and then recover the housing, the emitter will back to operation status. 4 :FCC Warning Statement FCC NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OT TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENTN SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : 1. This device may not cause harmful interference, and 2. This device must accept any interference received, inculding interference that may cause undersired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

433.92MHz

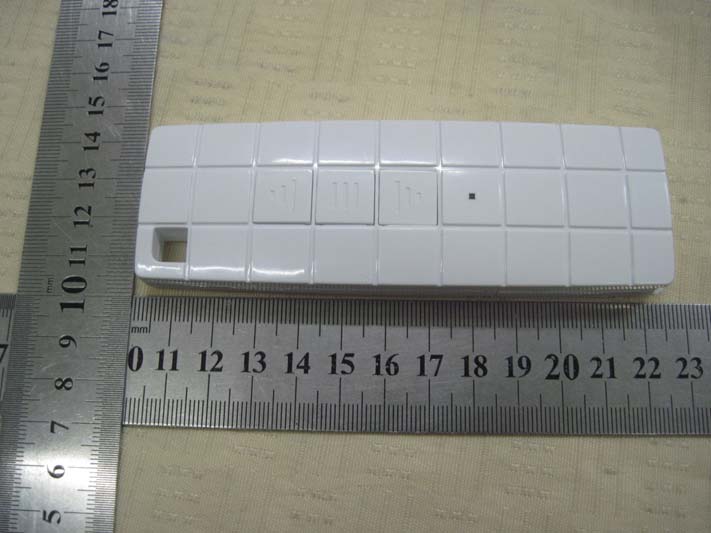

External of EUT

FCC ID Label FCC ID: ZAC-T1 Model Number: T1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Made in China

FCC ID Label Location Proposed Label Location on EUT

Page 1 of 2 Internal of EUT Internal of EUT Page 2 of 2 Internal of EUT Internal of EUT

The Operation Description of Transmitter unit Power for the Transmitter is supplied by 12V DC alkaline battery. The CPU monitors the input from to Voltage changes receive the triggered , it will send relevant encoded data to the ( Saw based) AM Transmitter, The Saw filter frequency is 433.92 MHz. After sending data the Transmitter detector goes back to stand by status.

┩ 炗 琑 別㊂噇┇ 炙別㊂噇┇ 䆘ጙ ┇ 散㊂  ⁘㊂  充  癃 榀 獨椥⍅┇ ┩ 炗琑 ᡡ 卤  卤 薅癃 戡᥆ 癃᥆⊂ 䑩皒挣⁘









    ! "
 #    "





  $



     %&'(       %&'(  )!#*+  ,  ,
            $

 ,    -  ,         ,  #   ,  ,   ,   -*  ,    ,  -* .  #*+

                !
 "#$  "         #   /--'01 /--'01  /--'02 /--'02        /--'01 /--'02



SHENZHEN EMTEK Co., Ltd. REPORT NO.: ES110215023F FCC ID: ZAC-T1 DATE: 02/17/2011 Page 1 of 25 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Transmitter MODEL No.: T1, T2 Trade mark: Moon FCC ID: ZAC-T1 REPORT NO: ES110215023F ISSUE DATE: February 17, 2011 Prepared for BAT S.P.A Via H.ford - Zona Industriale est, 30020 Noventa di Piave - Venice – Italy Prepared by SHENZHEN EMTEK Co., Ltd. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK Co., Ltd. REPORT NO.: ES110215023F FCC ID: ZAC-T1 DATE: 02/17/2011 Page 2 of 25 VERIFICATION OF COMPLIANCE Applicant: BAT S.P.A Via H.ford - Zona Industriale est, 30020 Noventa di Piave - Venice – Italy Product Description: Transmitter Model Number: T1, T2 Serial Number: N/A Trade Mark: Moon Modulation; ASK File Number: ES110215023F Date of Test: February 15, 2011 to February 17, 2011 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved By David Lee/ Q.A. Manager SHENZHEN EMTEK Co., Ltd. SHENZHEN EMTEK Co., Ltd. REPORT NO.: ES110215023F FCC ID: ZAC-T1 DATE: 02/17/2011 Page 3 of 25 Table of Contents 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)............. 11 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 11 5.4 MEASUREMENT RESULT:....................................................................................................................... 11 5.5 CONDUCTED MEASUREMENT PHOTOS:.................................................................................................... 11 6. RADIATED EMISSION TEST ............................................................................................ 12 6.1 MEASUREMENT PROCEDURE................................................................................................................. 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 13 6.4 CALCULATION OF AVERAGE FACTOR.................................................................................................... 14 6.5 MEASUREMENT RESULT........................................................................................................................ 17 7. DEACTIVATION TESTING ............................................................................................... 19 7.1 REQUIREMENT....................................................................................................................................... 19 7.2 TEST SET-UP ........................................................................................................................................... 19 7.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 19 7.4 TEST PROCEDURE.................................................…
