ZAFT6BCMAutomobile Remote Control Entry Receiver

Lear Automotive Services (Netherlands) B.V. Philippine Branch
Automobile Remote Control Entry Receiver - FCC ID ZAFT6BCM - Lear Automotive Services (Netherlands) B.V. Philippine Branch
Click to zoom

Application Details

Equipment Class
CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant
Mar 29, 2011
Application Purpose
Original Equipment
Date of Application
Mar 29, 2011
Equipment Note
Automobile Remote Control Entry Receiver
Frequency Range
433.90000000 - 433.90000000
Company
Lear Automotive Services (Netherlands) B.V. Philippine Branch
Country
Philippines

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

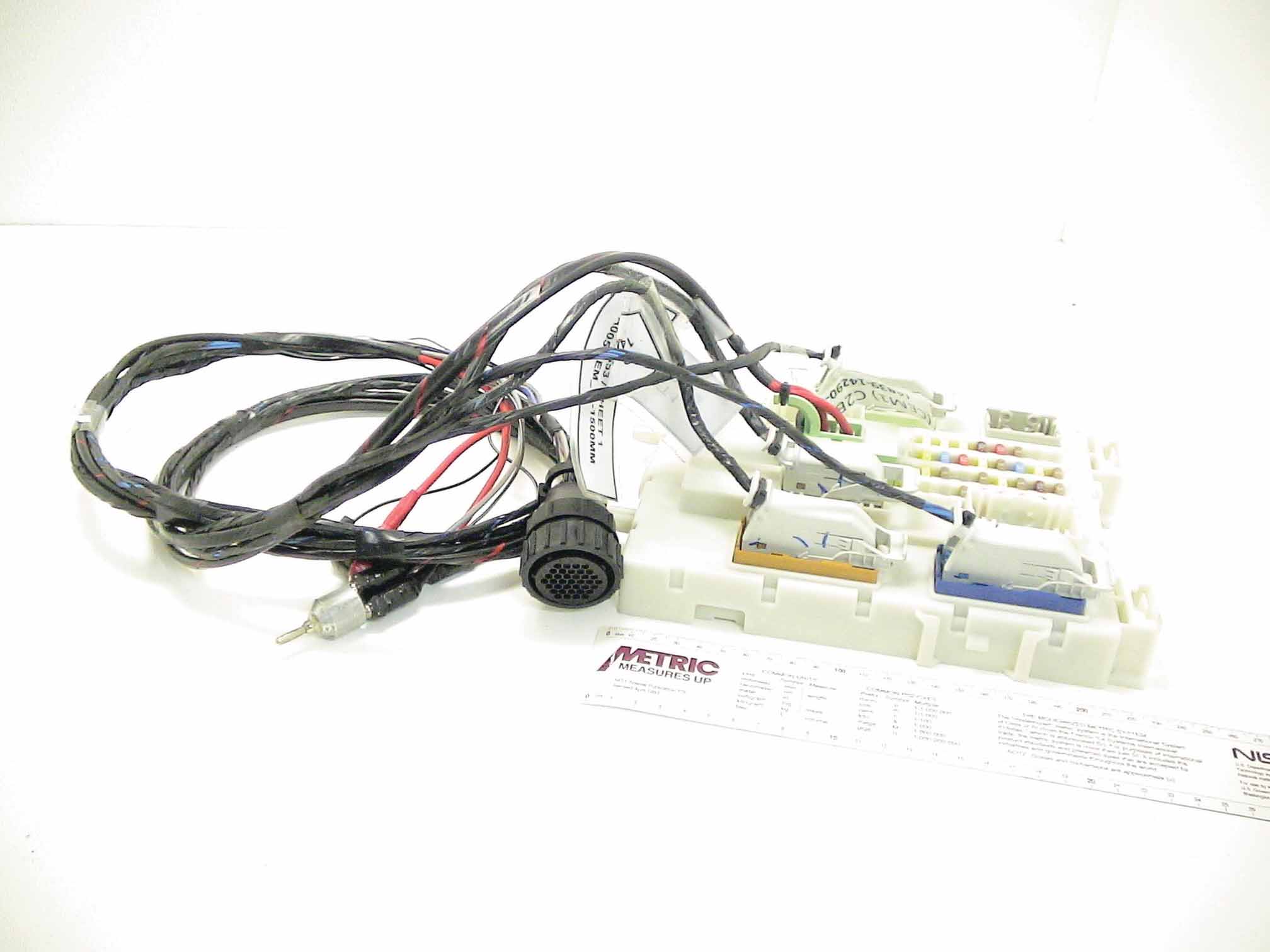

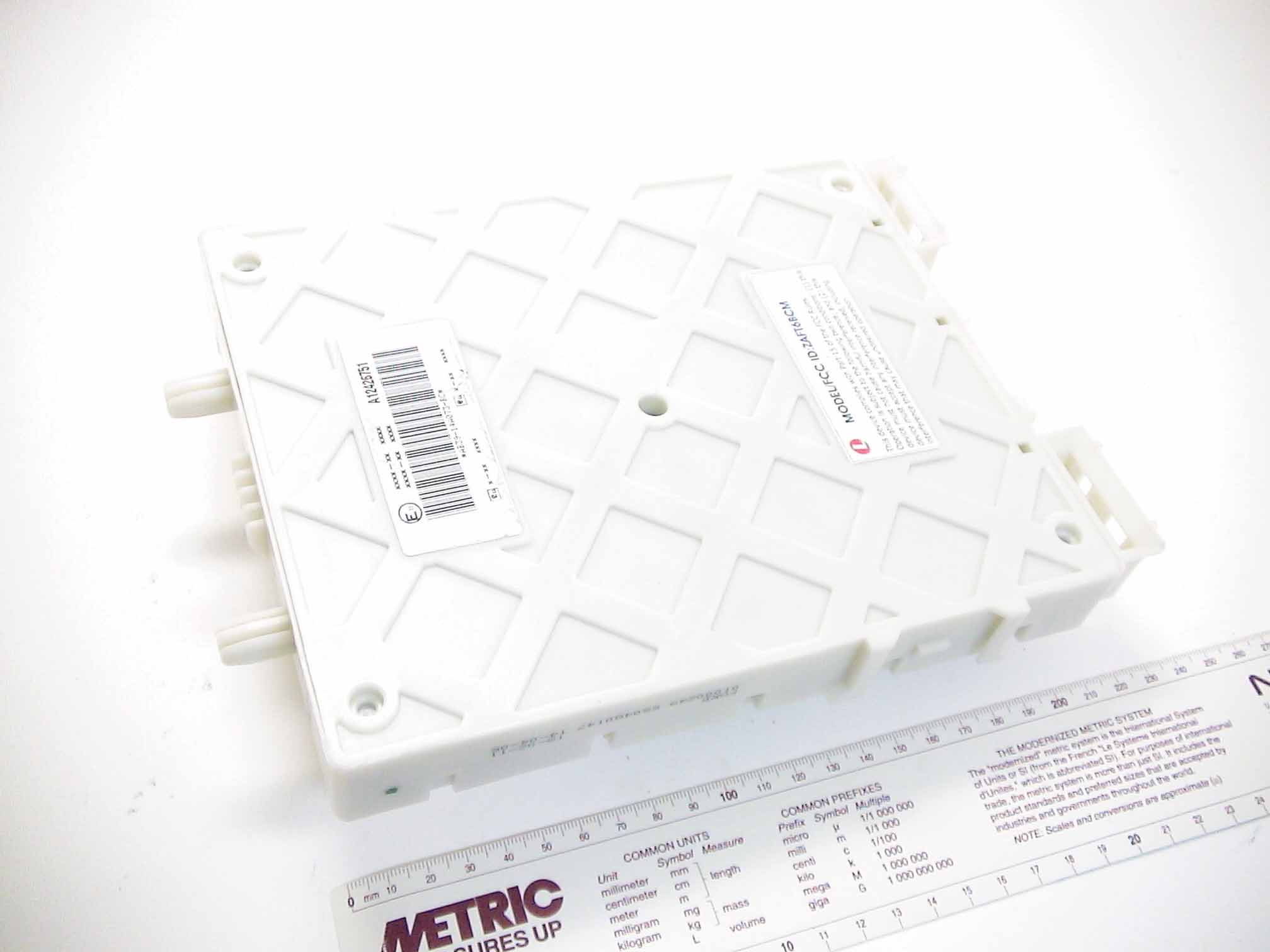

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Lear Automotive Services (Netherlands) B.V. Philippine Branch Philippine Engineering and Technology Center MEZ 2, Basak, Lapu-lapu City 6015, Cebu, Philippines Phone: (63-32)340-7950 Fax: (63-32)341-0700 Re: Certification for Lear Body Control Module Remote Keyless Entry Receiver FCC ID: ZAFT6BCM The device under test is manufactured by the grantee (Lear Automotive Services (Netherlands) B.V. Philippine Branch) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case with this product, the grantee must notify the OEM to notify the end-user. Lear Automotive Services (Netherlands) B.V. Philippine Branch will supply the following information to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product, prior to sale/distribution of the commercial product in the United States of America: INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information must be included in the end product user’s manual to ensure continued FCC regulatory compliance. The ID number must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ************************************************************************ FCC ID: ZAFT6BCM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.

Cover Letter(s)

March 23, 2011 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Lear Receiver Model/PN(s): ZAFT6BCM FCC ID: ZAFT6BCM Please find enclosed application materials for certification of Lear Receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Cover Letter(s)

Re: Certification for Lear Receiver FCC ID: ZAFT6BCM REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Lear requests that a part of the subject application be held confidential. Lear has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Lear requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Lear requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

Operational Description

FCC FILING REQUIREMENTS: Description Of Operation The T6 BCM (Body Control Module) contains an electronic boar d embedded with a Junction Box PCB power board which controls the main Body Electronics functi onalities of the car line platform created for Ford Motor Company’s brands; Ford of Australia. Moreover, the BCM performs the RKE RF functionality by means of an integrated receiver. This receiver is responsible to pick up the RF frame and decode it i n order to perform the locking & unlocking of the vehicle doors. Remote keyless entry receiver has a Frequency- Shift Keying (FSK) modulation scheme. The receiver operates at 433.92 MHz center frequency and a devia tion of 40KHz. The receiver will be configured by the microcontroller in self polling mode. In t his mode the receiver wakes up periodically in order to look for RF activity at 433 , 92 MHz . (Note that it is a multi - channel RKE system . ) If no RF activity, it order to look for RF activity at 433 , 92 MHz . (Note that it is a multi - channel RKE system . ) If no RF activity, it will go to sleep mode to save current consumption. If RF activ ity, the receiver will decode the incoming frames only if it is Shark coded. Then, the receiver interrup ts the microcontroller. The microcontroller reads the internal memory of the receiver IC, where the data is stor ed, by means of the SPI bus. After the communication process is performed, the microcontroller d ecrypts the received data and validates it to make sure that it corresponds to the associated key.

Test Report

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-602 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Lear Automotive Services (Netherlands) B.V. Philippine Branch Receiver FCC ID: ZAFT6BCM Test Report No. 417124-602 March 21, 2011 Copyright © 2011 For: Lear Automotive Services (Netherlands) B.V. Philippine Branch Philippine Engineering & Technology Center, Mactan Economic Zone Lapu-Lapu City, Cebu, 6015, Philippines Contact: Edmond Bertulfo [email protected] Phone: 63 32 340 7950 6115 Fax: 63 32 340 7950 6115 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 were performed on a Lear, FCC ID: ZAFT6BCM. This device under test (DUT) is subject to the rules and regulations as a Receiver. In testing completed on March 21, 2011, the DUT tested met the allowed specifications for radiated emissions by 11.2 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-602 Page 2 of 11 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 4.2 Power Line Conducted Emissions Limits ............................................................................. 5 5. Measurement Procedures ................................................................................................................. 5 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 5 5.2 Outdoor Radiated Emissions ................................................................................................. 5 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 6 6. Test Results : Radiated Emissions ................................................................................................... 7 6.1.1 Emission Spectrum ........................................................................................................... 7 6.1.2 Supply Voltage and Supply Voltage Variation ................................................................. 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-602 Page 3 of 11 1. Introduction This Lear Receiver was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87- 389, April 18, 1989 as subsequently amended. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6.5GHz) Hewlett-Packard 8595E, SN: 3543A01546 JDB8595E Power Meter Hewlett-Packard, 432A HP432A1 Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 HP11970A1 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 HP11970U1 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 HP11970W1 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 PMPGMA1 S-Band Std. Gain Horn S/A, Model SGH-2.6 SBAND1 C-Band Std.…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Reus Edgar Masongsong(Hardware Design Engineer)
[email protected]63323407950Fax: 63323407956

Technical Contact

University of Michigan/EECSValdis V. Liepa
[email protected]734-483-4211

1301 Beal Avenue · Ann Arbor, Michigan · United States

Test Firm

University of MichiganValdis Liepa
[email protected]734-647-1792Fax: 734-647-2106

Technical Specifications

#Rule PartsFrequency RangePower Output
115B433.9 MHz - 433.9 MHz-
Confidentiality
Long Term
