ZAY-Z-B60BLUETOOTH HEADSET

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

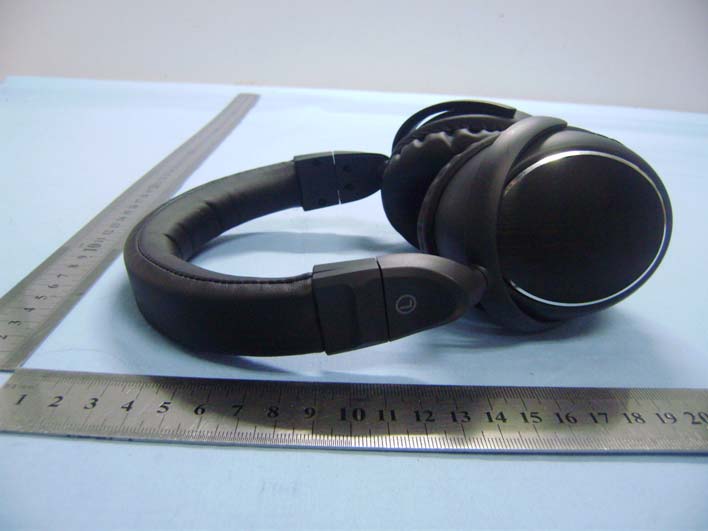

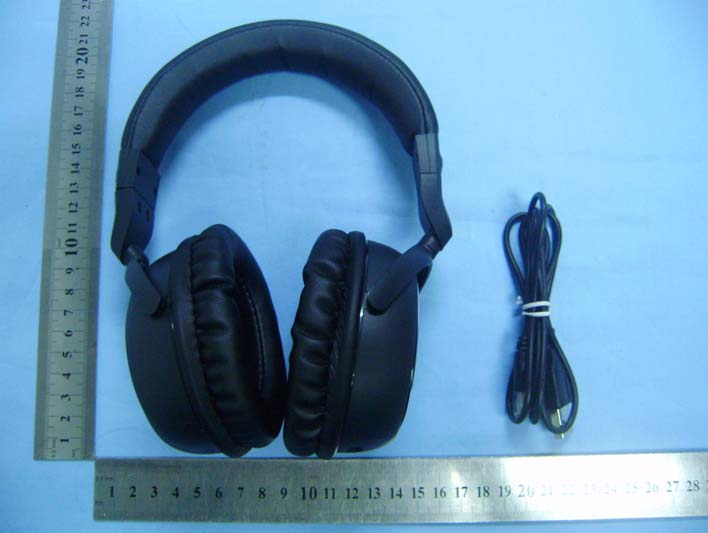

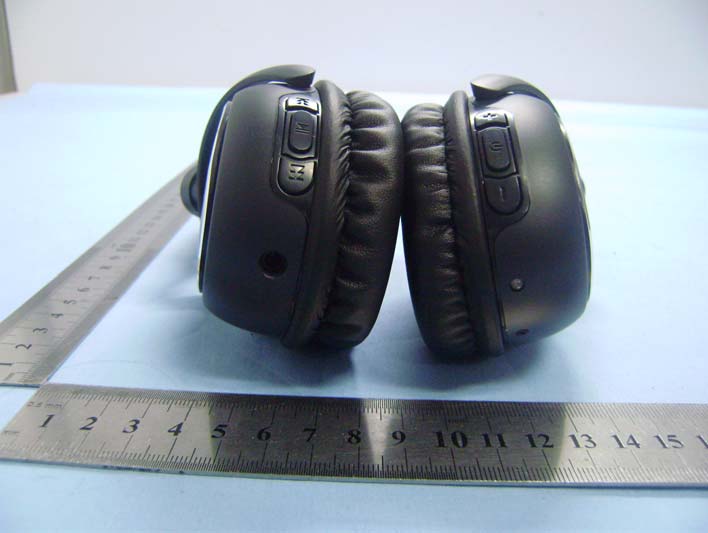

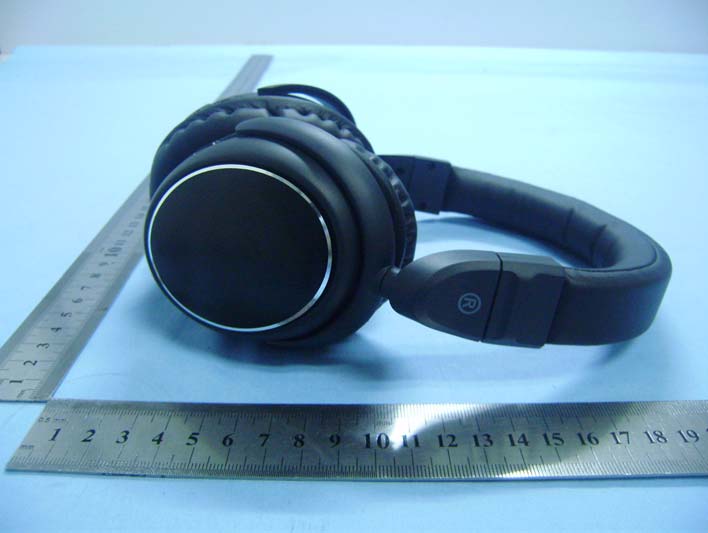

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 EUT View 3 EUT View 4 SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 EUT View 5 EUT View 6

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZAY-Z-B60 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label Location

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZAY-Z-B60 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label Location

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2 BT Ant. 2402~2480MHz BT Ant. 2402~2480MHz SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 Solder Board-Component View 3 Solder Board-Component View 4 SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 Solder Board-Component View 5

RF Exposure Requirements Product Description: Bluetooth Headset Model No.: Z-B60 FCC ID: ZAY-Z-B60 Acorrding to the KDB-447498, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Tx frequency range: 2402~2480MHz Device category: Portable device Maximum Conducted Output Power: 1.3391 mW (1.268 dBm) Maximum Antenna Gain: 0 dBi Maximum EIRP Output Power: 1.3391 mW (1.268 dBm) Limit: 10mW Source-based time-averaged EIRP output power is 1.3391 mW < 10mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I PAGE 1 OF 56 FCC PART 15.247 FCC Part 15C Measurement and Test Report For SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD 1-3 Floor, Building B, No.49, Shangxia Street, Henggang Road, Longgang District, Shenzhen, China. FCC ID: ZAY-Z-B60 FCC Rules: FCC Part 15.247 Product Description: Bluetooth headset Tested Model: Z-B60 Report No.: STR13018553I Tested Date: 2013-01-23 to 2013-1-01-28 Issued Date: 2013-01-28 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I PAGE 2 OF 56 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................5 1.3 TEST METHODOLOGY.............................................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE.................................................................................................................................6 2. SUMMARY OF TEST RESULTS ...........................................................................................................................7 3. ANTENNA REQUIREMENT ..................................................................................................................................8 3.1 STANDARD APPLICABLE.........................................................................................................................................8 3.2 EVALUATION INFORMATION..................................................................................................................................8 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS .....................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................9 4.2 FREQUENCY HOPPING SYSTEM...............................................................................................................................9 4.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE....................................................................................10 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ...................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. DWELL TIME OF HOPPING CHANNEL ..........................................................................................................17 6.1 STANDARD APPLICABLE.......................................................................................................................................17 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 6.3 TEST PROCEDURE.................................................................................................................................................17 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................17 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................18 7. 20DB BANDWIDTH ...............................................................................................................................................28 7.1 STANDARD APPLICABLE.......................................................................................................................................28 7.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................28 7.3 TEST PROCEDURE.................................................................................................................................................28 7.4 ENVIRONMENTAL CONDITIONS............................................................................................................................28 7.5 SUMMARY OF TEST RESULTS/PLOTS..................................................…

Text truncated - open the document above for the full version.

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Spurious Radiation Test Setup (9kHz to 30MHz) Charging and playing SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 Transmitting Spurious Radiation Test Setup (30MHz to 1GHz) Charging and Playing SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-B60 REPORT NO.: STR13018553I FCC PART 15.247 Trasmitting Spurious Radiation Test Setup (Above 1GHz) Trasmitting
