ZAYZ-W99BLUETOOTH HEADSET

Operation Manual Thank you for using our company’s sport Bluetooth headset product ,for your fast, skilled operate of this product, easy, happy to use this product. Please read this manual carefully. A．Brief Introduction： Wireless Bluetooth technology The bluetooth equipment made with latest technology and can be connected with mobile, PDA, desktop computer, headset, mouse, keyboard, or other Bluetooth equipments wirelessly. It is communicate by letter 1600/s and choose the least disturbe channel of the 79 channels. Bluetooth communication range is 10M (CLASS II standard). Z-W99 Sport bluetooth headset features： Popular and fashion design with heart-shape apperance, Adopts the advanced wireless bluetooth technology, can get rid of the boring from the lines.High quality with the iron speaker and the ergonomics headset desgin,can bring us wearing more suitable and listening music more pleasant .Bluetooth technology is desgined for short distance with high secrecy and weak radiation,connected with mobile can get rid of the radiation from your mobile.The high intelligence fuction desgin,having the automantic services on music and telephone,real let you come true unlimit to listening and communicating. B.Use range: 1.paired with the Bluetooth mobile, wireless enjoy mobile phone music, incoming call Liangbu Wu. 2.paired with PC (with Bluetooth function or connect USB adapter), wireless enjoy network music. 3.paired with PC (with Bluetooth function or connect USB adapter) wireless remote chat (support QQ, SKYPE, MSN, etc.). 4.Support Iphone 3G,Iphone 3GS.Wireless music transmission,pairing&calling. C．Diagram and accompanying accessories 1. Z-W99 wirelless stereo buletooth headset one pcs 2.USB Charging cable one pcs 3.Operation Manual one pcs 4. Warranty Card one pcs Optional Card D．Start Use 1.Charge bluetooth headset Headset built-in rechargeable lithium battery. Not full of power in new headset’s batter.The first time to use it, please charge it at least 4 hours to let it full of power. After the first time using, can charge it 1 -2 hours enough..While charging the blue light is bright,when the battery is saturated the blue light is disappeared. Fully charged battery can support about 5 hours of continuous playing. Connecting USB cable directly to computer to charge(Suggest:Don’t use the car charger for first time charging) 2.Button Definition and Function S1 Play/Pause(stereo status),on/off,receive,end the calls(incoming call status) S2 Play Previous (stereo status),tranfer the calls. S3 Next key-press (stereo status) S4 Volume “+” S5 Volume “-” USB USB charging port 3．The pairing with headset&Bluetooth Equipment Before you using the bluetooth headset,you must pair the headset with your mobile or other bluetooth quipment. 1).First step: Shutdown status: Press S1 key for 5 seconds→red & blue lights flash quickly→ headset with"de" sound→red light once→ red & blue lights start flashing alternately, →headset with “bi,bi...”sound→ stop press S1 key→enter into pairing status. 2).Second step: Begin to pairing on your mobile(Please refer to mobile user manual).After searching you will get “Z-W99” in your mobile equipment list. 3).Third step: You will be required to enter Pin-Code→Password 0000 is needed to enter→Pairing successfully. (Note: 0000 is a default pairing Pin-Code for bluetooth headset) 4).Fourth step: Pairing successfully→headset with “bi,bi...”sound→red & blue lights flash slowly,single & stereo are connected successfully. *Only red light flashes slowly→single connected successfully. *Only blue light flashes slowly→stereo connected successfully. Note: If headset cannot find the pairing equipment in 3 minutes will automatically shutdown. If headset isn’t in pairing status,your mobile and other bluetooth equipments cannot search headset,please set the headset on pairing status then your mobile can begin to search. 4．Start-up & Shutdown a. Start-up headset 1)Shutdown status: Press S1 key for 2 seconds→red & blue lights flash at the same time for 1 time→then headset with “de...”sound→red light flash→ stop press S1 key→switch on headset successfully, the headset enter into connecting mode. 2)automatic search has been paired device connected to stereo while the blue light flash once per second,connected to a mono while the red light flash once per second, connected on the stereo and mono at the same time,red &blue light flash per second at the same time once, if not connected, then enter the standby mode, the red light flashes continuously. 2. Shutdown headset 1）Switch on status:Press S1 key 3 seconds→red & blue lights flash at the same time for 1 time→headset with"de" sound→shutdown. 2）When Searching the equipment or without the receive range of headset,the headset will automatically shutdown after not get any connection in 1 minute. 3. Low voltage checking The power supply voltage below 3.0 V,red light flash quickly,headset with”bi-bi”sound,will power off after 30 seconds. E．Basic use method Dial、Talk & Finish calls Afer the bluetooth headset finish pairing with your mobile,you can use the headset to answer the phone or enjoy the mobile setero music. 1. Mobile dial,talk and finish calls Dial a call Dial-up using the phone's keypad 1).using your phone, dial numbers as usual in the same manner, during connecting , headphones with vibration ring tones, When getting through,sound will be automatic in the bluetooth headset,and the red light flash around 2 times/second. 2.Continuous press the S1 key twice, can automantic to dial the last phone you called,during connecting , headphones with vibration ring tones, after getting through the calls,sound will be automatic in the bluetooth headset and the red flash around 2 times/second. 2)Talk & finsh calls When the calls comes,you can hear the alarm sound“Di,Di....”，the headset red light keep lighting. a． The mobile ringing→press shortly the S1 key or press the receiver key on mobile→red light flashes around 2 times/second. b.Call: press shortly the …

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A 2.4GHZ RADIO I/O RAM ROM MCU Kalimba DSP ANTENNA ANT 2402~2480MHz EEPROM KEY MIC SPEAK BATTERY 3.7V LI-ION Battery BC57F687A05 XTAL26MHz PDF created with pdfFactory Pro trial version www.pdffactory.com

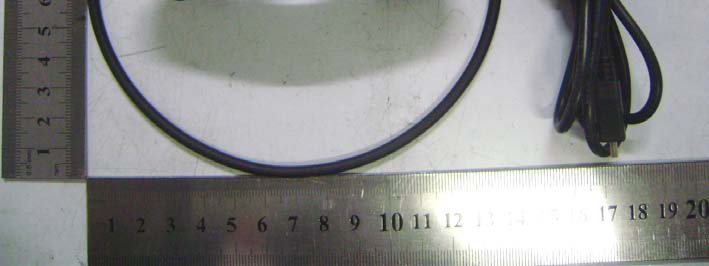

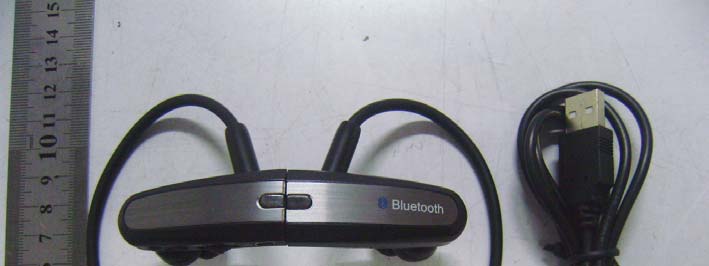

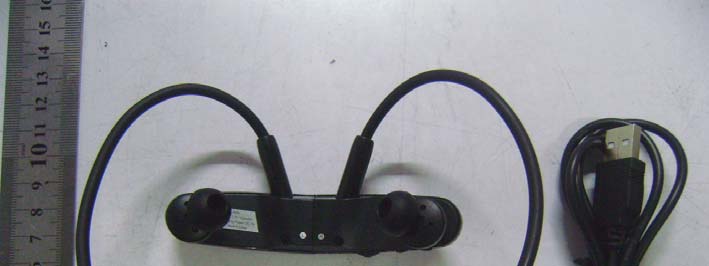

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZAYZ-W99 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZAYZ-W99 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I FCC PART 15.247 Solder Board-Component View 2

Circuit Description Z-W99 adopts bluetooth wireless communication technology. it supports bluetooth equipment wireless connect,the working frenquency is between 2402MHz-2480MHz basic on ISM standard.when communication,with one second 1600 times speed at 79 channels frenquency hopping to choice the smallest interfere passageway,the communication range is 10m(CLASS II standard). This model's circuit is used CSR BC57F687A05,the chip built-in MCU, 2.4GHzRADIO, Baseband DSP,Audio processing, IO hole and some other relevance circuit,external 26MHz of crystal oscillator as chip to provide benchmark clock signal,the chip built-in audio Magnifying circuit,can output maximum 2x10mw power audio singal,all control circuit is used I/O hole , supply power is used 3.7V/150mAH LI-ION.

W99.sch-1 - Thu Apr 28 11:39:31 2011 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I PAGE 1 OF 36 FCC PART 15.247 FCC Part 15C Measurement and Test Report For SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD 1-3 Floor, Building B, No. 49, ShangXia Street, Henggang Road, Longgang District, Shenzhen, China FCC ID: ZAYZ-W99 Report Concerns: Original Report Equipment Type: Bluetooth Headset Model: Z-W99 Report No.: STR11058024I Test Date: 2011-05-06 to 2011-05-15 Issue Date: 2011-05-18 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Electronic Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I PAGE 2 OF 36 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................5 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................5 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................7 3.1 STANDARD APPLICABLE.........................................................................................................................................7 3.2 TEST RESULT..........................................................................................................................................................7 4. CONDUCTED EMISSIONS ....................................................................................................................................8 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 8.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.3 TEST PROCEDURE...................................................................................................................................................8 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................8 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 4.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................9 5. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING ...............................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................15 6.1 STANDARD APPLICABLE.......................................................................................................................................15 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................15 6.3 TEST PROCEDURE.................................................................................................................................................15 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................15 6.5 SUMMARY OF TEST RESULTS/PLOTS...................…

Text truncated - open the document above for the full version.

SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission Front View Test Mode: USB Charging only Radiation Emission Test Setup (30MHz to 1GHz) Test Mode: USB Charging only SHENZHEN ZONOKI DIGITAL TECHNOLOGY CO., LTD Model: Z-W99 REPORT NO.: STR11058024I FCC PART 15.247 Test Mode: Transmitting Radiation Emission Test Setup (Above 1GHz)
