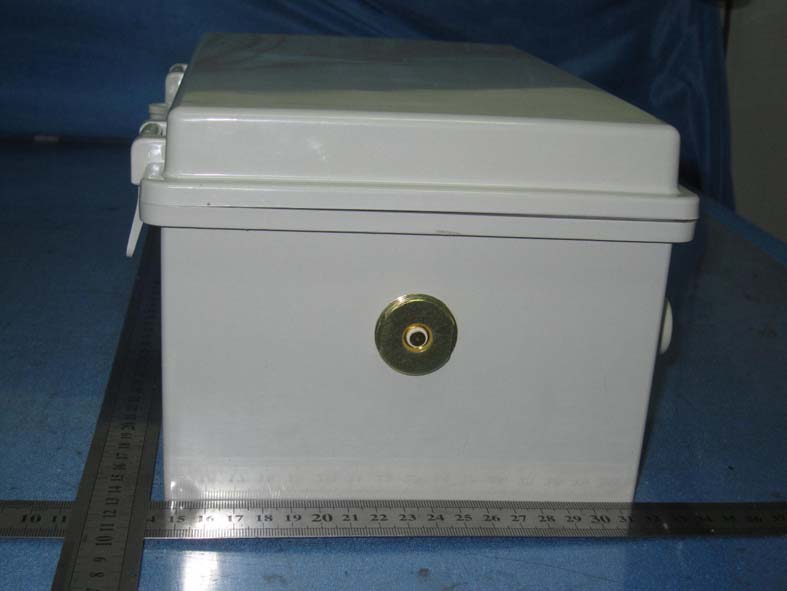

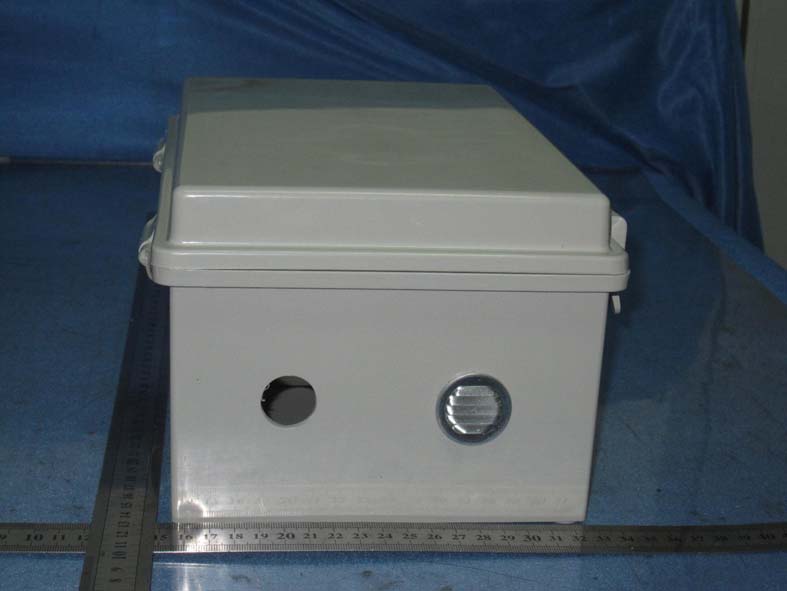

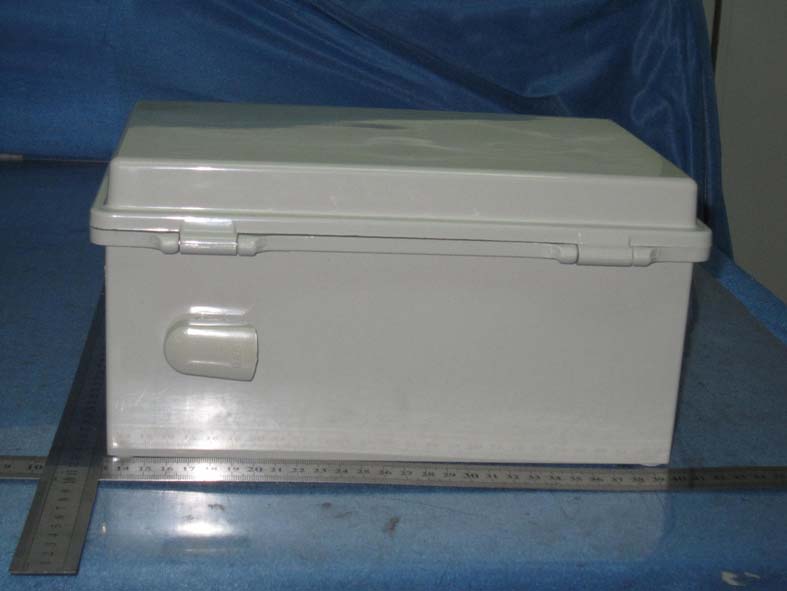

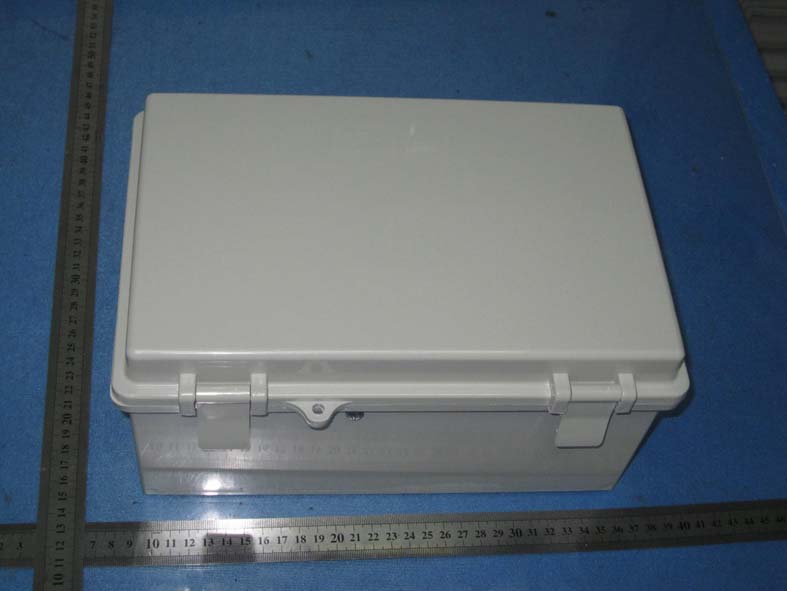

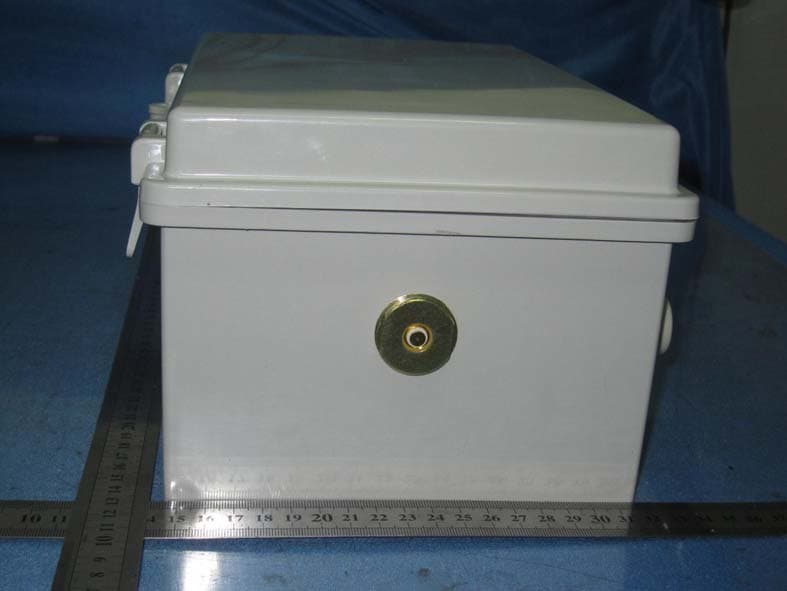

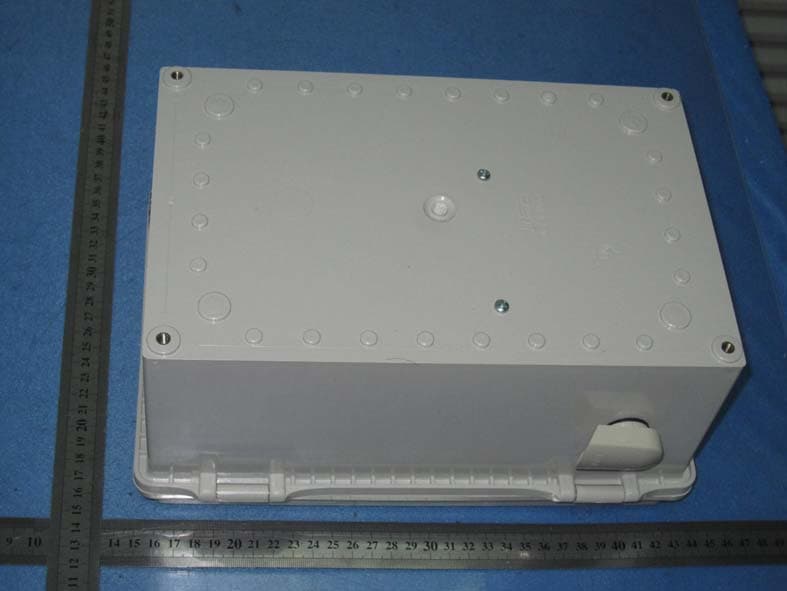

ZB4-810TRHot Shot Wireless Controller

Statement for User's Manual This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

WIRELESS SYSTEM GUIDE Pg. 2 OVERVIEW 3 TRANSMITTER FUNCTION SWITCH SETTINGS 3 TRANSMITTER TEST SWITCH 4 SHUTDOWN MODE 5 CONTROL MODE 6 RECEIVER FUNCTION SWITCH SETTINGS 7 RECEIVER INDICATOR LIGHTS 7 SUPERVISION / SUPERVISION FAIL-SAFE FEATURES 8 RECEIVER HOOKUP TO ELECTRIC WELL 9 RECEIVER HOOKUP TO ELECTRIC WELL DIAGRAM 10 RECEIVER HOOKUP TO ENGINE DRIVEN WELL Version : 1001 2 FOR CODE QUESTIONS? CALL 785-623-1500 8 9 7 EXAMPLE: CODE 6789 Transmitter Code Switches KEY 7 8 9 0 5 6 3 4 6 OFF ON Use the # KEY to the left to make each digit of the code. It takes three of the switches to make one num- ber of the code. Use switches 1,2,3 for the first # in the code. Switches 4,5,6 for the second #. Switches 7,8,9 for the third #. Switches 10,11,12 for the fourth #. BATTERY BACKUP During a power outage, a gel cell rechargeable battery will supply power to the transmitter for approximately 24 hours. This will allow the transmitter to send a shutdown signal to the receivers if it has lost power. The Hot Shot Transmitter comes with a battery saver feature that will turn off the Transmitter if the voltage drops from 12vdc to 10vdc. This function will add years of life to the gel cell battery. Important... When the battery has discharged, it will take approximately 15 to 20 minutes for the battery to charge enough to operate the transmitter in case of another power failure. The battery should be re- placed every year for the best reliability during power outages. Call 785-623-1500 for replacement batter- ies. OVERVIEW ATTENTION: Depending upon the style of system that your are going to control with the Wireless Controller you may need to supply additional parts. Such as relays, step- down transformers, floats, sensors, Murphy switches etc. These items are suggested in the wiring guides that follow in this manual. HOW IT WORKS Think of the system as a 12-2 control wire going from the tank to the pump. When the Transmitter’s RELAY Input is activated, it gets a closure form the fluid sensor or float, a 15 second delay timer is started (this makes sure it a steady read and not a false read from ripples etc). If the fluid sensor or float is still closed after the 15 second delay a shutdown command is sent to the receiver at the pump or pumps. At the receiver the shutdown signal will latch a relay and remove voltage from the motor relay. The receiver will stay latched until the manual reset button is pushed or a reset signal has been sent by the transmitter. Battery backup in the transmitter will still allow it to work in case of a power outage. Each system is coded with its own four digit code so it will not interfere with other systems in the same area. The following manual has been prepared to provide details for Transmitter instal- lation and Receiver installation on electric and engine driven pumps. MOUNTING Cabinets are a weatherproof UV protected NEMA 4X cabinet with mounting ears on top and bottom. The trans- mitter control box can be mounted on the side of a control panel, pole or any other surface as long as the antenna does not have metal running within 12” of the antenna whip. If longer range is needed, an external long range an- tenna can be used. Do not mount the receiver to the well engine or cover because the strong vibrations can be harmful to unit. CODE SWITCH SETTINGS All transmitters and receivers will be shipped from the factory with preprogrammed field codes. This ensures that your neighbor will not duplicate the same field code as your unit. Your field codes already match, so you do not need to program any codes. If you ever need to replace a unit due to servicing, the field code can be programmed to match the existing or new add on units. To do this, FOLLOW THE EXAMPLE BELOW... 3 TRANSMITTER UNIT 810-3T TRANSMITTER FUNCTION SWITCH SETTINGS 1 ON RELAY 1 SHUTDOWN MODE (see page #4) OFF RELAY 1 CONTROL MODE (see page #5) 2 ON RELAY 2 SHUTDOWN MODE (see page #4) OFF RELAY 2 CONTROL MODE (see page #5) 3 ON RELAY 3 SHUTDOWN MODE (see page #4) OFF RELAY 3 CONTROL MODE (see page #5) 4-7 NOT USED 8 ON ACTIVATES THE TEST BEACON (Used for testing and range finding only. When activated the transmitter will send a code every 10sec cycling the receivers relay. DO NOT have the receiver wired to the pump during this test. This function must be turned off for standard operation.) OFF NORMAL OPERATION MODE 9 ON REFRESH (This function ONLY works in CONTROL MODE, it will retransmit the code once every 45 MINUTES.) OFF NO REFRESH (Transmits the code only when there is a change of state on the Relay Inputs.) SWITCH# EXTRA OPTION FIELD CODE DIP SWITCHES FUNCTION DIP SWITCHES To activate a function slide the dip- switch up to the on position. RELAY INPUT LIGHTS These light up indicating that terminal is connected to COMMON. TRANSMITING INDICATOR LIGHT POWER INDICATOR LIGHT POWER ON / OFF SWITCH RELAY 1 INPUTS ON OFF RELAY 2 INPUTS ON OFF RELAY 3 INPUTS ON OFF TEST/ RESET TEST SWITCH The test switch is used for a quick test of the systems integrity. For a complete system test you will need to acti- vate the float or sensor and then see if all the receivers shutdown. Then use the reset side of the test switch to re- start all the pumps. Engine driven pumps may have to be restarted at the pump. WARNING: Resetting a pump jack remotely can be dangerous! Make sure it is in working order and that the area is clear of all people and animals before restarting the pump. TRANSMITTER CAUTION: Never connect any voltage to the Relay Input terminals. The transmitter supplies the voltage needed for sensor switching (use dry relay contacts only). Make sure the float or sensor terminals do not have voltage from previously wired configurations. 4 TRANSMITTER TERMINAL STRIP TRANSMITTER UNIT 810-3T SHUTDOWN MODE Shutdown mode is the most common used style for oil field shutdowns. It works with just a two wire control, such as a float or sensor that has normally open and common contacts. When the tank is full and the float com…
