ZBOWTD-700RWireless hd transmission machine

HDMI Wireless Kit Before using his product, Please reads this documents carefully. It may cause series issue。 Table of contents Introduction ........................................................... 1 Features ........................................................... 1 Technical Specifications ............................................1 Package contents .................................................... 2 Configuration ...................................................... 2~4 Wireless considerations..............................................4 Installation .........................................................5~8 Technical Data .....................................................9 Q&A ...............................................................10~11 Product description Freedom from unsightly audio-visual components and wires is finally at hand! With the Wireless HDMI Kit, you can enjoy your beautiful HDTV, HD projector without having to stare at the mess of wires and boxes that make up your home theater system. Just connect your AV components, such as your STB, PS3, BD DVD player , HD camera, HD Photographic or stereo receiver, to this Kit, and enjoy your multi-media content delivered wirelessly with perfect resolution and clarity to any HDTV in your house. This means that you can finally place your TVs exactly where you want, without having to worry about available cable jacks, outlets, or space for your components. Features ● No Latency for playing high definition video game console； ● Omni directional Antenna System for Maximum 100 feet (30meter) LOS HD Video Transmission Distance ； ● Fully Support the HDMI connector，Up to 1080P 60HZ Picture Quality ； ● Support up to HDMI High Speed with Ethernet 、HDCP 1.2； ● Support EDID； ● Support CEC (Demand Transmission and Receiver Device support)； ● Support IR Blasting； ● Transmission power ≧12dBm； ● Auto set-up, plug & play. One to One connection; ● Support AES-256 bit Encryption for securing Video Transmission over wireless； ● Support maximum 100kbs Return channel； ● Support OSD； ● Support WHDI 1.0； General Specifications Supported Video Resolution 1080p, 1080i,720p,576p,480p, Supported Audio Formats PCM,DTS,DOCBY DIGITAL Communication system MIMO Modulation OFDM Transmission Max. Power 12 dBm Transmission Range ≦30M Less than 1ms Less than 1ms Antenna Omni directional High performance small form factor Internal Antennas Operating Frequencies 5.18~5.24,5.745~5.825 GHz Supported IR Blasting Frequency 38KHz Power Supply 100～240V AC，5V 2A DC Storage Temperature -20～80°C Operating Temperature -10～50°C Page 1 *Operation on the NON-DFS (Dynamic frequency selection) Frequency with automatic Frequency selection, the system will automatically change frequency in case of interference with another RF system. Package contents Hardware Overviews HD Transmission x 1 HD Receiver x 1 Seat x 2 IR Extension cable x 1 HDMI Cable x 2 Power Adapter x 2 ① ② ③ ⑥ ④ ⑤ Page 2 Transmitter ⑦ Connection ① Receptor for the power Adapter 5V/2A。Using power supply with different Voltage rating than the one included with the WTD-700 will cause damage and void warranty for this products. ② HDMI Input Connector Connect the cable with HDMI High Speed Cable with Certificate Catalog 2 to make sure the connection in good condition。 ③ IR signal output interface Connect the IR extension cable and aim the IR head to the device which need to be control. It will receive the IR signal from the transmitter side and send to the receiver side. ④ Network Link LED status After the power connected, the LEDS will show the communication status. When green on, it show the connect success. When green off, it shows the connection not complete. When green sparkling, it show the device defect.。 ⑤ Video Link LED status When the HDMI cable connected, the LED shows the video connected status. When green on, it show the video connect success. When green off, it show the video connect fail.。 ⑥ Frequency Reset button There are two functions.： 1. Enlarge the transmission length: When the distance of the transmitter and receiver are too long, you can press this button on both the transmitter and receiver at the same time. It will raise transmission length, but the video quality maybe be reduced. 2. Reset the frequency of transmitter and receiver: simultaneous press the transmitter and the receiver 3 sec. the Kit will reset and auto tune the communication frequency. ⑦ Power LED. ①

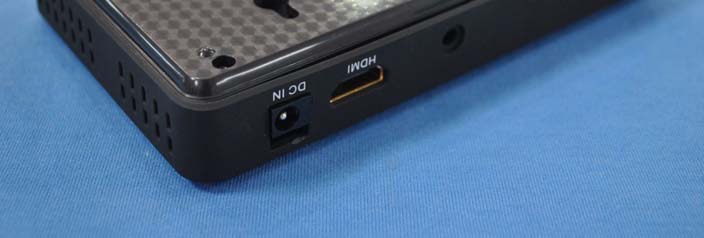

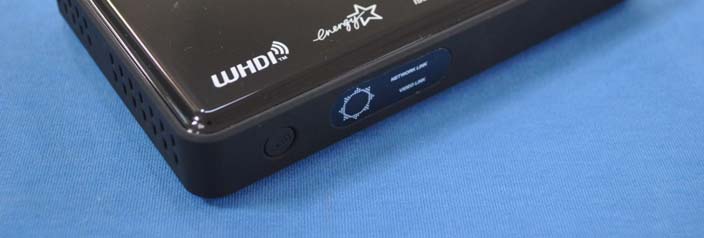

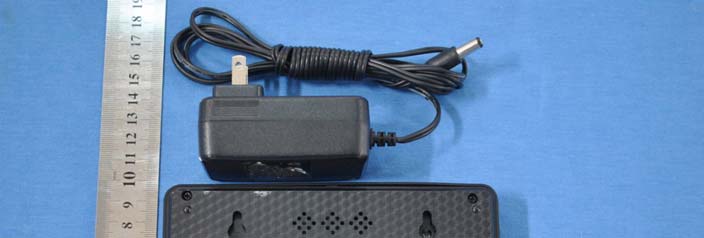

Receptor for the power Adapter 5V/2A。Using power supply with different Voltage rating than the one included with the WTD-700 will cause damage and void warranty for this products。 ② HDMI Output connector Connect the cable with HDMI High Speed Cable with Certificate Catalog 2 to make sure the Receiver ① ② ③ ④ ⑥ ⑤ Page 3 ③ ⑦ connection in good condition。 ③ Network Link LED status After the power connected, the LEDS will show the communication status. When green on, it show the connect success. When green off, it show the connection not complete. When green sparkling, it show the device defect.。 ④ Video Link LED status When the HDMI cable connected, the LED shows the video connected status. When green on, it show the video connect success. When green off, it show the video connect fail. ⑤ Frequency Reset button There are two functions.： 1. Enlarges the transmission length: When the distance of the transmitter and receiver are too long, you can press this button on both the transmitter and receiver at the same time. It will raise the transmission length, but the video quality will be reduced. 2. Reset the frequency of transmitter and receiver: simultaneous press the transmitter and the receiver 3.sec. the Kit will reset and auto tune the communication frequency. . ⑥ IR control receiving window Function and the remote control receiving window , aimed at receiving window can remote video signal source. ⑦ Power LED Before you begin: Wireless considerations The HDMI wireless kit let you access your video signal using wirel…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Hunan Space Satellite Communication Co., Ltd 2011-03-03 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hunan Space Satellite Communication Co., Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: Wireless hd transmission machine ( FCC ID: ZBOWTD-700R) Model No. WTD-700R, NTD-700R、ETD700R、MTD700R We affirm that between SIEMIC and Hunan Space Satellite Communication Co., Ltd, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: David Ma / Vice General Manager Contact information / address: TEL: +86 731 88218858 FAX: +86 731 88218856 E-mail: [email protected] Address:HangTian yard, Wangchengpo, Changsha, Hunan, PRC

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Hunan Space Satellite Communication Co., Ltd 2011-03-03 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZBOWTD-700R We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: David Ma / Vice General Manager Contact information / address: TEL: +86 731 88218858 FAX: +86 731 88218856 E-mail: [email protected] Address:HangTian yard, Wangchengpo, Changsha, Hunan, PRC

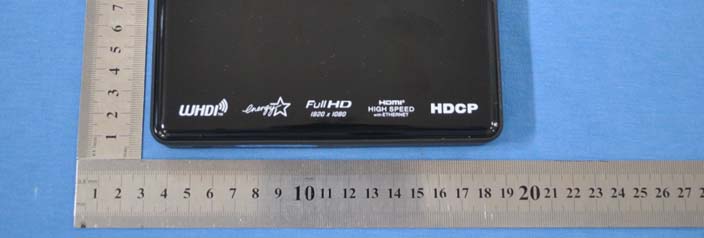

Length=34.7mm width=24.7mm Product name: Wireless hd transmission machine Model No.: WTD-700R FCC ID: ZBOWTD-700R Label Location Product name: Wireless hd transmission machine Model No.: WTD-700R FCC ID: ZBOWTD-700R

1. Maximum Permissible Exposure 1.1 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz MPE Calculation Method , E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.3. Test Result Frequency (MHz) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5190 39.44573 0.012437386 1.0 PASS 5230 33.57376 0.010585933 1.0 PASS 5755 33.18945 0.010464757 1.0 PASS 5795 25.46830 0.008030251 1.0 PASS 5835 24.71724 0.007793439 1.0 PASS Remark: antenna gain=2.0dBi

Global United Technology Services Co., Ltd. Report No: GTSE11010001802 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Applicant: Hunan Space Satellite Communication Co., Ltd Address of Applicant: HangTian yard, Wangchengpo, Changsha, Hunan, PRC Equipment Under Test (EUT) Product Name: Wireless hd transmission machine Model No.: WTD-700R, NTD-700R, ETD700R, MTD700R FCC ID: ZBOWTD-700R Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2009 Date of sample receipt: 12 Jan. 2011 Date of Test: 13 Jan – 1 Mar. 2011 Date of report issued: 7 Mar. 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: GTSE11010001802 Global United Technology Services Co., Ltd. Project No.: GTSE110100018RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 30 2 Contents Page 1 COVER PAGE..................................................................................................................................................... 1 2 CONTENTS.......................................................................................................................................................... 2 3 TEST SUMMARY................................................................................................................................................ 3 4 GENERAL INFORMATION...............................................................................................................................4 4.1 CLIENT INFORMATION................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T............................................................................................................... 4 4.3 TEST ENVIRONMENT AND MODE.................................................................................................................... 4 4.4 TEST FACILITY............................................................................................................................................... 4 4.5 TEST LOCATION............................................................................................................................................ 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.............................................................................. 5 4.7 TEST INSTRUMENTS LIST.............................................................................................................................. 6 5 TEST RESULTS AND MEASUREMENT DATA............................................................................................ 7 5.1 ANTENNA REQUIREMENT:............................................................................................................................. 7 5.2 CONDUCTED EMISSIONS...............................................................................................................................8 5.3 CONDUCTED PEAK OUTPUT POWER.......................................................................................................... 11 5.4 6DB OCCUPY BANDWIDTH.......................................................................................................................... 13 5.5 POWER SPECTRAL DENSITY....................................................................................................................... 16 5.6 RF ANTENNA CONDUCTED SPURIOUS EMISSIONS..................................................................................... 19 5.7 RADIATED EMISSION................................................................................................................................... 25 5.7.1 Radiated emission below 1GHz.............................................................................................................. 27 5.7.2 Transmitter emission above 1GHz ......................................................................................................... 28 Report No: GTSE11010001802 Global United Technology Services Co., Ltd. Project No.: GTSE110100018RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 30 3 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 PASS Conducted emission 15.207 PASS Conducted Peak Output Power 15.247 (b)(3) PASS 6dB Occupied Bandwidth 15.247 (a)(2) PASS Power Spectral Density 15.247 (e) PASS RF antenna conducted spurious emission…

Text truncated - open the document above for the full version.
