ZBU-1XX3XXZXX001ZuVo Water Filtration System (RFID)

Page 1 Zuvo Water Filtration System 300 Series Owner’s Manual IMPORTANT SAVE THIS BOOKLET Includes: • Safety Warnings • Warranty • Operating Instructions • Troubleshooting Guide • Accessories Page 2 BEFORE OPERATING PLEASE READ ALL INSTRUCTIONS IN THIS MANUAL CAREFULLY. IMPORTANT SAFETY INSTRUCTIONS Table of Contents Maintenance and Customer Service, Use Restrictions, Important Safety Instructions Page 2 Warranty, Parts List, Troubleshooting Guide Page 3 General Operating Instructions Page 4 How to Replace Filter Page 6 How To Replace UV Lamp Page 7 Maintenance and Customer Service Congratulations on the purchase of your new Zuvo™ Water Filtration System. This unit is designed to operate for years with minimal maintenance. If you require additional information or have problems with your Zuvo system, contact your local supplier/servicer or Zuvo Water customer service at 1-866-686-8142 or visit the Frequently Asked Questions (FAQ) section of our website zuvowater.com. Save your sales or purchase slip should your Zuvo system require warranty service. Use Restrictions Your Zuvo Water Filtration System is designed to improve the taste and quality of otherwise potable municipal or well water. The patented Zuvo filtration system also provides an environment that is inherently hostile to certain microbiological contaminates. Please note the following use restrictions: 1. Water entering the unit must be free of sediment and loose scale or rust. If your water does not meet these requirements, it must be pre-filtered prior to entering the unit. 2. For optimum performance, the unit must be monitored periodically to ensure proper operation. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS WATER TREATMENT APPLIANCE WARNING To reduce the risk of fire, electric shock, or injury: • FOLLOW ALL SAFETY INSTRUCTIONS • Close attention is necessary when used by or near children. • Use only as described in this manual. • Use only manufacturer’s recommended replacement parts. IMPORTANT: Do not use any faucet other than a Zuvo Beverage Faucet supplied by Zuvo Water. Failure to follow these instructions may void your warranty and/or damage your Zuvo system. • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your local supplier/servicer for replacement. • Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. • Do not handle plug or appliance with wet hands. • Visually inspect the product for a broken quartz tube before installation. If the quartz tube is broken or cracked, contact your supplier immediately for replacement. • This product should only be connected to a power supply receptacle protected by a Ground Fault Circuit Interrupter (GFCI). • Do not use an outlet intended for a garbage disposal as power to this outlet is controlled by a switch. • DANGER – To avoid possible electrical shock, special care should be taken since water is employed in the use of this equipment. • If the appliance falls into water, DO NOT reach for it! First unplug it and then retrieve it. If electrical components of the appliance get wet, unplug the appliance immediately. • Always unplug an appliance from an outlet when not in use, before putting on or taking off parts and before cleaning. • Read and observe all of the important notices on the appliance. • Extension Cords: Use only extension cords that have an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine extension cords before using and replace if damaged. Do not abuse extension cords and do not yank on the cord to disconnect it from the receptacle. Keep the cord away from heat and sharp edges. Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord. WARNING: to reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch the plug with wet hands. • Do not operate unit without it being fully assembled, as the ultraviolet (UV) light is harmful to eyes when directly exposed. • Do not use an appliance for anything other than its intended use. The use of attachments not recommended or sold by Zuvo Water may cause unsafe conditions. SAVE THESE INSTRUCTIONS For Household Use Only Page 3 1 5 3 6 22 4 Warranty The Zuvo Water Filtration System has a one (1) year limited warranty to the original user, to be free from defect in material and workmanship, from the date of purchase. This unit is designed for non-commercial applications. Use in commercial applications will void this product warranty. Supplier liability under this warranty is strictly limited to repairing or replacing (at supplier’s option), without charge, FOB supplier’s authorized service facility, the unit or units. Both Zuvo Water and your supplier will not will not be held liable for any costs of removal, installation, transportation to an authorized service center, or any other charges which may arise in connection with a warranty. Both Zuvo Water and your supplier will not be held liable for damage or wear to products caused by abnormal operating conditions, accident, abuse, misuse, unauthorized alteration or repair, or if the unit was not installed in accordance with printed installation and operating instructions. This warranty does not cover replacement filters. Replacement of lamp assemblies is limited to a period of one (1) year from the date of purchase. Zuvo Water and your supplier will assume no responsibility for any incidental or consequential damages, losses, or expenses arising from installation, use, or any other causes. There are no express or implied warranties, including merchantability or f…

Text truncated - open the document above for the full version.

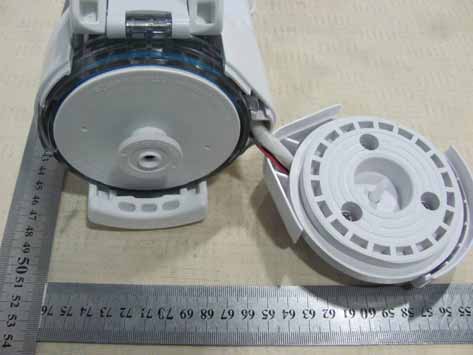

External of EUT

FCC ID Label FCC ID: ZBU-1XX3XXZXX001 Model Number: Series 1xx Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label Location Proposed Label Location on EUT

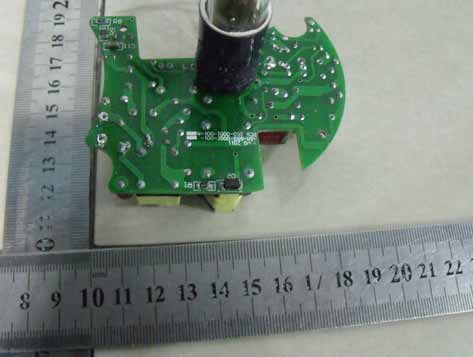

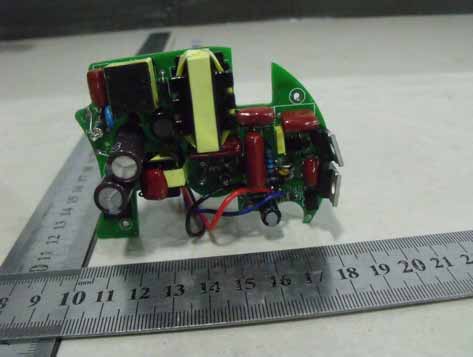

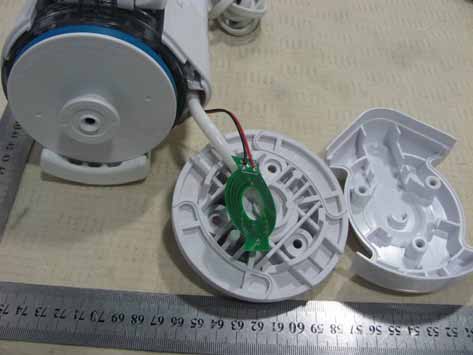

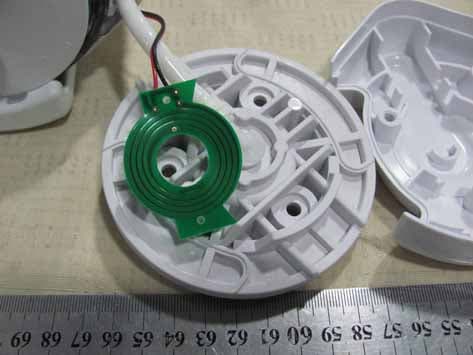

Internal of EUT Antenna

Theory of Operation ZuVo pruator is a water treatment system which is able to alert user to change the water filter when the accumulated amount of water running through the system reach its rated limit. The system contain a flow sensor which is able to record how much water running through the system. When the accumulated amount of water running through the system reach the rate volume of the filter, the system will turn On a buzzer / LEDs. When the unit is Power ON, the MCU will turn ON the RFID reader to read the ID on the Filter. If the ID is different from the previous power ON ID, means a New filter is detected, The system will reset the accumulated water flow counter to Zero. If the ID is same as the previous Power ON ID, means filter is no change, The system will continues use the previous water flow counter value. By using the unique RFID tag Filter, the system is able to detect if a new filter is installed into the system. The system has TWO series, Series 3xx - Series 1xx – The different between series 3xx and 1xx is 3xx has LED and 1xx does not have LED, All the PCBs in series 3xx and 1xx are same. Both Series 3xx and 1xx will have different color on the mechanical part

1 1 2 2 3 3 4 4 DD CC BB AA 1 ZuVo LLC 404 Villa Street Mountain View CA 94041 1 ZuVo Series 1xx, 3xx MCU 1.0 14/3/201112:31:55 C:\Users\fongming\Desktop\ZuVo300\PCB\ZuVoPCBA\MCU_Bd - Copy\ZUVO_300_MCU_SCH.SchDoc Title Size:Number: Date: File: Revision: SheetofTime: A4 D2 IN4148 D3 IN4148 C10 750PF C19 30PF R8 270K ENV 1 2 3 P2 FS 1 2 3 P1 POWER 1 2 3 4 P3 LED RGB 12 34 56 P4 Header 3X2H VDD 1 DATA 2 CMD 3 MCLR 4 BUZZER 5 LED R 6 LED G 7 LED B 8 CLK 9 UVL 10 FS 11 TD 12 Spare 13 VSS 14 U1 PIC16F1823 Spare C42 20PF C23 20PF XT1 13.56MHZ C8 0.1uF + C7 10uF C6 0.1uF + C5 10uF L1 4.7uH C21 0.1uF C28 0.1uF C25 0.1uF + C27 10uF L7 4.7uH For FCC For FCC VDD D3 1 D2 2 D1 3 D0 4 XIN 5 XOUT 6 VSS 7 CMD 8 CLK 9 VDD 10 RX_VDD 11 RX_VSS 12 ENV 13 RESET 14 TAGIN 15 COIL 16 TX_VSS 17 TX_VDD 18 U2 W55MID50 C12 120PF C14120PF C13 120PF VCC R2 NC/10K C4 0.1uF D0 CMD MCLR Buzzer R GB CLK UVL FS TAGIN VSS R3 NC/0 Q1S8050 R4 10K LS1 Buzzer VCC Buzzer VCC R1 NC/10K FS VCC R5 470 R6 470 R7 470 R G B VCC UVL C3 0.1uF + C1 10uF + C2 10uF VDD VDD D0 CMD TAGIN TX_VDD D3 D2 D1 Q1-B /RESETXIN XOUT Q1-C TD COIL CLK RX_VDD LPF D1 5.6V/ Forward drop 0.6V L5 2uH L2 4.7uH ANTENNA(PCB) C11 0.1uF C17 20PF C9 250PF C15 20PF C** 18PF L6 N00884 Connect to Antenna Cable Assembly

SHENZHEN EMTEK CO., LTD. REPORT NO: ES110226101F FCC ID: ZBU-1XX3XXZXX001 DATE: 03/10/2011 Page 1 of 20 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF ZuVo Water Filtration System MODEL No.: Series 1xx, Series 3xx FCC ID: ZBU-1XX3XXZXX001 REPORT NO: ES110226101F ISSUE DATE: March 10, 2011 Prepared for ZuVo Water LLC Phil Houdek 404 Villa Street, Mountain View CA 94041 Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES110226101F FCC ID: ZBU-1XX3XXZXX001 DATE: 04/14/2010 Page 2 of 20 VERIFICATION OF COMPLIANCE Applicant: ZuVo Water LLC Phil Houdek 404 Villa Street, Mountain View CA 94041 Product Description: ZuVo Water Filtration System Brand Name: N/A Model Number: Series 1xx, Series 3xx (Note: The different between series 3xx and 1xx is 3xx has LED and 1xx does not have LED, All the PCBs in series 3xx and 1xx are same. Both Series 3xx and 1xx will have different color on the mechanical part. We take Series 3xx for test.) Serial Number: N/A File Number: ES110226101F Date of Test: February 26, 2011 to March 5, 2011 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of Part 15 Subpart C 15.225. The test results of this report relate only to the tested sample identified in this report. Approved By David Lee / Q.A. Manager SHENZHEN EMTEK CO., LTD. SHENZHEN EMTEK CO., LTD. REPORT NO: ES110226101F FCC ID: ZBU-1XX3XXZXX001 DATE: 04/14/2010 Page 3 of 20 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ........................................................................................................... 4 1.1 P RODUCT DESCRIPTION.............................................................................................................. 4 1.2 R ELATED SUBMITTAL(S) / GRANT (S) ......................................................................................... 4 1.3 T EST METHODOLOGY................................................................................................................. 4 1.4 S PECIAL ACCESSORIES................................................................................................................ 4 1.5 E QUIPMENT MODIFICATIONS...................................................................................................... 4 1.6 T EST FACILITY............................................................................................................................ 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 EUT CONFIGURATION................................................................................................................ 6 2.2 EUT EXERCISE........................................................................................................................... 6 2.3 T EST PROCEDURE....................................................................................................................... 6 2.4 C ONFIGURATION OF TESTED SYSTEM......................................................................................... 7 3. SUMMARY OF TEST RESULTS ......................................................................................... 8 4. DESCRIPTION OF TEST MODES ...................................................................................... 8 5. CONDUCTED EMISSIONS TEST ....................................................................................... 9 5.1 MEASUREMENT PROCEDURE: ....................................................................................................... 9 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)................................................................ 9 5.3 MEASUREMENT EQUIPMENT USED: .............................................................................................. 9 5.4 CONDUCTED EMISSION LIMIT....................................................................................................... 9 5.5 MEASUREMENT RESULT: ............................................................................................................ 10 5.6 C ONDUCTED EMISSION MEASUREMENT PHOTOS....................................................................... 11 6. RADIATED EMISSION TEST ............................................................................................ 12 6.1 MEASUREMENT PROCEDURE..................................................................................................... 12 6.2 RADIATED EMISSION LIMITATION................................................................................................. 12 6.4 M EASUREMENT EQUIPMENT USED: .......................................................................................... 14 6.5 M EASUREMENT RESULT........................................................................................................... 14 6.6 RADIATION MEASUREMENT PHOTOS......................................................................................... 16 7. BANDWIDTH EMISSION TEST ........................................................................................ 17 7.1 M EASUREMENT PROCEDURE..................................................................................................... 17 7.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................ 17 7.3 M EASUREMENT EQUIPMENT USED: .......................................................................................... 17 7.4 M EASUREMENT RESULTS:...........................…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST CONDUCTED EMISSION TEST
