ZBZFL-2000GVehicle GPS Tracking Terminal

Shenzhen C2S Technology Co.,Ltd. Add.: No.803-804,Eastern Tower of Nanshan software Park, #10128 Shennan Road, Nanshan District, Shenzhen, China Postcode:518052 Tel:+86 755-83456896 83986996 Fax:+86 755-83986972 FL-2000G User’s Manual ----For Fleets Management Shenzhen C2S Technology Co.,Ltd. 1 Statement Thanks for your selection of FL-2000G Fleets vehicle tracking Terminal from C2STEK Pls read this user’s guide carefully and make sure you will use the original accessories provided by C2STEK in avoid of any unexpected damage for this product. If you are not using this product with the right procedure and method or not using original accessories to make damage for this product, C2STEK will not be responsible for your loss. FCC Statement This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation if the device. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment 1) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2) This equipment complied with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operated the equipment. Shenzhen C2S Technology Co.,Ltd. 2 Index Chapter 1 Product Introduction ............................................................................................................... 3 1. Product Package........................................................................................................................... 3 2. Advantages................................................................................................................................... 4 3. Application Range ....................................................................................................................... 4 4. Specification: ............................................................................................................................... 4 Chapter 2 Operation Guide...................................................................................................................... 6 1. Outer Structure............................................................................................................................. 6 2. Power Supply ............................................................................................................................... 7 3. Wiring Diagram ........................................................................................................................... 7 4. SOS Button Usage ....................................................................................................................... 7 Chapter 3 Main Features.......................................................................................................................... 9 1. Vehicle Positioning ...................................................................................................................... 9 2. Real Time Tracking Data Report.................................................................................................. 9 3. ITV Report ................................................................................................................................... 9 4. Immobilizer Enable/Disable ........................................................................................................ 9 5. GEO Fencing ............................................................................................................................... 9 6. Over Speed Alert........................................................................................................................ 10 7. Car Battery Voltage Lower Alert/Power Failure Alert ............................................................... 10 8. SOS Emergency Help ................................................................................................................ 10 9. Voice Monitoring ....................................................................................................................... 10 10. Central Control Center Remote Control Support................................................................... 10 11. ACC On/Off Report............................................................................................................... 10 12. Black-Box Function ( Internal Memory with History GPS data) .......................................... 10 13. Central Control Center Call in and Device auto pickup function .......................................... 11 Chapter 4 Installation, Maintenance and Technical Support ................................................................. 12 1) Installation and Repair ............................................................................................................... 12 2) Water Protection......................................................................................................................... 12 3) Technical Support ...................................................................................................................... 12 Shenzhen C2S Technology Co.,Ltd. 3 Chapter 1 Product Introduction FL-2000G is a well-defined GPS/GPRS/SMS tracking device for fleets management Application. It featured with small size, easy installation and satisfied most features expectations from solution integrators. It is equipped with 32Channel Industrial High sensitivity GPS module and State-of-art GSM/GPR…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Shenzhen C2S Technology CO., LTD. 2011-03-04 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen C2S Technology CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Vehicle GPS Tracking Terminal, FL-2000G, FL-2000N, FL-2000F, FL-2000L) We affirm that between SIEMIC and Shenzhen C2S Technology CO., LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Anson Shi/ Product Manager E-mail : [email protected] Phone : +0755-83986996 Fax : +0755-83986972 Address : E2008,Eastern Tower of Nanshan Software Park, Nanshan District, Shenzhen,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 ShenZhen C2S Technology CO., LTD. 2011-03-04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZBZFL-2000G We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematic Diagram - Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Anson Shi/Product Manager E-mail : [email protected] Phone : +0755-83986996 Fax : +0755-83986972 Address : E2008,Eastern Tower of Nanshan Software Park, Nanshan District, Shenzhen,China

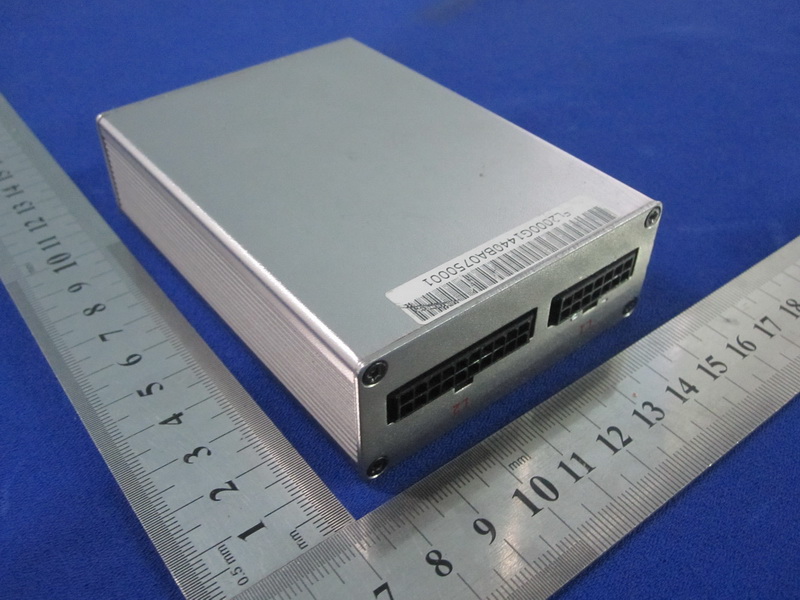

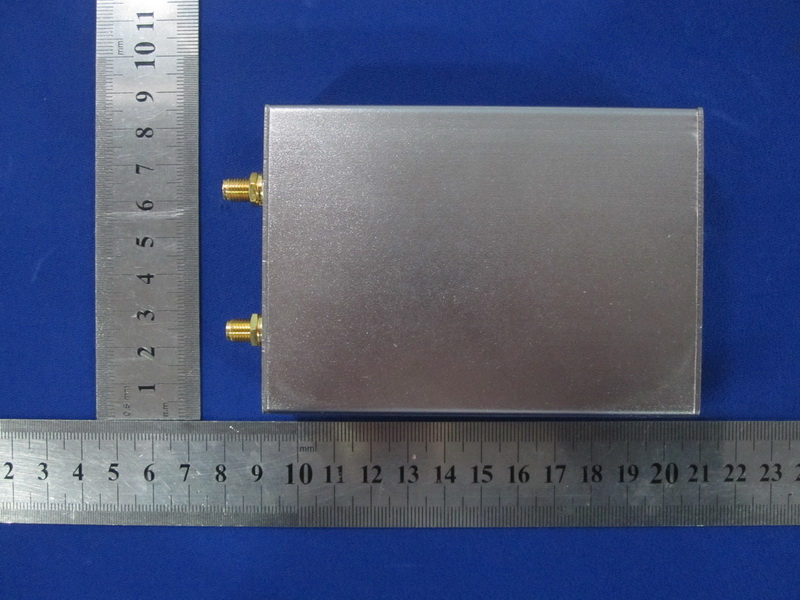

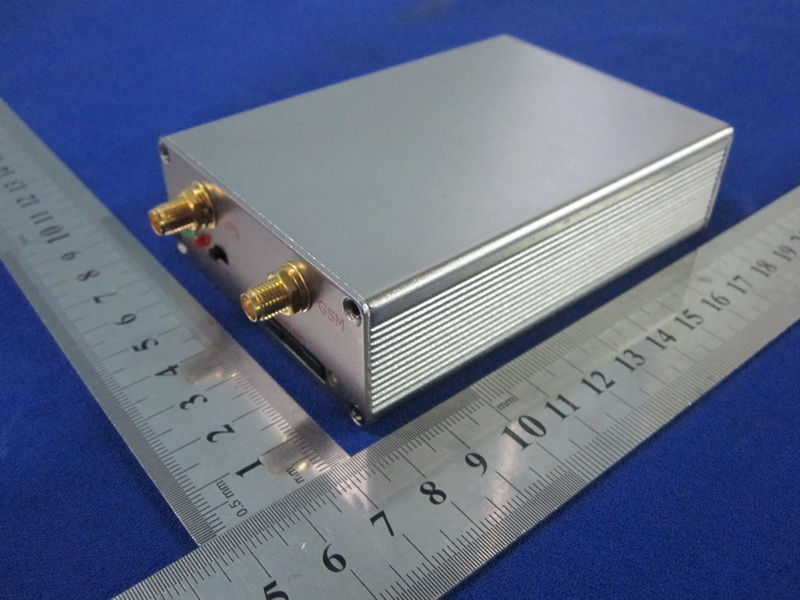

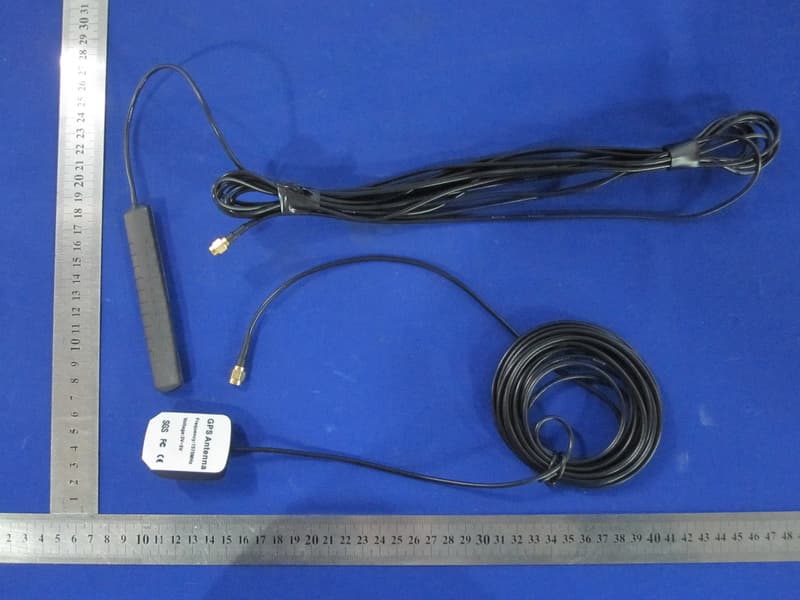

Report No.: TB-FCC110435 Page: 3 of 11 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Antenna Report No.: TB-FCC110435 Page: 4 of 11 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC110435 Page: 5 of 11 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Report No.: TB-FCC110435 Page: 1 of 11 TB-RF-074-1.0 Appendix IID Label FCC ID: ZBZFL-2000G

Report No.: TB-FCC110435 Page: 2 of 11 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

Report No.: TB-FCC110435 Page: 6 of 11 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Inside of EUT Photo 8 Inside of EUT Report No.: TB-FCC110435 Page: 7 of 11 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC110435 Page: 8 of 11 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC110435 Page: 9 of 11 TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB

1.1. Test Result of RF Exposure Evaluation . Product: Vehicle GPS Tracking Terminal Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain External antenna, 2 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Mar. 04, 2011 Temperature: 20°C Atmospheric pressure: 1020 hPa Humidity: 65％ Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/ cm2) 128 824.2 31.61 0.4570 190 836.6 31.62 0.4580 GSM 850 251 849.8 31.67 0.4633 128 824.2 30.91 0.3890 190 836.6 30.96 0.3935 GPRS 850 251 849.8 30.98 0.3953 512 1850.2 28.62 0.2295 661 1880.0 28.81 0.2398 PCS 1900 810 1909.8 29.08 0.2552 512 1850.2 28.71 0.2343 661 1880.0 28.37 0.2167 GPRS 1900 810 1909.8 28.16 0.2065 As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure(MPE), Limits for General Population/ Uncontrolled Exposure Frequency range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For GSM 850 MHz Band (824.2~848.8 MHz) MPE limit S: 0.5495 mW/cm 2 (frequency 824.2 MHz). The MPE is calculated as 0.4633mW / cm 2 < limit 0.5495 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For PCS 1900 MHz Band (1950.2~1909.8 MHz) MPE limit S: 1 mW/cm 2 The MPE is calculated as 0.2552mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Shenzhen Meihua Electonic Technology Co., Ltd. Report No.: TB-FCC110435 Page: 1 of 60 TB-RF-074-1.0 Room 505, East DingXin Bldg., LiuXian Road, XiLi Town, Nanshan, Shenzhen, China Tel: +86 75526292087 Fax: +86 75526751700 FCC Radio Test Report FCC ID: ZBZFL-2000G Report No. : TB-FCC110435 Applicant : ShenZhen C2S Technology Co.,Ltd. Equipment Under Test (EUT) EUT Name : Vehicle GPS Tracking Terminal Model No. : FL-2000G Serial No. : FL-2000N, FL-2000F, FL-2000L Brand Name : C2STEK Receipt Date : 2011-02-09 Test Date : 2010-02-10 to 2010-03-01 Issue Date : 2011-03-04 Standards : FCC Part 2 FCC Part 22 Subpart H FCC Part 24 Subpart E Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC107794 Page: 2 of 60 TB-RF-074-1.0 Contents CONTENTS.............................................................................................................................................2 1. GENERAL INFORMATION ABOUT EUT.............................................................................4 1.1 Client Information.................................................................................................................4 1.2 General Description of EUT (Equipment Under Test)...................................................4 1.3 Block Diagram Showing The Configuration of System Tested.....................................5 1.4 Description of Support Units..............................................................................................5 1.5 Description of Test Mode....................................................................................................5 1.6 Test Facility...........................................................................................................................6 2. TEST SUMMARY.......................................................................................................................7 3. FREQUENCIES..........................................................................................................................8 4.1 Test Standard and Requirement.......................................................................................8 4.2 Test Setup.............................................................................................................................8 4.3 Test Procedure.....................................................................................................................9 4.4 EUT Operating Condition...................................................................................................9 4.5 Test Equipment....................................................................................................................9 4. CONDUCTED RF OUTPUT POWER...................................................................................12 5.1 Test Standard and Limit....................................................................................................12 5.2 Test Setup...........................................................................................................................12 5.3 Test Procedure...................................................................................................................12 5.4 EUT Operating Condition.................................................................................................12 5.5 Test Equipment..................................................................................................................12 5. RADIATED OUTPUT POWER..............................................................................................29 6.1 Test Standard and Limit....................................................................................................29 6.2 Test Setup...........................................................................................................................29 6.3 Test Procedure...................................................................................................................29 6.4 EUT Operating Condition.................................................................................................30 6.5 Test Equipment..................................................................................................................30 6.6 Test Data.............................................................................................................................31 6. OCCUPIED BANDWIDTH......................................................................................................33 7.1 Test Standard and Limit....................................................................................................33 7.2 Test Setup...........................................................................................................................33 7.3 Test Procedure...................................................................................................................33 7.4 EUT Operating Condition.................................................................................................34 7.5 Test Equipment..................................................................................................................34 7. CONDUCTED OUT OF BAND EMISSIONS.......................................................................41 8.1 Test Standard and Limit....................................................................................................41 8.2 Test Setup...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC110435 Page: 10 of 11 TB-RF-075-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Bellow 1 GHz) Report No.: TB-FCC110435 Page: 11 of 11 TB-RF-075-1.0 Photo of Setup for Extreme Condition Test
