ZCDV201Wireless Vscale

Wireless Vehicle weighting kit manual Main features and parts 1. Four electronic weighting pads with wireless central process display unit. 2. Each weighting pad with full capacity up to 600KG. 3. Display unit operates with detachable battery power unit or 6V standard ac to dc adapter. 4. Display indicates percentage load of each wheel to the total. 5. Display loading in KG (or IBS) of each wheel to the total by pressing “unit”. 6. Display interactive center of gravity in graphical form. 7. Display total weight. 8. All information in one single LCD. 9. Low battery indication. . Center of gravity FL weight FR weight RL percentage weight Total weight RR percentage weight RL weight FL percentage weight FR percentage weight RR weight On /off Zero Unit Power unit 4 4 4 4 6 7 8 Wireless display unit As metal should block the signal, while vehicle is on pads, it is the best position of display box ( about 3 – 4 feet ) for obtaining better reading with the direction of handle pointing to the display unit box Set up configuration Operating instructions. 1. Open the display box, insert 4 AA batteries into the battery pack. 2. Switch on the battery pack by ticking the small switch to the on position. 3. Open the respective battery door of the weighing pads and pull out the battery pack. 4. Insert each pad with 4 AA batteries , insert back the four AA batteries. 5. Power on the pads by pressing the small tact switch near the handle of the pad. 6. The red LED next to the handle should light up. If it looks dim or cannot light up, replace with four new AA batteries. 7. Put the respective weighing pads next to the wheels to be weighed. 8. Make sure that the right pads at the right position as follows; 4 x Aluminium Ramper (Option parts) F R F L RR R RL 4 wireless weighing pads FR, FL, RR, LR, -front right, front left, rear right, left rear With the direction of handle pointing to the display unit box As shown in the set up configuration above. 9. Power up the indicator by pressing on / off. Wait until the reading of weight all showing zero or press “tare” to zero. Press “unit” to choose metric or imperial. If the display shows “L Bat”, replace the 4 x AA batteries. 10. Test each pad if it weigh correctly. If not, press “tare” to zero again and test until it weigh correctly. 11. Lift the vehicle up and put the respective center of the pad under and align with the center of the tire. Never press “zero” if the vehicle is on the pads otherwise the vehicle has to be removed and reset zero again. 12. While the car is on the pads. Shake each of the corners of the car up and down to relieve out any residue stress or friction within the chassis. 13. The car total weigh, individual weigh of each wheel load as well as it’s percentage to the total weigh will shown accordingly at once. 14. The center of gravity “dot” will show to indicate how the actual center of gravity move. 15. Press on/off of the display unit to power off the unit. 16. Press the tact switch of the each pad to off the pads. Make sure the LEDs are all off. Caution statement： Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

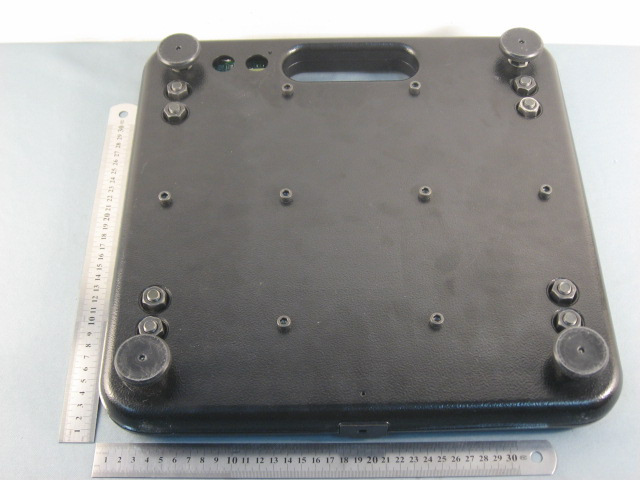

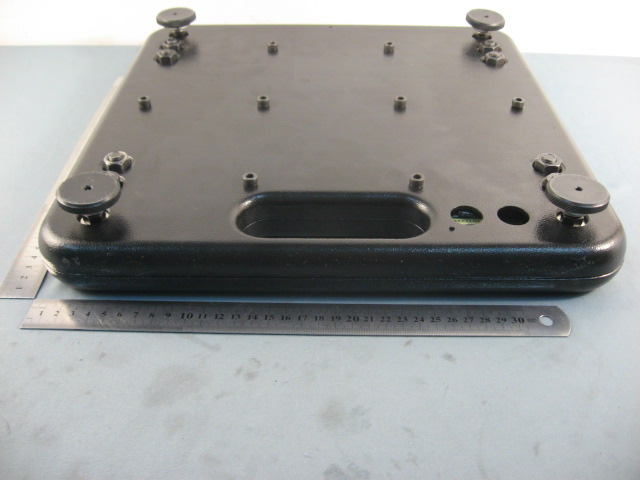

1 Photographs - EUT Constructional Details

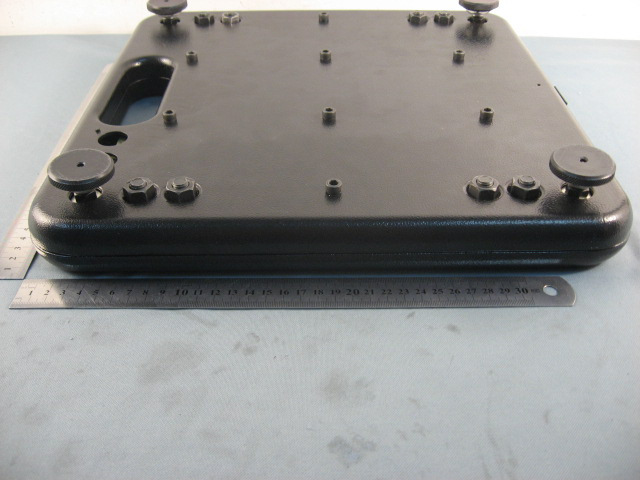

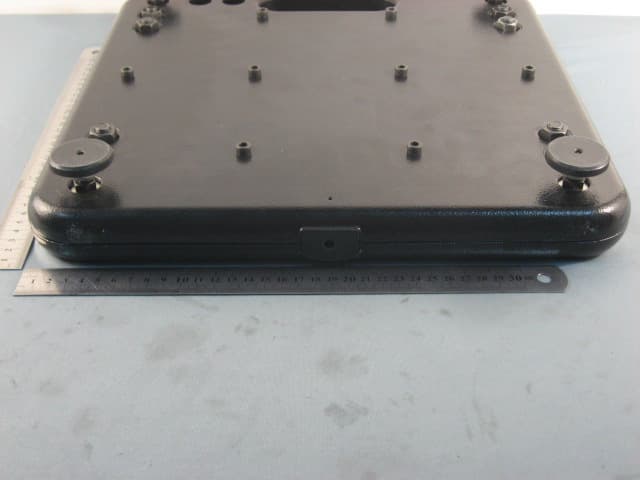

1 Photographs - EUT Constructional Details
