ZCF-P1013PU CASE WITH KEYBOARD

MCU BT MODULE DATA PCB embedded antenna Buttons LDO TO 3.0V Batty 3.7-4.2V Change,5V TO 3.7V USB IN Crystal 24MHz

Shenzhen Phaeton Nice Electronic High-tech Co. Ltd. . FCC ID: ZCF-P1013 POWER OF ATTORNEY March 17, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Shenzhen Phaeton Nice Electronic High-tech Co. Ltd., hereby authorize Most Technology Service Co., Ltd. (Terry YANG/ Manager) located at No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park ,Nanshan, Shenzhen, Guangdong ,China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on March 31, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Phaeton Nice Electronic High-tech Co. Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Xiaohui Ni General Manager Shenzhen Phaeton Nice Electronic High-tech Co. Ltd. March 17, 2011

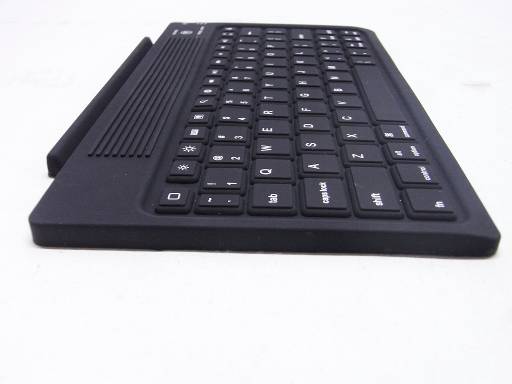

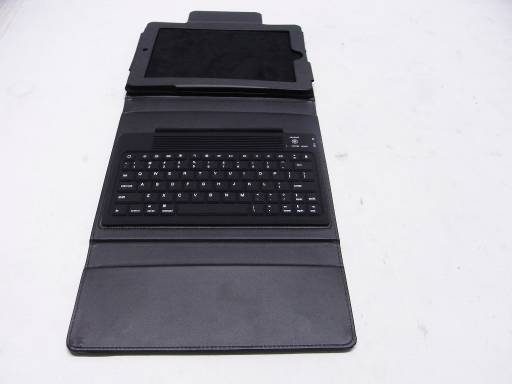

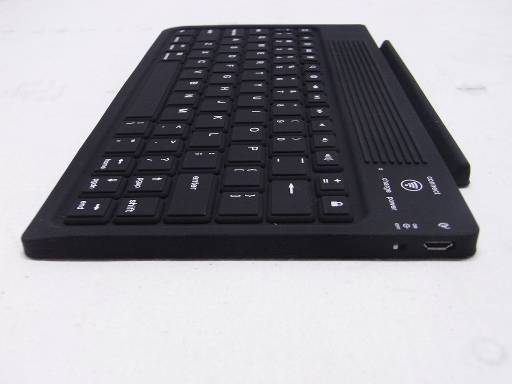

FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT PHOT PHOTO O TO OF USB C F THE ENTI R CABLE RE SAMPLE

INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE - 4

BT Keyboard Operation Principle 1. Controller Side Radio The radio system is mainly composed of three parts: radio modem, frequency synthesizer and baseband microprocessor. The radio modem is a GFSK modem running at 1Mbps. The antenna is an embedded PCB antenna matching is done by using lumped inductors and capacitors. The microcontroller scans keystrokes on the joypad, then packs the data by adding preambles, frame information, and error checking bytes.The radio system uses one of 79 channels (the frequency range is 2.400-2.480GHz) to send signal in random, Otherwise, there are 4 synchronous channels (distribute in the 79 channels uniformity). The joypad radio is powered by 3.7V Li-ion batteries and regulated to 3.0V. The power consumption of RF module is about 4mA, the total power consumption of the joypad side radio system is about 5mA in normal working mode. It will enter sleep mode if no key be pressed after 8 minutes, in this mode the total power consumption of joypad is only about 40uA*.

1 2 34 ABCD 4 3 2 1 D CBA P0.5 1 P0.6 2 P0.7 3 P1.0 4 P1.1 5 P1.2 6 P1.3 7 P1.4 8 P1.5 9 P1.6 10 P1.7 11 P2.0 12 P2.1 13 P2.2/CM0N 14 P2.3/CM0P 15 P2.4/COM0O 16 P2.5/CM1N 17 P2.6/CM1P 18 P2.7/CM1O 19 VSS 20 VDD 21 P4.0 22 P4.1 23 P4.2 24 P4.3 25 P4.4 26 P4.5 27 P4.6 28 P4.7 29 P3.0 30 P3.1 31 P3.2/URX 32 P3.3/UTX 33 P5.0/SCK 34 P5.1/SI 35 P5.2/SO 36 P5.3/BZ1/PWM 37 P5.4/IROUT 38 P5.5 39 P5.6 40 P5.7 41 VDD 42 VSS 43 P0.0/INT0 44 P0.1/INT1 45 P0.2/RST/VPP 46 P0.3/XIN 47 P0.4/XOUT 48 U1 MCU QFP48 R0R1R2R3R4R5R6R7 C16C17C12C13C14C15C11C10 C1 10uF V3.3 C9C5C6 C8C7C0C1C2C3C4SPI_SCLKSPI_SDISPI_SDOSPI_CS C2 10uF V3.3 WakeUpStatus D1 LED D2LED SW1 ID ID_key GND 1 P24 2 P23 3 P26 4 P02 5 P08 6 V1.8 7 P06 8 P03 9 V3.3 10 LED0 11 LED1 12 P22 13 GND 14 VBAT 15 GND 16 P21 17 P20 18 SDA 19 P19 20 GND 21 P14 22 P04 23 P05 24 TX 25 RX 26 27 27 P14 28 RST-N 29 P15 30 P17 31 32 32 P00 33 P18 34 P01 35 P28 36 GND 37 P27 38 GND 39 U3MODULE Crvstal_ 24M StatusWake upV3.3LVD_LED SPI_CS SDA VDD SPI_TXSPI_RX SPI_SDO RST_N SPI_SDI SPI_SCLK ID_key Status_led CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U2LTC4054 R51.69K 12 BAT VBAT +5V +5V R4330R C3 10uF C7 0.1uF C4 10uF C8 0.1uF C5 10uF C6 10uF C9 0.1uF +5V V3.3 VBAT V1.8 V1.8 D3LED R610R VBAT 上电指示灯 充电指示灯 低电指示灯 蓝牙指示灯 Status_led VSS 1 Vout 2 Vin 3 U4LDO VBAT VDD C10 10uF C11 0.1uF VDD R1330R R2330R VBAT +5V S1SW SPDT VBAT 12345 J6MINI USB 深圳网信通科技有限公司WWW 。 SZWXT 。 COM

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Shenzhen Phaeton Nice Electronic High-tech Co. Ltd. Address : Block B2, He Xia Ling Industry Park, Pingxin Road, Pinghu Town, Longgang District, Shenzhen, China Product Name : PU Case With Keyboard Model Name : P1013 Brand Name : DVIP FCC ID : ZCF-P1013 Report No. : STS110304F2 Date of Issue : March. 15, 2011 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 39 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: ZCF-P1013 Report No.: MOST110304F2 Page 2 of 39 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.......................................................................................... 3 2. GENERAL INFORMATION ....................................................................................................... 4 2.1 Product Information ................................................................................................................ 4 2.2 Objective ................................................................................................................................ 5 2.3 Test Standards and Results .................................................................................................... 5 2.4 Environmental Conditions ....................................................................................................... 5 3. TEST FACILITY ........................................................................................................................ 6 3.1TEST FACILITY ....................................................................................................................... 6 3.2 GENERAL TEST PROCEDURES .......................................................................................... 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................... 7 4. SETUP OF EQUIPMENT UNDER TEST.................................................................................. 8 4.1 SUPPORT EQUIPMENT ........................................................................................................ 8 4.2 TEST EQUIPMENT LIST ........................................................................................................ 9 5. 47 CFR Part 15C 15.249 Requirements ................................................................................. 10 5.1 Spurious Emission Test ........................................................................................................ 10 5.1.1 Requirement ...................................................................................................................... 10 5.1.2 Test Description .................................................................................................................. 11 5.1.3 Test Description ................................................................................................................. 12 5.1.4 Test Result ......................................................................................................................... 13 5.2 Band Edge ............................................................................................................................ 20 5.2.1 Requirement ...................................................................................................................... 20 5.2.2 Test Description ................................................................................................................. 20 5.2.3Test Result .......................................................................................................................... 20 5.3 LINE CONDUCTED EMISSION TEST ................................................................................. 25 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST........................................................... 25 5.3.2. BLOCK DIAGRAM OF TEST SETUP ............................................................................... 25 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................... 26 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .................................... 26 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .............................................. 27 APPENDIX 1 .............................................................................................................................. 29 PHOTOGRAPHS OF TEST SETUP ........................................................................................... 29 APPENDIX 2 .............................................................................................................................. 32 PHOTOGRAPHS OF EUT ......................................................................................................... 32 FCC ID: ZCF-P1013 Report No.: MOST110304F2 Page 3 of 39 1. VERIFICATION OF CONFORMITY Equipment Under Test: PU Case With Keyboard Brand Name: DVIP Model Number: P1013 FCC ID: ZCF-P1013 Applicant: Shenzhen Phaeton Nice Electronic High-tech Co. Ltd. Block B2, He Xia Ling Industry Park, Pingxin Road, Pinghu Town, Longgang District, Shenzhen, China Manufacturer: Shenzhen Phaeton Nice Electronic High-tech Co. Ltd. Block B2, He Xia Ling Industry Park, Pingxin Road, Pinghu Town, Longgang District, Shenzhen, China Technical Standards: 47 CFR Part 15 Subpart C File Number: STS110304F2 Date of test: March. 14 ~ March. 15, 2011 Deviation: None Condition of Test Sample: Normal Test…
