ZCFHT-1302Bluetooth Keyboard

FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Shenzhen Phaeton Nice Electronic Hi-Tech Co., Ltd. B2, Hexialing Industrial Park, Pingxin Road, Pinghu Town, Longgang District, Shenzhen DATE :2013-6-5 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Kavin Yu of Shenzhen EBO Technology Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Phaeton Nice Electronic Hi-Tech Co., Ltd. And B2, Hexialing Industrial Park, Pingxin Road, Pinghu Town, Longgang District, Shenzhen Dated this / Day of 6/6/2013 / Agency agreement expiration date: 6/5/2014 By: Xiaohui Ni Signature Printed Title: General Manager On behalf of : Shenzhen Phaeton Nice Electronic Hi-Tech Co., Ltd. Telephone: +86 755 29672866

Shenzhen Phaeton Nice Electronic Hi-Tech Co., Ltd. B2, Hexialing Industrial Park, Pingxin Road, Pinghu Town, Longgang District, Shenzhen DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__ ZCFHT-1302____ Product Name:__ Bluetooth Keyboard _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  BOM list These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 6/6/2013 / By: Xiaohui Ni Signature Printed Title: General Manager On behalf of : Shenzhen Phaeton Nice Electronic Hi-Tech Co., Ltd. Telephone: +86 755 29672866

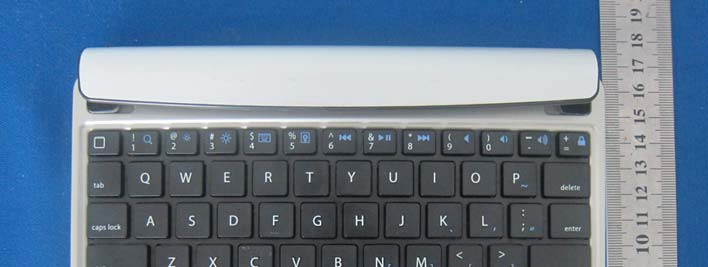

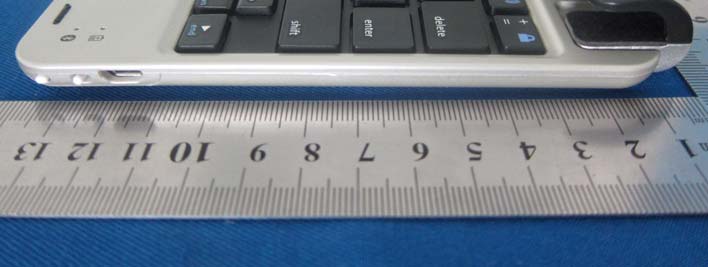

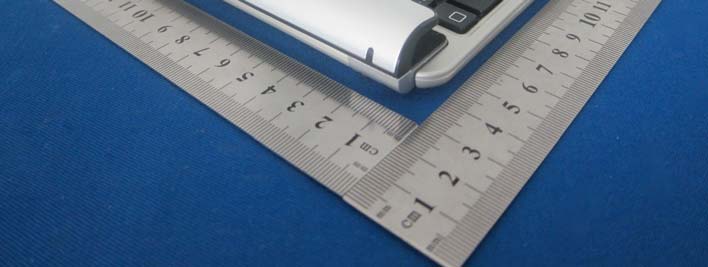

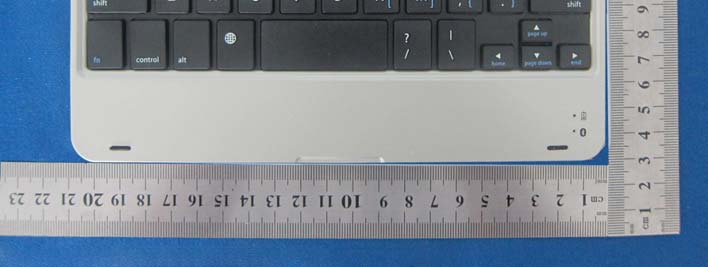

External Photos of EUT Sample

Label and Label Location Bluetooth Keyboard Model No.: KB-1302 FCC ID: ZCFHT-1302 This Device Complies With Part 15 Of The FCC Rules. Operation Is Subject To The Following Two Conditons: (1) This Device May Not Cause Harmful Interference, And (2) This Device Must Accept Any Interference Received, Including Interference That May Cause Undesired Operation. Label Location on EUT Label Location

Internal Photos of EUT Sample

Operational Description The radio system is mainly composed of three parts: radio modem, frequency synthesizer and baseband microprocessor. The radio modem is a GFSK modem running at 1Mbps. The antenna is an embedded PCB antenna matching is done by using lumped inductors and capacitors. The microcontroller scans keystrokes on the keyboard, then packs the data by a dding preambles, frame information, and error checking bytes. The radio system uses one of 79 channels (the frequency range is 2.402‐2.480GHz) to send signal in random. The keyboard is powered by 3.7V Li‐ion batteries. The Li‐ion battery is charged by the PC via the USB port. The USB por t is for charging only. Operation Frequency: 2402MHz~2480MHz Channel numbers: 79 Channel separation: 1MHz Modulation type: GFSK Antenna Type: PCB Antenna Antenna gain: ‐4.1dBi

FCC ID:ZCFHT-1302 The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] ≤ 3.0 The maximum tune-up limit power 1.324mW @ 2.480GHz For the head and body SAR, use 5mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] =0.417≤ 3.0 So standalone SAR measurements are not required for both head and body.

Shenzhen EBO Technology Co., Ltd . 1-4F, Huafeng Science Park, Xin’an Sixth Road, 82 th District, Bao’an, Shenzhen, China. Telephone：+86-755-29451282 Fax: +86-755-22639141 Report No.: FCC13-RTE060602E This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the EBO product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of EBO International Electrical Approvals or testing done by EBO International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by EBO International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Page: 1 of 31 FCC REPORT Applicant: Shenzhen Phaeton Nice Electronic Hi-Tech Co., Ltd. Address of Applicant: Block B2, Hexialing Industrial Park, Pingxin Road, Pinghu Town, Longgang District, Shenzhen Equipment Under Test (EUT) Product Name: Bluetooth Keyboard Model No.: KB-1302 FCC ID: ZCFHT-1302 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2012 Date of sample receipt: May 27, 2013 Date of Test: May 27- June 4, 2013 Date of report issued: June 6, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Authorized Signature: Kavin Yu Laboratory Manager Shenzhen EBO Technology Co., Ltd . Report No.: FCC13-RTE060602E Page: 2 of 31 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn 2 Version Version No. Date Description 00 June 6, 2013 Original and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Prepared By: Date: June 6, 2013 Project Engineer Check By: Date: June 6, 2013 Reviewer Shenzhen EBO Technology Co., Ltd . Report No.: FCC13-RTE060602E Page: 3 of 31 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE.............................................................................................................................................1 2 VERSION...................................................................................................................................................2 3 CONTENTS...............................................................................................................................................3 4 TEST SUMMARY......................................................................................................................................4 5 GENERAL INFORMATION.......................................................................................................................5 5.1 CLIENT INFORMATION..........................................................................................................................5 5.2 G ENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.3 T EST MODE.................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. Conducted Emission Test Setup 2. Radiated Emission Test Setup
