LightScape MC/TM Waterproof floating Cordless LED lamp PLEASE READ THE INSTRUCTIONS BEFORE USE This pack includes: Two polyethylene light diffuser + Two rechargeable LED Lights One charger base One external AC adapter One RF REMOTE CONTROLLER Operating instructions For you to make the most of your new lamp, please carefully read and observe these operating instructions. Description This rechargeable waterproof and cordless polyethylene lamp, was designed for both indoor and outdoor use (patio, balcony, garden...) or swimming pool. It floats, resists to light impacts ,UV and to the chlorinated water of swimming pools. The induction charger allows the lion polymer battery to be safely recharged if you strictly follow the safety guidelines. Technical specifications • Module with 5 color RGB LED • Waterproof LED module and Lamp • Induction Charger : Input AC 100V-240V – Output DC 12V 500 mA • Battery: lion polymer 800 mAh • Polyethylene plastic, UV and chlorine resistant diffuser. • 4.33-Ghz-radio-frequency remote controller powered with a 23A - MN21 alkaline battery Standards and certifications: CE – ROHS – C’Tick – FCC - PSE – IC – MIC LIGHT DESCRIPTION A : lighting access buttons B : ball shade 1 ( polyethylene material ) C :ball shade 2 ( polyethylene material ) D : LED lighting module E : induction charging base RF REMOTE CONTROLLER DESCRIPTION K1 : Color Change + ColorMemory K2 : Fixed Color + Candle Effect K3 : Light Intensity adjustment Induction charging the lamp First use: fully charge the battery for at least 5 hours Connect the external AC adapter to an electrical outlet then connect the other end under the charger station. The power indicator (blue diode) lights up. Put your lamp gently over the induction charging station by taking care at first to verify that its base is perfectly clean and dry. The red charge indicator appears then: charging begins. The charge indicator will light up in blue when the battery is fully charged Red indicator: charging Blue indicator: battery fully charged When your battery is fully charged the charger will automatically cut off ( note that the LED will remain blue ). It is strongly recommended to disconnect the AC adapter once the charge is completed. When not charging, you can also use your lamp on its stand, as the charger powers the LED module while charging the battery. The charging time will then be longer than when the lamp is off. It should be noted that to charge and use your lamp in a simultaneous manner may alter the life duration of your battery. Charger’s safety guidelines It is essential, before any charge, to clean, if required, the base of your lamp. Flush the lamp and its base with clear water after every use in swimming pool, then with a soft and dry cloth, dry it thoroughly before charging. For your safety, the induction charger has an automatic feature to reduce the charge, which lowers the electric power fed to the battery when it is charged, at 85 % thus preventing any damage. When not using your lamp on its charger base, it is highly recommended to disconnect the external AC adapter from the electrical plug. The charger should not be used outdoors, and never be exposed to rain, humidity or other liquids. Refrain from using the charger near a heat source and keep it out of children’s reach. This charger is specifically designed to operate with the lamp supplied in the pack, and it should not, under any circumstances, be used to charge any other product. When charging, the Ac adapter and the battery and the charger ‘s base may heat slightly. This is normal. Let the LED module cool down before use. Do not touch the charger’s base or the charger when charging. Do not connect the lamp’s base to any other device. Do not try to charge the lamp with any other charger than the one supplied in the pack. Do not attempt to open the charger, or the AC adapter; for any problem, return it to your retailer. Performance: Indicative charging time: 3h30 hours. Battery’s autonomy (for information): RGB colors (multicolor) 8-20 hours Candle effect: ) :9-18 hours Designated temperature for product use: 14-35 degrees. Below 14°C, the battery’s autonomy will be significantly reduced. Update feature - Reset / Low battery: When the battery has less than 20% of its charge, the lamp might not turn on. Just place your lamp on the charger’s base connected to an electrical outlet, then try again. Turning the lamp on and its operation The 3 buttons located under your lamp (LED module) or on your remote controller allow you to access all features and settings. Use with a wireless remote controller Please insert the battery supplied by observing the polarities (+ / -). Make sure you change the battery (12V, type: 23A - MN21 battery) when required. IMPORTANT : underneath LED module button K2 : ON/OFF remote controller access K1 : Color Change + ColorMemory K2 : Fixed Color + Candle Effect K3 : Light Intensity adjustment You can switch ON and OFF the remote controller receiver inside the Led module pressing 3 seconds the button K2 underneath the LED module. First use: press the K2 button, 3 seconds to switch ON and activate the remote controller access . Press again 3 second to disable the RF receiver. Features / Color intensity options “K1” button: Scrolling colours and memorising a colour 1 st tap: Progressive colour scrolling 2 nd tap: Displays your favourite colour previously memorized Memorizing your favourite colour: By pressing the K1 button for 2 seconds when scrolling colours, your chosen tint will be memorized. This unique colour will remain memorized until you decide to replace it with another one 3 rd tap: Turns your lamp off. “K2” button : Fixed colours and candle effect 1 st tap: white colour 2 nd to 9 th tap Choice of fixed colours (among one of 8 colours). 10 th tap: candle effect 11 th tap: Turns your lamp off The K2 button allow as well to activate or disable the remote controller access ( RF receiver disabled ) “K3” button : Setting the ligh…

Text truncated - open the document above for the full version.

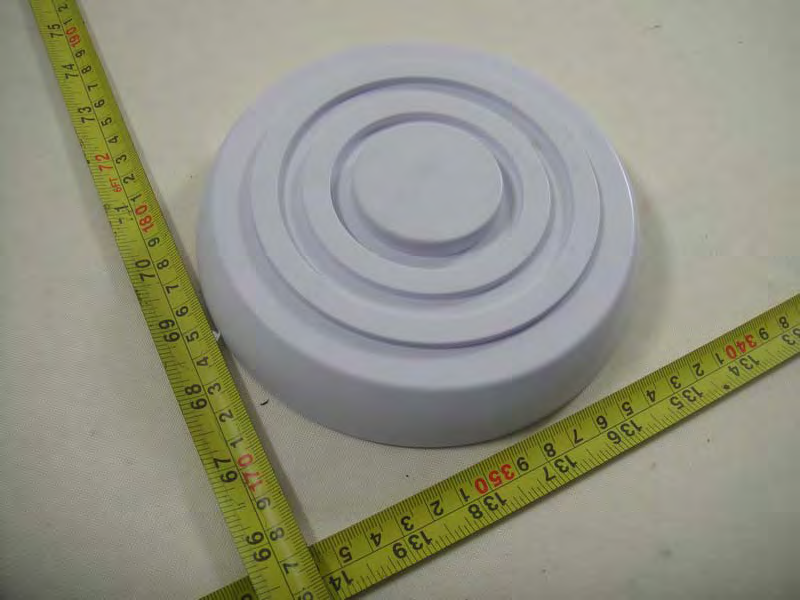

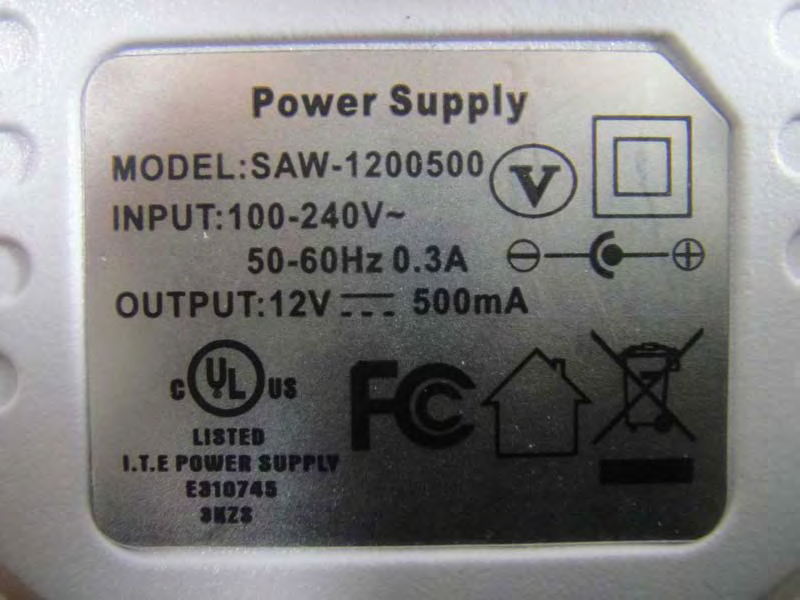

Neutron Engineering Inc. Project No.: 1102C141 Page 4 of 16 1102C141 1102C141 Neutron Engineering Inc. Project No.: 1102C141 Page 4 of 16 1102C141 1102C141 Neutron Engineering Inc. Project No.: 1102C141 Page 2 of 16 1102C141 1102C141 Neutron Engineering Inc. Project No.: 1102C141 Page 2 of 16 1102C141 1102C141

Neutron Engineering Inc. Project No.: 1102C141 Page 5 of 16 1102C141 1102C141 Neutron Engineering Inc. Project No.: 1102C141 Page 5 of 16 1102C141 1102C141 Neutron Engineering Inc. Project No.: 1102C141 Page 6 of 16 1102C141 110 2C141 Neutron Engineering Inc. Project No.: 1102C141 Page 6 of 16 1102C141 110 2C141

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 2 of 25 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 3 of 25 Table of Contents Page 1 . CERTIFICATION 4 2 . SUMMARY OF TEST RESULTS 5 2.1 TEST FACILITY 6 2.2 MEASUREMENT UNCERTAINTY 6 3 . GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 8 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.4 DESCRIPTION OF SUPPORT UNITS 10 4 . EMC EMISSION TEST 11 4.1 CONDUCTED EMISSION MEASUREMENT 11 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 4.1.2 MEASUREMENT INSTRUMENTS LIST 11 4.1.3 TEST PROCEDURE 12 4.1.4 DEVIATION FROM TEST STANDARD 12 4.1.5 TEST SETUP 12 4.1.6 EUT OPERATING CONDITIONS 12 4.1.7 TEST RESULTS 13 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 MEASUREMENT INSTRUMENTS LIST 16 4.2.3 TEST PROCEDURE 17 4.2.4 DEVIATION FROM TEST STANDARD 17 4.2.5 TEST SETUP 18 4.2.6 EUT OPERATING CONDITIONS 18 4.2.7 TEST RESULTS (BELOW 30MHz) 19 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHz) 20 5 . BANDWIDTH TEST 22 5.1 MEASUREMENT INSTRUMENTS LIST 22 5.2 TEST PROCEDURE 22 5.3 DEVIATION FROM STANDARD 22 5.4 TEST SETUP 22 5.5 EUT OPERATION CONDITIONS 22 5.6 TEST RESULTS 23 6 . EUT TEST PHOTO 24 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 4 of 25 1. CERTIFICATION E q u i p m e n t : LED Lights Brand Name : N/A Model Name. : R-I0508A25; R-I XX XX XXX (Please see note 3.1) A p p l i c a n t : Ready2light ltd Date of Test : Mar. 10, 2011 ~ Mar. 31, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.207/15.209)/ ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1102C141) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 5 of 25 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.209 Radiated Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 6 of 25 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-C02/DG-CB03at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town,Dong Guan, China.523792 Neutron's test firm number is 319330 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE DG-C02 CISPR 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE 30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 DG-CB03 CISPR 200MHz ~ 1,000MHz H 2.66 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 7 of 25 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment LED Lights Brand Name N/A Model Name. R-I0508A25; R-I XX XX XXX OEM Brand/Model Name N/A Model Difference R-I XX XX XXX (XX Representative of the number of LED, 03, 05, 10, 14..., XX Represents the battery capacity, 03, 08,15,27..., XXX Represents the appearance of the lampshade of different.) Product Description The EUT is a LED Lights. Product Type Low Power Communication Device Operation Frequency: 250 KHz Modulation Type: PWM Number of Channel 1CH(250KHz) Antenna Designation: Loop ANT Field Strength 67.85dBuVm @3m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification. Please refer to the User's Manual. Channel List Please refer to the Note 2. Power Source DC Voltage supplied from AC/DC Adapter. Model Name:SAW-1200500 Power Rating AC I/P 100-240V~50-60Hz 0.3A DC O/P 12V 500mA Connecting I/O Port(s) Please …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 22 of 23 5. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 22 of 23 5. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 23 of 23 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1102C141 Page 23 of 23 Radiated Measurement Photos
