ZCN-ECG300Cellphone TV

1 1 Easybuy China LTD. Cellphone TV ECG300 User Manual 2 ECG300 TV GSM/GPRS Digital Mobile Phone User Guide Thank you for choosing the ECG300 touch screen single/double sims GSM/GPRS digital mobile phone. After reading this guide you will be able to fully master the use of your ECG300 mobile phone and appreciate all its functions and ease of use. The ECG300 touch screen mobile phone is designed for use on the GSM/GPRS networks. Not only does the ECG300 provide you with basic calling functions, but also with many practical functions such as handwrite input textdouble cards, a name card style phonebook, personalized 64 chord ring tones and pictures, clock, alarm, camera, phonic kinescope, MP3/MP4 player, Memory (T-Flash) card, sound recorder, calculator, automatic power on/power off, to do list,GPRS surfing, guard and track against theft, MMS etc, to improve the time you spend working and playing. Moreover, the ECG300 uses a personalized man-machine interface and the perfect functional design will satisfy all your needs. The ECG300 TV mobile phone is compatible with GSM/GPRS technology and has been approved by certification authorities both domestically and abroad. 3 Technical information Phone Model ECG300 Dimensions (w×h×t) 45.2×105.2×13.5mm Weight Lithium Battery Model ECG300 Nominal voltage 3.7V Nominal 4.2V+/-0.05V Capacity rating 700mAh Travel charger Model ECG300 Input AC 110V~50Hz, 100mA Output 5.0V, 500mA USB data charge wire spec USB 1.1 Slave Earphone spec stereo earphone 4 Appearance 1. USB 2. Receiver 3. Screen 4. Keypad 5. Torch Light 6. TV ant 7. Camera 5 Keypad Instructions 1. Left soft keyto perform the function of the prompt displayed in lower left corner of the screen. 2. Dial key: to dial and pick up calls; on standby, to see the calls record list. 3. Right soft keyto perform the function of the prompt displayed in lower right corner of the screen. 4. Torch Light key: the key is to use light. 5. Left/right keysfor moving the cursor when editing text; on standby, press the left key to enter the “Write Messages” menu, press the right key to enter into the “Tone Setup” menu. At the camera preview mode, press the left/right keys to circularly switch with EV; in the [File Manager] \[Memory Card] submenu, press the left key to return the upper menu, press the right key to open the file. 6. Up/down keysscroll to view names, phone numbers, 6 SMS, MMS etc, moves the cursor up and down when editing text; on standby, press the up key to enter the “Video Recorder” menu, press the down key to enter into the “Alarm” menu. At the camera preview mode, press the up/down keys to adjust Zoom. 7. Camera key:.taking pictures 8. Number key: to import numbers;When playing music,use 1 to decrease volume,use 3 to increase volume. 9. OK key: to enter the menu or execute the function which hightlighted. 10. Hang-up key: to end a call or reject incoming calls; under most circumstances pressing this key will put the mobile phone into standby mode. 11. TV keys: to play TV. Battery The battery is initially charged with 50 of its total capacity, you can unpack and use it. Please recharge the battery to full after it's exhausted for the first 3 times, so as to make the best of your battery. 7 Removal and Installation of the Battery  When removing the battery follow the following steps: Push the battery cover towards bottom; Raise the battery bottom, break out the battery from the mobile-phone. Warning: You must turn off your mobile phone before removing the battery. Under no circumstances should you remove the battery when the mobile phone is on as this may damage the SIM card and your mobile phone.  When installing the battery follow the following steps: According to arrowhead direction, push the battery to inset mobile-phone. Cover with the battery cover. Push the battery cover towards top.  The charger connector with the bottom of the phone (with 8 the arrow pointing upward).  The charger connector with the electrical source.  The battery capacity indicator in Icon Area will then flash periodically; when charging at power-off status, charging indicator on the screen means the phone is charging now. If you are using a phone in low battery, it may need certain time for charging indicator to appear on the screen after starting to charge.  When the Capacity Indicator in Icon Area is full and doesn't flash any more, the charging process is complete. If your phone is charged in power off status, charging complete screen will also display. Charging process usually takes 1-2.5 hours. Battery, phone and charger normally turns hot during charging process.  When charging process complete, disconnect connections between AC power outlet, your phone and the charger. Attention:  Be sure to charge in ventilated place with the temperature ranging from -10 to 45, and always use the charger provided by original manufacturer. Using unauthorized charger may cause danger, and also violates warranty coverage of the manufacturer.  Charge your battery in time when the phone automatically powers off or displays low battery warning. The phone will 9 automatically decrease charging time when the battery is not exhausted before charging. Insertion of the SIM Card Metal interface of SIM card is very easy scrape.Before inserting into the phone you must carefully remove it.  Turn off the phone; remove the battery and unplug other external power sources.  Insert the SIM card into the SIM slot as shown in the following picture.  When you need to remove the SIM card, please first turn off the phone, remove the battery, then remove the SIM card.  Insertion of the Memory Card  Turn off the phone; remove the battery and unplug other TF CARD SIM CARD 10 external power sources.  Put the Memory Card into the Memory Card trough.  When you need to remove the Memory Card, please first turn off the phone, remove the battery, then remove the Memory Card. Caution: Use the mobile phone in the environment with the temperatur…

Text truncated - open the document above for the full version.

Mar.17, 2011 Federal Communication Commission Authorization and Evaluation Division FCC ID: ZCN-ECG300 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5: Tune-up description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Starmarket S.A. Contact person: Nicolas Ulloa Title: Product Manager Tel: 593-4-2646663

Starmarket S.A. Tel: 593-4-2646663 Av Juan Tanca Marengo Km 4 1/2 CC Saibaba lc 22 Fax: 593-4-2646663 Date: Mar. 17, 2011 FCC IDZCN-ECG300 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Attestation of Global Compliance Co., Ltd. Address: 1F., No.2 Building, Huafeng No.1 Technical Industrial Park, Sanwei, Xixiang, Baoan District, Shenzhen Name: Yimi ZHAO Job Title: EMC Manager Email: [email protected] I am therefore responsible for the contents of the application. Model Name of the specified radio equipment: FCC ID: ZCN-ECG300 Product Name: Cellphone TV Signature________ __________ FCC grantee contact person information. Name/Title: Nicolas Ulloa/ Product Manager Company Name: Starmarket S.A. Address: Av Juan Tanca Marengo Km 4 1/2 CC Saibaba lc 22 TEL: (0086-755) 33261390 FAX: (0086-755) 33261398

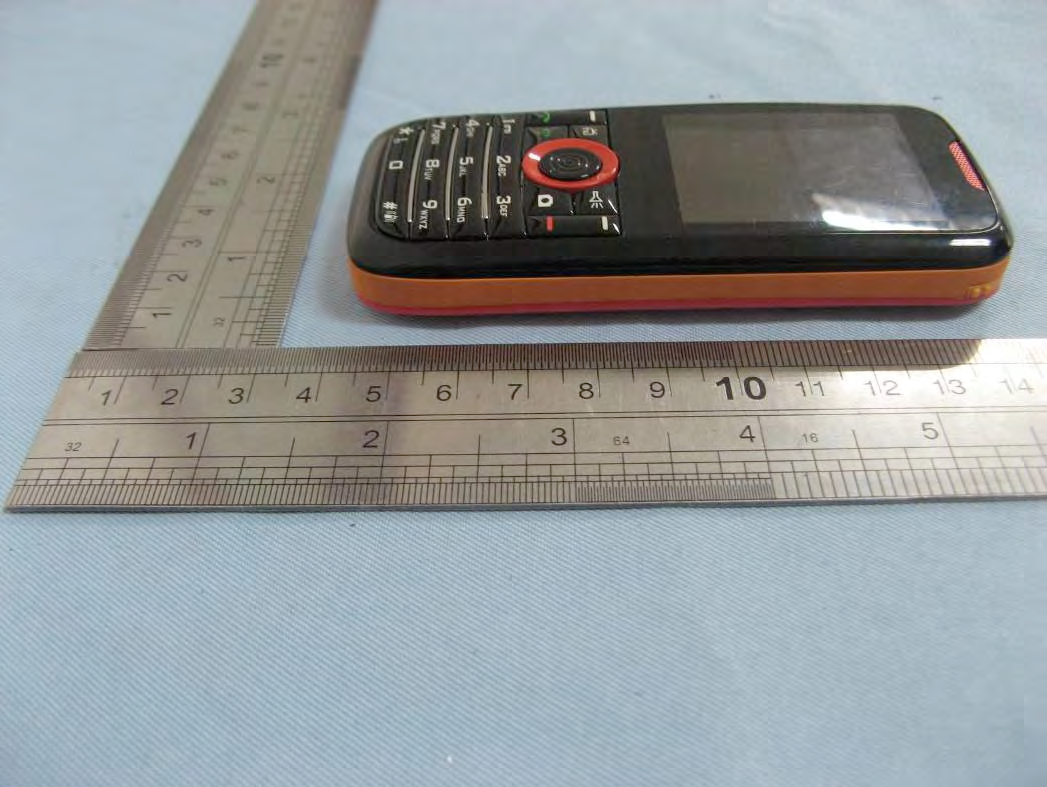

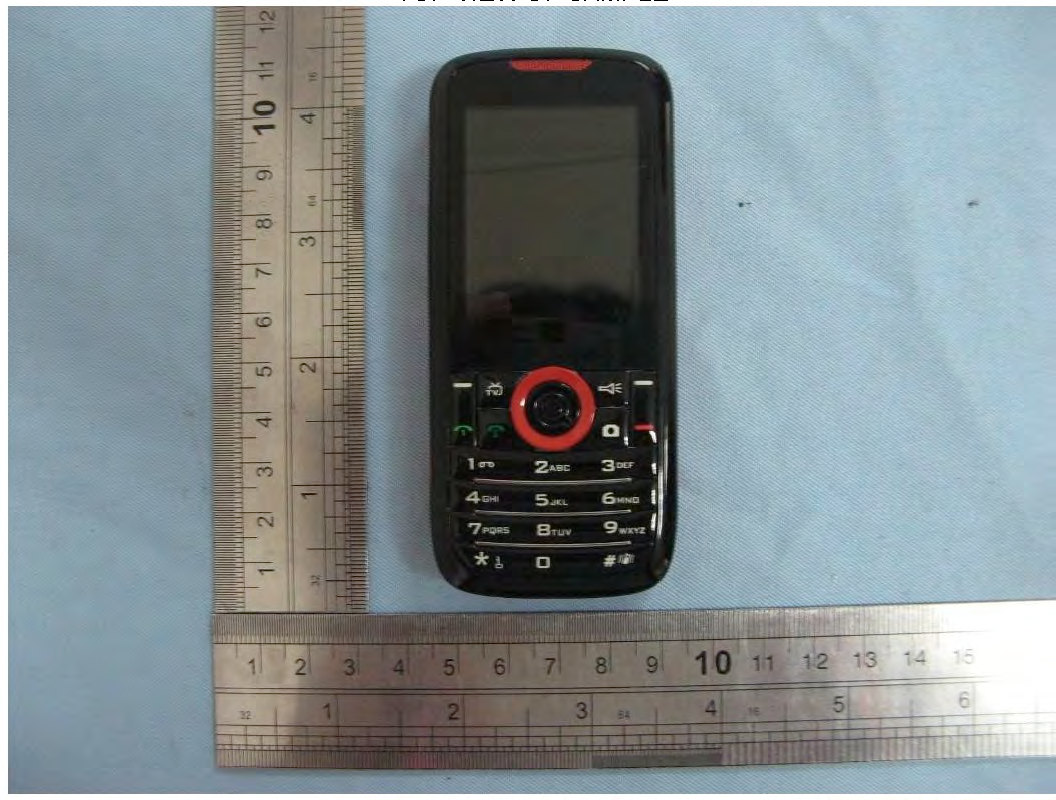

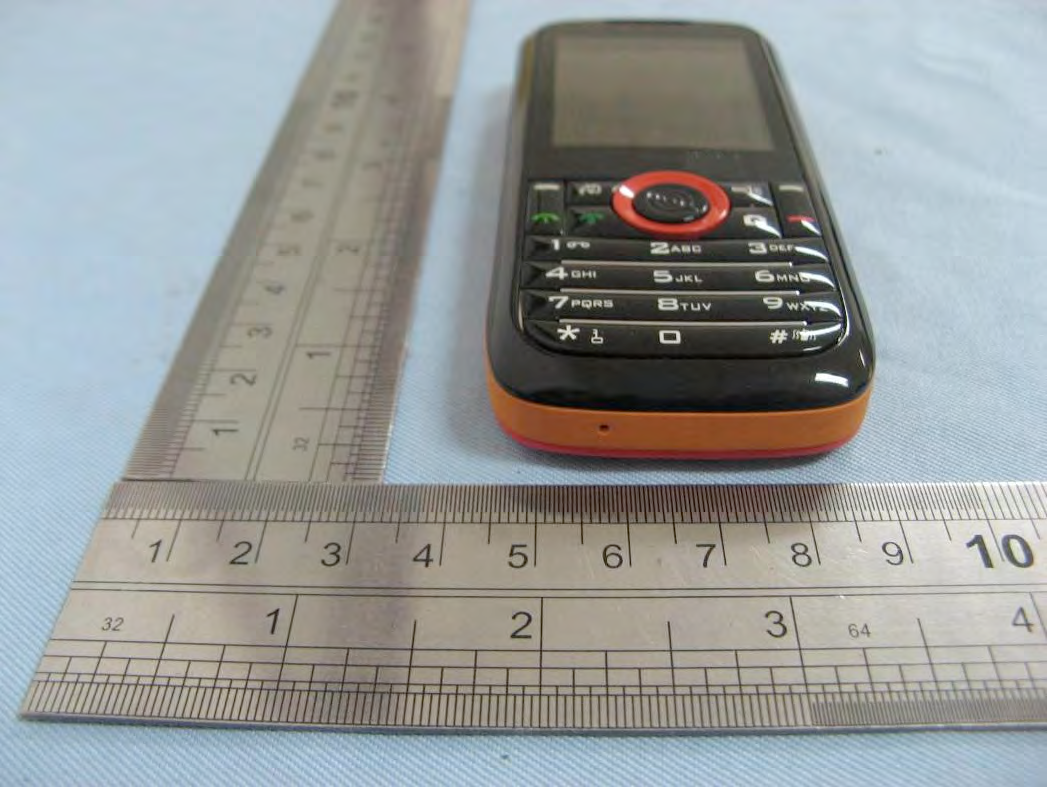

TOP VIEW OF SAMPLE LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FRONT VIEW OF SAMPLE BACK VEIW OF SAMPLE

FCC ID Label

Label Placement

OPEN PHOTO OF SAMPLE – 1 OPEN PHOTO OF SAMPLE – 2 OPEN PHOTO OF SAMPLE – 3 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2

Report No：112S146R-HP-US-P03V01 Page: 1 of 112 SAR Test Report Product Name : Cellphone TV Model No. : ECG300 Applicant : Starmarket S.A. Address : Av Juan Tanca Marengo Km 4 1/2 CC Saibaba lc 22 Date of Receipt : Mar. 02, 2011 Date of Test : Mar. 04, 2011 Issued Date : Mar. 05, 2011 Report No. : 112S146R-HP-US-P03V01 Report Version : V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：112S146R-HP-US-P03V01 Page: 2 of 112 Test Report Certification Issued Date: Mar. 05, 2011 Report No: 112S146R-HP-US-P03V01 Product Name : Cellphone TV Applicant : Starmarket S.A. Address : Av Juan Tanca Marengo Km 4 1/2 CC Saibaba lc 22 Manufacturer : Easybuy China LTD. Address : Rm. 1413-1415, 14F, WanDe Building, ShenNan Millde Rd., FuTian Dist., Shen Zhen Model No. : ECG300 Trade Name : Ring EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 1.120 W/kg Body: 0.806 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Tested By : (Senior Engineer: Robin Wu) Approved By : (Engineering Supervisor: Marlin Chen) Report No：112S146R-HP-US-P03V01 Page: 3 of 112 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No：112S146R-HP-US-P03V01 Page: 4 of 112 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 6 2. SAR Measurement System ...................................................................................... 7 2.1. DASY5 System Description ................................................................................. 7 2.1.1. Applications ..................................................................................................... 8 2.1.2. Area Scans ...................................................................................................... 8 2.1.3. Zoom Scan (Cube Scan Averaging) ................................................................ 8 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ........................................... 8 2.2. DASY5 E-Field Probe .......................................................................................... 9 2.2.1. Isotropic E-Field Probe Specification ............................................................... 9 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 10 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 10 2.5. Robot ................................................................................................................. 11 2.6. Light Beam Unit ................................................................................................. 11 2.7. Device Holder .................................................................................................... 12 2.8. SAM Twin Phantom ........................................................................................... 12 3. Tissue Simulating Liquid ....................................................................................... 13 3.1. The composition of the tissue simulating liquid ................................................. 13 3.2. Tissue Calibration Result ................................................................................... 14 3.3. Tissue Dielectric Parameters for Head and Body Phantoms ............................. 15 4. SAR Measurement Procedure ............................................................................... 16 4.1. SAR System Validation ...................................................................................... 16 4.1.1. Validation Dipoles .......................................................................................... 16 4.1.2. Validation Result ............................................................................................ 17 4.2. SAR Measurement Procedure ........................................................................... 18 5. SAR Exposure L…

Text truncated - open the document above for the full version.

FCC Test Report Report No.: AGC03X110301F2A FCC ID : ZCN‐ECG300 PRODUCT DESIGNATION : Cellphone TV BRAND NAME : Ring TEST MODEL : ECG300 CLIENT : Starmarket S.A. DATE OF ISSUE : Mar.14, 2011 STANDARD(S) : FCC Part 22H & 24E Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03X110301F2A Page 1 of 55 VERIFICATION OF COMPLIANCE Applicant: Starmarket S.A. Av Juan Tanca Marengo Km 4 1/2 CC Saibaba lc 22 Manufacturer: Easybuy China LTD. Rm. 1413-1415, 14F, WanDe Building, ShenNan Millde Rd., FuTian Dist., Shen Zhen Product Description: Cellphone TV Brand Name: Ring Model Name: ECG300 FCC ID: ZCN-ECG300 Report Number: AGC03X110301F2A Date of Test: Mar 05, 2011 to Mar.12, 2011 We hereby certify that: The above equipment was tested by Attestation of Global Compliance Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2009 and TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 22H and 24E The test results of this report relate only to the tested sample identified in this report. Checked By: Mary Liu Mar.14, 2011 Authorized By Forrest Lei Mar.14, 2011 Report No.: AGC03X110301F2A Page 2 of 55 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 PRODUCT DESCRIPTION ........................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................... 4 1.4 TEST FACILITY ............................................................................................................................................ 4 1.5 MEASUREMENT INSTRUMENTS ............................................................................................................... 4 1.6 SPECIAL ACCESSORIES ............................................................................................................................ 5 1.7 EQUIPMENT MODIFICATIONS ................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ............................................................................................................... 6 2.1 EUT CONFIGURATION ................................................................................................................................ 6 2.2 EUT EXERCISE ........................................................................................................................................... 6 2.3 GENERAL TECHNICAL REQUIREMENTS ................................................................................................. 6 2.4 CONFIGURATION OF EUT SYSTEM ......................................................................................................... 6 3. SUMMARY OF TEST RESULTS ................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. OUTPUT POWER .......................................................................................................................................... 8 5.1 CONDUCTED OUTPUT POWER ................................................................................................................ 8 5.2 RADIATED OUTPUT POWER ..................................................................................................................... 9 6. SPURIOUS EMISSION ................................................................................................................................ 12 6.1 CONDUCTED SPURIOUS EMISSION ...................................................................................................... 12 6.2 RADIATED SPURIOUS EMISSION ........................................................................................................... 14 7. CONDUCTED EMISSION ............................................................................................................................ 18 7.1 MEASUREMENT METHOD ....................................................................................................................... 18 7.2 PROVISIONS APPLICABLE ...................................................................................................................... 18 Report No.: AGC03X110301F2A Page 3 of 55 7.3 MEASUREMENT RESULT ......................................................................................................................... 18 8. FREQUENCY STABILITY ............................................................................................................................ 21 8.1 MEASUREMENT METHOD ....................................................................................................................... 21 8.2 PROVISIONS APPLICABLE ...................................................................................................................... 21 8.3 MEASUREMENT RESULT ......................................................................................................................... 22 9. OCCUPIED BANDWIDTH ........................................................................................................................... 24 9.1 MEASUREMENT METHOD .................................................................…

Text truncated - open the document above for the full version.

LINE COMDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP
