ZCUA250-GSCar Multimedia System

Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 1 / 1 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS APPENDIX H : USER’S MANUAL Cover Page Welcome to Ingenix Operation manual. ARTWORK Contents Page Introduction: READ BEFORE USE: FCC COMPLIANCE STATEMENT: Warnings: Points to Observe for Safe Usage LCD Care: What’s included: Expansion options: Ipod interface cable TV Tuner DVD player Reverse view camera Remote control Starting to use Ingenix Operation Home Screen Access to source unit options Creating you quick access links Marquee banner Pull down menu Navigation Using Navigation Bluetooth Phone Bluetooth How to connect to a BLUETOOTH compatible device (Pairing) Using Bluetooth Phone Functions Searching your phonebook through Ingenix Pull down menu in Bluetooth Phone source Bluetooth Music Button overview Control Interface Pull down menu in Bluetooth Music source Music Player Main control interface for SD/ USB/HDD playback controls Creating and accessing a playlist Equalizer Main display Secondary display Display options Pull down menu in the Music player source Set up Display Start-up Mode Driving Alert Touch Screen Calibration Rear Monitor Set up Language Brightness Screen Saver: Sound Software AV IN Pull down menu in the AV IN source Photo Photo Viewer controls Selecting photos Main control panel Slideshow control panel Pull down menu in the Photo source Memo Pad Memo Pad interface Using the Memo pad Pull down menu in the Memo Pad source Utility Utility options Texas Hold’em Biorhythm Calculator Car Organizer Scheduler World Clock Pull down menu in the Utility source File manager Managing files Pull down menu in File Manager Optional Sources I-POD Ipod control Digital TV tuner External DVD External DVD player information Using an external DVD player with Ingenix Glossary Troubleshooting Ingenix specifications support Ipod compatibility Installation instructions Warranty information Customer service contact information Introduction: Ingenix is an advanced media platform capable of Lightning fast processing, picture in picture or split screen information display, dual zone multimedia playback for rear seat entertainment, Bluetooth hands free calling and music playback, GPS navigation and much more. Many of the features of Ingenix have never been available for in car use until now. Ingenix was designed to anchor your vehicles entertainment system. Along with the convenience of GPS navigation and the safety of a rearview camera. Ingenix offers everything you need and desire. More to come READ BEFORE USE: Please make certain that all persons using this In-dash system carefully read these precautions and the following instructions fully. •Read this manual carefully before using this system components. They contain instructions on how to use this product in a safe and effective manner. •This product is not a substitute for your personal judgment. Any route suggestions made by this navigation system may never supersede any local traffic regulations or your personal judgment and/or knowledge of safe driving practices. Do not follow route suggestions if the navigation system instructs you to perform an unsafe or illegal maneuver, places you in an unsafe situation, or routes you into an area which you consider unsafe. •Glance at the screen only when necessary and safe to do so. If prolonged viewing of the screen is necessary, pull over in a safe and legal manner and location. •Do not input destinations, change settings, or access any functions requiring a prolonged view of the monitor and/or remote control while you are driving. Pull over in a safe and legal manner and location before attempting to access the system. •Do not use the navigation system to route you to emergency services. Not all locations of emergency services such as police and fire stations, hospitals and clinics are contained in the database. Please use your own judgment and ask for directions in these situations. •The map database is designed to provide you with route suggestions and does not take into account the relative safety of a suggested route or of factors which may affect the time required to reach your destination. Use your own personal judgment if the navigation system is unable to provide you with an alternate route. •There may be situations where the navigation system displays the vehicle’s location erroneously. Use your own driving judgment in this situation, taking into account current driving conditions. Please be aware that in this situation the navigation system should correct the vehicle’s position automatically. However, it is possible you may have to correct the position yourself. If this is the case, pull over in a safe and legal manner and location before attempting operation. •Make certain that the volume level of the navigation system is set to a level which still allows you to hear outside traffic and emergency vehicles (see navigation operation page ???). • This product's rated input voltage is DC 12V. Please check your vehicles electrical system before use. • Radio reset: this should only be used if the product fails to operate properly. FCC COMPLIANCE STATEMENT: NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient o…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 October 7, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, JSYSTEC Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Car Multimedia System FCC ID: ZCUA250-GS We affirm that between SIEMIC and JSYSTEC Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ------------------------------------------------ Sung-Ki Lee, Research Engineer JSYSTEC Co., Ltd.

Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Federal Communications Commission Authorization and Evaluation Division October 7, 2011 Confidentiality Request regarding application for certification of FCC ID: ZCUA250-GS We hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name BLOCK DIAGRAM A250-GS_BlkDia.pdf SCHEMETIC DIAGRAM A250-GS _SchDia.pdf OPERATIONAL DESCRIPTION A250-GS _OpeDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In addition to above mentioned documents, pursuant to Public DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR 2.803 and the importation rules in 47 CFR 2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following Exhibit Type File Name TEST SET UP PHOTOS A250-GS _Tsup.pdf EXTERNAL PHOTOGRAPHS A250-GS _ExtPho.pdf INTERNAL PHOTOGRAPHS A250-GS _IntPho.pdf USER’S MANUAL A250-GS _UseMan.pdf The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------ Sung-Ki Lee, Research Engineer JSYSTEC Co., Ltd.

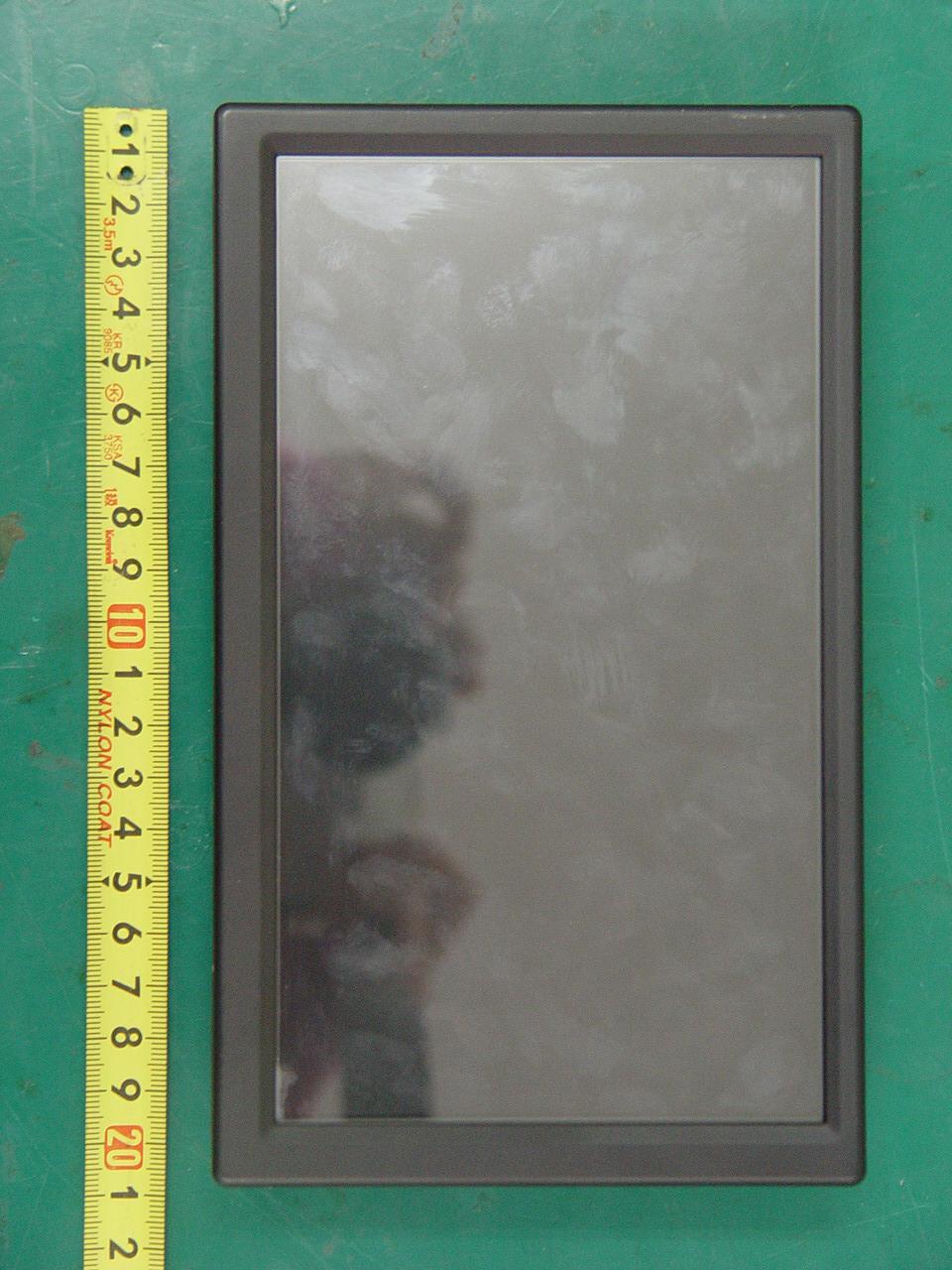

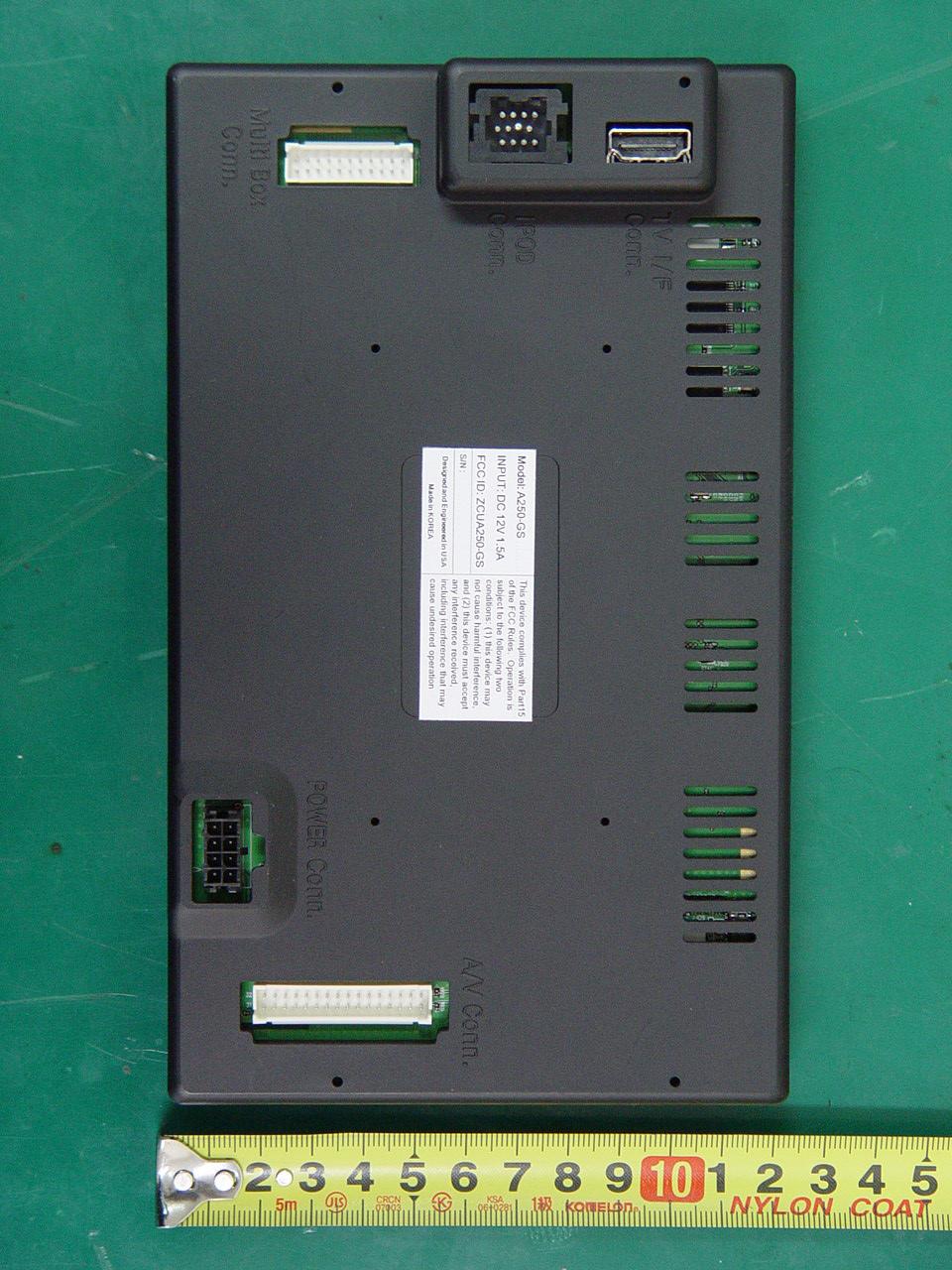

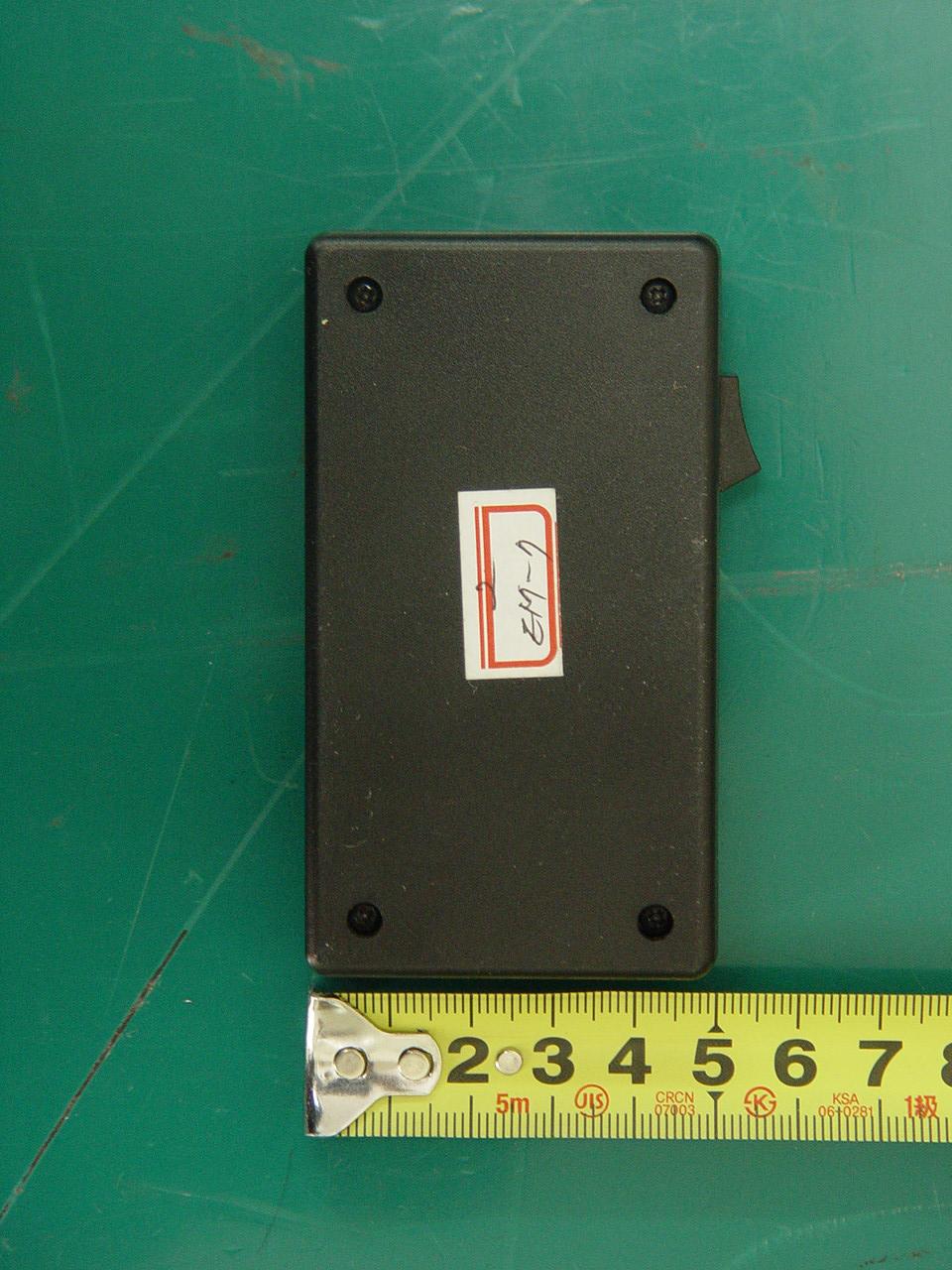

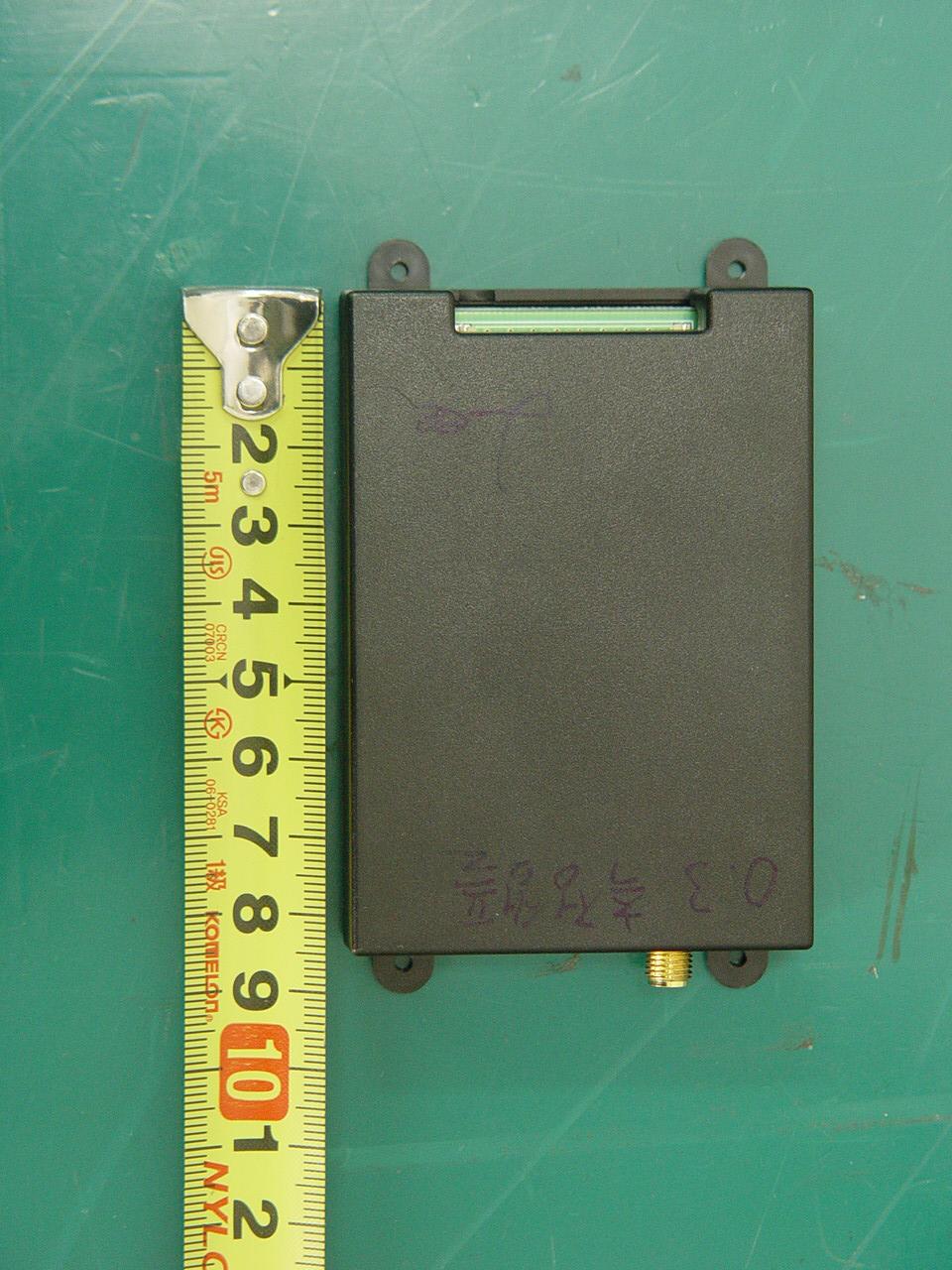

Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 1 / 7 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS APPENDIX F : EXTERNAL PHOTOGRAPHS Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 2 / 7 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Navigation / A250-GS > < Front > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 3 / 7 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Rear > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 4 / 7 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Control box / EM-7-SONATA > < Front > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 5 / 7 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Rear > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 6 / 7 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < ATSC-M/H module / BMH-130 > < Front > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 7 / 7 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Rear >

Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 1 / 2 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS APPENDIX B : ID SAMPLE LABEL & LOCATION Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 2 / 2 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  ID Label  ID Label Location of EUT ID Label

Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 1 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS APPENDIX G : INTERNAL PHOTOGRAPHS Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 2 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Navigation / A250-GS > < Internal > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 3 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Main board front / RF antenna location > RF antenna Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 4 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Main board rear > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 5 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < LCD panel front > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 6 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < LCD panel rear > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 7 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < Control box / EM-7-SONATA > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 8 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 9 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 10 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS < ATSC-M/H module / BMH-130 > Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 11 / 11 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS

Order Number : GETEC-C1-11-218 FCC Certification Test Report Number : GETEC-E3-11-110 Page 1 / 3 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS APPENDIX L : MAXIMUM PERMISSIBLE EXPOSURE Order Number : GETEC-C1-11-218 FCC Certification Test Report Number : GETEC-E3-11-110 Page 2 / 3 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS Maximum Permissible Exposure 1.1 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device (A) Limits for Occupational / Controlled Exposure Frequency range(MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density(S) (mW/cm2) Averaging Time |E|2, |H|2 or S (minutes) 0.3 ~ 3.0 614 1.63 (100)* 6 3.0~30 1842/f 4.89/f (900/f)* 6 30~300 61.4 0.163 1.0 6 300 ~ 1,500 f/300 6 1,500 ~ 100,000 5.0 6 (B) Limits for General Population / Uncontrolled Exposure Frequency range(MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density(S) (mW/cm2) Averaging Time |E|2, |H|2 or S (minutes) 0.3 ~ 1.34 614 1.63 (100)* 30 1.34 ~ 30 824/f 2.19/f (180/f)* 30 30~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f/1500 30 1,500 ~ 100,000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 1.2 MPE Calculation Method d GP mVE   30 )/( Power Density: 377 )/( 2 2 E mWPd E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to 2 377 30 d GP Pd    From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Order Number : GETEC-C1-11-218 FCC Certification Test Report Number : GETEC-E3-11-110 Page 3 / 3 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS 1.3 Calculated Result and Limit Antenna type: chip antenna Channel Antenna gain (dBi) Antenna gain (numeric) Peak output power (dBm) Peak output power (mW) Power Density (s) (mW/cm 2 ) Limit of Power density (S) (mW/cm 2 ) 0 3.5 2.24 - 3.44 0.453 0.000 202 1 39 3.5 2.24 - 3.64 0.433 0.000 193 1 78 3.5 2.24 - 3.47 0.450 0.000 201 1

nn~갑상{￡g￥￡RGE Pagc I of31 FCC EVALUATION REPORT FOR CERTIFICATION Applicant: JSYSTEC Co., Ltd. #722 Venture Complex 11, Daegu Techno Park, Hosan-Dong, Dalseo-Gu, Daegu, Korea Attn: Mr. Sung-Ki Lee / Assistant Research Engineer Date of Issue: October 4,2011 Order Number: GETEC-CI-11-218 Test Report Number: GETEC-E3-11-110 Test Site: Gumi College EMC Center FCC Registration Number: (100749,443957) FCC ID. ZCUA250-GS JSYSTEC CO., Ltd. Applicant : Rule Part(s) : FCC Part 15 Subpart C-Intentional Radiator ~ 15.247 : Public N otice DA 00-705 Test method (Guidance on measurement for Frequency hopping spread spectlUm systcm) Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) EUT Type : Car Multimedia System V ‘ ·M rl 빼 M 뼈 써 %·뼈 F ‘ M : Certification Trade Name : A250-GS , N84SNTA, P-84SNTA, F84SNTA : INGENIX , JSYSTEC This equipment has been shown to be in compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003 ] attest to the accuracy of data. AII measurements reported herein were performed by me or were made under my supervision and are correct to the vest of my knowledge and belief. 1 assume ω” responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested by, Reviewed by, ?ß Seung-Chul Lee, Associate Engineer GUMI College EMC center Jae-Hoon ‘Jeong, S}nior Engineer GUMI College EMC center GETEC-QP-28-007 (Rev.OO) 전자파센터 This test report only contains the result of a specifìc salllple supplied for the exalllination. It is not allowed to copy this report even partly without the approval of EMC center Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 2 / 31 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................................ 5 3. PRODUCT INFORMATION ...................................................................................................................................... 6 3.1 DESCRIPTION OF EUT .............................................................................................................................................. 6 3.2 SUPPORT EQUIPMENT / CABLES USED ..................................................................................................................... 7 3.3 MODIFICATION ITEM(S) ........................................................................................................................................... 8 4. DESCRIPTION OF TESTS ......................................................................................................................................... 9 4.1 TEST CONDITION ...................................................................................................................................................... 9 5. ANTENNA REQUIREMENT - §15.203 ..................................................................................................................... 9 5.1 DESCRIPTION OF ANTENNA ...................................................................................................................................... 9 5.2 CONDUCTED EMISSION .......................................................................................................................................... 10 5.3 RADIATED EMISSION .............................................................................................................................................. 11 6. NUMBER OF HOPPING FREQUENCY USED ..................................................................................................... 12 6.1 OPERATING ENVIRONMENT ................................................................................................................................... 12 6.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 12 6.3 LIMIT ...................................................................................................................................................................... 12 6.4 TEST EQUIPMENT USED .......................................................................................................................................... 12 6.5 TEST RESULT .......................................................................................................................................................... 12 7. DWELL TIME ON EACH CHANNEL .................................................................................................................... 14 7.1 OPERATING ENVIRONMENT ................................................................................................................................... 14 7.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 14 7.3 LIMIT ...................................................................................................................................................................... 14 7.4 TEST EQUIPMENT USED .......................................................................................................................................... 14 7.5 TEST RESULT .......................................................................................................................................................... 14 8. CHANNEL BANDWIDTH ........................................................................................................................................ 16 8.1 O…

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 1 / 3 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS APPENDIX E : TEST SET UP PHOTOGRAPHS Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 2 / 3 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS  Radiated Test Picture (Front): 30 MHz to 1 000 MHz  Radiated Test Picture (Rear): 30 MHz to 1 000 MHz Order Number : GETEC-C1-11-218 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-110 Page 3 / 3 EUT Type: Car Multimedia System FCC ID.: ZCUA250-GS  Radiated Test Picture (Front): Above 1 GHz  Radiated Test Picture (Rear): Above 1 GHz
