ZD3FTF55

Feitian Technologies Co., Ltd.

Android POS Terminal

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jun 22, 2026
Application Purpose: Original Equipment
Equipment Note: Android POS Terminal
Frequency Range: 704.00000000 - 711.00000000
Company: Feitian Technologies Co., Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

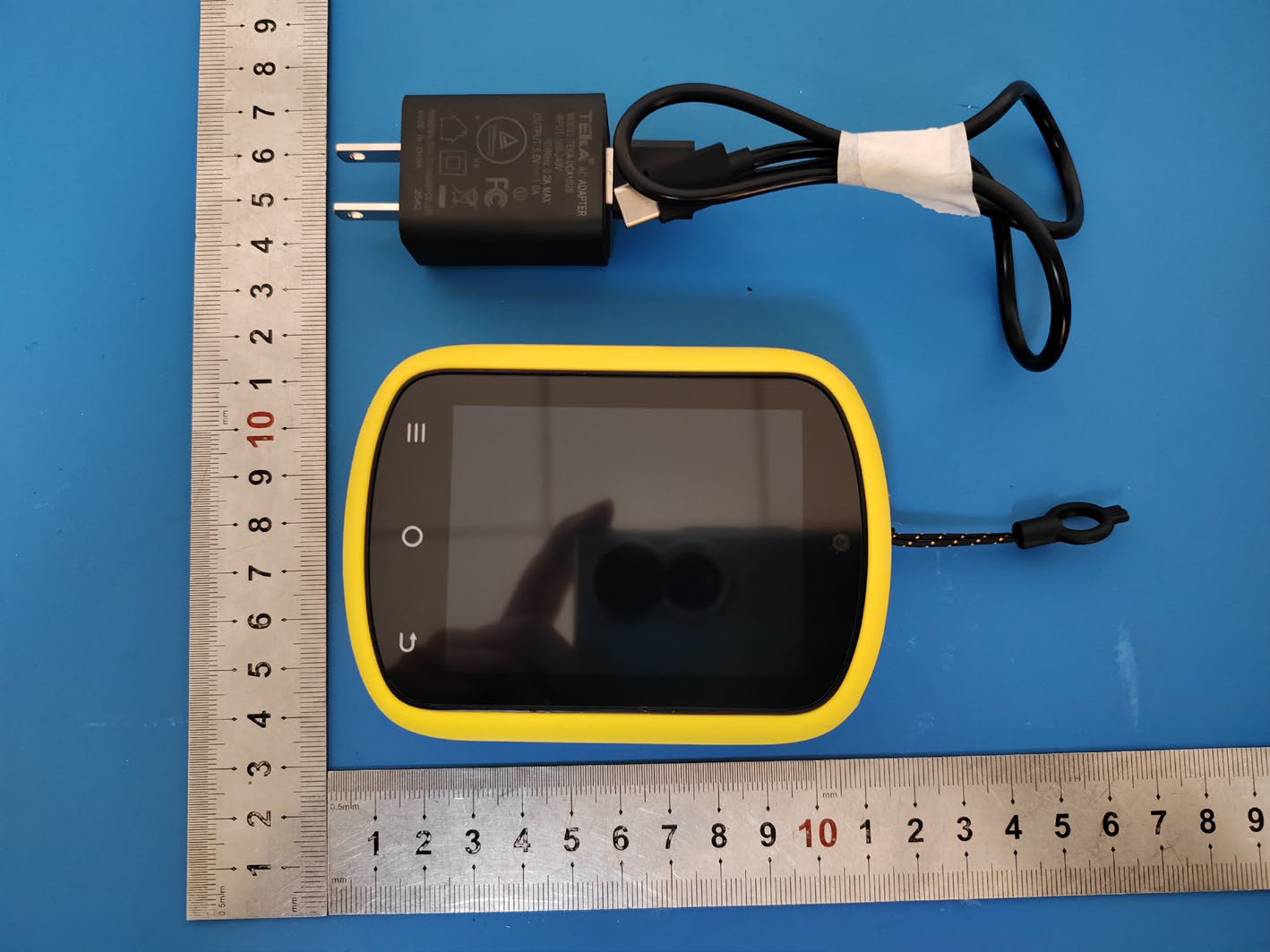

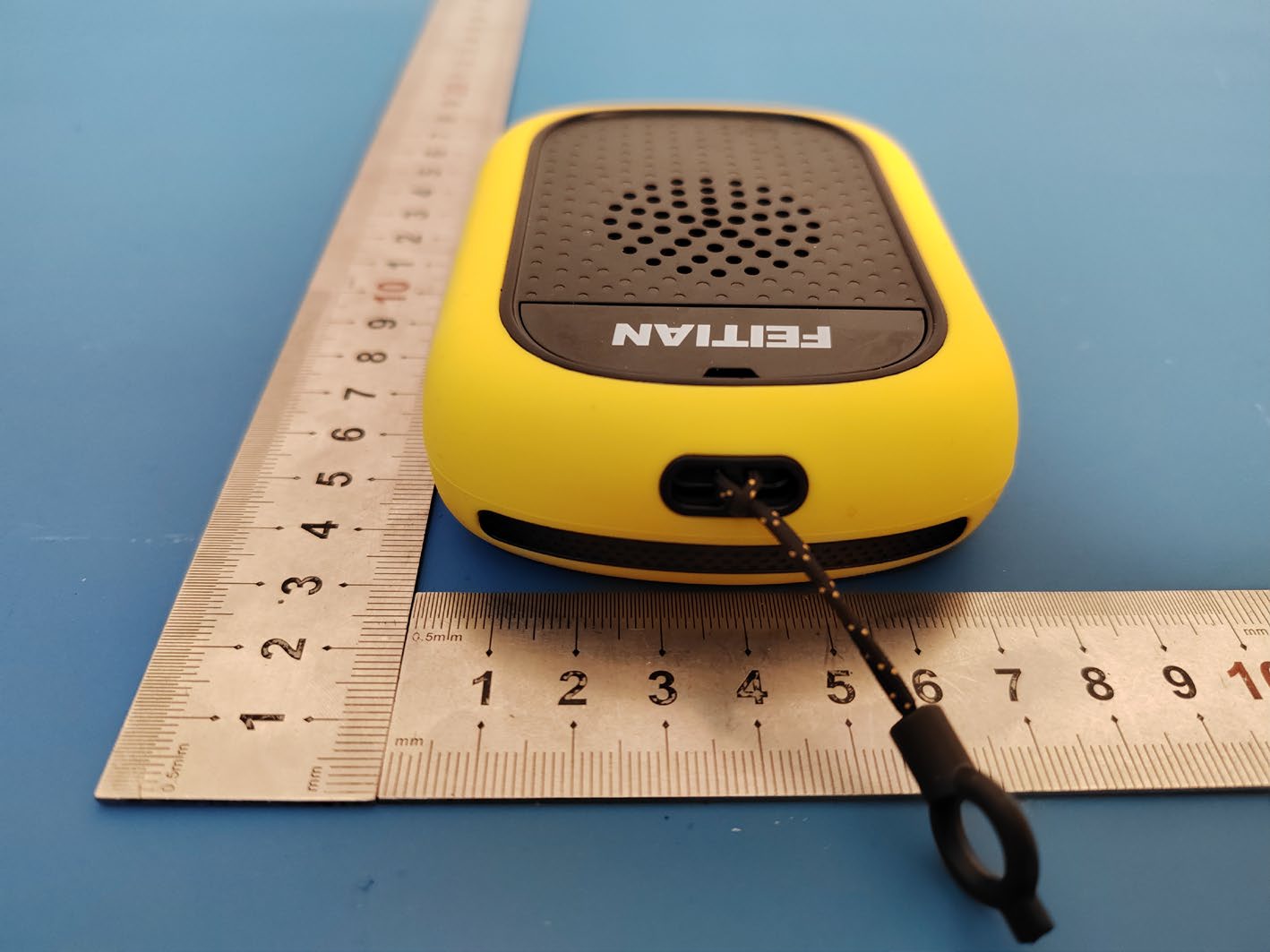

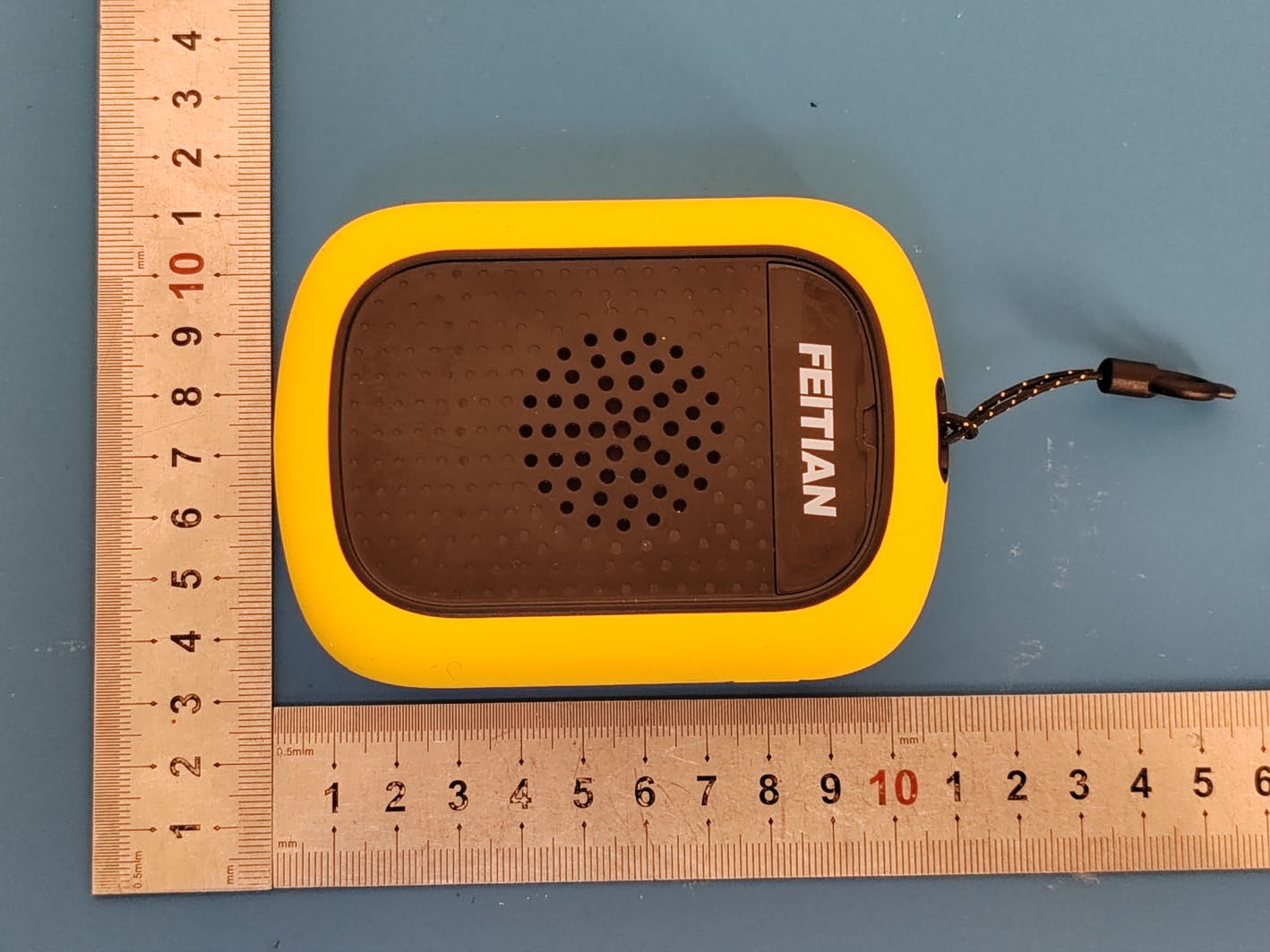

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824.7 MHz - 848.3 MHz	65.00 mW	1M09G7D	2.5ppm
2	22H	825.5 MHz - 847.5 MHz	55.00 mW	2M69D7W	2.5ppm
3	22H	829 MHz - 844 MHz	57.00 mW	8M94G7D	2.5ppm
4	22H	829 MHz - 844 MHz	50.00 mW	4M90D7W	2.5ppm
5	24E	1.85 GHz - 1.91 GHz	95.00 mW	2M69D7W	2.5ppm
6	24E	1.85 GHz - 1.91 GHz	108.00 mW	8M96G7D	2.5ppm
7	24E	1.86 GHz - 1.90 GHz	99.00 mW	17M9G7D	2.5ppm
8	24E	1.86 GHz - 1.90 GHz	84.00 mW	5M08D7W	2.5ppm
9	27	704 MHz - 711 MHz	9.00 mW	8M96G7D	2.5ppm
1	27	704 MHz - 711 MHz	8.00 mW	4M92D7W	2.5ppm
11	27	779.5 MHz - 784.5 MHz	29.00 mW	4M47G7D	2.5ppm
12	27	779.5 MHz - 784.5 MHz	23.00 mW	4M47D7W	2.5ppm
13	27	782 MHz - 782 MHz	25.00 mW	8M92G7D	2.5ppm
14	27	782 MHz - 782 MHz	19.00 mW	4M88D7W	2.5ppm
15	27	1.72 GHz - 1.75 GHz	117.00 mW	8M94G7D	2.5ppm
16	27	1.72 GHz - 1.75 GHz	111.00 mW	17M9G7D	2.5ppm
17	27	1.72 GHz - 1.75 GHz	95.00 mW	5M08D7W	2.5ppm
18	27	1.71 GHz - 1.78 GHz	167.00 mW	4M48G7D	2.5ppm
19	27	1.71 GHz - 1.78 GHz	134.00 mW	4M47D7W	2.5ppm
2	27	1.72 GHz - 1.77 GHz	130.00 mW	17M9G7D	2.5ppm
21	27	1.72 GHz - 1.77 GHz	107.00 mW	5M08D7W	2.5ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operation below 1 GHz and EIRP for operation above 1 GHz. LTE supports 1.4/3/5/10/15/20 MHz BW modes in Band 2/4/66, 1.4/3/5/10 MHz BW modes in Band 5/12, and 5/10MHz BW modes in Band 13. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 10 mm between the device and the body. End-users must be informed of body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn accessory, product specific, simultaneous transmission and extremity (hand) exposure conditions are 0.71 W/kg, 0.82 W/kg, 0.82 W/kg and 2.07 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations.
