1 GS30 Instruction Manual 2 1. GENERAL INSTRUCTIONS......................................................................................................1 1.1 Product Care.......................................................................................................................1 1.2 First Steps...........................................................................................................................1 1.2.1 CHARGING THE BATTERY.................................................................................1 2. PRESENTATION.........................................................................................................................2 2.1 IMPRESSION Description.................................................................................................2 2.2 Using the IMPRESSION interface.....................................................................................4 2.2.1 CUSTOMIZING THE HOME SCREEN ITEMS....................................................5 3. MAKING A WIFI CONNECTION..............................................................................................5 3.1. Enabling Wi-Fi...................................................................................................................6 3.1.1. ADVANCED CONNECTION................................................................................7 3.2. Wi-Fi connection problems................................................................................................7 3.2.1. POSSIBLE SOLUTIONS.......................................................................................7 4. TRANSFERRING FILES.............................................................................................................8 4.1. Connecting the IMPRESSION to a computer....................................................................8 4.2. Transferring files to/from the IMPRESSION....................................................................9 4.2.1. COPY & PASTE.....................................................................................................9 4.2.2. WINDOWS MEDIA PLAYER...............................................................................9 4.3. Disconnecting..................................................................................................................10 5. SETTINGS..................................................................................................................................10 5.1. Wireless & Networks.......................................................................................................11 5.1.1. PAIRING...............................................................................................................11 5.2. Sound...............................................................................................................................11 5.3. Display.............................................................................................................................11 5.4. Location & security..........................................................................................................12 5.5. Applications.....................................................................................................................12 5.6. SD card & Tablet storage.................................................................................................13 5.6.1. SD card..................................................................................................................13 5.6.2. Internal Tablet storage...........................................................................................13 5.7. Language & keyboard......................................................................................................13 5.8. Date & Time.....................................................................................................................13 5.9. System Info......................................................................................................................13 6. INTERNET NAVIGATION........................................................................................................14 6.1. WEB BROWSER MENU ITEMS...................................................................................14 7. VIDEO PLAYER........................................................................................................................15 8. Music..........................................................................................................................................16 8.1. Browsing through your music files..................................................................................17 8.1.1. CREATING PLAYLISTS.....................................................................................18 8.2. Music playback................................................................................................................19 9. GALLERY..................................................................................................................................20 9.1. PHOTO WALL................................................................................................................20 9.2. PLAYING A SLIDESHOW.............................................................................................21 9.3. CROPPING AN IMAGE.................................................................................................21 3 9.4. Putting photos into your IMPRESSION..................................................................23 10. CAMERA.................................................................................................................................23 11. FILE MANAGER.....................................................................................................................24 12. EMAIL................................................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD. 2011-05-06 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (MID, GS30) , (FCC ID: ZDYGS3X) We af firm that between SIEMIC and SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Zheng Zhong E-mail: : [email protected] Phone: +86-755-6166 2702 Fax: +86-755-6161 3490 Address : 4 Floor, Dongjiang Environmental Building, Central Langshan Road, Hi-Tech Park, Nanshan District, ShenZhen, China

SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD. Date: 2011-05-06 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: ZDYGS3X To Whom It May Concern: This letter is to ascertain that SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD., MID has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Signature Zheng Zhong E-mail: : [email protected] Phone: : +86-755-6166 2702 Fax: : +86-755-6161 3490 Address : 4 Floor, Dongjiang Environmental Building, Central Langshan Road, Hi-Tech Park, Nanshan District, ShenZhen, China

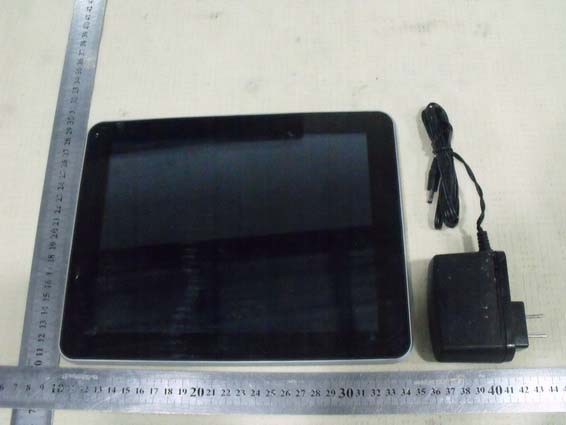

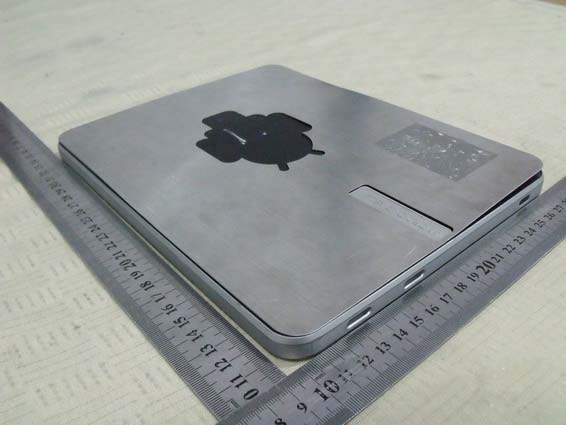

External of EUT

FCC ID: ZDYGS3X Model Number: GS30 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label Location Proposed Label Location on EUT

Internal of EUT WIFI & Bluetooth module Antenna

Product Diagram Information 1 Product function introduce GS30 is a MID device with touch screen. It has function of visiting internet with WiFi, playing audio and video in NAND flash or TF card, Bluetooth, audio recorder, alarm clock, calendar, real-time clock,camera and so on.. 2 Structure 2.1 Structure Introduce The system is consist of Cortex-A8Samsung A8 S5PC110– 1GHzoneNAND Flash, two mDDR RAM, 9.7” IPS screen, The WLAN( 802.11b/g/n) + BT + FM receiver Wireless SiP module (USI WM-BN-BM-01), TF socket and some power conversions IC. WIFI module: Frequency Range: 2412MHz~2462MHz Modulation Type: WIFI Module (OFDM with BPSK, QPSK, 16QAM, 64QAM(11g/n), BPSK, QPSK, CCK (11b) Transmit Power: 11.57dBm(802.11b), 10.78dBm(802.11g), 10.07dBm(802.11n) Bluetooth module: Frequency Range: 2402~2480MHz Modulation Type: GFSK, DQPSK, 8DPSK Transmit Power: 1.24dBm) Note: WIFI and BT module can transmit simultaneously . 2.2 Description When you press and hold power Key about 3 seconds, the system is powered on. When you choose any icon in the GUI of Android 2.2 using your finger or others, S5PC110 first judge what happened and then give it to the ARM or DSP in the core of S5PC110 proceeding. 2.3 Power It can use adaptor of 5V*2.5A when the system display the battery remain a little of power or exhaust.

FCC ID : ZDYGS3X WLAN (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2412 2462 2437 25 Maximum measured transmitter power: 802.11b Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 14.35 2.0 22.75 Maximum measured transmitter power: 802.11g Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 11.97 2.0 16.14 Maximum measured transmitter power: 802.11n Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 10.16 2.0 16.11 Threshold at which no SAR required is 25 mw. Maximum Tx power is 22.75mw EIRP. Conclusion: No SAR is required. BT (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2402 2480 2441 25 Maximum measured transmitter power: Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 1.33 2.0 2.11 Threshold at which no SAR required is 25 mw. Maximum Tx power is 2.11mw EIRP. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A Sincerely, Signature Zheng Zhong E-mail: : [email protected] Phone: : +86-755-6166 2702 Fax: : +86-755-6161 3490 Address : 4 Floor, Dongjiang Environmental Building, Central Langshan Road, Hi-Tech Park, Nanshan District, ShenZhen, China

5 5 4 4 3 3 2 2 1 1 DD CC BB AA VDD_IO1 VDD_IO1 VDD_IO1 VDD_IO1 VDD_IO1 XOM0 XOM1 XOM214 XOM3 XOM4 XOM5 XJTRSTN14 XJTMS14 XJTCK14 XJTDI14 XJTDO14 XOM0 XOM1 XOM214 XOM3 XOM4 XOM5 XUSBXTI XUSBXTO XCLKOUT9 XHDMIXTI XHDMIXTO XNRESET7,14 XUSBXTI XUSBXTO XHDMIXTI XHDMIXTO XPWRRGTON7 XRTCXTI XRTCXTO XRTCXTI XRTCXTO XRTCCLKO10 LCD_BL_PWM8 LCD_BL_PWREN LCD_PWREN8 POWER_HOLD7 CHG_NSTAT7 PMIC_VSET7 PMIC_NPBSTAT7 PMIC_IRQ7 BAT_LOW7 HP_DET9 BB_WAKE15 BB_DIS15 BB_RST15 BB_PWREN15 BB_INT_N15 WLAN_WOW10 TP_IRQ_N14,15 BT_WAKE10 KP_COL114,15 KP_COL2 UOTG_DET14 USB_ID0/KP_COL414 HDMI_HOTPLUG13 WLAN_PWREN10 KP_ROW014,15 KP_COL014,15 KP_ROW114,15 KP_ROW27,14 KP_ROW3 GS_INT11 WLAN_RST10 XI2C0SCL9 XI2C1SDA13 XI2C1SCL13 XI2C2SDA14,15 XI2C2SCL14,15 XI2C0SDA9 BT_TXD10 BT_RXD10 BT_RTS10 BT_CTS10 GPS_TXD GPS_RXD GPS_RST GPS_PWREN DEBUG_RXD14 DEBUG_TXD14 BB_RXD15 BB_TXD15 HDMI_I2C_SDA13 HDMI_I2C_SCL13,14 BL_ON_LCD8 CAM_PWREN11 USB_OVCUREN12 CAM_PWDN14,15 XUHOSTDP12 XUHOSTDM12 XUHOSTOVERCUR12 XUOTGDP14 XUOTGDM14 XUOTGID14 XUOTGVBUS14 AUD_I2S_SCLK9 AUD_I2S_CDCLK9 AUD_I2S_LRCK9 AUD_I2S_SDI9 AUD_I2S_SDO9 INAND_SDIO_DATA06 INAND_SDIO_DATA16 INAND_SDIO_DATA26 INAND_SDIO_CLK6 INAND_SDIO_CMD6 INAND_SDIO_DATA36 SD_NCD6 SD_DATA06 SD_DATA16 SD_CLK6 SD_CMD6 SD_DATA26 SD_DATA36 WLAN_SDIO_DATA310 WLAN_SDIO_DATA010 WLAN_SDIO_DATA110 WLAN_SDIO_DATA210 WLAN_SDIO_CLK10 WLAN_SDIO_CMD10 WLAN_PWDN10 TP_RESET_N14,15 BT_RST10 SD_PWREN6 TP_PWR_EN14 5V_PWREN12 AUD_GPIO_SDA9,15 ACIN7 CHGLEV7 AUD_RST9 AUD_GPIO_SCL9 LVDS_PDNB8 MOTOR_EN7 GPS_RXD GPS_RST GPS_PWREN GPS_TXDBB_RTS15 BB_CTS15 ODRAM_CKE2 ODRAM_CLKA2 ODRAM_CSA2HDMI_CEC13 AMP_OP1_EN9 HOST_WAKE_BT10 CAM_PWDN_214,15 CAM_RST_214,15 Title SizeDocument NumberRev Date:Sheetof Leader International Industrial CO.,LTD V1.0 S5PV210-A A3 116Tuesday, February 15, 2011 Title SizeDocument NumberRev Date:Sheetof Leader International Industrial CO.,LTD V1.0 S5PV210-A A3 116Tuesday, February 15, 2011 Title SizeDocument NumberRev Date:Sheetof Leader International Industrial CO.,LTD V1.0 S5PV210-A A3 116Tuesday, February 15, 2011 0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0 0 1 0 1 0 1 1 0 0 1 1 1 0: Storage 1 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 OM[0] 0: X-TAL 1: X-TAL (USB) NAND 512B-4cycle NAND 2KB-5cycle NAND 4KB-5cycle 8-ECC NAND 4KB-5cycle 16-ECC OneNAND Mux(Audi) OneNAND DeMux(Audi) SD/MMC eMMC(4bit) Reserved NAND 2KByte Page,4cycle iROM NOR boot eMMC(8bit) BootingMode Option Selection OM[5] Boot Seq. 0: Storage 1: USB-> UART-> Storage OM[4:1] 0 0 0 0 OM2 = 0 ---> OneNand BOOT OM2 = 1 ---> SD/MMC BOOT R6 NC R6 NC R170RR170R R26 4.7K R26 4.7K R8100KR8100K R13100KR13100K C415pFC415pF C315pFC315pF R7 0R R7 0R R28 4.7K R28 4.7K R2 NC R2 NC R33NC/0R33NC/0 Y2 27M Y2 27M 1 3 2 4 TP4TP4 1 R9100KR9100K TP22TP22 1 R27 4.7K R27 4.7K R23 4.7K R23 4.7K R1100KR1100K R3 NC R3 NC C1100pFC1100pF TP2TP2 1 R37NC/0R37NC/0 R10100KR10100K C515pFC515pF Y1 24M Y1 24M 1 3 2 4 C615pFC615pF R19 5M R19 5M TP21TP21 1 R24 4.7K R24 4.7K R1410KR1410K R4 0R R4 0R C9 1.8nF C9 1.8nF R16 44R2 1% R16 44R2 1% R20 5M R20 5M R11100KR11100K TP1TP1 1 VDD_EXT0 VDD_EXT1 UART/IrDA VDD_EXT0 VDD_EXT2 HS-SPI VDD_UHOST_A VDD_SYS0 USB HOST 2.0 (VDD_SYS0) VDD_UOTG_A USB OTG 2.0 I2S/PCM/AC97 VDD_AUD HS-MMC VDD_EXT0 VDD_EXT1 VDD_EXT2 EPLL Filter I2C VDD_EXT0 VDD_EXT1 VDD_KEY VDD_SYS1 VDD_SYS0 EINT KEYPAD VDD_EXT0 PWM Timer VDD_SYS0 JTAG SYSTEM OPTION CLOCK VDD_AUD VDDOSC_HDMI VDD_SYS0 RESET VDD_RTC VDD_CKO RTC CLOCK SYSTEM U40A S5PC110_D VDD_EXT0 VDD_EXT1 UART/IrDA VDD_EXT0 VDD_EXT2 HS-SPI VDD_UHOST_A VDD_SYS0 USB HOST 2.0 (VDD_SYS0) VDD_UOTG_A USB OTG 2.0 I2S/PCM/AC97 VDD_AUD HS-MMC VDD_EXT0 VDD_EXT1 VDD_EXT2 EPLL Filter I2C VDD_EXT0 VDD_EXT1 VDD_KEY VDD_SYS1 VDD_SYS0 EINT KEYPAD VDD_EXT0 PWM Timer VDD_SYS0 JTAG SYSTEM OPTION CLOCK VDD_AUD VDDOSC_HDMI VDD_SYS0 RESET VDD_RTC VDD_CKO RTC CLOCK SYSTEM U40A S5PC110_D XuRXD0/GPA0_0 AB14 XuTXD0/GPA0_1 AB11 XuCTSn0/GPA0_2 AE12 XuRTSn0/GPA0_3 AB10 XuRXD1/GPA0_4 AA14 XuTXD1/GPA0_5 AB13 XuCTSn1/GPA0_6 AB12 XuRTSn1/GPA0_7 AB9 XuRXD2/UART_AUDIO_RXD/GPA1_0 D7 XuTXD2/UART_AUDIO_TXD/GPA1_1 K11 XuRXD3/CTSn2/UART_AUDIO_CTSn/GPA1_2 L11 XuTXD3/RTSn2/UART_AUDIO_RTSn/GPA1_3 L12 XspiCLK0/GPB0 AG5 XspiCSn0/GPB1 AF4 XspiMISO0/GPB2 AE3 XspiMOSI0/GPB3 AE5 XspiCLK1/GPB4 AF3 XspiCSn1/GPB5 AF5 XspiMISO1/GPB6 AE4 XspiMOSI1/GPB7 AG4 XuhDP F8 XuhDM G8 XuhREXT D10 XuhPWREN D6 XuhOVERCUR H6 XuoDP G6 XuoDM F6 XuoREXT J6 XuoID D8 XuoVBUS D9 XuoDRWBUS F7 Xi2sSCLK0/PCM_SCLK0 N17 Xi2sCDCLK0/PCM_EXTCLK0 M17 Xi2sLRCK0/PCM_FSYNC0 U21 Xi2sSDI0/PCM_SIN0 R24 Xi2sSDO0_0/PCM_SOUT0 M24 Xi2sSDO0_1 R20 Xi2sSDO0_2 P18 Xi2sSCLK1/PCM_SCLK1/AC97BITCLK/GPC0_0 N24 Xi2sCDCLK1/PCM_EXTCLK1/AC97RESETn/GPC0_1 T21 Xi2sLRCK1/PCM_FSYNC1/AC97SYNC/GPC0_2 R21 Xi2sSDI1/PCM_SIN1/AC97SDI/GPC0_3 M18 Xi2sSDO1/PCM_SOUT1/AC97SDO/GPC0_4 N18 XpcmSCLK2/SPDIF_OUT0/Xi2sSCLK2/GPC1_0 V24 XpcmEXTCLK2/SPDIF_EXTCLK/Xi2sCDCLK2/GPC1_1 T25 XpcmFSYNC2/LCD_FRM/Xi2sLRCK2/GPC1_2 W26 XpcmSIN2/Xi2sSDI2/GPC1_3 V26 XpcmSOUT2/Xi2sSDO2/GPC1_4 T24 Xmmc0CLK/GPG0_0 AF8 Xmmc0CMD/GPG0_1 AD11 Xmmc0CDn/GPG0_2 AG10 Xmmc0DATA0/GPG0_3 AE11 Xmmc0DATA2/GPG0_5 AD12 Xmmc0DATA3/GPG0_6 AF10 Xmmc0DATA1/GPG0_4 AF11 Xmmc1CLK/GPG1_0 AD8 Xmmc1CMD/GPG1_1 AD10 Xmmc1CDn/GPG1_2 AG9 Xmmc1DATA0/Xmmc0DATA4/GPG1_3 AE10 Xmmc1DATA1/Xmmc0DATA5/GPG1_4 AE8 Xmmc1DATA2/Xmmc0DATA6/GPG1_5 AF9 Xmmc1DATA3/Xmmc0DATA7/GPG1_6 AE9 Xmmc2CLK/GPG2_0 AA18 Xmmc2CMD/GPG2_1 Y22 Xmmc2CDn/GPG2_2 Y20 Xmmc2DATA0/GPG2_3 AA19 Xmmc2DATA1/GPG2_4 AA22 Xmmc2DATA2/GPG2_5 AB22 Xmmc2DATA3/GPG2_6 AB21 Xmmc3CLK/GPG3_0 AB20 Xmmc3CMD/GPG3_1 Y19 Xmmc3CDn/GPG3_2 Y15 Xmmc3DATA0/Xmmc2DATA4/GPG3_3 AB18 Xmmc3DATA1/Xmmc2DATA5/GPG3_4 Y17 Xmmc3DATA2/Xmmc2DATA6/GPG3_5 AB15 Xmmc3DATA3/Xmmc2DATA7/GPG3_6 AA17 XjTRSTn U18 XjTMS V18 XjTCK W20 XjTDI T18 XjTDO R18 XjDBGSEL AG24 XOM0 Y4 XOM1 Y3 XOM2 Y2 XOM3 AA6 XOM4 Y1 XOM5 AA2 XXTI AB2 XXTO AB3 XusbXTI L6 XusbXTO K6 XCLKOUT J1 XhdmiXTI T22 XhdmiXTO R22 XnWRESET AC2 XnRESET AB6 XnRSTOUT Y7 XPWRRGTON AA7 XrtcXTI AA3 XrtcXTO AA4 XRTCCLKO AB7 XefFSOURCE U24 XpwmTOUT0/GPD0_0 Y16 XpwmTOUT1/GPD0_1 AB16 XpwmTOUT2/GPD0_2 AD9 XpwmTOUT3/PWM_MIE/GPD20_3 AA16…

Text truncated - open the document above for the full version.

SHENZHEN EMTEK CO., LTD. REPORT NO: ES110402012F FCC ID: ZDYGS3X DATE: 04/25/2011 Page 1 of 37 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPARTC REQUIREMENT OF MID MODEL No.: GS30 FCC ID: ZDYGS3X REPORT NO: ES110402012F ISSUE DATE: April 25, 2011 Prepared for SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD. 4 Floor, Dongjiang Environmental Building, Central Langshan Road, Hi-Tech Park, Nanshan District, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES110402012F FCC ID: ZDYGS3X DATE: 04/25/2011 Page 2 of 37 VERIFICATION OF COMPLIANCE Applicant: SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD. 4 Floor, Dongjiang Environmental Building, Central Langshan Road, Hi-Tech Park, Nanshan District, Shenzhen, China Manufacturer: SHENZHEN LEADER DIGITAL-TECH WEITONG CO., LTD. 4 Floor, Dongjiang Environmental Building, Central Langshan Road, Hi-Tech Park, Nanshan District, Shenzhen, China Product Description: MID Model Number: GS30 File Number: ES110402012F Date of Test: April 3, 2011 to April 24, 2011 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : April 3, 2011 to April 24, 2011 Prepared by : (Engineer) Reviewer : (Quality Manager) Approve & Authorized Signer : (Manager) SHENZHEN EMTEK CO., LTD. REPORT NO: ES110402012F FCC ID: ZDYGS3X DATE: 04/25/2011 Page 3 of 37 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ....................................................................................................... 5 1.1 PRODUCT DESCRIPTION............................................................................................................................. 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................... 5 1.3 TEST METHODOLOGY................................................................................................................................5 1.4 SPECIAL ACCESSORIES.............................................................................................................................. 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................... 5 1.6 TEST FACILITY.......................................................................................................................................... 6 2. SYSTEM TEST CONFIGURATION .......................................................................................... 7 2.1 EUT CONFIGURATION...............................................................................................................................7 2.2 EUT EXERCISE.......................................................................................................................................... 7 2.3 TEST PROCEDURE...................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................... 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 10 2.6 EQUIPMENT USED IN TESTED SYSTEM.................................................................................................... 11 2.7 DESCRIPTION OF TEST MODES................................................................................................................ 11 3. SUMMARY OF TEST RESULTS ............................................................................................. 12 4. CONDUCTED EMISSIONS TEST ........................................................................................... 13 4.1 MEASUREMENT PROCEDURE................................................................................................................... 13 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................................... 13 4.3 MEASUREMENT EQUIPMENT USED......................................................................................................... 13 4.4 CONDUCTED EMISSION LIMIT................................................................................................................. 13 4.5 MEASUREMENT RESULT.......................................................................................................................... 14 4.6 CONDUCTED MEASUREMENT PHOTOS.................................................................................................... 15 5. RADIATED EMISSION TEST .................................................................................................. 16 5.1 MEASUREMENT PROCEDURE................................................................................................................... 16 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................................... 16 5.3 MEASUREMENT EQUIPMENT USED......................................................................................................... 17 5.4 MEASUREMENT RESULT.......................................................................................................................... 18 5.5 RADIATED MEASUREMENT PHOTOS.............…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST CONDUCTED EMISSION TEST
