ZE8-A242SMART KEY TAG

www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. 2015. 05. 13 Prepared(작성) Reviewed(검토) Approved(승인) Bae wonsik SMART KEY TAG User’ Manual www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 2 / 6 SMART KEY TAG USER’MANUAL Rev (draft) Revision History Rev. 날짜 수정 내용 담당 1.0 2015.05.13 First Release Bae wonsik www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 3 / 6 SMART KEY TAG USER’MANUAL Rev (draft) – Contents – Revision History 1. Synopsis 2. Product Image 3. Block Diagram 4. Specification www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 4 / 6 SMART KEY TAG USER’MANUAL Rev (draft) 1. Synopsis This document is specifically-written manual for receiver and transmitter (SMART KEY TAG) of wireless communication, which is to confirm user identifications under engine-start limiting function in heavy equipments. SMART KEY TAG is defined as following: it receives signals with RFID 125 KHz and wakes up. After then, it transmits password-secured information to SMART KEY READER by using 2.4 GHz Zigbee wireless signals. WARNNIG Exchanging batteries in incorrect way, It may cause explosion Discard used batteries according to manufacturer’s instructions 2. Product Image 1) External Appearance 2) Dimension 인증 LABEL 부착 위치 (사이즈 22.5mm Χ 15mm) 71 40 17.2 www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 5 / 6 SMART KEY TAG USER’MANUAL Rev (draft) 3) Certification LABEL location 4) Block Diagram 4. Specification 4.1. Operating Specification -. Must wake up the remote control by providing electricity with RFID 125 KHz. -. Must be operating with CR2032 battery. -. Must be able to transfer password-secured signals. -. Must be able to use all 16 channels with Zigbee band of 2405 to 2480MHz. 4.2. Power Specification -. 3 V d.c. (CR 2032 Lithium Battery) -. Notice : Inserting opposite polarity of battery may cause explosion or damage to product (Please match battery polarity with battery holder) www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 6 / 6 SMART KEY TAG USER’MANUAL Rev (draft) 4.3. General Specification -. Storage Temperature: -20°C ~ 70°C -. Operating Temperature: -10°C ~ 60°C -. Water-Proof Specification: IP54 (Living Water-Proof) -. Material of Device : PC (Material: 3025N1, Flame Class : V0, Manufacturer : SAMYANG) -. PCB Material : object/part No. manufacturer/ trademark type/model technical data standard mark(s) of conformity 1 ) SMK TAG B/D PCB WOOMYUNG ELEC CO SKD V-0 ; 105 C UL 796 UL 4.4. RF Specification FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with RF exposure compliance requirements, the antenna used for this transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. This product is CE marked according to the provision of the R&TTE Directive (99/5/EC). Hereby Kyungwoo Systech Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC Item Specification Operating Frequency 2405 ~ 2480 MHz (16 Channels) RF Power Under 10mW Wireless Data Communication System Modulation Method OQPSK

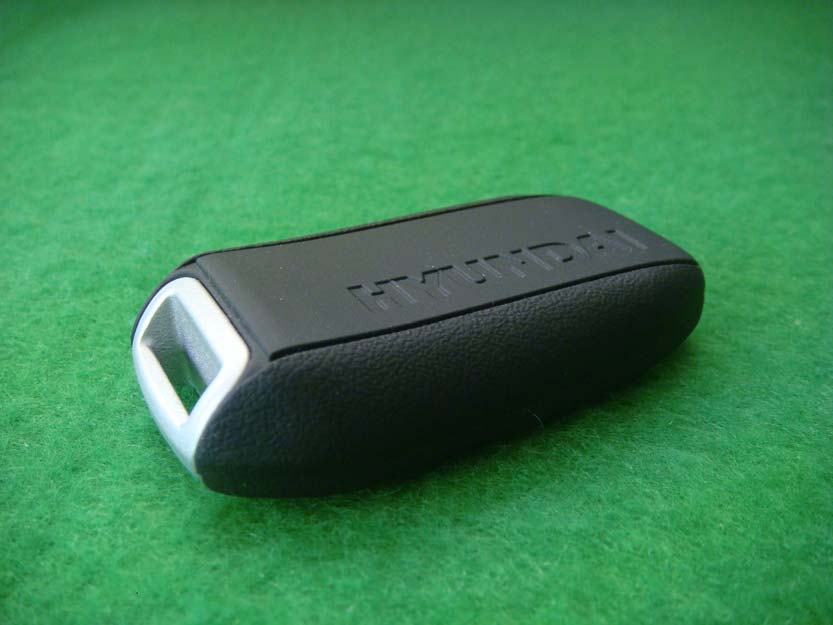

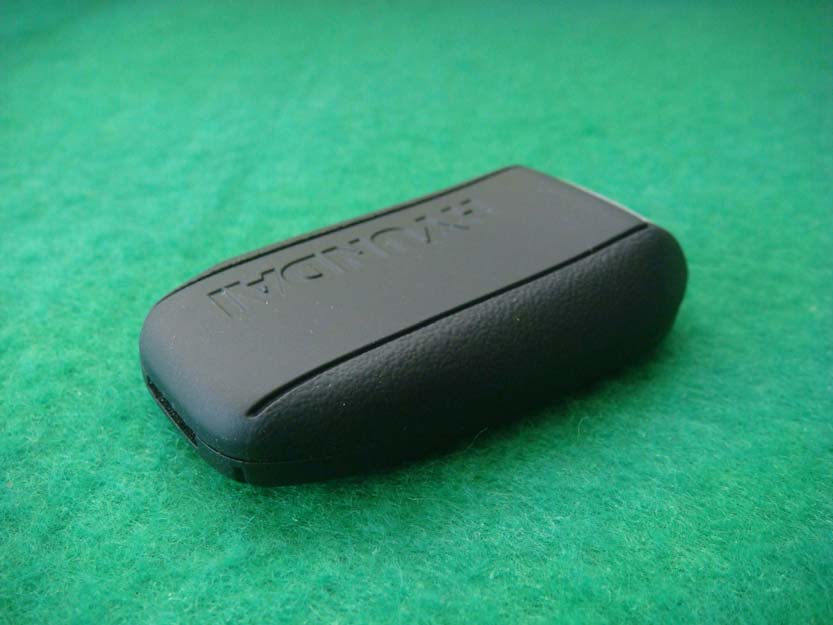

SK Tech Co., Ltd. Page 1 of 2 Photographs of EUT External view SK Tech Co., Ltd. Page 2 of 2 External view

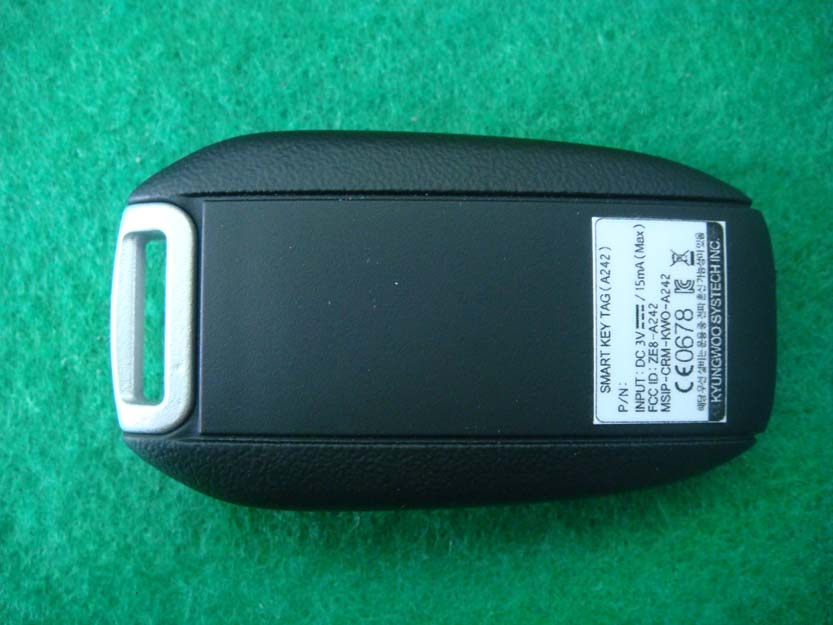

ID Label Location & Sample LABEL LOCATION: LABEL will be attached to the REAR of the product LABEL Drawing:

SK Tech Co., Ltd. Page 1 of 2 Photographs of EUT Cover opened SK Tech Co., Ltd. Page 2 of 2 Main board

RF Exposure requirements Product name SMART KEY TAG Model number A242 FCC ID ZE8-A242 Radio specification 2.4 GHz ZigBee transceiver, 125 kHz RFID receiver Antenna 2.4 GHz, integral SMD chip antenna, 125 kHz, Resonance coil Power source DC 3 V lithium battery According to the KDB 447498, the following standalone SAR test exclusion was considered to qualify for the SAR test exclusion. Tx frequency range 2405 MHz - 2480 MHz Device category Handheld portable device Maximum conducted output power 1.24 mW (0.95 dBm) Limit 10 mW (distance = 5 mm) SAR test exclusion thresholds: [(max. power of channel, mW) / (min. separaƟon distance, mm ] · √f (GHz) ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR MHz 5 10 15 20 25 30 35 40 45 50 test separation distance (mm) 2450 10 19 29 38 48 57 67 77 86 96 SAR test exclusion threshold (mW) The source-based time-averaged maximum conducted output power of the RF channel is less than 10 mW, and therefore the transmitter complies with the RF exposure requirements and the SAR is not required.

SK Tech Co., Ltd. Report No.: SKT-RFC-150008 Page 2 of 22 Revision History of Report Rev. Revisions Effect pageReviewed by Date - Initial issue All Jongsoo Yoon June 22, 2015 SK Tech Co., Ltd. Report No.: SKT-RFC-150008 Page 3 of 22 TABLE OF CONTENTS 1 Summary of test results ................................................................................................. 4 2 Description of equipment under test (EUT) .................................................................. 5 3 Test and measurement conditions ................................................................................ 6 3.1. Test configuration (arrangement of EUT) ................................................................................ 6 3.2. Description of support units (accessory equipment)................................................................ 6 3.3. Interconnection and I/O cables................................................................................................ 6 3.4. Measurement Uncertainty (U) ................................................................................................. 6 3.5. Test date .................................................................................................................................. 6 4 Facilities and accreditations .......................................................................................... 7 4.1. Facilities................................................................................................................................... 7 4.2. Accreditations .......................................................................................................................... 7 4.3. List of test and measurement instruments............................................................................... 7 5 Test and measurements ................................................................................................. 8 5.1. Antenna requirement ............................................................................................................... 8 5.2. 6 dB bandwidth........................................................................................................................ 9 5.3. Maximum peak output power ................................................................................................ 11 5.4. Spurious emissions, Band edge, and Restricted bands ........................................................ 13 5.5. Peak power spectral density.................................................................................................. 21 SK Tech Co., Ltd. Report No.: SKT-RFC-150008 Page 4 of 22 1 Summary of test results Requirement CFR 47 Section Result Antenna Requirement 15.203, 15.247(b)(4) Meets the requirements 6dB Bandwidth 15.247(a)(2) Meets the requirements Maximum Peak Output Power 15.247(b)(3), (4) Meets the requirements Spurious Emission, Band Edge, and Restricted bands 15.247(d), 15.205(a), 15.209(a) Meets the requirements Peak Power Spectral Density 15.247(e) Meets the requirements SK Tech Co., Ltd. Report No.: SKT-RFC-150008 Page 5 of 22 2 Description of equipment under test (EUT) Product: SMART KEY TAG Model: A242 Serial number: None (prototype) Model differences: Model name Difference Tested (checked) A242 Original Technical data: Power source DC 3.0 V lithium battery (type CR2032) Local Oscillator or X-Tal 32.768 kHz, 32 MHz Transmit Frequency 2405 MHz to 2480 MHz (16 CH) 125 kHz RFID (only receiver) Antenna Type Integral chip antenna Resonance coil Type of Modulation OQPSK ASK RF Output power 0.95 dBm (measured conducted RF power) External Ports None Note: 1) The test report for the compliance with FCC Part 15B as a digital device was issued with other test report number I/O port Type Q'ty Remark None Equipment Modification The two test samples (EUT) were provided; the each EUT was modified (programmed) to facilitate the measurements. The one sample was used for Conducted measurements. The other sample was used for Radiated measurements. SK Tech Co., Ltd. Report No.: SKT-RFC-150008 Page 6 of 22 3 Test and measurement conditions 3.1. Test configuration (arrangement of EUT) The measurements were taken in continuous transmitting mode provided by the applicant. (UA R T) SERIAL Interface EUT PC Debu g 3.2. Description of support units (accessory equipment) The following support units or accessories were used to form a representative test configuration during the tests. # Equipment Manufacturer Model No. Serial No. 1 Notebook PC DELL INSPIRION 14791079949 2 Adaptor(for Notebook PC) DELL LA65NS0-00 CN-0DF263-71615-6BT-81A8 Note: For control of the RF module via UART interface at the Debug port in the EUT. For radiated spurious emission measurements, the measurements were performed without PC after setting the radio module to TEST MODE. 3.3. Interconnection and I/O cables The following support units or accessories were used to form a representative test configuration during the tests. Start End Cable # Name I/O port Name I/O port length (m) shielded (Y/N) None Note: 1) All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2) Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3.4. Measurement Uncertainty (U) Measurement Item Combined Standard Uncertainty Uc Expanded Uncertainty U = k  Uc (k = 2) Conducted RF power ±1.49 dB ±2.98 dB Radiated disturbance ±2.30 dB ±4.60 dB Conducted disturbance ±1.96 dB ±3.92 dB 3.5. Test date Date Tested May 28, 2015 – June 12, 2015 SK Tech Co., Ltd. Report No.: SKT-RFC-150008 Page 7 of 22 4 Facilities and accreditations 4.1. Facilities All of the measurements described in this report were performed at SK Tech Co., Ltd Site I: 820-2, Wolmoon-ri, Wabu-up, Namyangju-si, Kyunggi-do, Korea Site II: 688-8, Wolmoon-ri, Wabu-up, Namyangju-si, Kyunggi-do, Korea The sites are constructed in conformance with the requi…

Text truncated - open the document above for the full version.

SK Tech Co., Ltd. Page 1 of 3 Photographs of the test set-up Radiated emissions - front view Radiated emissions - rear view SK Tech Co., Ltd. Page 2 of 3 Radiated emission test below 30 MHz Radiated emission test below 1 GHz SK Tech Co., Ltd. Page 3 of 3 Radiated emission test above 1 GHz
