INQ T2-218U User Guide i Contents 1 Your phone ................................................ 1 Phone overview ............................................ 1 2 Installation and Charging ........................... 2 Install the SIM card ....................................... 2 Install the microSD card ................................ 2 Install the battery ......................................... 3 Charge the battery ........................................ 3 3 Getting Started .......................................... 5 Turn phone on/off ......................................... 5 Set up screen lock ........................................ 5 Home screen ................................................ 5 Monitor your phone’s status ............................ 6 Open and switch applications .......................... 9 PIN and PUK .............................................. 10 4 Calls ........................................................ 11 Make a call ................................................ 11 In-call options ............................................ 12 Answer & reject a call .................................. 12 Manage multiple calls .................................. 13 Work with the call log .................................. 14 Dial by voice .............................................. 15 5 Text Entry ................................................ 16 Use the onscreen keyboard .......................... 16 Edit text .................................................... 17 ii Enter text by speaking ................................. 18 6 Messaging ............................................... 19 Create and send a text message ................... 19 Create and send a multimedia message.......... 19 Change messaging settings .......................... 20 7 Email ....................................................... 21 Open email and the accounts screen .............. 21 Read and respond to a message .................... 21 Compose and send email ............................. 22 Add and edit email accounts ......................... 22 8 Browser ................................................... 23 Open browser............................................. 23 Connect .................................................... 24 Download files ............................................ 24 Change browser settings .............................. 25 9 Contacts .................................................. 26 Open your contacts ..................................... 26 Create a contact ......................................... 27 Search for a contact .................................... 27 Import, export and share contacts ................. 27 Call, text or email contacts ........................... 28 Synchronize contacts ................................... 28 10 Settings ................................................... 29 Wireless & networks .................................... 29 Call settings ............................................... 29 Sound settings ........................................... 30 iii Display settings .......................................... 30 Location & security settings .......................... 30 Application settings ..................................... 30 Account & sync settings ............................... 31 Privacy settings .......................................... 31 SD card & phone storage settings .................. 31 Language & keyboard settings ...................... 31 Voice input & output settings ........................ 31 Accessibility settings ................................... 31 Date & time settings.................................... 32 About phone .............................................. 32 11 Music ....................................................... 33 Open and play music ................................... 33 Use a song as a ringtone .............................. 35 12 Camera & camcorder ................................ 36 Start camera & camcorder ............................ 36 Camera ..................................................... 36 Camcorder ................................................. 37 13 Gallery ..................................................... 39 Open Gallery and view your albums ............... 39 Work with albums ....................................... 40 Work with pictures ...................................... 40 Work with videos ........................................ 41 14 Tools ....................................................... 42 Calculator .................................................. 42 Calendar ................................................... 42 iv Clock ........................................................ 43 15 Applications ............................................. 45 FM Radio ................................................... 45 Google search ............................................ 45 Latitude .................................................... 46 Maps......................................................... 47 Navigation ................................................. 48 News and Weather ...................................... 48 Places ....................................................... 48 SIM Toolkit ................................................ 48 Warning 1 1 Your phone Phone overview The following figure shows the appearance of your phone and it is for your reference only. 1. i key 7. Camera 2. Menu key 8. Speaker 3. Home key 9. Earpiece 4. Back key 10. Power key 5. Volume key 11. Headset connector 6. Camera key 12. Micro USB connector Tip: i key-press it first then press power key to come into recovery mode. 2 2 Installation and Charging Install the SIM card 1. First unlock the cover shown as the graphic. 2. Install the SIM card, ensure that the golden contact area on the SIM card is facing downward and that the beveled edge of the SIM card is properly aligned with that of the SIM card slot. 3. Finally, lock the c…

Text truncated - open the document above for the full version.

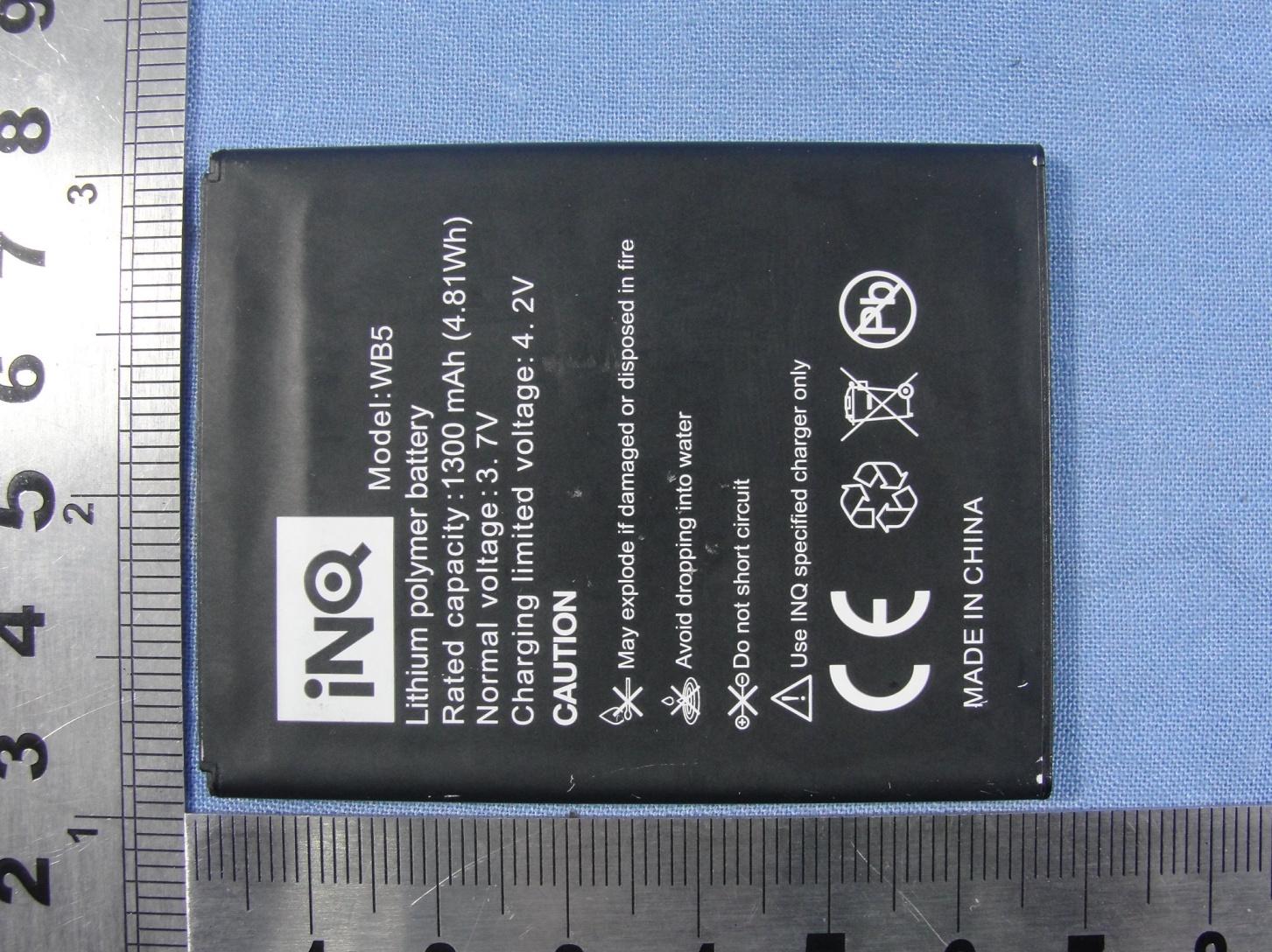

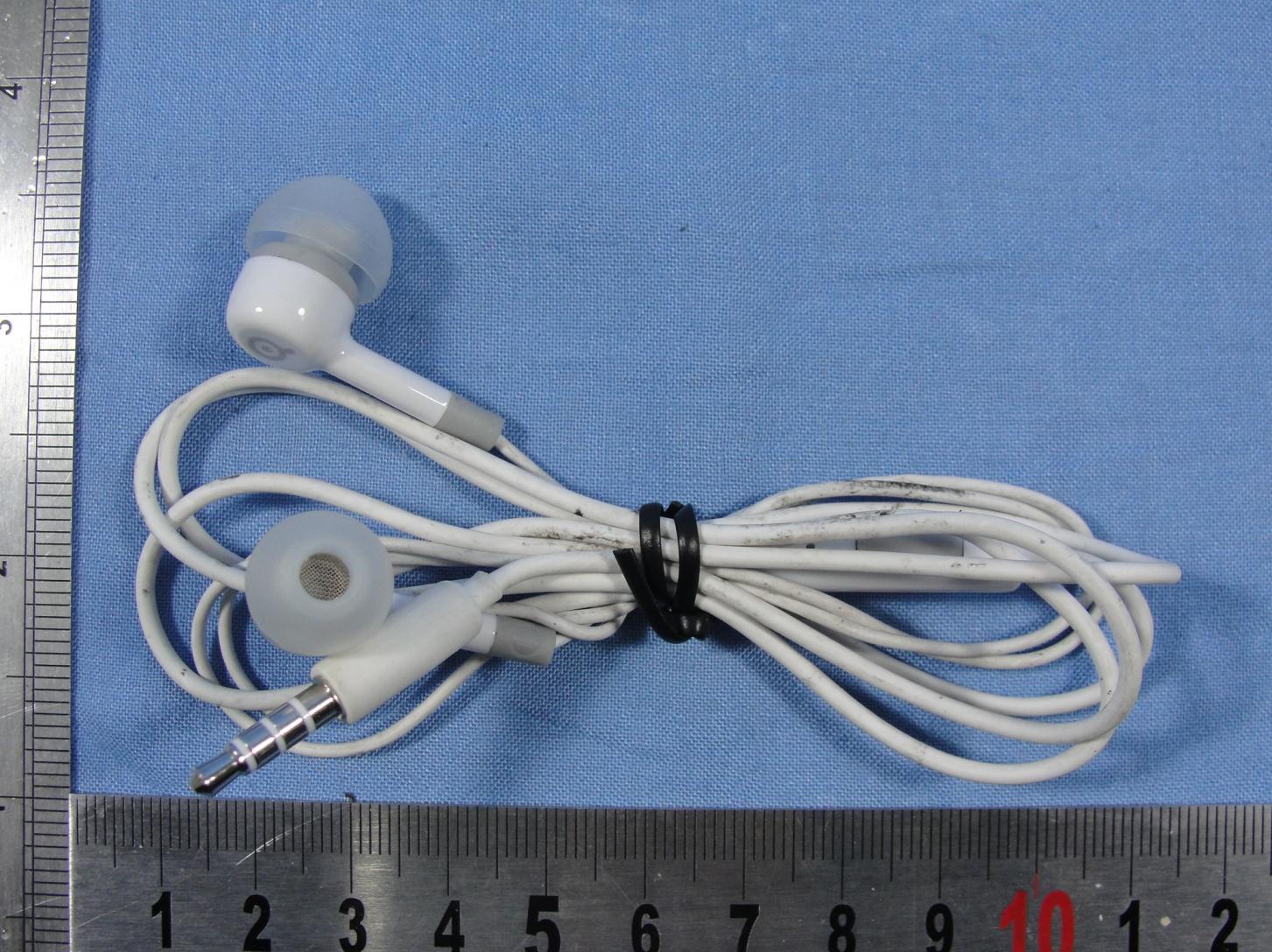

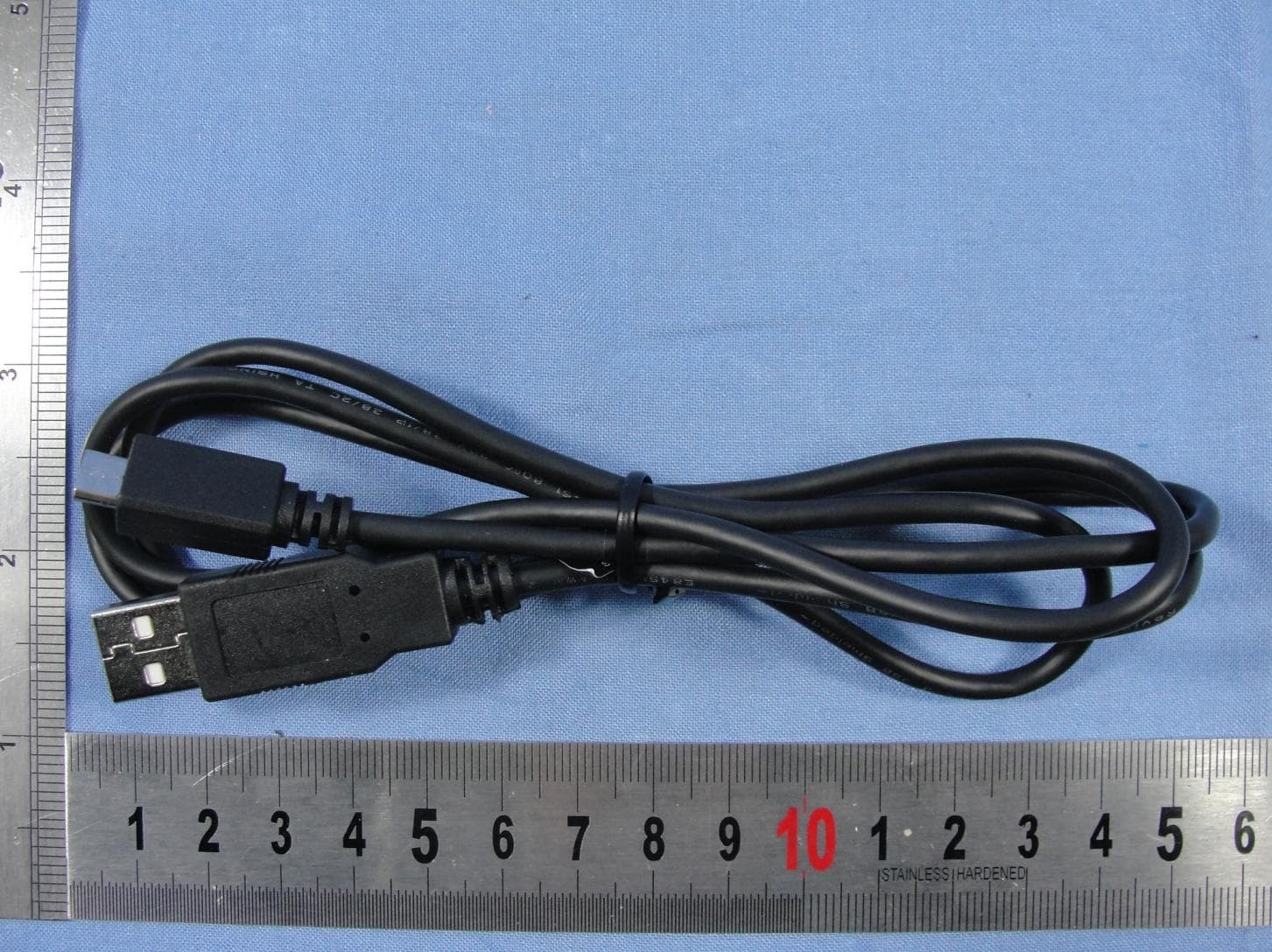

Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 List of Accessory: Specification of Accessory AC Adapter Brand Name INQ Model Name HS-050040U5 Battery Brand Name INQ Model Name WB5 Earphone Brand Name minami Model Name ME-812A USB Cable Brand Name EASON Model Name UX004SX005-S8315 LCD Panel Brand Name BYD Model Name BM320480-8660FTGH Camera Brand Name BYD Model Name BOCP9P111-MIC8012 TP Module Brand Name BYD Model Name TP-2C-DZ-10460AB Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 720510 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907

CA INQ Mobile Ltd. Born and bred in London Assembled in China 48.2 42.1 62.8 41.3 MODEL: T2-218U FCC ID: ZEN0020241907 IC: 9513A-T2218U WCDMA/GSM phone S/N: XXXACX0782000001 IMEI: XXXXXXXXXXXXXXX

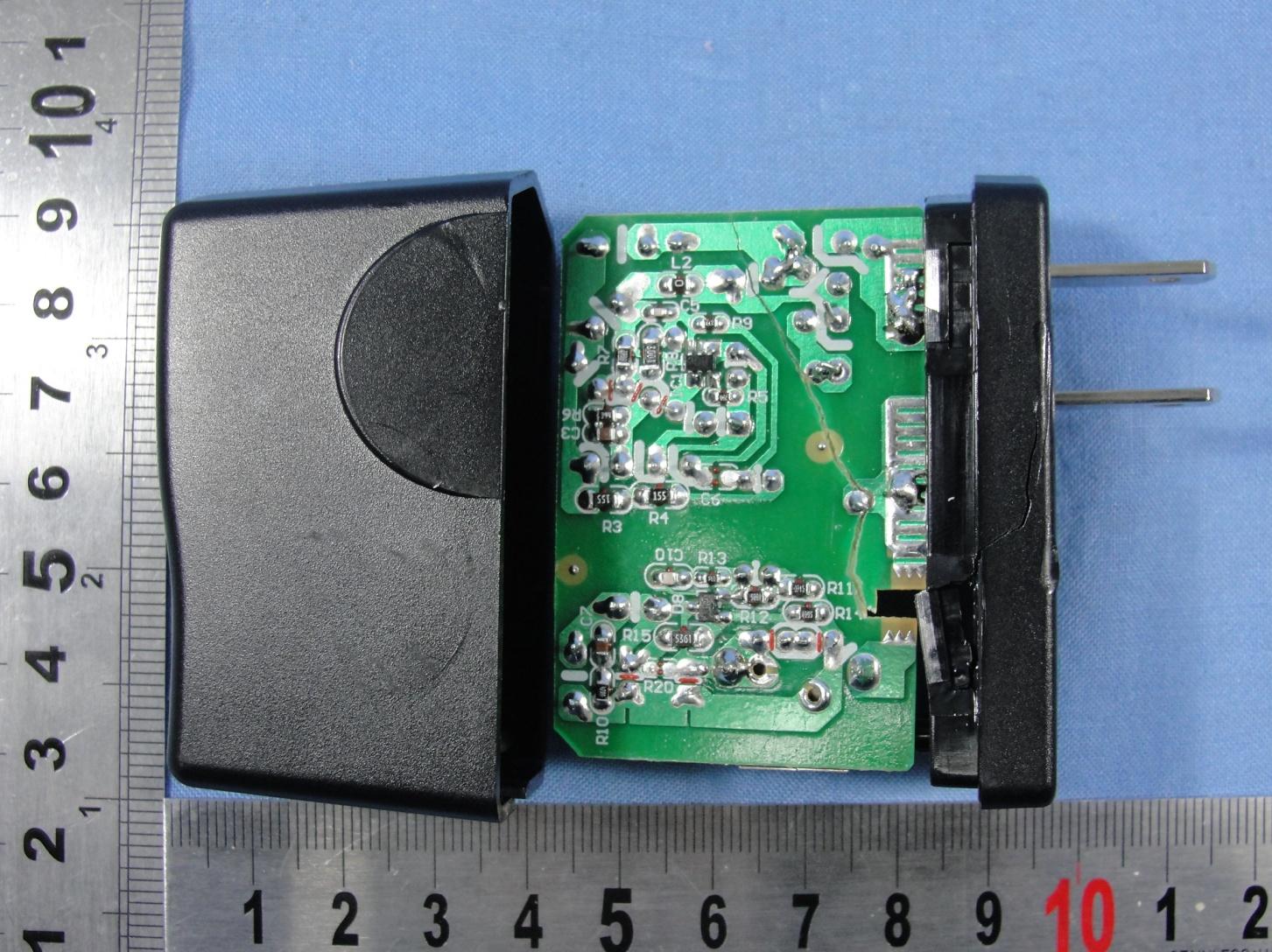

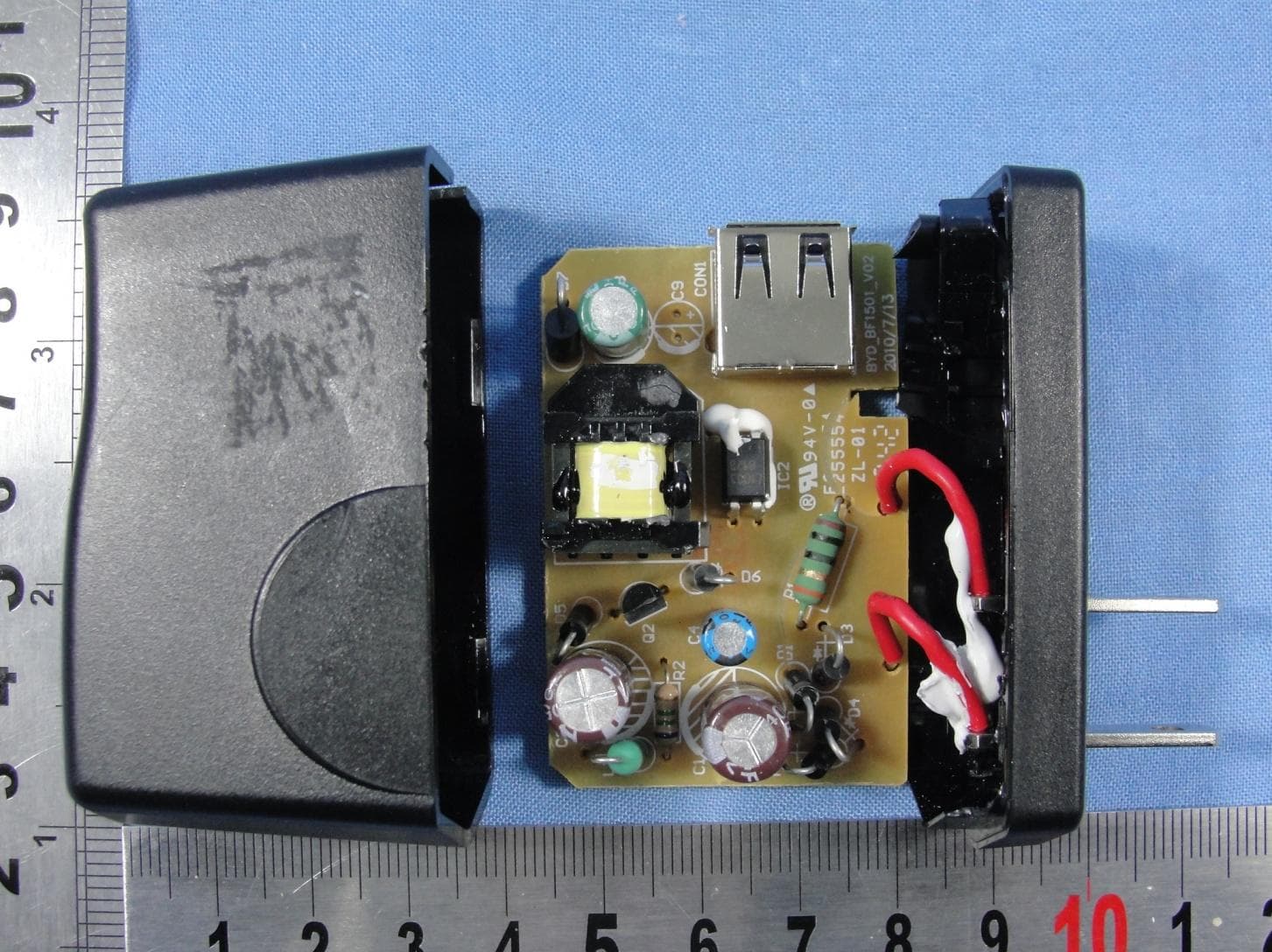

Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 3. Internal Photograph of EUT Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 720510 Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 WWAN Antenna Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 WLAN & Bluetooth Antenna Photographs of EUT Report No.: EP092959 Brand Name: INQ / Model Name: T2-218U SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : ZEN0020241907 GPS Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 03 FCC ID : ZEN0020241907 FCC SAR Test Report Report No. : FA092959A FCC SAR Test Report APPLICANT : INQ Mobile Ltd. EQUIPMENT : mobile phone BRAND NAME : INQ MODEL NAME : T2-218U FCC ID : ZEN0020241907 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Sep. 29, 2010 and completely tested on Mar. 10, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 28, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 03 FCC ID : ZEN0020241907 FCC SAR Test Report Report No. : FA092959A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ......................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 System Check_Head_835MHz_110114 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110114 Medium parameters used: f = 835 MHz; σ = 0.902 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.51 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.6 V/m; Power Drift = 0.00433 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.33 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.51 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-10 System Check_Body_835MHz_110310 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110310 Medium parameters used: f = 835 MHz; σ = 0.97 mho/m; ε r = 56.5; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.51 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.4 V/m; Power Drift = 0.00524 dB Peak SAR (extrapolated) = 3.45 W/kg SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.51 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 System Check_Head_1900MHz_110114 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110114 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.5 V/m; Power Drift = 0.114 dB Peak SAR (extrapolated) = 19.9 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.25 mW/g Maximum value of SAR (measured) = 11.5 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-10 System Check_Body_1900MHz_110310 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110310 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87 V/m; Power Drift = 0.00519 dB Peak SAR (extrapolated) = 20.8 W/kg SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.4 mW/g Maximum value of SAR (measured) = 11.9 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 #01 GSM850_Right Cheek_Ch251 DUT: 092901 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110114 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.818 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.79 V/m; Power Drift = 0.046 dB Peak SAR (extrapolated) = 0.941 W/kg SAR(1 g) = 0.764 mW/g; SAR(10 g) = 0.566 mW/g Maximum value of SAR (measured) = 0.809 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 #01 GSM850_Right Cheek_Ch251_2D DUT: 092901 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110114 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.818 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.79 V/m; Power Drift = 0.046 dB Peak SAR (extrapolated) = 0.941 W/kg SAR(1 g) = 0.764 mW/g; SAR(10 g) = 0.566 mW/g Maximum value of SAR (measured) = 0.809 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 #02 GSM850_Right Tilted_Ch251 DUT: 092901 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110114 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.577 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.7 V/m; Power Drift = 0.059 dB Peak SAR (extrapolated) = 0.646 W/kg SAR(1 g) = 0.517 mW/g; SAR(10 g) = 0.386 mW/g Maximum value of SAR (measured) = 0.547 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 #03 GSM850_Left Cheek_Ch251 DUT: 092901 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110114 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.645 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.77 V/m; Power Drift = 0.044 dB Peak SAR (extrapolated) = 0.839 W/kg SAR(1 g) = 0.605 mW/g; SAR(10 g) = 0.444 mW/g Maximum value of SAR (measured) = 0.637 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 #04 GSM850_Left Tilted_Ch251 DUT: 092901 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110114 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch251/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.464 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.7 V/m; Power Drift = 0.105 dB Peak SAR (extrapolated) = 0.585 W/kg SAR(1 g) = 0.465 mW/g; SAR(10 g) = 0.352 mW/g Maximum value of SAR (measured) = 0.479 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-1-14 #09 GSM1900_Right Cheek_Ch661 DUT: 092901 Communication System: Generic GSM; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_110114 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479…
