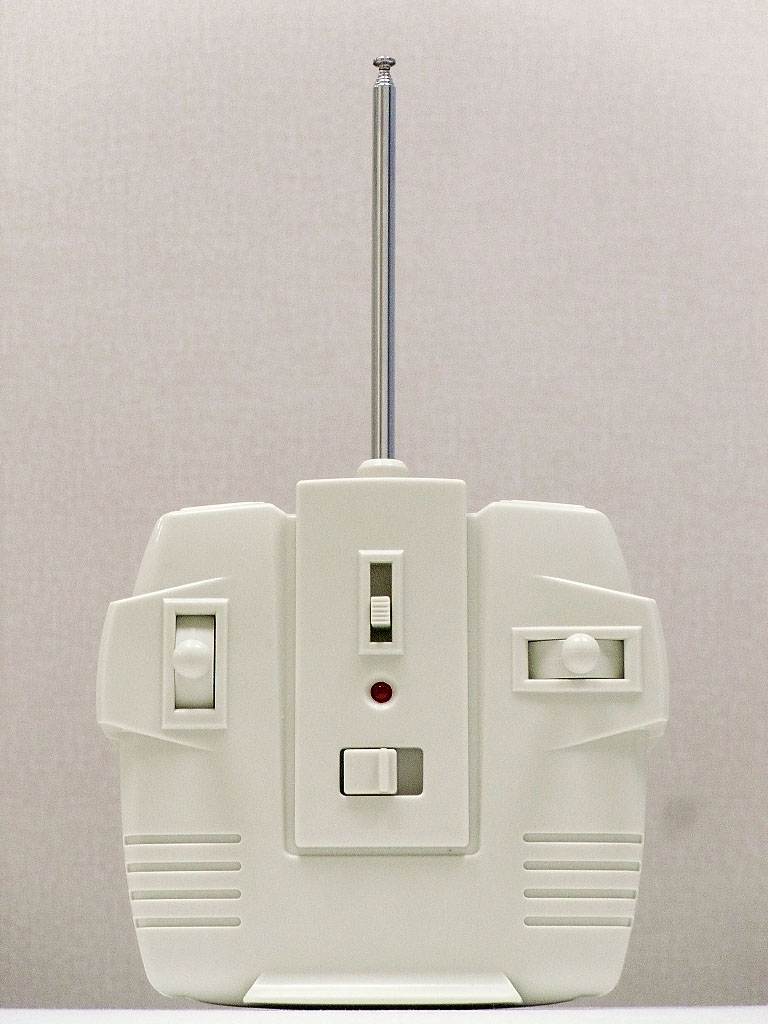

ZEZ3107T2727 MHz WIRELESS REMOTE CONTROL TRANSMITTER

MTMS (HK) LIMITED

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: May 23, 2011
Application Purpose: Original Equipment
Date of Application: May 23, 2011
Equipment Note: 27 MHz WIRELESS REMOTE CONTROL TRANSMITTER
Frequency Range: 27.14500000 - 27.14500000
Company: MTMS (HK) LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

3107 TX FCCMar-03-2011 Block diagrams RF FILTER ANT PLAYER A/B/C/D BATTERY RF AMP CRYSTAL OSC 27.145MHz MODULATION FOR/BACK LEFT/RIGHT G.R/G.L TO D.U Click to buy NOW! P D F - X C H A N G E w w w . t r a c k e r - s o f t w a r e . c o m Click to buy NOW! P D F - X C H A N G E w w w . t r a c k e r - s o f t w a r e . c o m

ID Label/Location Info

FCC ID Label Sample for FCC ID: ZEZ3107T27_ 27MHz FCC ID: ZEZ3107T27 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Operational Description

APPLICANT: CACHE SALES FCC ID: ZEZ3107T27 Circuit Description Q2 the 27.145 MHz crystal oscillator drives the base of Q2 the main transmitter oscillator. Summed into the same base (Q1) is the modulation provided by U1. The output of Q1 has the matching network consisting of L3, T1, C1, and C2 that limit the trapezoidal filter content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna consists of a 60cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt primary storage cell.

Test Report

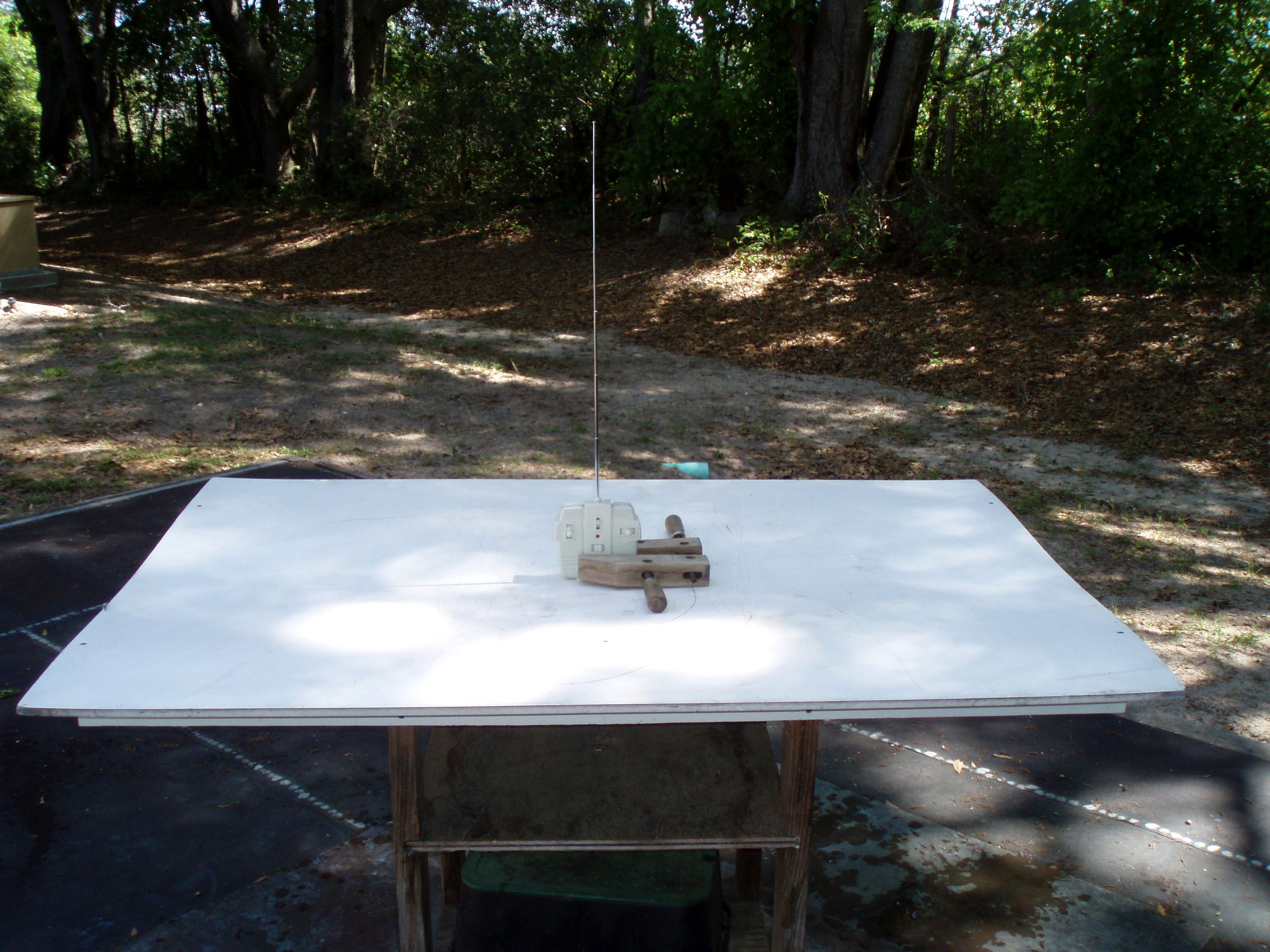

FCC PART 15.227 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant CACHE SALES, LLC Address 1189 W. 1700 N. LOGAN UTAH 84321 USA FCC ID ZEZ3107T27 Product Description WIRELESS REMOTE CONTROL TRANSMITTER Date Sample Received 4/6/2011 Date Tested 4/7/2011 Tested By Nam Nguyen Approved By Mario de Aranzeta Timco Report No. 682UT11TestReport.doc Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: CACHE SALES LLC FCC ID: ZEZ3107T27 REPORT: Z:\C\CACHE_ZEZ\682UT11\682UT11TestReport.doc Page 2 of 9 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS .................................................................................................. 3 REPORT SUMMARY .................................................................................................... 4 TEST ENVIRONMENT.................................................................................................. 4 TEST SETUP ............................................................................................................... 4 DUT SPECIFICATION .................................................................................................. 5 TEST EQUIPMENT LIST .............................................................................................. 6 TEST PROCEDURES ................................................................................................... 7 RADIATION INTERFERENCE ....................................................................................... 8 OCCUPIED BANDWIDTH............................................................................................. 9 APPLICANT: CACHE SALES LLC FCC ID: ZEZ3107T27 REPORT: Z:\C\CACHE_ZEZ\682UT11\682UT11TestReport.doc Page 3 of 9 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 4/7/11 APPLICANT: CACHE SALES LLC FCC ID: ZEZ3107T27 REPORT: Z:\C\CACHE_ZEZ\682UT11\682UT11TestReport.doc Page 4 of 9 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.227, ANSI C63.4: 2003 TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: CACHE SALES LLC FCC ID: ZEZ3107T27 REPORT: Z:\C\CACHE_ZEZ\682UT11\682UT11TestReport.doc Page 5 of 9 mdea 09.20.2007 DUT SPECIFICATION Applicant CACHE SALES, LLC Description WIRELESS REMOTE CONTROL TRANSMITTER FCC ID ZEZ3107T27 Model Number 3107T27 Frequency Range 27.145 MHz DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: CACHE SALES LLC FCC ID: ZEZ3107T27 REPORT: Z:\C\CACHE_ZEZ\682UT11\682UT11TestReport.doc Page 6 of 9 mdea 09.20.2007 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL. 6/1/09 6/2/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/10 1/30/12 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: CACHE SALES LLC FCC ID: ZEZ3107T27 REPORT: Z:\C\CACHE_ZEZ\682UT11\682UT11TestReport.doc Page 7 of 9 mdea 09.20.2007 TEST PROCEDURES Radiated Spurious Emissions: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was always greater than the RBW. Occupied Bandwidth: A small sample of the transmitter output was fed into the spectrum analyzer and the following plot was generated. The vertical scale is set to 10 dB per division. Formula…
