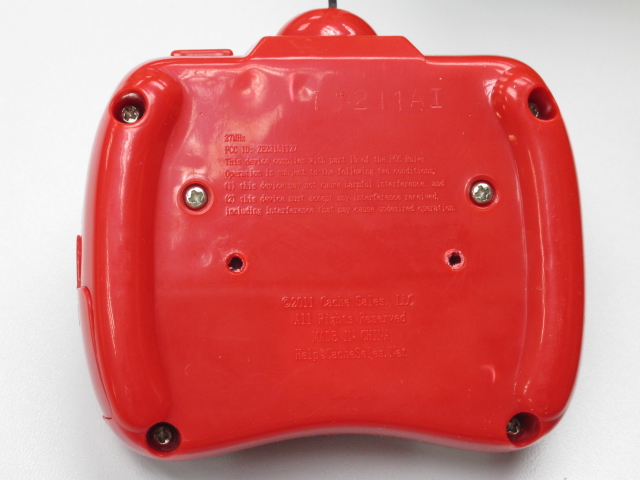

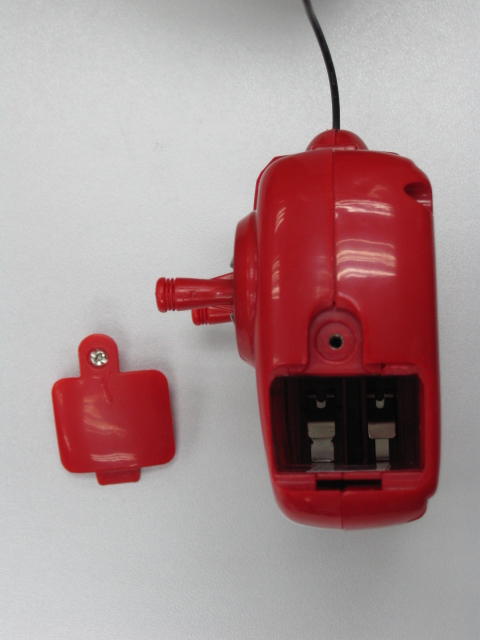

ZEZ3151T2727 MHz WIRELESS REMOTE CONTROL TRANSMITTER

MTMS (HK) LIMITED

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Aug 25, 2011
Application Purpose: Original Equipment
Date of Application: Aug 25, 2011
Equipment Note: 27 MHz WIRELESS REMOTE CONTROL TRANSMITTER
Frequency Range: 27.14500000 - 27.14500000
Company: MTMS (HK) LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

3141 TX OPERATION PRINCIRLE The #3141 TX operates basing on the controlling signals encode by IC NY5A003A;Afer modulation,the hight frequency 27.145MHz oscillatory signals were emitted to control the progress,retreat functions for the RX. The modulation type is AM. Circutis’ composition: Power circuit; encoding circuit; high frequency oscillatory circuit; modulator and amplifier circuit. 1. Power circuit: 9.0V, SW1, R1, R2, R3, C1, C2, C3, ZW 2. encoding circuit: Forward , backward, left, right, reset, ID1, ID2, U1(NY5A003A) 3. high frequency oscillatory circuit: Y1, R5, L1, Q1, D1, C4, R4, R6, C5, Q3, C6, C7, C8, R7, R8 4. modulator and amplifier circuit: Q2, L2, C10, C11, T1, C12, L3, ANT1 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Schematics

Q2 C945 Q1 C945 R4 68k R6 100Ω R8 100Ω R9 10Ω R7 39K C6 47P C5 47P C7 47P C8 100P C9 103P C10 56P C11 100P C12 33P 1 2 9.0V T1 6K-1R0K-G L1 EC246-2R2K-G L2 EC24-2R2K-G L3 EC24-5R6K-G SW1 Y1 27.145MHz(20ppm) ANT1 C3 103P PB0 PB1 GND1 PB2 PA1PA0PB3/OSC PA2 PA3 VDD1GND2 VDD2 PMW2PMW1/DAC 1 2 3 4 5 6 789 10 11 12 13 14 4 5 6 3 7 R3 2.2R R1 100R #3141 /27M发射电路左右 C4 103P D1 IN5817 VDD VDD 前后 ID1 ID2 复位 NY5A003A R2 560R ZW 3.9V + C2 100UF C1 104P Q3 C9014 R5 68k PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

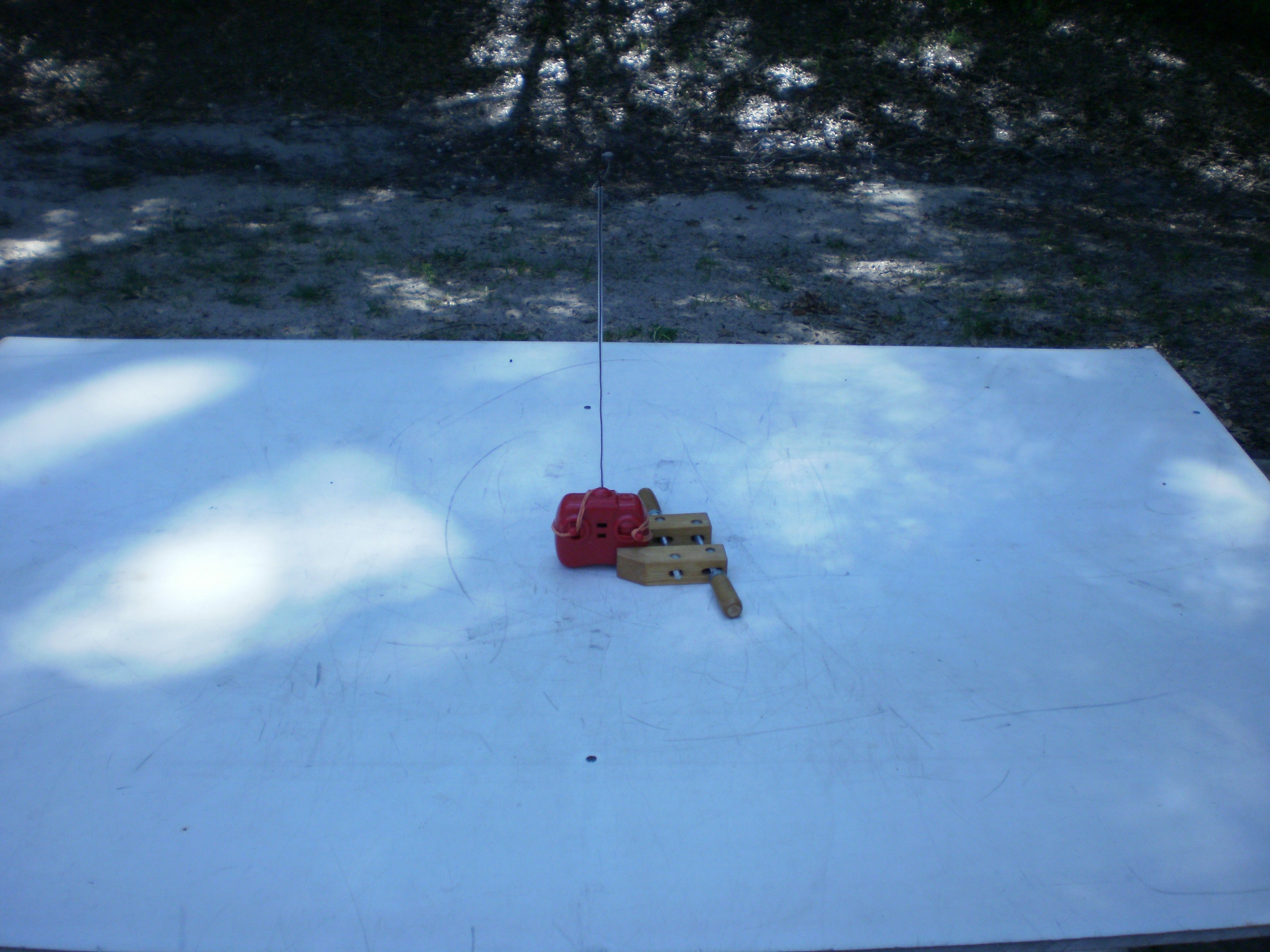

Test Report

FCC PART 15.227 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant CACHE SALES, LLC Address 1189 W. 1700 N. LOGAN UTAH 84321 USA FCC ID ZEZ3151T27 Product Description 27 MHZ REMOTE CONTROL TRANSMITTER Date Sample Received 6/2/2011 Date Tested 6/3/2011 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Timco Report No. 1209HT11TestReport.doc Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: CACHE SALES, LLC FCC ID: ZEZ3151T27 REPORT: C\CACHE_ZEZ\1209HT11\1209HT11TestReport.doc Page 2 of 9 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS .................................................................................................. 3 REPORT SUMMARY .................................................................................................... 4 TEST ENVIRONMENT.................................................................................................. 4 TEST SETUP ............................................................................................................... 4 DUT SPECIFICATION .................................................................................................. 5 TEST EQUIPMENT LIST .............................................................................................. 6 TEST PROCEDURES ................................................................................................... 7 RADIATION INTERFERENCE ....................................................................................... 8 OCCUPIED BANDWIDTH............................................................................................. 9 APPLICANT: CACHE SALES, LLC FCC ID: ZEZ3151T27 REPORT: C\CACHE_ZEZ\1209HT11\1209HT11TestReport.doc Page 3 of 9 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: June 9, 2011 APPLICANT: CACHE SALES, LLC FCC ID: ZEZ3151T27 REPORT: C\CACHE_ZEZ\1209HT11\1209HT11TestReport.doc Page 4 of 9 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.227, ANSI C63.4: 2003 TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: CACHE SALES, LLC FCC ID: ZEZ3151T27 REPORT: C\CACHE_ZEZ\1209HT11\1209HT11TestReport.doc Page 5 of 9 mdea 09.20.2007 DUT SPECIFICATION Applicant CACHE SALES, LLC Description 27 MHZ REMOTE CONTROL TRANSMITTER FCC ID ZEZ3151T27 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: CACHE SALES, LLC FCC ID: ZEZ3151T27 REPORT: C\CACHE_ZEZ\1209HT11\1209HT11TestReport.doc Page 6 of 9 mdea 09.20.2007 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/10/10 5/10/12 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL. 7/1/09 7/2/11 Frequency Counter HP 5385A 2730A03025 CAL 8/4/09 8/4/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/10 1/30/12 Digital Multimeter Fluke FLUKE-77 35053830 CAL 11/18/09 11/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: CACHE SALES, LLC FCC ID: ZEZ3151T27 REPORT: C\CACHE_ZEZ\1209HT11\1209HT11TestReport.doc Page 7 of 9 mdea 09.20.2007 TEST PROCEDURES Radiated Spurious Emissions: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was always greater than the RBW. Occupied Bandwidth: A small sample of the transmitter output was fed into the spectrum analyzer and the following plot was generated. The vertical scale is set to 10 dB per division. Formula Of Conversion Factors: The field strength at 3m was established by adding the meter reading of t…
