ZF566888RECHARGEABLE REMOTE

Le Bébé English ..............................P 4 Français ..............................P 11 Deutsch ..............................P 18 Dutch ..............................P 25 Italiano ..............................P 32 Español ..............................P 39 Polszczyzna ..............................P 46 Русский ..............................P 53 LANGUAGE CONTENTS 4English Congratulations on acquiring the Le Bébé pleasure object. Before getting more closely acquainted with your Le Bébé, please take a moment to review the information in this user manual. Le Bébé is a dedicated egg massager, ergonomically designed to suit the natural curves of the female body. It is intended as an adult playing item only, equipped with distinctive traits that denote the beauty and ease of use by EXTASE. 5English CHARGING Before charging, make sure the DC Socket is free from water or lubricant residue. 1. Gently remove the protective Silicone Cap on the side of your Le Bébé Egg or Remote. 2. Slowly insert the DC plug into the DC Socket, until you feel a subtle “click”. 3. Insert the main plug into the wall socket. The LED will pulsate to indicate that the Egg or Remote is charging. When they are fully charged, the LED will remain on. Do not use your Le Bébé while charging. Do not charge for more than 24 hours. Only use original chargers provided by EXTASE. If the battery is running low, the LED Indicator will signal you to charge by emitting a white sheen, the device will continue to function for one minute. When the white sheen ceased, the device will discontinue its operation LED Indicator / Activation Dial DC Socket Silicone Cap / DC Socket LED Indicator / Interface Dial 6English and the LED indicator will signal in white when either part of the dial is pressed. USING YOUR Le Bébé ON/OFF, vibration intensity and stimulation patterns are all controlled with the Interface Dial on the Remote. When either part of the dial is pressed, the LED will indicate that the interface is active. 1. Press the Activation Dial on the Egg distinctly for one second to enter stand-by mode. 2. Press the Interface Dial on the Remote to activate your Le Bébé. Keep pressing the Interface Dial until you reach the vibration intensity you desire. 3. To decrease vibration intensity, press the Interface Dial. 4. To switch between stimulation patterns, press the Interface Dial. 5. To turn OFF the vibration, keep pressing the Interface Dial until vibration cease. 6. To turn OFF anytime or exit stand-by mode, press the Activation Dial on the Egg distinctly for two seconds. SYNCHRONIZIING YOUR Le Bébé Your Le Bébé is synchronized at default; however please re-synchronize your Le Bébé when your battery runs out or if you wish to synchronize your Remote with more than one Egg(s). 1. Press the Activation dial of the Egg for five seconds to enter synchronization mode, the LED will pulsate quickly for ten seconds. 7English 2. At any time during the ten second interval, press any Interface Dial button on the Remote, this will automatically synchronize the Remote and the Egg(s), the LED will pulsate slowly three times to indicate that synchronization is successful. To synchronize with another Egg(s), repeat steps 1 to 2. CLEANING - Never use massage oil and hand cream as lubricants, or cleansers containing alcohol, petrol or acetone. - Always clean Le Bébé thoroughly before and after each use. Wash with warm water, toy cleaner, antibacterial soap, rinse and pat dry. MAINTENANCE - The lifespan of your Le Bébé will greatly increase with proper maintenance and care. - Avoid submerging and getting water into the DC Socket or around the Interface dial. - Store your Le Bébé in the satin pouch provided and keep it away from toys of other materials. - Avoid leaving your Le Bébé in direct sunlight and NEVER expose it to extreme heat. WARNING - Do not use the Le Bébé on swollen, inflamed or wounded area. - Stop using it if you feel pain or discomfort. - It is not recommended for pregnant women to use Le Bébé. - Do not use this product underwater. 8English TROUBLESHOOTING Q: LED does not pulsate while charger is connected. A: Battery is drained and will require several minutes to acknowledge charger. A: Charger is not properly connected. Check wall and DC Socket. Q: Le Bébé does not activate when the Interface Dial is pushed. A: Battery is empty. Recharge your Le Bébé. A: Switch your Egg to the “Stand-by” mode by pressing on the Activation Dial. A: Synchronize your Egg with the Remote. Follow instructions in “SYNCHRONIZIING YOUR Le Bébé”. Q: Le Bébé cannot be switched OFF and/ or Interface Dial does not respond. A: Connect the charger to restore interface functionality. If you experience any other problems with your Le Bébé or if you have any questions regarding its operation, please contact: [email protected] 9English SPECIFICATIONS MODEL NUMBERC1 COLOURSPink / Blue MATERIALSPC / ABS / Silicone FINISHESMatt / PU Coating SIZE EGG 64 x 32 x 25 mm 2.53 x 1.28 x 1.00 inch REMOTE 68 x 30 x 24 mm 2.67 x 1.20 x 0.96 inch WEIGHT EGG 28.8 grams REMOTE 23.2 grams BATTERY EGG 1 x 120 mA Li-lon Battery (3.7V) REMOTE 1 x 120 mA Li-lon Battery (3.7V) CHARGING2 hr at 5 V 1A USER TIMEUp to 2.5 hours STAND-BYUp to 60 days FREQUENCY80 Hz INTERFACE EGG Single Dial REMOTE Interface Dial DISPOSAL INFORMATION Disposal of old electronic equipment is applicable in the EU and other European countries that separate waste collection systems. We urge users outside of Europe to also follow local waste treatment regulations. The crossed-out dustbin symbol indicates that this pleasure object should not be treated as household waste, but be handed over to the applicable collection point 10English recycling as electronic equipment. You will help prevent potential negative consequences for environment and human health by disposing this product correctly. The recycling of materials will further help conserve natural resources. APPLICABLE ACCESSORIES: DC-USB POWER Y CABLE / ADAPTE…

Text truncated - open the document above for the full version.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 18-Apr-2011 Sheet of File: C:\Documents and Settings\Administrator\ 桌桌 \ 成成 \C1\C1 BLOCK.ddb Drawn By: MCU DC/IN BATTERY LI-BATTERY LO-BATTERY FUNCTION KEY TX SAW OSC 433.92MHz CHARGER DETECTOR FUNCTIONDISPLAYLED C1 TX BLOCK DIAGRAM CKT

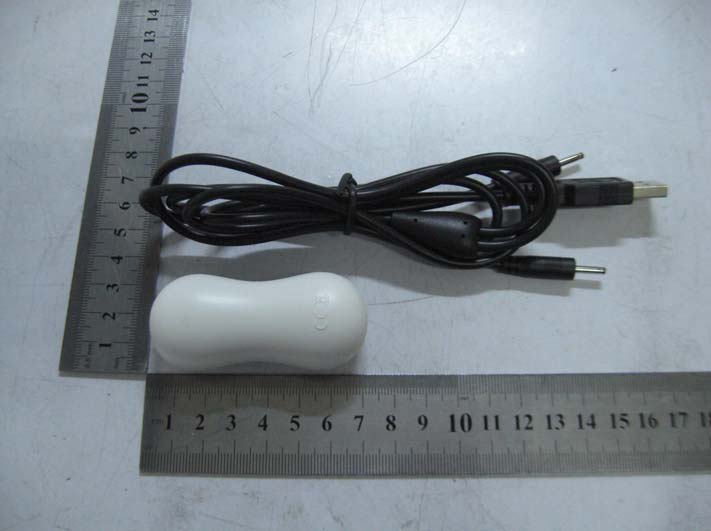

FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZF566888 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZF566888 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I FCC PART 15.231 Solder Board-Component View 2

FUFI-C1 Functional Specifications Use 433.92MHz ISM band Ask modulation output power lever is 0~4dBm, Power source is rechargeable Li-ion battery, Built-in charging circuit and Low battery detector circuit. 3 set function key(mode,+,-):push mode key can on/off the remote control and change different mode, push “+” and “-“ key can adjust the intensity of RX device. When DC jack plug in AC adaptor can charge internal battery, The remote control will be flash with led, When the Low battery circuit detection battery low will be flash red led.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 2-Apr-2011 Sheet of File: E:\ 开发案 \l 菉亚跳蛋 \C1 资料 \50 2 .dd b Drawn By: SW1 MOD SW2 "+" SW3 "-" C1 TX V 1.01 R121K C40.5PC24P C1102P C3102P R222K R3 220R 3.7V RF_OUT L168 NH ( 蔼繵筿稰 ) Q1 2SC3356 1 I 2 3 4 5 O 6 78 SAW1 433.92MHz R5100 R4100 R7100 R1100 LED4 W LED3 W LED5 W LED6 W Q2S8050 3.7V OUT_LED L2 27 NH ( 露絬筿稰 ) L3 68 NH ( 蔼繵筿稰 ) ANT 433.92MHz CH_IN 1 1 2 2 3 3 4 4 5 5 J3 CON 12 BAT1BAT1 PG 5 V+ 4 CL 1 G 2 BT 3 U3KX9016 R84.7K R102.2K 3.7V C5 105 3.7V C6106 C9105 C10 104 3.7V P50 19 P51 20 P52 22 P53 23 P54 24 P55 21 P56 9 P57 11 P61 4 P62 5 P63 6 P64 7 P65 8 P66 12 P67 13 P72 16 P73 3 P74 10 VDD5 14 VDD 15 OSCI/P70 18 OSCO/P71 17 GND 1 INT/P60 2 EPOR_N 25 U2 GA451P22_PAD CH_IN LVDIN LVDEN OUT_LED RF_OUT O 1 G 2 I 3 U4KX2801A33 LVDEN LVDIN R1410K R13100R11100 LED2WLED1W 3.7V M_LED M_LED "M" KEY LED R910K R61K R15 10K Q3 8050 3.7V DC_IN DC_DET DC_IN DC_DET C7Cap C11Cap C8Cap

FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I PAGE 1 OF 24 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR FUFI LIFESTYLE CO., LIMITED UNIT 706, HALESON BUILDING, NO. 1 JUBILEE STREET, CENTRAL, HONG KONG FCC ID: ZF566888 Report Concerns: Original Report Equipment Type: Rechargeable Remote Model: C1 Report No.: STR11048008I-1 Test Date: 2011-04-01 to 2011-04-12 Issue Date: 2011-04-22 Tested By: Galy He / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I PAGE 2 OF 24 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.207 (A) CONDUCTED EMISSION ..................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 4.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.6 TEST RECEIVER SETUP...........................................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 4.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 5. §15.205, §15.209, §15.231 (B) RADIATED EMISSION .......................................................................................11 5.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 5.2 STANDARD APPLICABLE.......................................................................................................................................11 5.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.4 TEST PROCEDURE.................................................................................................................................................12 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................13 5.6 ENVIRONMENTAL CONDITIONS............................................................................................................................13 5.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................…

Text truncated - open the document above for the full version.

FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) Test Model: Transmitting FUFI LIFESTYLE CO., LIMITED Model: C1 REPORT NO.: STR11048008I FCC PART 15.231 Test Model: Charging Radiation Emission Test Setup (Above 1GHz)
