ZFCR100R4023WSelf-Ballasted Lamp

ENERGY-SAVING LAMP INSTRUCTIONS The specification of energy-saving lamp No Type Rated Voltage Rated Frequency Rated Wattage Current Lampholder 1 A70 19W E26 AC 110-120V 50/60Hz 19W 350mA E26 2 G95 19W E26 AC 110-130V 50/60Hz 19W 350mA E26 3 R40 23W E26 AC 110-130V 50/60Hz 23W 420mA E26 4 T2 23W E26 AC 220-240V 50/60Hz 23W 420mA E26 Treatment of the lamp - Please don't drop the lamp or push against it. - Please don't disassemble the lamp, don't make alterations. Installation - While installing and changing the bulb, please cut off the power in order to guarantee the security. - Don't connect the lamp to a dimmer circuit. - Don't install inside a recessed area in the wall. - Don't use lids without ventilation openings. - Don't cover with a glass bowl. FCC Information 1. This device complies with Part 18 of the FCC Rules. 2. Information on the following matters shall be provided to the user in the Instruction manual: (a) The interference potential of the device or system; (b) Maintenance of the system; (c) Simple measures that can be taken by the user to correct interference; (d) Manufacturers of RF lighting devices must provide an advisory statement, either on the product packaging or with other user documentation, similar to the following: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating is between 0. 43 kHz and 30 kHz. Variations of this language are permitted provided all the points of the statement are addressed. Safety cautions: - Use only in indoor areas. - Don't use as emergency lighting. - To avoid electrical shock, don't install in damp or wet locations. - Don't touch the lamp directly with your hand or face when it is in use to avoid burns. - If the lamp is damaged, replace it by a new one and don't try to repair it in order to avoid hazards. - If this lamp should be replaced by a heavier one, please take care that the mechanical stability of the luminaire could be impaired by the increased weight. - Energy saving lamps contain a small amount of quicksilver/mercury and meet ROHS. Nevertheless the toxicity of this small amount requires a disposal as hazardous waste. - In the case a lamp breaks, there is no direct risk for the healthiness, but please don’t touch powdery substances and improve air ventilation. Keep children away. Yantai Haolibest Lighting Co., Ltd. Haolibest Industrial Zone, NO. 27 Jinxiu Road, Qixia City, Shandong Province, P.R. China.

Company: YANTAI HAOLIBEST LIGHTING CO LTD Address: HAOLIBEST INDUSTRY ZONE, 27 JINXIU RD, QIXIA, SHANDONG 265300 CHINA FCC Confidential Authorization Date: 2011-04-06 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 2104 Confidentiality Request regarding application for certification of FCC ID: ZFCR100R4023W . In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, YANTAI HAOLIBEST LIGHTING CO LTD hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram--- (Long term) • Schematics--- (Long term) • BOM--- (Long term) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Client’s signature: Client’s name/ title: LIANG ZHONG XIANG / technical manager Contact information/address: YANTAI HAOLIBEST LIGHTING CO LTD HAOLIBEST INDUSTRY ZONE, 27 JINXIU RD, QIXIA, SHANDONG 265300 CHINA

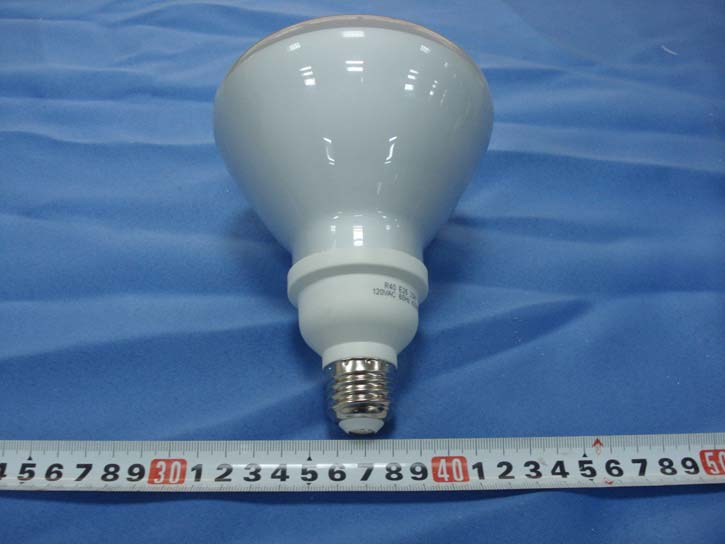

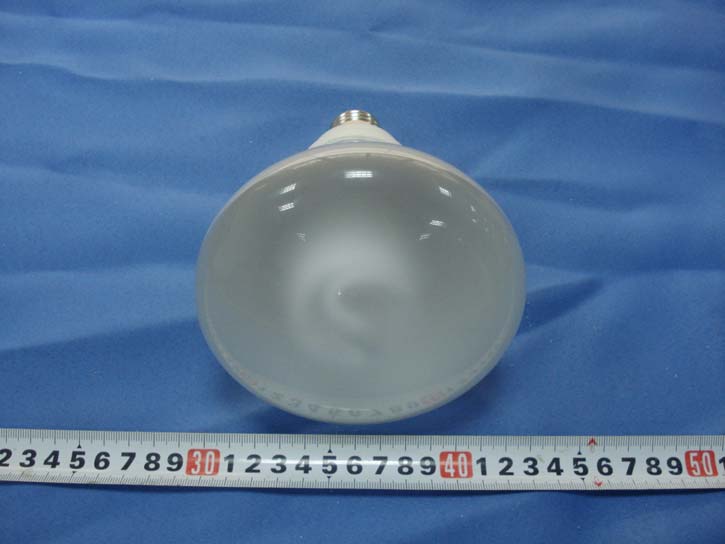

EXHIBIT B – EUT EXTERNAL PHOTOGRAPHS EUT - Top View EUT - Bottom View EUT - Side View

EXHIBIT A – FCC LABELING AND LABEL LOCATION FCC ID Label FCC ID Label Location on EUT

EXHIBIT C – EUT INTERNAL PHOTOGRAPHS EUT - Uncovered View EUT - PCB Front View EUT - PCB Rear View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 MEASUREMENT AND TEST REPORT For Yantai Haolibest Lighting Co., Ltd. Haolibest Industry Zone, 27 Jinxiu Road, Qixia, Shandong 265300, China FCC ID: ZFCR100R4023W Model Number: R40 23W E26 This Report Concerns: Original Report Equipment Type: Self-Ballasted Lamp Test Engineer: Fisher He Sally Ni Report Number: RSH110329004 Report Date: 2011-04-08 Reviewed By: David Li Prepared By: Bay Area Compliance Laboratories Corp. (Chengdu) 5040, Huilongwan Plaza, No. 1, Shawan Road, Jinniu District, Chengdu, Sichuan, China www.baclcorp.com Yantai Haolibest Lighting Co., Ltd. FCC ID: ZFCR100R4023W Report #: RSH110329004 Page 2 of 13 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 EXTERNAL I/O CABLE.................................................................................................................................................4 CONFIGURATION OF TEST SYSTEM..............................................................................................................................4 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC §18.307 – AC LINE CONDUCTED EMISSIONS .............................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST ENVIRONMENT CONDITIONS...............................................................................................................................8 TEST RESULTS.............................................................................................................................................................8 CONDUCTED EMISSIONS TEST DATA & PLOTS.............................................................................................................9 FCC §18.305 – FIELD STRENGTH..........................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................12 TEST EQUIPMENT LIST AND DETAILS...............................…

Text truncated - open the document above for the full version.

EXHIBIT D – TEST SETUP PHOTOGRAPHS AC Line Conducted Emission Test Setup - Front View AC Line Conducted Emission Test Setup - Side View
