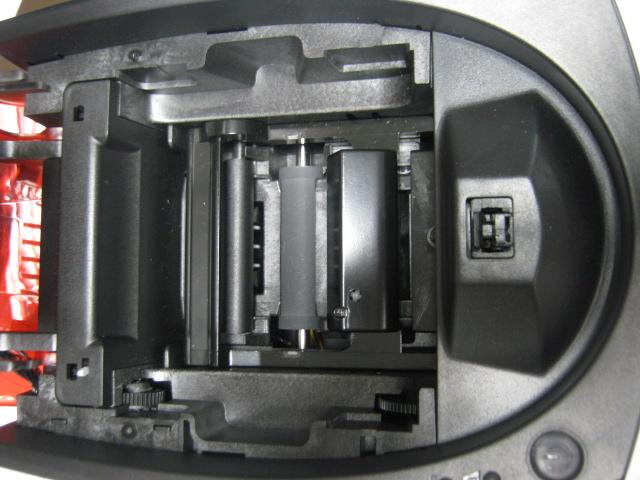

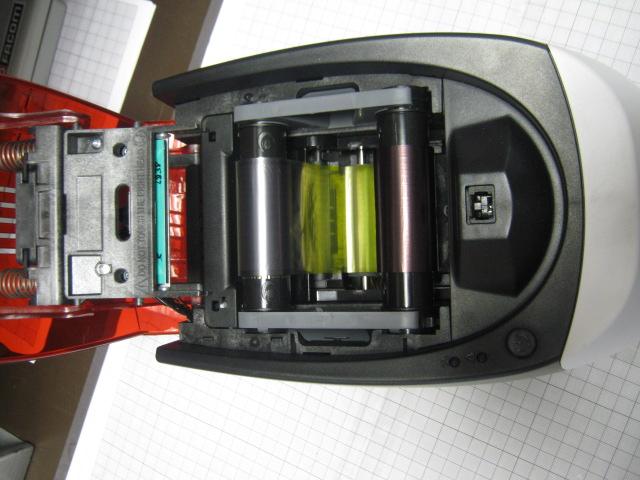

ZFX0030RFID IDENTIFY THE RIBBON AND SET THE PARAMETERS

USER GUIDE Evolis Card Printer © 201  All rights reserved. March 201  . Ref. KU- %'* 1-0  -ENG Rev. A0 Ev CopyrightEvolis Card Printer © March 201  . All rights reserved. Copyright noticeUsers must observe the copyright regulations applicable in their country. This manual must not be photocopied, translated, reproduced or transmitted, in whole or in part, for any reason and by any electronic or mechanical means whatsoever without the express written consent of the Evolis Card Printer company.All the information contained in this document is subject to change without prior notice.Evolis Card Printer cannot be held liable for any errors that may be found in this manual, or for any loss or damage arising accidentally or as a result of dissemination or use of this manual.Trademarks , Evolis Premium Suite and Evolis High Trust are trademarks of Evolis Card Printer. All other trademarks belong to their respective holders. WarrantyRefer to the warranty notice supplied with your printer for warranty terms and conditions and limitations. Environmental information Evolis is committed to helping the environment by reducing the energy consumption of its products.(YROLVSULQWHUVKDYHEHHQFHUWLÀHG(1(5*<67$5ŠGXHWRWKHLUORZSRZHUFRQVXPSWLRQ Recycling of end-of-life productsThe manufacture of the equipment that you have purchased required the extraction and use of natural resources. It may contain materials that are hazardous to health and the environment.To prevent the dispersal of such materials into our environment and reduce the pressure on our natural resources, we recommend that you use existing collection systems. These systems will appropriately re-use or recycle most of the materials in your end-of-life equipment. The crossed-out dustbin symbol on your device is a reminder to use these systems. If you need further information on collection, re-use and recycling systems, contact your local or regional waste management body.'R QRW KHVLWDWH WR FRQWDFW XV WR ÀQG RXW PRUH E\ YLVLWLQJ RXU ZHEVLWH DW www.evolis.com or by emailing the following address: [email protected] . 2 About your new printerThank you for choosing an Evolis printer.Using your new printer, you will be able to create a wide variety of high-quality cards and badges which can be printed in various thicknesses, colours and styles. This printer uses consumables and accessories available from Evolis. For further details, visit our website at www.evolis.com . Warranty registrationPlease register on line at www.evolis.com to receive our special offers and general information. Once on the website, click on Drivers and Support then on Register your printer DQGÀOOLQDOOWKHÀHOGVJLYLQJLQSDUWLFXODUWKHPRGHODQG serial number found on your printer. Getting startedThe purpose of this user guide is to guide you, step by step, through your printer and how it works. Take some time to read it in order to better understand your printer and its features, and to save time during installation and use. $VZLWKDOO(YROLVSURGXFWVDJUHDWGHDORIFDUHKDVEHHQWDNHQRYHUWKLVPDQXDO6KRXOG\RXÀQGDQHUURUKRZHYHUSOHDVHOHWXVNQRZE\emailing us at [email protected] . ContentsThe bookmarks found top left of your screen can be used to navigate between the various sections in this user guide.IconsThe following icons are used in this manual to highlight important information: Information providing further details or depth about certain points in the main text.Indicates that failing to take the recommended action is liable to damage your printer.This symbol indicates that a video showing the procedure is available on the www.evolis.com website and clicking on it takes you straight to on-line help.This symbol links to Evolis Print Center, accessible from your computer, which you can use to administer and manage you printer and change its settings. 3 Getting started1-1 Unpacking<RXUSULQWHULVVXSSOLHGZLWKVHYHUDODFFHVVRULHVWKDWZHDVN\RXWRORRNDWFORVHO\This list may vary depending on your location. The printer is shipped in special packaging designed to prevent any damage in transit. If you notice any visible damage, do not hesitate to contact the shipper and immediately inform your Evolis dealer, who will tell you the procedure to follow.Evolis takes great care over the quality of its packaging and we ask that you keep this packaging somewhere clean and dry. You will be asked for the full original packaging (outer box, inner wedges and protective bags) in the event that the printer is returned. If the printer is returned without its original packaging and components are damaged in transit, these components will no longer be covered by the warranty. You will be charged for new packaging for shipping the printer back to you. Accessories supplied with your printer:QQQQ Q Power supply unit - SWITCHBOX Type F10723-A RU&:7W\SH.3/0 .  Mains power cable. USB cable. Installation, documentation and software CD-ROM.  4XLFNLQVWDOODWLRQJXLGH If any of these components is missing, please contact your Evolis dealer.  Use only the power supply unit supplied with your Evolis printer.  SWITCHBOX Type F10723-A RU&:7W\SH.3/0 . Use only the USB cable supplied with your Evolis printer.The Evolis printer must be placed in a dry location, protected from dust and draughts but well-ventilated. Take FDUHWRNHHS\RXUSULQWHURQDÁDWVWXUG\VXUIDFHDEOHWREHDULWVZHLJKW 4 1 A - Card input feeder B - Output hopper & - Control panel ' - USB connectors ( - Power cable socket ) - Kensington lock 1-2 Description of the printer and its functions 5 1 &DUGVDQGULEERQ 3ULQWHU 3XVKEXWWRQ $FFHVV WR WKH VLGH SDQHOV RI WKH PDFKLQH DQG WKH RSWLRQ PRGXOH ÀWWLQJUHPRYDO DUHDV LV UHVWULFWHG WR \RXUUHWDLOHULQVWDOOHURUWRH[SHULHQFHGXVHUV7KHPDFKLQHVKRXOGDOZD\VEHGLVFRQQHFWHGIURPWKHSRZHUVXSSO\(unplugged) before carrying out any work on it. Look at the getting started video described in the following…

Text truncated - open the document above for the full version.

Badgy200 2014-02-14 Confidential 1/1 Badgy200 - FCC Certification 1. Block diagram << RF >> Antenna 13.56MHz + 847.5 KHz RF Reader 13.56MHz Crystal Printer motherboard CP010981 RFID tag μC RFID part RAM

Evolis Card Printer 14, Ave de la Fontaine Zone Industrielle Angers-Beaucouzé 49070 Beaucouzé +33 (0) 241 367 606 T +33 (0) 241 367 612 F SA au capital de 412 249,60 € [email protected] TVA FR 76428564710 www.evolis.com RCS Angers 428 564 710 Attn: TIMCO Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Authority to Act as Agent On our behalf, I appoint M. Thomas LEDRESSEUR from Emitech Angers - site de Juigné, 21 rue de la Fuye PA de Lanserre, 49610 Juigné sur Loire FRANCE, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by TIMCO Engineering Inc., still resides with EVOLIS, 14 avenue de la Fontaine, ZI Angers Beaucouzé, 49070 BEAUCOUZE, France. . This authorization is valid until further written notice from EVOLIS. February 10th 2014 By Serge OLIVIER R&D Director On behalf of EVOLIS Phone: +33 (0) 241 367 606 Email: [email protected]

Evolis Card Printer 14, Ave de la Fontaine Zone Industrielle Angers-Beaucouzé 49070 Beaucouzé +33 (0) 241 367 606 T +33 (0) 241 367 612 F SA au capital de 412 249,60 € [email protected] TVA FR 76428564710 www.evolis.com RCS Angers 428 564 710 Attn: TIMCO Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Confidentiality Request regarding application for certification of FCC ID: ZFX0030 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematic Parts list Schem.pdf PartsLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Sincerely, February 10 th 2014 By Serge OLIVIER R&D Director

Evolis Card Printer 14, Ave de la Fontaine Zone Industrielle Angers-Beaucouzé 49070 Beaucouzé +33 (0) 241 367 606 T +33 (0) 241 367 612 F SA au capital de 412 249,60 € [email protected] TVA FR 76428564710 www.evolis.com RCS Angers 428 564 710 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: March 12, 2014 SUBJECT: FCC Application for ZFX0030 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Serge OLIVIER

Power supply A1 Power supply A2

Badgy200 2014-02-19 Confidential 1/1 Badgy200 - FCC Certification 1. Label localization

Badgy200 2014-03-12 Confidential 1/2 Badgy200 - FCC Certification 1. PCB Front view Details view Badgy200 2014-03-12 Confidential 2/2 FCC ID: ZFX0030 IC: 9609A-0030

 Siège Social : Emitech ‐ 3, rue des Coudriers ‐ Z.A. de l’Observatoire ‐78180 MONTIGNY LE BX ‐France Siret : 344 545 645 00022 ‐ Tél. : 33 (0)1 30 57 55 55 ‐ Fax : 33 (0)1 30 43 74 48 ‐ E‐mail : [email protected] ‐ URL : www.emitech.fr S.A. au capital de 1 560 000 € ‐ R.C.S. VERSAILLES 344 545 645 ‐ APE 7112B RR051-13-107425-2-A Ed. 0 Certification test report According to the standard: CFR 47, FCC Part 15 Equipment under test: Plastic card printer, BADGY 200 FCC ID: ZFX0030 Company: EVOLIS DISTRIBUTION: Mr GODARD (Company: EVOLIS) Number of pages: 44 with 7 appendixes Technical Verification and Ed. Date Modified Written by Quality Approval pages Name Visa Name Visa 0 10-FEB-2014 Creation T. LEDRESSEUR Duplication of this test report is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. RR051-13-107425-2-A Ed. 0 Page 2 out of 44  DESIGNATION OF PRODUCT: Plastic card printer Serial number (S/N): Not communicated Reference / model (P/N): BADGY 200 Software version: 1.4.0.4 MANUFACTURER: EVOLIS COMPANY SUBMITTING THE PRODUCT: Company: EVOLIS Address: 14, avenue de la Fontaine ZI ANGERS BEAUCOUZE 49070 BEAUCOUZE FRANCE Responsible: Mr GODARD DATES OF TEST: between 03-FEB-2014 to 10-FEB-2014 TESTING LOCATION: EMITECH ANGERS laboratory at JUIGNE SUR LOIRE (49) FRANCE EMITECH ANGERS open area test site in JUIGNE SUR LOIRE (49) FRANCE FCC 2.948 Listed Site Registration Number: 90469 21 rue de la Fuye 49610 Juigne sur Loire France TESTED BY: T. LEDRESSEUR RR051-13-107425-2-A Ed. 0 Page 3 out of 44  CONTENTS 1. INTRODUCTION _____________________________________________________________ 4 2. PRODUCT DESCRIPTION ______________________________________________________ 4 3. NORMATIVE REFERENCE ______________________________________________________ 4 4. TEST METHODOLOGY ________________________________________________________ 5 5. TEST EQUIPMENT CALIBRATION DATES __________________________________________ 6 6. TESTS RESULTS SUMMARY ____________________________________________________ 7 6.1 unintentional radiator (subpart B) _______________________________________________________ 7 6.2 intentional radiator (subpart C) _________________________________________________________ 7 7. MEASUREMENT OF THE CONDUCTED DISTURBANCES ______________________________ 9 8. RADIATED EMISSION LIMITS __________________________________________________ 14 9. MEASUREMENT OF THE CONDUCTED DISTURBANCES _____________________________ 16 10. ADDITIONAL PROVISIONS TO THE GENERAL RADIATED EMISSION LIMITATIONS _________ 21 11. OPERATION WITHIN THE BAND 13.110 – 14.010 MHz ________________________________ 23 12. FIELD STRENGTH OUTSIDE THE BAND 13.110-14.010 MHZ ___________________________ 26 APPENDIX 1: Photos of the equipment under test APPENDIX 2: Test set up APPENDIX 3: Test equipment list APPENDIX 4: 6 dB bandwidth APPENDIX 5: 20 dB bandwidth APPENDIX 6: Band edge APPENDIX 7: Spectrum mask RR051-13-107425-2-A Ed. 0 Page 4 out of 44  1. INTRODUCTION This report presents the results of radio test carried out on the following equipment: Plastic card printer, BADGY 200, in accordance with normative reference. 2. PRODUCT DESCRIPTION Class: B (Residential use) Utilization: indoor use Antenna type and gain: internal antenna Operating frequency range: band from 13.110 MHz to to 14.010 MHz Number of channels: 1 Channel spacing: not concerned Frequency generation: Crystal Modulation: RFID type B Power source: 120 Vac – 60Hz 2 differenst alimentation was used during the tests: (see photo in appendix 1) - A1: Switchbox - A2: Channel WELL Technology Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. CFR 47 FCC Part 15 (2013) Radio Frequency Devices ANSI C63.4 (2003) Methods of Measurement of Radio-Noise Emissions from Low-voltage Electrical and Electronics Equipment in the range of 9 kHz to 40 GHz. RR051-13-107425-2-A Ed. 0 Page 5 out of 44  4. TEST METHODOLOGY Radio performance tests procedures given in CFR 47 part 15: Subpart B –Unintentional Radiators Paragraph 109: Radiated emission limits Paragraph 111: Antenna power conduction limits for receivers Subpart C – Intentional Radiators Paragraph 203: Antenna requirement Paragraph 205: Restricted bands of operation Paragraph 209: Radiated emission limits; general requirements Paragraph 215: Additional provisions to the general radiated emission limitations Paragraph 225: Operation within the band 13.110-14.010 MHz RR051-13-107425-2-A Ed. 0 Page 6 out of 44  5. TEST EQUIPMENT CALIBRATION DATES Emitech Number Model Type Last verification Next verification Validity 0 BAT-EMC Software / / / 1211 HP 8901B Modulation analyzer 03/05/2013 03/05/2015 03/07/2015 2593 MPC B25250 Climatic chamber 07/08/2012 07/08/2014 07/10/2014 4088 R&S FSP40 Spectrum analyser 22/08/2013 22/08/2015 22/10/2015 7001 R&S FSBS Spectrum analyzer 04/12/2012 04/12/2014 04/02/2015 8507 Pacific 360-AMXT-UPC32 Power Source 29/08/2013 29/08/2014 29/10/2014 8511 HP 8447D Low noise preamplifier 22/08/2013 22/08/2014 22/10/2014 8524 HP 8591EM Test receiver 30/07/2013 30/07/2015 30/09/2015 8526 Schwarzbeck VHBB 9124 Biconical antenna 12/06/2012 12/06/2016 12/08/2016 8528 Schwarzbeck VHA 9103 Biconical antenna 24/09/2013 24/09/2017 24/11/2017 8533 R&S HFH2-Z2 Loop antenna 01/05/2012 01/05/2014 01/07/2014 8543 Schwarzbeck UHALP 9108A Log periodic antenna 12/06/2012 12/06/2016 12/08/2016 8593 SIDT Cage 2 Full anechoic room / / / 8641 SECRE ETP…
