ZG6-CT11Care Trak Double Beep Transmitter

CT-11 Transmitter Instructions FCC ID: ZG6-CT11 NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device may not interfere with TV reception or Federal Government radar. This transmitter is authorized by rule under the Low Power Radio Service (47 CFR part 95) and must not cause harmful interference to TV reception or United States Navy SPASUR installations. You do not need an FCC license to operate this transmitter. This transmitter may only be used to provide: auditory assistance to persons with disabilities, persons who require language translation, or persons in educational settings; health care services to the ill; law enforcement tracking services under agreement with a law enforcement agency; or automated maritime telecommunications system (AMTS) network control communications. Two-way voice communications and all other types of uses not mentioned above are expressly prohibited. 1202 Walnut Street-Murphysboro, Illinois 62966 800-842-4537 www.caretrak.com Installing the TL-5186 Battery to Start the Transmitter Match the pair of battery PRONGS with the small holes in the transmitter. Be sure the battery is CENTERED. Gently push in the battery. If the new battery is hanging over the edge of the transmitter, it is installed incorrectly. Quickly remove the battery and install it properly. Inserting the battery automatically activates the transmitter, there is no on/off switch. Battery must be changed every 30 days. VIP Note: Before removing the OLD battery from the transmitter put an “X” on it with a felt marker. Doing this will avoid you confusing the OLD battery with the NEW battery. NEVER omit this step. If you get confused you must dispose of both batteries and install a new battery you know is indeed new. Correct Battery PlacementWrong 1202 Walnut Street-Murphysboro, Illinois 62966 800-842-4537 www.caretrak.com

FCC ID: ZG6-CT11 D.L.S. ELECTRONIC SYSTEMS, INC. 166 South Carter Street Genoa City, WI 53128 Date: 5/2/2011 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: We are submitting for Care Trak International, Inc. a Care Trak Double Beep Transmitter, Model Number: CT-11, with an FCC ID: ZG6-CT11 for Certification. This unit has been tested and complies to Part 95, Subparts E & G. If there are any questions in regard to this application, please call D.L.S. Electronic Systems, Inc. at (262) 279-0210. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 95, Section 95.629. Thank you for your assistance in this matter. Sincerely, William M. Stumpf DLS/js

166 South Carter Street, Genoa City, WI 53128 Request for Confidentiality Date: May 2, 2011 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: ZG6-CT11 Pursuant to 47 CFR Section 0.459 Care Trak International, Inc. understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459: • Block Diagram • Schematics • Description of Operation • Parts List • Tune Up Procedure The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Care Trak International, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc.

166 South Carter Street, Genoa City, WI 53128 Letter of Agency Date: May 2, 2011 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Please be advised that Care Trak International, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on their behalf, until otherwise notified, for applications submitted to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc. 166 South Carter Street, Genoa City, WI 53128 FCC Labeling Requirements and Information Date: May 2, 2011 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: FCC Labeling Requirements FCC ID: ZG6-CT11 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc. 166 South Carter Street, Genoa City, WI 53128 Modification Letter Date: May 2, 2011 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: ZG6-CT11 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc. 166 South Carter Street, Genoa City, WI 53128 Manufacturer’s Letter Date: May 2, 2011 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: ZG6-CT11 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory William M. Stumpf OATS Manager D.L.S. Electronic Systems, Inc.

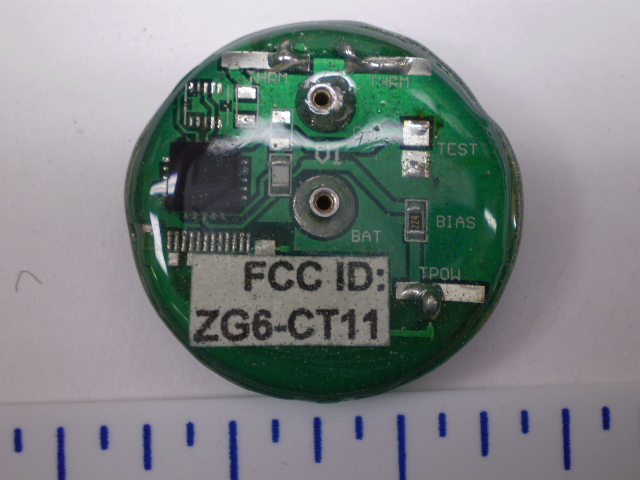

Company: Care Trak International, Inc. Model: CT-11 Photo Description: Unit – Side 1 Company: Care Trak International, Inc. Model: CT-11 Photo Description: Unit – Side 2

Company: Care Trak International, Inc. Photo Description: Plastic housing for the CT-11 transmitter (to be worn on the wrist or ankle) Top Bottom

External Photo Housing From: William (Bill) Stumpf (DLS1250) mailto: [email protected]; [email protected]; [email protected] The CT‐11 is manufactured in the clear epoxy as seen in the external photos. The entire "button" is then dropped into the "housing", which attaches to a strap to be worn on the wrist or ankle. This assembly is performed by the end user. The straps are an accessory to the CT‐11. Photos have been uploaded to include as an additional External Photos exhibit, if needed.

CT-11 Transmitter Label Dimensions FCC ID: ZG6-CT11 12.70mm 6.35mm

Company: Care Trak International, Inc. Model: CT-11 Photo Description: Unit – Side 1 Company: Care Trak International, Inc. Model: CT-11 Photo Description: Unit – Side 2

Company: Care Trak International, Inc. Model Tested: CT-11 Double Beep Transmitter Report Number: 16893 166 South Carter, Genoa City, WI 53128 Page 1 of 33 i. Cover Page Code of Federal Regulations 47 Part 95 – Personal Radio Services Subpart G—Low Power Radio Service (LPRS) Subpart E – Technical Regulations Section 95.629 THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Care Trak Double Beep Transmitter Kind of Equipment: Portable transmitter used to track Alzheimer patients. Frequency Range: 216.0125 MHz to 216.9875 MHz Test Configuration: Body worn device tested when mounted to 3-Axis Fixture on test table. Model Number(s): CT-11 Model(s) Tested: CT-11 Serial Number(s): 1 Date of Tests: April, 2011 Test Conducted For: Care Trak International, Inc. 1202 Walnut St. Murphysboro, IL 62966, USA NOTICE: “This test report relates only to the items tested and must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Description of Test Sample" page listed inside of this report. © Copyright 1983 - 2011 D.L.S. Electronic Systems, Inc. COPYRIGHT NOTICE This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems, Inc. Company: Care Trak International, Inc. Model Tested: CT-11 Double Beep Transmitter Report Number: 16893 166 South Carter, Genoa City, WI 53128 Page 2 of 33 SIGNATURE PAGE Tested By: Cooper LaFond Test Engineer Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company: Care Trak International, Inc. Model Tested: CT-11 Double Beep Transmitter Report Number: 16893 166 South Carter, Genoa City, WI 53128 Page 3 of 33 Table of Contents i. Cover Page .......................................................................................................................................1 ii. NVLAP Certificate of Accreditation ...............................................................................................4 1.0 Summary of Test Report ..................................................................................................................5 2.0 Introduction ......................................................................................................................................5 3.0 Test Facilities ...................................................................................................................................6 4.0 Description of Test Sample ..............................................................................................................6 5.0 Test Equipment ................................................................................................................................8 6.0 Test Arrangements ...........................................................................................................................9 7.0 Test Conditions ................................................................................................................................9 8.0 Modifications Made To EUT For Compliance ................................................................................9 9.0 Results ..............................................................................................................................................9 10.0 Conclusion .......................................................................................................................................9 Appendix A – Test Photos .........................................................................................................................10 Appendix B – Measurement Data ..............................................................................................................19 1.0 Frequency Stability ................................................................................................................... 19 2.0 Max ERP ................................................................................................................................... 23 3.0 Occupied Bandwidth ................................................................................................................. 26 4.0 Spurious Emissions at Antenna Terminal (Conducted) ............................................................ 28 5.0 Radiated Spurious Emissions .................................................................................................... 30 Company: Care Trak International, Inc. Model Tested: CT-11 Double Beep Transmitter Report Number: 16893 166 South Carter, Genoa City, WI 53128 Page 4 of 33 ii. NVLAP Certificate of Accreditation Company: Care Trak International, Inc. Model Tested: CT-11 Double Beep Transmitter Report Number: 16893 166 South Carter, Genoa City, WI 53128 Page 5 of 33 1.0 Summary of Test Report It was deter mined that the Care Trak CT-11 Double Beep Transmitter, complies with the requirements of CFR 47 Part 95 Subpart E and Subpart G. Applicable Technical Requirements Tested: Section Description Procedure Note Compliant? 95.629(b)(2) Frequency Stability TIA-603-C 3 Yes 95.1013(a) Max ERP TIA-603-C 1,2 Yes 95.629(b)(1) Occupied Bandwidth 2.1049 1 Yes 95.635(c)(1) Spurious Emissions at Antenna Port TIA-603-C 4 Yes 95.635(c)(1) Radiated Spurious Emissions TIA-603-C 1, 2 Yes Note 1: Tested in 3 orthogonal planes. Note 2: Radiated emission measurement. Note 3: Near field probe utilized for measurement. Note 4: Conducted measurement. 2.0 Introduction In April, 2011 the Care Trak Double Beep Transmitter, Model CT-11, as provided by Care Trak International, Inc. was tested to the requirements of CFR 47 Part 95 Subpart G & Subpart E Section 95.629. To meet these requirements, the procedures contained within this report were performed by personnel of D.L.S Electronic Systems, Inc. Company: Care Trak International, Inc. Model Tested: CT-11 Double Beep Transmitter Report Number: 16893 166 South Carter, Genoa City, WI 53128 Page 6 of 33 3.0 Test Facili…

Text truncated - open the document above for the full version.

Company: Care Trak International, Inc. Model: CT-11 Photo Description: Radiated Spurious & ERP Setup Company: Care Trak International, Inc. Model: CT-11 Photo Description: Radiated Spurious & ERP Setup, Closer Company: Care Trak International, Inc. Model: CT-11 Photo Description: Radiated Spurious & ERP Setup Close-Up Company: Care Trak International, Inc. Model: CT-11 Photo Description: Substitution Measurement - Setup Company: Care Trak International, Inc. Model: CT-11 Photo Description: Substitution Measurement Setup – Angle 2 Company: Care Trak International, Inc. Model: CT-11 Photo Description: Spurious Conducted Company: Care Trak International, Inc. Model: CT-11 Photo Description: Spurious Conducted Close-Up Company: Care Trak International, Inc. Model: CT-11 Photo Description: Frequency Stability Company: Care Trak International, Inc. Model: CT-11 Photo Description: Frequency Stability Close-Up
