ZGF82007GEMMY OUTDOOR LIGHT SHOW TREE WIRELESS REMOTE

Congratulations! You're the proud owner of a Gemmy Incredible Light Show. Please read over the directions carefully before using your Gemmy Incredible Light Show. CAUTION: Do not attempt to assemble or operate your Incredible Light Show during unusually strong winds. If it becomes too windy for safe operation, please disassemble your Incredible Light Show and bring indoors until conditions improve. Remove all plastic fasteners and tags. These are part of the packaging and should be discarded. Contents: [SHOW DIAGRAMS OF EACH ITEM] Base 1pc Base Screws 4pcs Incredible Light Show (collapsed) 1pc Inner Poles - separated 3pcs Control Box / Speaker Hook 1pc Base Anchor Stakes 4pcs Control Box 1pc Speaker 1pc Nylon Tethers 4pcs Tether Stakes 4pcs Wireless Remote 1pc AAA Batteries 3pcs AC Adapter 1pc Input: 120V – 60Hz 270mA Output: 24V – 20VA Assembly Instructions: 1. Remove contents from packaging. Lay out Base in a clear and flat area. 2. Insert the small Base Anchor Stakes through the holes within the bottom of the Base and into the ground. 3. Assemble Inner Poles by sliding the ends into the provided shafts to create one long Inner Pole. 4. Turn the collapsed Incredible Light Show on its side and insert the Inner Pole through all three center holes and into slot under the star at the top of the tree. 5. Place the Inner Poles thru the Incredible Light Show to extend it to full height. Carefully lift the Incredible Light Show upright and set into anchored Base. Please note this action may require 2 persons. 1 6. Secure Inner Pole to base by inserting Base Screws into the provided holes. Tighten Base Screws to create a tight, snug fit so that the Incredible Light Show stands upright and does not lean. 2 7. Attach the Hook onto the center pole. We recommend you place the Control Box/Speaker Hook at the top of the lowest pole. Tighten screws to secure the hook on the pole. 8. Attach the Speaker by hanging it to the Inner Pole facing out. Close the clasp on the back which secures the speaker onto the Inner Pole. 9. Attach the Control Box by hanging it to the Inner Pole, opposite the speaker. Close the clasp on the back which secures the Control box onto the Inner Pole. 10. Connect the Speaker cable to the cable coming from the Control box. 11. Attach the hooks located at the end of the Nylon Tethers to the ridge of the plastic Star mount at the top of the Incredible Light Show. Attach other end of Nylon Tethers to the Tether Stakes. Drive Tether Stakes into ground so that the Nylon Tethers are taut. 12. Attached the AC adapter cord as shown. Then plug the UL Listed adapter into the power source. This power unit is Intended to be correctly oriented in vertical or floor mount position. 13. Place the 3xAAA batteries inside the remote control. 14. Resetting the Remote Control -Before activating your Incredible Light show you must reset both the Control box and the Remote Control. Follow the easy steps listed below. a. Press the reset button on the Control Box. This will activate a flashing LED for approximately 2 minutes. b. During this time period, use a ball point pen or other blunt object to press the reset button located on the back of the remote control. c. Once these actions have been taken, you may now proceed to play your Incredible Light Show. Do not attempt to operate your Incredible Light show in the following conditions: 1 During inclement weather conditions such as heavy rains and wind storms, store the product indoors. 2 Operation of your Incredible Light Show during extreme weather conditions is not recommended. Storage: Do not discard box as it should be used for storage. Keep your disassembled Incredible Light Show and return all parts to the original packaging, if possible. Store in a cool, dry location. Trouble Shooting Checklist: If your Incredible Light Show is not operating, the problem may be: 1. The power source is disabled or the cord is unplugged. 2. The batteries within the Wireless Remote may need to be replaced. 3. The reset buttons have not been reset properly. Follow instructions above on how to reset the Control Box and Remote Control. Frequently Asked Questions (FAQ's) 1. Can I leave my Incredible Light Show running overnight? We recommend that you turn off while unattended. Extended use beyond 8 hours will not damage your Incredible Light Show. 2. How much electricity does an Incredible Light Show consume? It uses about as much energy as two 100-wall light bulbs. 3. What is the best way to store my Incredible Light Show? Store dry in a bag, box or other storage container and keep in a cool, dry location. 4. My area is prone to unusually windy conditions, will this affect my Incredible Light Show? In order to prevent damage, we suggest you keep the Incredible Light Show protected from high winds by simply disassembling the item and bringing it indoors until wind conditions improve. 5. What if it is raining or snowing? Will this affect my Incredible Light Show? Operation of your Incredible Light Show during light weather conditions, such as a gentle rain or snowfall is fine. However, operation of your Incredible Light Show during extreme weather conditions, such as heavy snow, rain or windstorms is not recommended as the unit may become over-weighted or could fall over, thus damaging the unit. CAUTION: Operation of your Incredible Light Show during extreme weather conditions is not recommended. 3 Wa rning! Changes or modifications not expressly approv ed by the party respo nsible for compliance could void the user's au thority to o p erate the equipment. This dev i ce complies w i th Part 15 of the FCC Rule s. Opera t ion is subject to the follo w i n g t w o condition s: (1) This dev i ce ma y not cause harm fu l interfer enc e . (2) This dev i ce must ac c e pt any interferen ce re ce iv ed, including interferen ce tha t ma y cause undesired opera tion. These instructions relate to the following item numbers: 11600, 11607, 11624, 11625, 77002, 77003, 77005, 77006, 7…

Text truncated - open the document above for the full version.

ZAIXING ELECTRONIC(SHENZHEN)Co.,LTD MIDDLE SECTION, YANG YONG HE ROAD, SONGGANG TOWN, BAOAN DISTRICT, SHENZHEN CITY,GUANGDONG, CHINA 2011-03-28 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZGF82007. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics ZGF82007 _schematics.pdf Block Diagram ZGF82007 _Block Diagram.pdf Operational Description ZGF82007 _ Operational Description.pdf Parts List ZGF82007 _ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ZAIXING ELECTRONIC(SHENZHEN)Co.,LTD. Signature____________________ Name/Title: StanC/ General Manager

ZAIXING ELECTRONIC(SHENZHEN)Co.,LTD MIDDLE SECTION, YANG YONG HE ROAD, SONGGANG TOWN, BAOAN DISTRICT, SHENZHEN CITY,GUANGDONG, CHINA Tel: +86-755-29932188 Fax: +86-755-29932128 FCC ID: ZGF82007 POWER OF ATTORNEY March 28, 2011. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Compliance Certification Service (Shenzhen) Inc. (Aven Zhou) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Compliance Certification Service (Shenzhen) Inc. (Aven Zhou) on our behalf shall have the same effect as acts of our own. This authorization expires on June 28, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, ZAIXING ELECTRONIC(SHENZHEN)Co.,LTD., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ZAIXING ELECTRONIC(SHENZHEN)Co.,LTD. Signature____________________ Name/Title: StanC/ General Manager

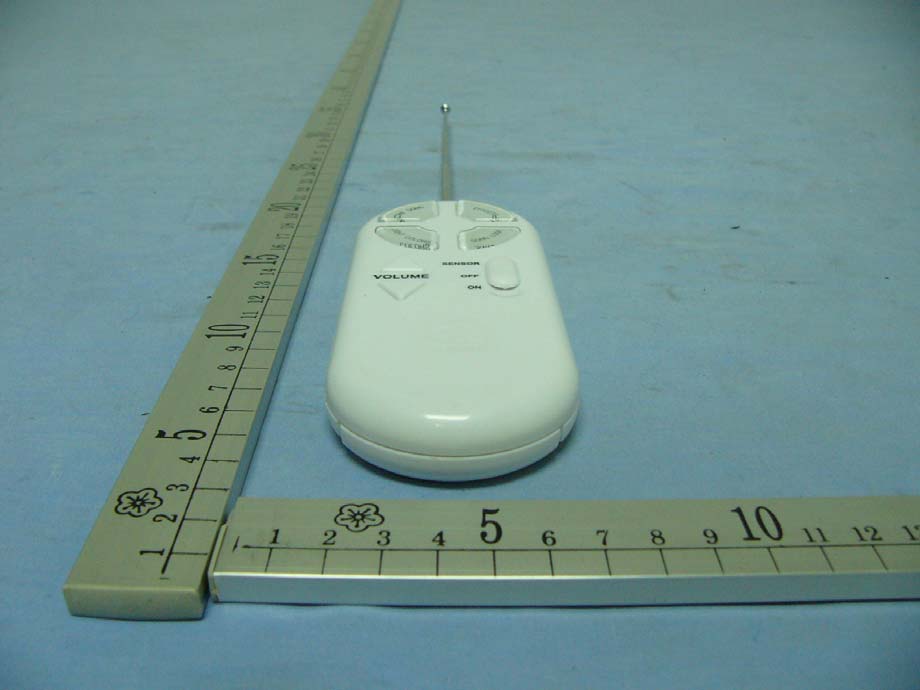

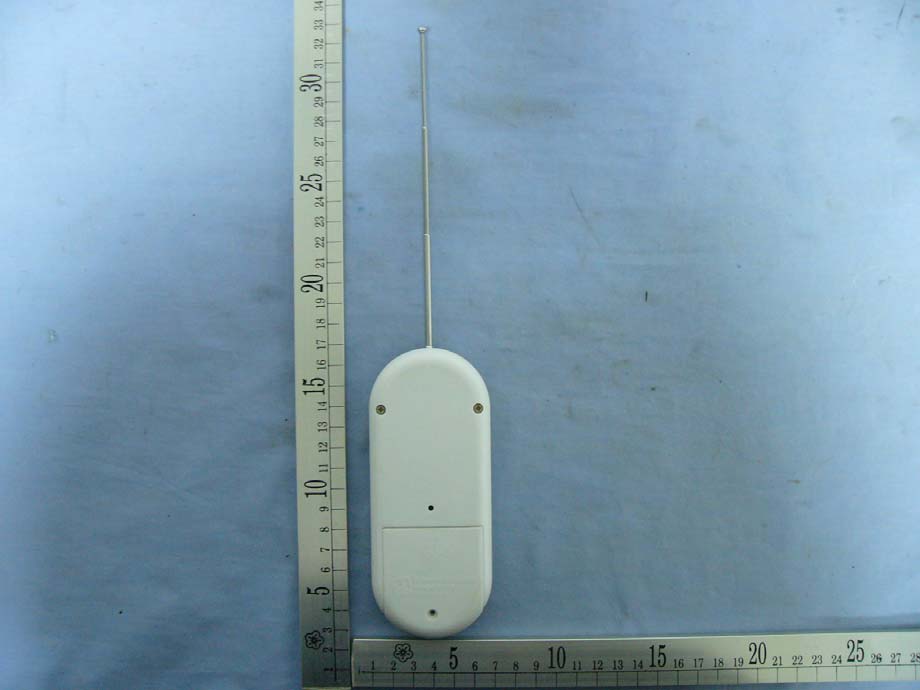

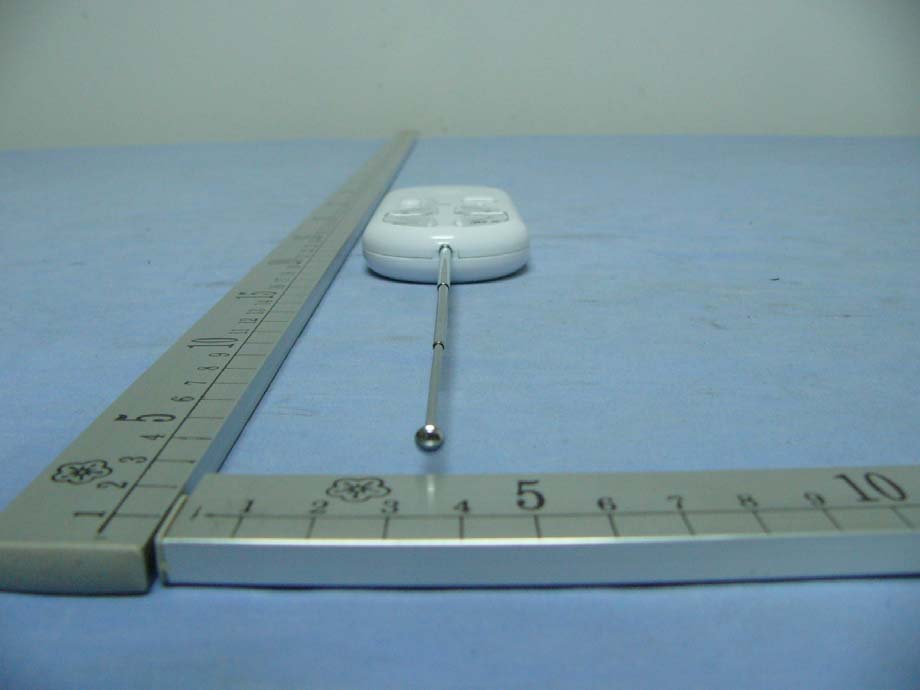

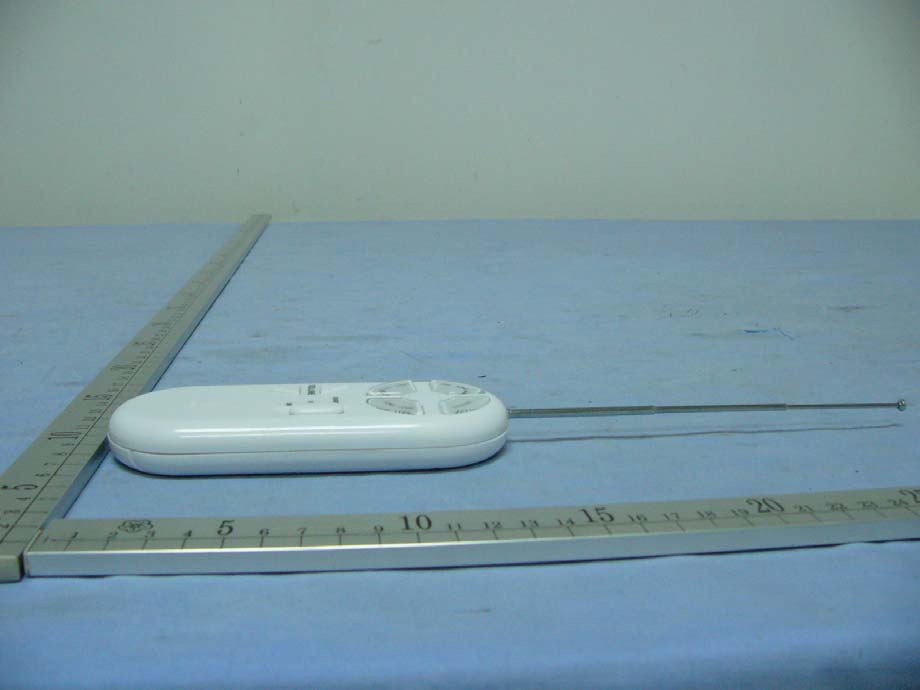

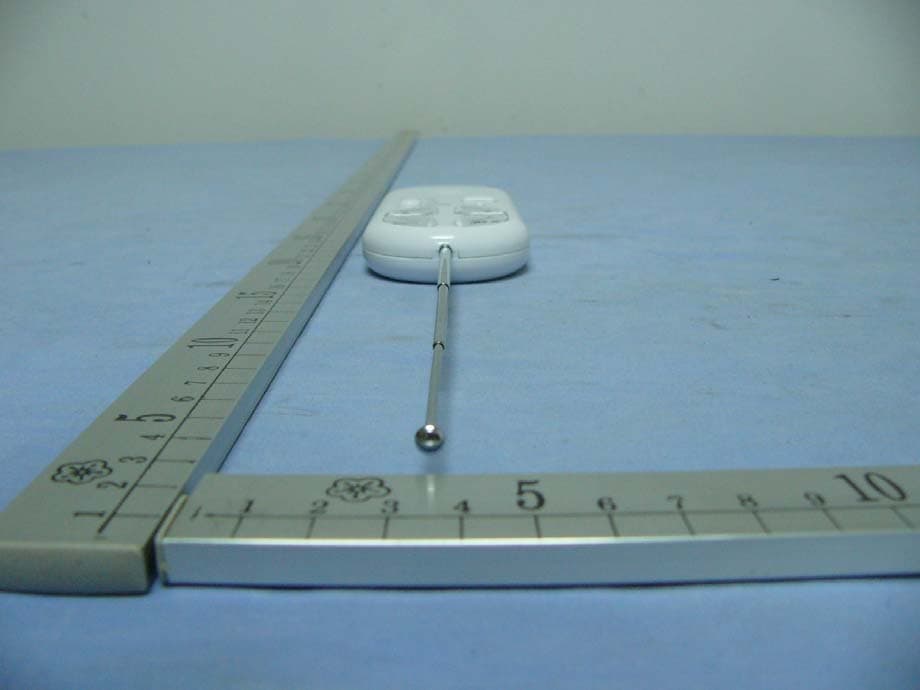

FCC ID Label and Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Gemmy Outdoor Light Show Tree Wir eless Remote MODEL: 82007 Frequency: 315MHz FCC ID: ZGF82007 3.50cm 3.50 cm

Report No: SZ110328B24-RP FCC ID: ZGF82007 Page 1 of 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Gemmy Outdoor Light Show Tree Wireless Remote Model: 82007 Trade Name: Gemmy Prepared for ZAIXING ELECTRONIC (SHENZHEN) Co., LTD MIDDLE SECTION, YANG YONG HE ROAD, SONGGANG TOWN, BAOAN DISTRICT, SHENZHEN CITY, GUANGDONG, CHINA Prepared by Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: March 28, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. Report No: SZ110328B24-RP FCC ID: ZGF82007 Page 2 of 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.............................................................................................. 3 2. EUT DESCRIPTION..................................................................................................................... 4 3. TEST METHODOLOGY.............................................................................................................. 5 3.1 DESCRIPTION OF TEST MODES ......................................................................................... 5 4. FACILITIES AND ACCREDITATIONS..................................................................................... 6 4.1 FACILITIES............................................................................................................................. 6 4.2 ACCREDITATIONS ................................................................................................................ 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................... 6 5. SETUP OF EQUIPMENT UNDER TEST.................................................................................. 7 5.1 SETUP CONFIGURATION OF EUT.................................................................................................. 7 5.2 SUPPORT EQUIPMENT................................................................................................................ 7 6. FCC PART 15.231 REQUIREMENTS....................................................................................... 8 6.1 20 DB BANDWIDTH ............................................................................................................... 8 6.2 LIMIT OF TRANSMISSION TIME................................................................................................... 10 6.3 DUTY CYCLE ....................................................................................................................... 12 6.4 RADIATED EMISSIONS.............................................................................................................. 16 6.5 POWERLINE CONDUCTED EMISSIONS........................................................................................ 22 Report No: SZ110328B24-RP FCC ID: ZGF82007 Page 3 of 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Gemmy Outdoor Light Show Tree Wireless Remote Model: 82007 Brand: Gemmy Tested: February 28-March 23, 2011 Applicant: ZAIXING ELECTRONIC (SHENZHEN) Co., LTD MIDDLE SECTION, YANG YONG HE ROAD, SONGGANG TOWN, BAOAN DISTRICT, SHENZHEN CITY, GUANGDONG CHINA Manufacturer: ZAIXING ELECTRONIC (SHENZHEN) Co., LTD MIDDLE SECTION, YANG YONG HE ROAD, SONGGANG TOWN, BAOAN DISTRICT, SHENZHEN CITY, GUANGDONG CHINA APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Vincent Yao Manager Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No: SZ110328B24-RP FCC ID: ZGF82007 Page 4 of 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Gemmy Outdoor Light Show Tree Wireless Remote Trade Name Gemmy Model Number 82007 Model Difference N/A Power Supply Powered by the battery Frequency Range 315 MHz Antenna Designation Dipole Antenna Remark: This submittal(s) (test report) is intended for FCC ID: ZGF82007 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Report No: SZ110328B24-RP FCC ID: ZGF82007 Page 5 of 22 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. TEST METHODOLOGY 3.1 DESCRIPTION OF TEST MODES The EUT has been tested under engineering test mode condition and the EUT staying in continuous transmitting mode. The following test mode(s) were scanned during the preliminary test below 1G: Test Item Test mode Worse mode Cond…

Text truncated - open the document above for the full version.

Reference No.: Report No: SZ110328B24-RP FCC ID: ZGF82007 Page 1 / 1 PHOTOGRAPHS OF THE TEST CONFIGURATION Radiated Emissions Setup Photos
