ZHIRF801Remote Control Color Exchange Lighting Device

REMOTE CONTROL COLOR EXCHANGE LIGHTING DEVICE MODEL : RF801 TRANSMITTER & OPERATION " ON " button - Push to turn on CLEAR & MULTI lights " OFF " button - Push to turn off CLEAR & MULTI lights " MULTI " button - Push to turn on or turn off MULTI lights " CLEAR " button - Push to turn on or turn off CLEAR lights MINAH INTERNATIONAL LTD MADE IN CHINA Indication light ON OFF MULTI CLEA 3

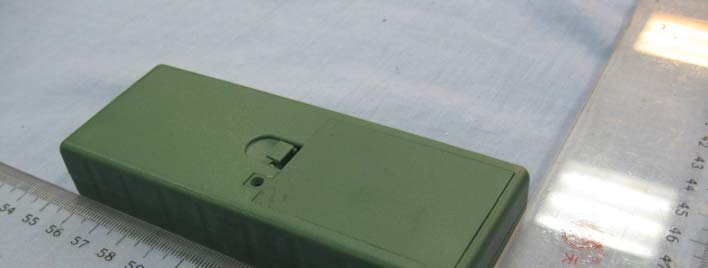

External Photos Enclosure of EUT Enclosure of EUT

LIGHT SET REMOTE CONTROLLER MODEL : RF801 FCC ID: ZHIRF801 BATTERIES : AAA X 3, 4.5VDC FOR IN/OUTDOOR USE MINAH INTERNATIONAL LTD. MADE IN CHINA 4cm 3.5cm

Internal Photos Internal of EUT PCB of EUT PCB of EUT RF module RF module

OPERATION INSTRUCTION RF801 ---- TX RFR801 -------- RX TRANSMITTER & RECEIVER MINAH INTERNATIONAL LTD. RM. 828, 8/F., TOPSAIL PLAZA, 11 ON SUM ST., SHATIN, N.T. HONG KONG TEL : 852 – 2603-0366 FAX : 852-2609-5616 Receiver are all time ready to receive any signal including 433.92MHz. High frequency signal was filtered by 433.92MHz filter in receiver, then was demodulated by AM demodulator, low frequency digital signal that was demodulated. If it is strong and from TX(programming in advance) and the driver will power on the relay. (Refer to illustration below) Power on button Power off button Lighting mode button Transmitter Receiver Function Diagram TRANSMITTER RECEIVER Function Description: The product compose with two parts : RF801(Transmitter) and RFR80111(Receiver). The product operate by wireless system, worked as following description: Press power on key and you will switch on the power of signal, low frequency digi signal is mixed by mixer of AM signal of 433.92MHz. High frequency that was mixed and emitted by antenna in transmitter. (Refer to function diagram) Value Parameter Min Typical Max Unit Battery (Transmitter) Voltage 3.3 4 4.5 V Size AAA x 3 Temperature range -10 25 50 Storage max. temp. -10 25 50 Weigh(approx) 15 Gm. Frequency characteristics Frequency 433.92 MHz Bandwidth 800 KHz Modulation ASK

Report No.: TR-1103-009-01 Page 1 of 27 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch FCC Test Report (TR-1103-009-01) Applicant : MINAH INTERNATIONAL LTD. Address : RM. 828, 8/F., TOPSAIL PLAZA, 11 ON SUM ST., SHATING, N.T. HONG KONG Manufacturer : MINT HOME LIGHTING CO. Address : HUANG SHARD RD., DONG YUAN COUNTY, HE YUAN CITY, GUANG DONG, CHINA, Product Name : LIGHT SET REMOTE CONTROLLER Trademark : None Model(s) : RF801 Standard(s) : FCC Part 15 Subpart C Test Result : Pass Date of Test : Apr. 18, 2011 to May 23, 2011 Report issued Dated : May 23, 2011 The report shall not be reproduced except in full, without the written approval of the TDK EMC Center. The results in this report apply only to the sample(s) tested. The production units are required to conform to the initial sample as received when the units are placed in the market. Responsible Engineer : Approved by : Phenix Zhang Technical manager CHAN king-chui Date : 2011.05.23 Date : 2011.05.23 Report No.: TR-1103-009-01 Page 2 of 27 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch Table of Contents Description Page 1. Description of the Test Site ...................................................................................................................... 3 1.1 Test Site Location: ..................................................................................................................................... 3 1.2 Site Registration ....................................................................................................................................... 3 1.3 Test Scope................................................................................................................................................... 3 2. Description of the Tested Samples .......................................................................................................... 4 2.1 Customer Information .............................................................................................................................. 4 2.2 Identification of EUT ............................................................................................................................... 4 2.3 Spec of EUT .............................................................................................................................................. 4 2.4 Test Standards List.................................................................................................................................... 4 3. Test Specifications ....................................................................................................................................... 5 3.1 Standard(s) Used ....................................................................................................................................... 5 3.2 Deviations from the Test Specification .................................................................................................... 5 4. Test Result.................................................................................................................................................... 6 4.1 Antenna Requirement ............................................................................................................................... 6 4.2 Conducted Emission (mains).................................................................................................................... 7 4.3 Radiated Emission Test............................................................................................................................. 8 4.4 20dB Occupied Bandwidth..................................................................................................................... 17 4.5 Release Time Measurement.................................................................................................................... 19 5. FCC ID Label ............................................................................................................................................ 22 6. Test Setup ................................................................................................................................................... 23 6.1 Photographs of the Test Configuration ................................................................................................ 23 6.2 Photographs of the EUT ........................................................................................................................ 24 7. Equipment List.......................................................................................................................................... 26 8. Test Uncertainty ........................................................................................................................................ 27 9. Appendix .................................................................................................................................................... 27 9.1 Confirmation of Compliance within the Limits ................................................................................... 27 Report No.: TR-1103-009-01 Page 3 of 27 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch 1. Description of the Test Site 1.1 Test Site Location: Laboratory : TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch Address : Zhenan Hi-tech Industrial Park, Dongguang City, Guangdong Province, China Phone no. : (86)-769-8564-4678 Fax no. : (86)-769-8564-4499 Email : [email protected] 1.2 Site Registration VCCI (September, 2008) : Reg. No. R-2205, C-2392 FCC site registration (July, 2008) : Reg. No. 732901 IC registration : Reg. No. 7993 EMCC (September, 2008) : Reg. No. NAR/tl-060330 1.3 Test Scope EMC and RF testing according to national / international standards Report No.: TR-1103-009-01 Page 4 of 27 …

Text truncated - open the document above for the full version.

Radiated emission Below 1GHz: Above 1GHz:
