ZHK-61262012.4GHz STEREO TRANSMITTER

SPECTRUM GAMING HEADSET 7XB 4 5 PAIRING PROCEDURE Your SteelSeries Spectrum 7xb comes pre-paired. If for some reason the headset stops receiving from the transmitter follow the following procedure: • Start with the headset in the off state. • Press and hold the volume down and power buttons. Make sure to press the volume down button first. The LED will turn ON SOLID. • After ~3 seconds the LED will turn OFF. Release the power and volume buttons. • The headset pairing information is now reset. Power the headset on to connect with a new transmitter. If that does not pair your headset and Transmitter, you can also reset the pairing by the following: • Power on the transmitter. • Press the pairing reset button by inserting one end of an unfolded paper clip into the pin hole between the USB cable and 3.5mm jack. Once the button is pressed, the LEDs will turn off. Remove the paper clip. • The transmitter pairing information is now reset. If a headset (with reset pairing) is already powered on, then the transmitter will connect to it and pair immediately. DIsAssEmblING YOUR stEElsERIEs 7xb 1. Remove the cord from the headset by gently pulling on the microUSB connector. 2. On the inside of the headband, locate the tab 3. Press the tab firmly and gently pull the headband out of the hanger 4. Repeat steps 2 and 3 to detach the other side stEElsERIEs lIVEmIx SteelSeries LiveMix feature lowers the game volume when your teammates are talking. When teammates are giving each other important instructions through the microphone, the game sound will automatically lower in order for the players to hear the instructions clearly. Game volume will resume after talking stops. To turn LiveMix on and off, push the LiveMix button. SOUND LEVEL TIME 10 ms1.5 sec + GAME AUDIOVOICE AUDIO OtHER INFORmAtION SteelSeries Spectrum 7xb headset may also be used with a computer. To do so, plug the audio plug from the 7xb transmitter into the headset jack of the computer and the USB cable into an available USB port. sAFEtY tIPs Avoid hearing damage by taking into consideration that a loud volume level can damage your eardrums. Although you may not experience initial discomfort, your ears may be experiencing hearing damage. Ringing in your ears once you have removed the 7xb headset may be an indicator that the volume is too loud. When placing the headset on your ears, make sure the volume is turned down to low and then slowly turn the volume up to a level that you are comfortable with. Do not overdrive the speakers due to damage it can cause to both the 7xb headset and your eardrums. Avoid the use of headsets for an extended period of time to avoid hearing damage. sEE AlsO SteelSeries products are recommended for the ultimate experience. For more information please visit: www.steelseries.com For More FAQ Support: Please visit: http://faq.steelseries.com/categories/Audio/SteelSeries+7xb/ English English 8 9 PROCÉDURE D’APPARIEmENt Votre Spectrum 7xb de SteelSeries est livré pré-apparié. Si pour une raison quelconque le casque arrête de recevoir un signal de l’émetteur, suivez la procédure suivante : • Commencez avec le casque étant éteint. • Appuyez sur les boutons de diminution du volume et de mise en marche et maintenez-les enfoncés. Assurez-vous d’appuyer d’abord sur le bouton de diminution du volume. La LED s’allumera et RESTERA ALLUMÉE. • Après environ 3 secondes la LED s’ÉTEINDRA. Relâchez les boutons de mise en marche et de volume. • Les informations d’appariement du casque sont maintenant réinitialisées. Mettez sous tension le casque pour qu’il se connecte à un nouvel émetteur. Si cela ne fonctionne pas, vous pouvez également réinitialiser l’appariement d’émetteur en : • Mettant l’émetteur sous tension. • Appuyant sur le bouton de réinitialisation d’appariement en insérant une extrémité d’un trombone non plié dans le trou d’épingle entre le câble USB et le jack de 3,5 mm. Une fois le bouton enfoncé, les LED s’éteindront. Retirez le trombone. • Les informations d’appariement de l’émetteur sont maintenant réinitialisées. Si un casque (avec appariement réinitialisé) est déjà allumé, l’émetteur s’y connectera et s’y appariera immédiatement. DÉmONtER VOtRE stEElsERIEs 7xb 1. Retirez le cordon du casque en tirant doucement sur le connecteur microUSB. 2. À l’intérieur du serre-tête, localisez la languette 3. Appuyez fermement sur la languette et sortez doucement le serre-tête du support 4. Reprenez les étapes 2 et 3 afin de détacher l’autre côté lIVEmIx DE stEElsERIEs La fonction LiveMix de SteelSeries réduit le volume du jeu lorsque vos coéquipiers parlent. Lorsque vos coéquipiers se donnent des instructions importantes à travers leurs microphones, le son du jeu s’abaissera automatiquement afin que les joueurs puissent percevoir les instructions plus clairement. Le volume du jeu repassera à la normale une fois la conversation terminée. SOUND LEVEL TIME 10 ms1.5 sec + GAME AUDIOVOICE AUDIO Francais INFORmAtIONs sUPPlEmENtAIREs Le casque Spectrum 7xb de SteelSeries peut également être utilisé sur un ordinateur. Pour ce faire, branchez la fiche audio de l’émetteur 7xb dans le port audio pour casque de l’ordinateur et le câble USB sur un port USB disponible. CONsEIls DE sECURItE Evitez des dommages auditifs en prenant en compte le fait qu’un niveau de volume élevé peut endommager vos tympans. Bien que vous ne ressentiez pas forcément une sensation désagréable au départ, vos oreilles peuvent être en train de subir des dommages auditifs. Un bourdonnement dans vos oreilles lorsque vous ôtez le casque 7xb peut être un indicateur d’un volume trop puissant. Lorsque vous mettez le casque sur vos oreilles, assurez-vous que le volume est très bas, puis augmentez-le avec modération jusqu’à un niveau qui vous semble confortable. Évitez des niveaux de volume très élevés pour prévenir les dommages pouvant être occasionnés tant au casque 7xb que à vos tympans. Évitez d’utiliser des casques pendant des périodes prolongées afin de prévenir les d…

Text truncated - open the document above for the full version.

24 25 PROCEDImENtO DE EmPARElHAmENtO O seu SteelSeries Spectrum 7xb vem pré-emparelhado. Se por alguma razão os auscultadores pararem de receber do transmissor siga o seguinte procedimento: • Inicie com os auscultadores desligados. • Mantenha pressionado o volume para baixo e os botões de alimentação. Certifique-se de que pressiona o botão de volume para baixo primeiro. O LED ligará ON SOLID. • Após aproximadamente 3 segundos o LED irá desligar-se. Liberte os botões de alimentação e do volume. • A informação de emparelhamento dos auscultadores está agora redefinida. Ligue os auscultadores para ligá-los com um novo transmissor. Se não funcionar pode também redefinir o emparelhamento do Transmissor ao: • Ligar o transmissor. • Pressionar o botão de redefinição de emparelhamento ao inserir uma extremidade de um clipe de papel desdobrado no orifício do pino entre o cabo USB e a ficha de 3,5mm. Uma vez que o botão é pressionado, os LEDs irão desligar-se. Retire o clipe de papel. • A informação de emparelhamento do transmissor está agora redefinida. Se os auscultadores (com emparelhamento de redefinição) estão já ligados, de seguida, o transmissor irá ligar-se aos auscultadores e emparelhar imediatamente. DEsmONtAR O stEElsERIEs 7xb 1. Remova o fio dos auscultadores ao puxar gentilmente o conector micro USB. 2. No interior da fita, localize a patilha 3. Pressione firmemente a patilha e gentilmente puxe a fita para fora do gancho 4. Repita os passos 2 e 3 para separar o outro lado stEElsERIEs lIVEmIx A funcionalidade SteelSeries LiveMix diminui o volume do jogo quando os seus colegas de equipa estão a falar. Quando os colegas de equipa estão a dar instruções importantes uns aos outros através do microfone, o som do jogo irá automaticamente baixar de modo aos jogadores ouvirem claramente as instruções. O volume do jogo irá regressar à definição anterior após a conversação parar. SOUND LEVEL TIME 10 ms1.5 sec + GAME AUDIOVOICE AUDIO Português OUtRAs INFORmAÇÕEs O auricular SteelSeries Spectrum 7xb pode ser utilizado também com um computador. Para o fazer, ligue a ficha áudio do transmissor 7xb à entrada do auricular do computador e o cabo USB a uma porta USB disponível. DICAs DE sEGURANÇA Evite danos auditivos tomando em consideração que um volume alto pode lesar os seus tímpanos. Ainda que possa não sentir inicialmente desconforto, os seus ouvidos podem estar a sofrer danos auditivos. Se ouvir um som de campainha depois de tirar o auricular 7xb pode ser um indicador que o volume está demasiado alto. Quando colocar o auricular, certifique-se de que o volume está baixo e depois aumente lentamente o volume para um nível em que se sinta confortável.· Não sobrecarregue as colunas pois poderá danificar o auricular 7xb e os seus tímpanos. Evite utilizar o auricular durante um período de tempo prolongado de forma a evitar danos auditivos. VEJA tAmbÉm Os produtos SteelSeries são recomendados para uma experiência máxima. Para mais informações, visite: www.steelseries.com Português 28 29 ПРОЦЕДУРА КОММУТАЦИИ Устройство SteelSeries Spectrum 7xb поставляется с настроенными параметрами коммутации. Если по какой-либо причине гарнитура перестает получать сигналы передатчика, выполните следующую процедуру: • Выключите гарнитуру, если она включена. • Нажмите и удерживайте кнопки уменьшения громкости и питания. Первой обязательно нажмите кнопку уменьшения громкости. Индикатор загорится, и будет светиться некоторое время. • Примерно через три секунды индикатор отключится. Отпустите кнопки питания и громкости. • Настройки коммутации гарнитуры вернулись в исходное состояние. Включите гарнитуру для подключения с новым передатчиком. Если это не помогло, можно сбросить настройки коммутации передатчика: • Включите передатчик. • Нажмите на кнопку сброса коммутации (расположена в маленьком отверстии между кабелем USB и разъемом 3,5 мм) с помощью отогнутого конца скрепки. После нажатия на эту кнопку индикатор перестанет светиться. Выньте скрепку. • Настройки коммутации передатчика вернулись в исходное состояние. Если гарнитура (со сброшенными параметрами коммутации) уже включена, передатчик сразу же подключится к ней. РА збОР гАРнИТУРы SteelSerieS 7xB 1. Отделите шнур от гарнитуры, слегка потянув за разъем microUSB. 2. Найдите язычок, расположенный на внутренней части ободка. 3. С силой надавите на язычок, и аккуратно вытяните дужку ободка из крепления. 4. Повторите шаги 2 и 3, чтобы отсоединить вторую дужку ободка. ФУн КЦИЯ SteelSerieS liVeMix Функция SteelSeries LiveMix обеспечивает снижение уровня громкости игры во время разговора ваших товарищей по команде. Когда члены команды сообщают друг другу какие-либо инструкции по микрофону, звук игры автоматически уменьшается для того, чтобы игроки могли отчетливо слышать эти сообщения. После окончания разговора громкость игры вернется на исходный уровень. SOUND LEVEL TIME 10 ms1.5 sec + GAME AUDIOVOICE AUDIO Русский ДОПОЛн ИТЕЛЬныЕ СВЕДЕнИЯ Гарнитура SteelSeries Spectrum 7xb может также использоваться с компьютером. Для этого подключите штекер звукового сигнала передатчика 7xb к гнезду гарнитуры компьютера и подключите USB-кабель к свободному порту USB. СОВЕТы ПО бЕз ОПАСн ОСТИ Учтите, что высокий уровень громкости может повредить барабанные перепонки. Даже если вы поначалу не испытываете дискомфорта, ваш слух может пострадать. Звон в ушах после снятия гарнитуры 7xb может означать, что использовался слишком высокий уровень громкости. Перед надеванием гарнитуры убедитесь, что громкость убавлена до минимума, а затем медленно увеличивайте громкость до комфортного уровня. Не включайте громкость на максимум, поскольку это может привести к порче гарнитуры 7xb и к разрушению барабанных перепонок. Во избежание проблем со слухом не используйте гарнитуру в течение длительного времени. СМ. ТАКЖЕ Изделия SteelSeries рекомендуются для получения максимальных ощущений во время игры. Дополнительная информация доступна на сайте: www.steelseries.com Русский 32 33 配对步骤 您购买的赛睿 SteelSeries Spectrum…

Text truncated - open the document above for the full version.

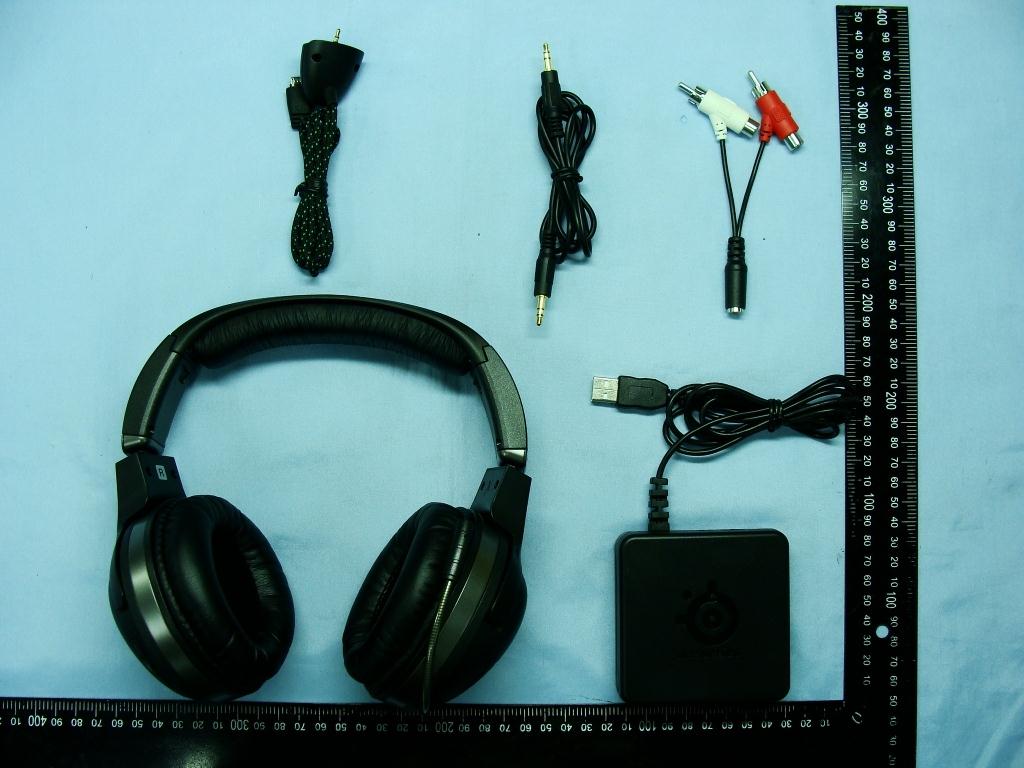

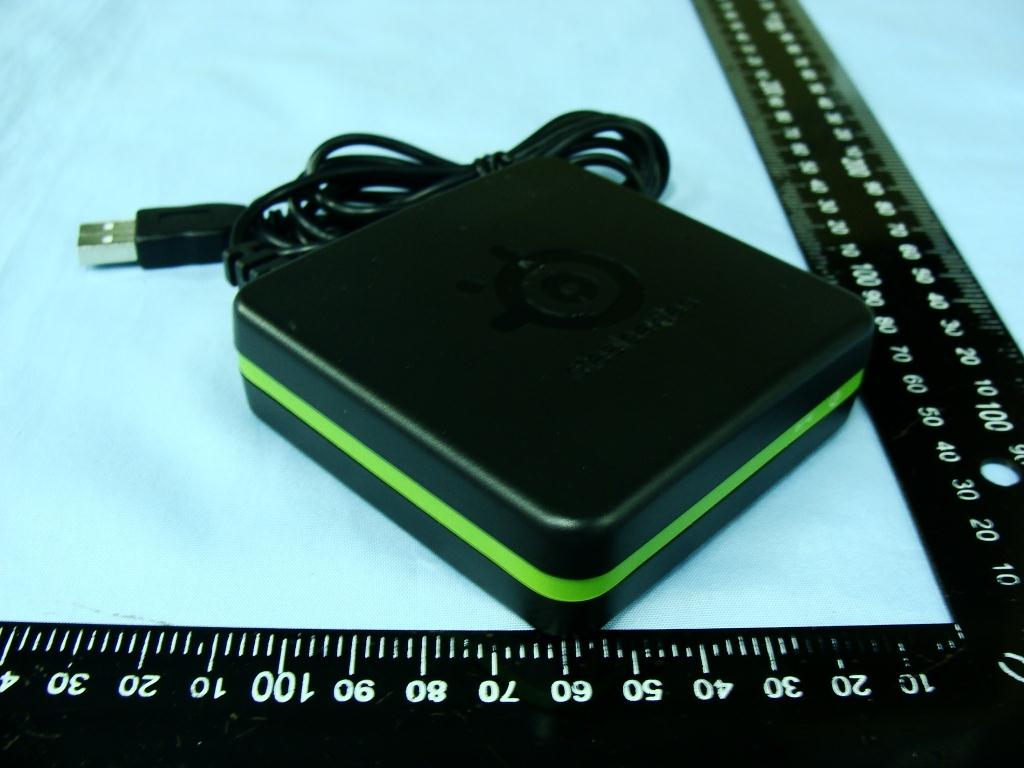

Photographs of EUT Report No.: EP1330003 Brand Name: SteelSeries / Model Name: 61262-01 SPORTON INTERNATIONAL INC. Page Number : 1 of 7 TEL : 886-3-327-3456 Report Issued Date : May 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 IC : 9638A-6126201 1. External Photograph of EUT Photographs of EUT Report No.: EP1330003 Brand Name: SteelSeries / Model Name: 61262-01 SPORTON INTERNATIONAL INC. Page Number : 2 of 7 TEL : 886-3-327-3456 Report Issued Date : May 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 IC : 9638A-6126201 720510 Photographs of EUT Report No.: EP1330003 Brand Name: SteelSeries / Model Name: 61262-01 SPORTON INTERNATIONAL INC. Page Number : 3 of 7 TEL : 886-3-327-3456 Report Issued Date : May 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 IC : 9638A-6126201 List of Accessory: Specification of Accessory Y Cable Model Name RCA Audio Cable Signal Line Type 0.1 meter, shielded cable, without ferrite core Audio Cable Model Name 3.5φ Audio Cable Signal Line Type 1.0meter, non-shielded cable, without ferrite core MIC Line Brand Name SteelSeries Model Name Xbox connect Cable 2.4GHz Stereo Headset Brand Name SteelSeries Model Name 61262-02 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1330003 Brand Name: SteelSeries / Model Name: 61262-01 SPORTON INTERNATIONAL INC. Page Number : 4 of 7 TEL : 886-3-327-3456 Report Issued Date : May 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 IC : 9638A-6126201 720510

Label location Brand (Trade) Name: SteelSeries Model Name: 61262-01 FCC ID: ZHK-6126201

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : May 10, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 RF Exposure Evaluation Report Report No. : FA133003 RF Exposure Evaluation Report APPLICANT : SteelSeries Aps. EQUIPMENT : 2.4GHz Stereo Transmitter BRAND NAME : SteelSeries MODEL NAME : 61262-01 FCC ID : ZHK-6126201 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : May 10, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 RF Exposure Evaluation Report Report No. : FA133003 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : May 10, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 RF Exposure Evaluation Report Report No. : FA133003 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA133003 Rev. 01 Initial issue of report May 10, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : May 10, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 RF Exposure Evaluation Report Report No. : FA133003 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : May 10, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 RF Exposure Evaluation Report Report No. : FA133003 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be mad…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 47 TEL : 886-3-327-3456 Report Issued Date : May 16, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 FCC RF Test Report Report No. : FR133003 FCC RF Test Report APPLICANT : SteelSeries Aps. EQUIPMENT : 2.4GHz Stereo Transmitter BRAND NAME : SteelSeries MODEL NAME : 61262-01 FCC ID : ZHK-6126201 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Spread Spectrum (DSS) The product was received on Mar. 30, 2011 and completely tested on Apr. 26, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 47 TEL : 886-3-327-3456 Report Issued Date : May 16, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 FCC RF Test Report Report No. : FR133003 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 RF Output Power ............................................................................................................................... 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 RF Utility .......................................................................................................................................... 11 3 TEST RESULT .......................................................................................................................................... 12 3.1 Number of Channel Measurement .................................................................................................. 12 3.2 20dB and 99% Bandwidth Measurement ........................................................................................ 14 3.3 Hopping Channel Separation Measurement ................................................................................... 19 3.4 Dwell Time Measurement ................................................................................................................ 22 3.5 Peak Output Power Measurement .................................................................................................. 24 3.6 Band Edges Measurement .............................................................................................................. 27 3.7 AC Conducted Emission Measurement........................................................................................... 31 3.8 Radiated Emission Measurement .................................................................................................... 35 3.9 Antenna Requirements .................................................................................................................... 44 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 45 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 46 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 47 TEL : 886-3-327-3456 Report Issued Date : May 16, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 FCC RF Test Report Report No. : FR133003 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR133003 Rev. 01 Initial issue of report May 16, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 47 TEL : 886-3-327-3456 Report Issued Date : May 16, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 FCC RF Test Report Report No. : FR133003 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(1) A8.4(2) Number of Channels ≥ 15Chs Pass - 3.2 15.247(a)(1) A8.1(a) 20dB Bandwidth NA Pass - 3.2 - Gen 4.4.1 99% Bandwidth - Pass - 3.3 15.247(a)(1) A8.1(b) Channel Separation ≥ 2/3 of 20dB BW Pass - 3.4 15.247(a)(1) A8.1(d…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar 16, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 FCC RF Test Report Report No. : FR133003 Appendix B. Setup Photographs <Conducted Emission> Mode 1 SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar 16, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZHK-6126201 FCC RF Test Report Report No. : FR133003 <Radiated Emission>
