ZHK-HS00018HEADSET

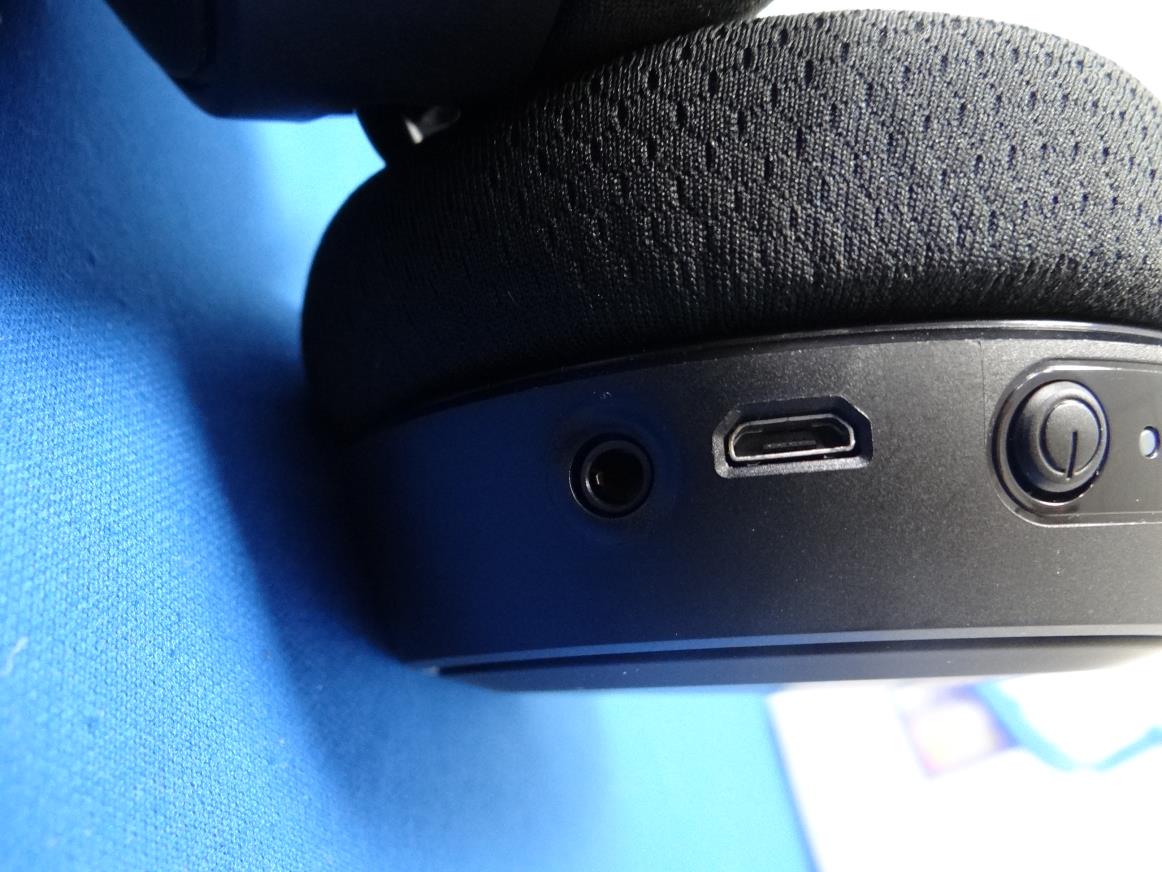

PRODUCT INFORMATION GUIDE ARCTIS 9 CONTENTS Welcome 2 SteelSeries Engine 3 Product Overview 5–6 Setup PC 7 Playstation / Switch 9 Ski Goggle Headband 11 Power On/Off 12 2.4 GHz Pairing 13 Bluetooth 14 Charging 15 Microphone 16 Translations Español 17 简体中文19 繁體中文22 日本語24 한국어27 Deutsch 29 Русский 32 Français 35 Italiano 38 Português 40 Regulatory 45 2 WELCOME TO ARCTIS Your new headset is the result of our unyielding pursuit of perfection for over 15 years. We poured our hearts into creating the best possible gaming headset by pushing the boundaries of sound quality, mic clarity, comfort, and style. Arctis is our glory; now go chase yours. STEELSERIES ENGINE 3 Download SteelSeries Engine to customize your audio settings and check for firmware updates: steelseries.com/engine STEELSERIES ENGINE STEELSERIES ENGINE 4 PACKAGE CONTENTS Arctis 9 Wireless Transmitter USB Charging Cable SYSTEM REQUIREMENTS // COMPATIBILITY PC Playstation 4 Switch STEELSERIES ENGINE SOFTWARE REQUIREMENTS Platforms* Windows 7+ Mac OS X 10.8+ * Some software features available on Windows 10 only find help at support.steelseries.com GAME INLINE OUT 1 12 14 1516 17 13 3 54 6 8 10 7 9 11 2 5 PRODUCT OVERVIEW 1 Ski Goggle Headband* 2 Airweave Ear Cushions* 3 ClearCast Microphone 4 ChatMix Dial 5 Volume Wheel 6 Microphone Mute Button 7 Bluetooth Button 8 Power Button 9 Micro-USB Jack for charging and firmware updates 10 Headphone Share Jack GAME INLINE OUT 1 12 14 1516 17 13 3 54 6 8 10 7 9 11 2 6 * Find accessories and replacement parts at steelseries.com/gaming-accessories 11 USB Charging Cable WIRELESS TRANSMITTER 12 USB Plug 13 PC / Playstation Mode Switch 14 Pairing Button 15 Game In Jack 16 Line Out Jack 17 LED GAME INLINE OUT 2.4 GHz 16 12 7 SETUP – PC HARDWARE INSTALLATION Connect the Wireless Transmitter’s USB Plug 12 to the PC. Optional: Connect a 3.5 mm audio cable (not included) from the Wireless Transmitter’s Line Out Jack 16 to a pair of speakers for automatic switching when the headset power is toggled. GAME INLINE OUT 2.4 GHz 16 12 8 WIRELESS TRANSMITTER SETTINGS Toggle the PC / Playstation Mode Switch 13 on the bottom of the wireless transmitter to PC. The Wireless Transmitter LED 17 will turn white. WINDOWS SOUND SETTINGS 1 Under “Playback”, highlight Arctis 9 Game Audio and select “Set Default”. 2 Select Arctis 9 Chat Audio and select “Set Default Communications Device”. 3 Under “Recording”, highlight Arctis 9 Chat Audio and select “Set Default”. GAME INLINE OUT 2.4 GHz 12 Playstation Switch 9 SETUP – PLAYSTATION / SWITCH (TV MODE) HARDWARE INSTALLATION Connect the Wireless Transmitter’s USB Plug 12 to the USB port on the Playstation / Switch dock. *ChatMix feature only available on PC. GAME INLINE OUT 2.4 GHz 12 Playstation Switch 10 WIRELESS TRANSMITTER SETTINGS For use with the Playstation / Switch in docked mode, toggle PC / Playstation Mode Switch 13 on the bottom of the wireless transmitter to Playstation. The Wireless Transmitter LED 17 will turn blue. ADDITIONAL SETTINGS NEEDED FOR PS4 AUDIO PS4 SETTING > Devices > Audio Devices Output to Headphones All Audio 3s ON OFF 11 SKI GOGGLE HEADBAND Install Direction of headband installation Velcro Tighten or loosen the Velcro straps on the side of the headband to achieve the desired fit 3s ON OFF 12 POWER ON / OFF To power on the headset, press and hold the Power Button 8 for at least 3 seconds. You will hear a tone, and the Headset LED will illuminate. To power off the headset, press and hold the Power Button 8 for at least 3 seconds. 5s5s 6s 6s 13 2.4 GHZ PAIRING 1 Press and hold the Wireless Transmitter’s Pairing Button 14 for 5 seconds until the LED 17 begins blinking rapidly Note: The headset is already paired to the transmitter when it arrives. 2 With the headset off, press and hold the Power Button 8 for 6 seconds 5s5s 6s 6s 14 BLUETOOTH 1 With the headset powered on, press and hold the Bluetooth Button 7 for 6 seconds. The headset LED will rapidly blink blue. 2 In your device’s Bluetooth settings, scan for available devices and select “Arctis 9”. Answer/end voice call single · press Bluetooth button 7 Play/pause music single · press Bluetooth button 7 PAIRING CONTROL Next track double · · press Bluetooth button 7 Previous track triple · · · press Bluetooth button 7 15 CHARGING To charge the headset, connect the USB Charging Cable 11 to the Micro-USB Jack 9 on the headset, and plug the other end into any USB power source. The color of the Headset LED indicates the battery level. Green 100–50 % Yellow 49–20 % Red 19–10 % Red (fast blink) 9–1 % 16 MICROPHONE RETRACTABLE MICROPHONEPOSITIONING Position the ClearCast Microphone 3 close to the corner of your mouth with the flat surface facing you top viewfront view 17 ESPAÑOL CONTENIDO DE LA CAJA Arctis 9 Transmisor inalámbrico Cable de carga USB REQUISITOS DEL SISTEMA // COMPATIBILIDAD PC / PS4 / Switch REQUISITOS DEL SOFTWARE STEELSERIES ENGINE Plataformas* Windows 7 o superior Mac OS X 10.8 o superior *Algunas características de software solo están disponibles para Windows 10 DESCRIPCIÓN GENERAL DEL PRODUCTO 1 Diadema de gafas de esquí 2 Almohadillas Airweave* 3 Micrófono ClearCast 4 Dial ChatMix 5 Rueda de volumen 6 Botón de silencio del micrófono 7 Botón de Bluetooth 8 Botón de encendido 9 Toma micro-USB para carga y actualizaciones de firmware 10 Toma para compartir los auriculares 11 Cable de carga USB TRANSMISOR INALÁMBRICO 12 Conector USB 13 Interruptor de modo PS4/PC 14 Botón de enlace 15 Toma de entrada de juego 16 Toma de salida de línea 17 LED CONFIGURACIÓN: PC INSTALACIÓN DEL HARDWARE Conecta el conector USB del transmisor inalámbrico 12 al PC. Opcional: Conecta un cable de audio de 3,5 mm (no incluido) de la toma de salida de línea 16 del transmisor inalámbrico a un par de altavoces para la conmuta automática al pulsar el botón de encendido de los auriculares. AJUSTES DEL TRANSMISOR INALÁMBRICO Pon el interruptor de modo 13 de la parte inferior del transmisor inalámbrico en la posici…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: SteelSeries ApS. Address: 656 W Randolph St., Suite 3E City: Chicago, Illinois 60661 Country: United States Declare that: Name Representative of agent: Delia Feng (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., City: Taoyuan City 33848 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: HEADSET Type designation: HS-00018 Trademark: steelseries on our behalf. Date: Apr. 27, 2020 City: Chicago Name: Chirky Lin (2) Function: Regulatory Matter Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: SteelSeries ApS. Address: 656 W Randolph St., Suite 3E City: Chicago, Illinois 60661 Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: ZHK-HS00018 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Marketing purpose Planned Release Date STC: 31/10/2020 (notes 2, 3, 4, 5) Date: 2020/04/27 Name and signature of applicant: Chirky Lin Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification NO. H2U36D2K1B0100 A PAGE 1 OF 12 H 2 26 DKB 1 0 U 3 0 10 3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification 1. Product Number 2. Features *Stable and reliable in performance. *RoHS 2.0 compliance *SMT processes compatible 3. Applications *ISM 2.4 GHz applications *Wi-Fi router (IEEE802.11 b/g/n) *Hand-held devices when WiFi / Bluetooth functions are needed, e.g. Tracker、IoT Devices, etc. 4. Description Unictron’s CW10D7 chip antenna is designed for ISM 2.4GHz applications, covering frequencies 2400~2500MHz. Fabricated with proprietary design and processes, CW10D7 shows excellent performance and is fully compatible with SMT processes which can decrease the assembly cost and improve device’s quality and consistency. 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification NO. H2U36D2K1B0100 A PAGE 2 OF 12 5. Layout Guide & Electrical Specifications 5-1. Layout Guide (Unit：mm) Solder Land Pattern: The solder land pattern (gold marking areas) is shown below. Recommendation on matching circuit will be provided according to customer’s installation conditions. Top View Bottom View Signal Input Transmission Line with 50Ω Impedance 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification NO. H2U36D2K1B0100 A PAGE 3 OF 12 5-2. Electrical Specifications 5-2-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 3.0 x 3.0 x 10.0 mm Ground Plane Dimensions 80 x 80 mm Working Frequency 2400~ 2500 MHz VSWR (@ center frequency)* 2 Max. Characteristic Impedance 50 Ω Polarization Vertical Polarization Peak Gain 3.4(Typical**) dBi Efficiency (@2442 MHz) 61.5(Typical**) % 5-2-2. Frequency vs. V.S.W.R. and Radiation Gain * Center frequency is the frequency with the lowest value of return loss. ** Typical value is for reference only. The actual efficiency will depend on the circuit board used 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification NO. H2U36D2K1B0100 A PAGE 4 OF 12 6. Outline Dimensions of Antenna (unit: mm) 6-1. Antenna Dimensions 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification NO. H2U36D2K1B0100 A PAGE 5 OF 12 6-2. Evaluation Board with Antenna 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification NO. H2U36D2K1B0100 A PAGE 6 OF 12 Unit: mm ITEM PART NO. Name Material ColorQ’ty 1 Chip antenna FR4 1 2 EVB Board PCB FR4 Black1 3 SMA(F)ST Brass Gold 1 4 L_0402 1 5 L_0402 1 6 C_0402 1 7 0Ω 1 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization Pillar Antenna (CW10D7) Engineering Specification NO. H2U36D2K1B0100 A PAGE 7 OF 12 7. 3D Radiation Gain Pattern@ 2442 MHz (Unit: dBi) Y Z X Z X Y X Y Z Y Z X 詠業科技股份有限公司 Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT PERMISSION Prepared by : Wen Designed by : Peter Checked by : Mike Approved by：Herbert DOCUMENT REV. TITLE：3.0 x 3.0 x 10.0 (mm), 2.4 GHz, Vertical Polarization…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 1 of 3 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 2 of 3 CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 3 of 3 CABLE: USB CABLE USB／MICRO USB

Label & Location (Left) Label & Location (Right)

CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 1 of 7 Photographs of EUT VMI Antenna position (ANT B) RF VMI Chip VMI Antenna position (ANT A) BT Antenna position CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 2 of 7 RF BT Chip CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 3 of 7 CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 4 of 7 CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 5 of 7 CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 6 of 7 CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 7 of 7

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-326 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 42 of 43 FCC ID. : ZHK-HS00018 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1093) LIMIT KDB 447498 D01 § 4.3(a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10- *f(GHz) is the RF channel transmit frequency in GHz *The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz VMI 2.4G: 2403.35MHz ~ 2479.35MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 0.34 dBm (1.081mW) at 2403.35MHz (with 3.4 dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-326 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 43 of 43 FCC ID. : ZHK-HS00018 TEST RESULTS According to the KDB447498: The SAR test exclusion thresholds Level: [(max. power of channel, including tune-up tolerance, mW) /(min. test separation distance, mm)] * sqrt (freq. in GHz) < 3 Calculation Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Max. Tune up power (mW) Distance (mm) SAR test exclusion thresholds (mW) 2403.35-2479.35 0.34 2.34 1.71 5 10.00 Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-326 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 1 of 43 FCC ID. : ZHK-HS00018 FCC RADIO TEST REPORT Applicant : SteelSeries ApS. Address : 656 W Randolph St., Suite 3E Chicago, IL 60661, USA Equipment : HEADSET Model No. : HS-00018 Trade Name : FCC ID : ZHK-HS00018 I HEREBY CERTIFY THAT : The sample was received on Aug. 05, 2019 and the testing was completed on Apr. 20, 2020 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-326 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 2 of 43 FCC ID. : ZHK-HS00018 Contents 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 10 4. Antenna Requirements ..................................................................................................................... 12 4.1 Standard Applicable ................................................................................................................. 12 4.2 Antenna Construction and Directional Gain ............................................................................. 12 5. Test of AC Power Line Conducted Emission ................................................................................. 13 5.1 Test Limit .................................................................................................................................. 13 5.2 Test Procedures ....................................................................................................................... 13 5.3 Typical Test Setup .................................................................................................................... 14 5.4 Test Result and Data ................................................................................................................ 15 5.5 Test Photographs ..................................................................................................................... 17 6. Test of Spurious Emission (Radiated) ............................................................................................ 18 6.1 Test Limit .................................................................................................................................. 18 6.2 Test Procedures ....................................................................................................................... 18 6.3 Typical Test Setup .................................................................................................................... 19 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 20 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 20 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 22 6.7 Restricted Bands of Operation ................................................................................................. 28 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 29 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 30 7. Test of Spurious Emission (Conducted) ......................................................................................... 32 7.1 Test Limit .................................................................................................................................. 32 7.2 Test Procedure ......................................................................................................................... 32 7.3 Test Setup Layout .................................................................................................................... 32 7.4 Test Result and Data ................................................................................................................ 32 8. On Time, Duty Cycle and Measurement methods ......................................................................... 35 8.1 Test Limit .................................................................................................................................. 35 8.2 Test Procedure ......................................................................…
