ZHK-HS00018TXTransceiver

ARCTIS 9 ARCTIS 9P PRODUCT INFORMATION GUIDE CONTENTS Welcome 2 SteelSeries Engine 3 Product Overview 5–6 Setup 7 PS4 Pro & Original 7 PS4 Slim with Optical Audio 9 PS4 Slim without Optical Audio 11 PC 13 Ski Goggle Headband 15 Power On/Off 16 2.4 GHz Pairing 17 Bluetooth 18 Charging 19 Surround Sound 20 Translations Español 21 简体中文 24 繁體中文 28 日本語 31 한국어 34 Deutsch 38 Русский 41 Français 46 Italiano 50 Português 54 Regulatory 59 2 WELCOME TO ARCTIS Your new headset is the result of our unyielding pursuit of perfection for over 15 years. We poured our hearts into creating the best possible gaming headset by pushing the boundaries of sound quality, mic clarity, comfort, and style. Arctis is our glory; now go chase yours. STEELSERIES ENGINE 3 Download SteelSeries Engine to customize your audio settings and check for firmware updates: steelseries.com/engine STEELSERIES ENGINE STEELSERIES ENGINE 4 find help at support.steelseries.com PACKAGE CONTENTS Arctis 9 / 9P Wireless Transmitter Optical Audio Cable USB Charging Cable SYSTEM REQUIREMENTS // COMPATIBILITY PS4 PC STEELSERIES ENGINE SOFTWARE REQUIREMENTS Platforms* Windows 7+ Mac OS X 10.8+ * Some software features available on Windows 10 only GAME INLINE OUT 5 PRODUCT OVERVIEW 01 Ski Goggle Headband* 02 Airweave Ear Cushions* 03 ClearCast Microphone 04 Game Chat Balance 05 Volume Wheel 06 Microphone Mute Button 07 Bluetooth Button 08 Power Button 09 Micro-USB Jack for charging and firmware updates 10 Headphone Share Jack 01 02 03 0504 07 09 06 08 10 GAME INLINE OUT 6 * Find accessories and replacement parts at steelseries.com/gaming-accessories 15 13 1617 18 14 11 Optical Audio Cable 12 USB Charging Cable 13 USB Plug 14 PS4 / PC Mode Switch 15 Pairing Button 16 Game In Jack 17 Line Out Jack 18 LED WIRELESS TRANSMITTER Front view Back view Bottom view GAME INLINE OUT 13 11 16 7 SETUP – PS4 PRO & ORIGINAL HARDWARE INSTALLATION 01 Connect the Wireless Transmitter’s USB Plug 13 to the front of the PS4 02 Connect the Optical Audio Cable 11 from the PS4 rear to the Wireless Transmitter’s Game In Jack 16 GAME INLINE OUT 13 11 16 8 WIRELESS TRANSMITTER SETTINGS Toggle the mode switch 14 on the bottom of the wireless transmitter to PS4. The Wireless Transmitter LED 18 will turn blue. PS4 AUDIO SETTINGS PS4 SETTING > SOUND AND SCREEN > AUDIO OUTPUT SETTING Primary Output PortDigital Out (Optical) > Dolby Digital 5.1 ch Audio Format (Priority)Bitstream (Dolby) PS4 SETTING > DEVICES > AUDIO DEVICES Output to HeadphonesChat Audio GAME INLINE OUT 13 11 16 9 01 Connect the Optical Audio Cable 11 from your TV or HDMI adapter to the Wireless Transmitter’s Game In Jack 16 02 Connect the Wireless Transmitter’s USB Plug 13 to the USB port on the front of the PS4 *The PS4 Slim does not have an optical output. For full functionality you will need to connect the Wireless Transmitter to the optical output of a TV or an HDMI adapter (not included). If no optical is available proceed to the next page. SETUP – PS4 SLIM WITH OPTICAL AUDIO HARDWARE INSTALLATION GAME INLINE OUT 13 11 16 10 WIRELESS TRANSMITTER SETTINGS Toggle the mode switch 14 on the bottom of the wireless transmitter to PS4. The Wireless Transmitter LED 18 will turn blue. PS4 AUDIO SETTINGS PS4 SETTING > SOUND AND SCREEN > AUDIO OUTPUT SETTING Audio Format (Priority)Bitstream (Dolby) HDMI Audio Output5.1 ch PS4 SETTING > DEVICES > AUDIO DEVICES Output to HeadphonesChat Audio GAME INLINE OUT 13 11 Connect the Wireless Transmitter’s USB Plug 13 to the USB port on the front of the PS4 *Without optical audio, surround sound and ChatMix features will be unavailable SETUP – PS4 SLIM WITHOUT OPTICAL AUDIO HARDWARE INSTALLATION GAME INLINE OUT 13 12 WIRELESS TRANSMITTER SETTINGS Toggle the mode switch 14 on the bottom of the wireless transmitter to PS4. The Wireless Transmitter LED 18 will turn blue. PS4 AUDIO SETTINGS PS4 SETTING > Devices > Audio Devices Output to HeadphonesAll Audio GAME INLINE OUT 13 17 13 SETUP – PC HARDWARE INSTALLATION Connect the Wireless Transmitter’s USB Plug 13 to the PC Optional: Connect a 3.5 mm audio cable (not included) from the Wireless Transmitter’s Line Out Jack 17 to a pair of speakers for automatic switching when the headset power is toggled GAME INLINE OUT 13 17 14 WIRELESS TRANSMITTER SETTINGS Toggle the mode switch 14 on the bottom of the wireless transmitter to PC. The Wireless Transmitter LED 18 will turn white. WINDOWS SOUND SETTINGS 01 Under “Playback” highlight Arctis 9/9P Game Audio and select “Set Default” 02 Select Arctis 9/9P Chat Audio and select “Set Default Communications Device” 03 Under “Recording” highlight Arctis 9/9P Chat Audio and select “Set Default” 15 SKI GOGGLE HEADBANDAccessory headbands available at steelseries.com Velcro Tighten or loosen the Velcro straps on the side of the headband to achieve the desired fit Install Direction of headband installation 16 POWER ON / OFF To power on the headset, press and hold the Power Button 08 for at least 3 seconds. You will hear a tone, and the Headset LED will illuminate. To power off the headset, press and hold the Power Button 08 for at least 3 seconds. 3s OFF ON 5s5s 6s 6s 17 2.4 GHz PAIRING 01 Press and hold the Wireless Transmitter’s Pairing Button 15 for 5 seconds until the LED 18 begins blinking rapidly 02 With the headset off, press and hold the Power Button 08 for 6 seconds The headset is already paired to the transmitter when it arrives. 5s5s 6s 6s 18 BLUETOOTH Next track double · · press Bluetooth button 07 Previous track triple · · · press Bluetooth button 07 Answer/end voice call single · press Bluetooth button 07 Play/pause music single · press Bluetooth button 07 BLUETOOTH 01 With the headset powered on, press and hold the Bluetooth Button 07 for 6 seconds. The headset LED will rapidly blink blue. 02 In your device’s Bluetooth settings, scan for available devices and select “Arctis 9” or “Arctis 9P”. PAIRING CONTROL 19 CHARGING To charge the headset, connect the USB Charging Cable 12 to the …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: SteelSeries ApS. Address: 656 W Randolph St., Suite 3E City: Chicago, Illinois 60661 Country: United States Declare that: Name Representative of agent: Delia Feng (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., City: Taoyuan City 33848 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Transceiver Type designation: HS-00018TX Trademark: steelseries on our behalf. Date: Apr. 27, 2020 City: Chicago Name: Chirky Lin (2) Function: Regulatory Matter Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: SteelSeries ApS. Address: 656 W Randolph St., Suite 3E City: Chicago, Illinois 60661 Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: ZHK-HS00018TX Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Marketing purpose Planned Release Date STC: 31/10/2020 (notes 2, 3, 4, 5) Date: 2020/04/27 Name and signature of applicant: Chirky Lin Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification DOCUMENT H2U34W1H1B1600 REV. NO. B PAGE 1 OF 15 3.2 x 1.6 x 0.5 (mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification 1. Product Number 2. Features *Stable and reliable in performances *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *ISM 2.4 GHz applications *ZigBee/BLE applications *Bluetooth earphone systems *Hand-held devices when WiFi / Bluetooth functions are needed, e.g., Smart phones *IEEE802.11 b/g/n *Wireless PCMCIA cards or USB dongles 4. Description Unictron’s AA055K ceramic chip antenna is designed for ISM 2.4GHz applications, covering frequencies 2400~2500MHz. Fabricated with proprietary design and processes, AA055K shows excellent performance and is fully compatible with SMT processes which can decrease the assembly cost and improve device’s quality and consistency. H 2 1 4 W H B 6 0 U 3 1 1 0 ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification DOCUMENT H2U34W1H1B1600 REV. NO. B PAGE 2 OF 15 5. Layout Guide & Electrical Specifications 5-1. Layout Guide (unit:mm) Solder Land Pattern: The solder land pattern (gold marking areas) is shown below. Recommendation on matching circuit will be provided according to customer’s installation conditions. Top View Bottom View ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification DOCUMENT H2U34W1H1B1600 REV. NO. B PAGE 3 OF 15 5-2. Electrical Specifications (Evaluation Board Dimensions: 80 x 40 mm 2 ) 5-2-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 3.2 x 1.6 x 0.5 mm Ground Plane Dimensions 80 x 40 mm Working Frequency 2400~2500 MHz VSWR (@ center frequency)* 2 Max. Characteristic Impedance 50 : Polarization Linear Polarization Peak Gain (@2442 MHz) 1.5 (typical**) dBi Efficiency 75 (typical**) % *Center frequency means the frequency with the lowest value in return loss of the chip antenna on the evaluation board. **A typical value is for reference only, not guaranteed. 5-2-2. Frequency vs. V.S.W.R. and Total Radiation Gain ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification DOCUMENT H2U34W1H1B1600 REV. NO. B PAGE 4 OF 15 6. Outline Dimensions of Antenna & Evaluation Board (unit: mm) 6-1. Antenna Dimensions PIN Definition PIN 1 2 Soldering PAD Signal Tuning / Ground ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification DOCUMENT H2U34W1H1B1600 REV. NO. B PAGE 5 OF 15 6-2. Evaluation Board with Antenna ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification DOCUMENT H2U34W1H1B1600 REV. NO. B PAGE 6 OF 15 7. 3D Radiation Gain Pattern (with 80 x 40 mm 2 Evaluation Board) 3D Radiation Gain Pattern @ 2442 MHz (unit: dBi) Z Z X Z Y ຐ཰ࣽިמҽԖज़Ϧљ Unictron Technologies Corporation Website:www.unictron.com THIS DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF UNICTRON TECHNOLOGIES CORPORATION AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES W ITHOUT PERMISSION Prepared by : Mina Designed by : Peter Checked by : Mike Approved by烉Herbert TITLE烉3.2 x 1.6 x 0.5(mm) WiFi/Bluetooth Ceramic Chip Antenna (AA055K) Engineering Specification DOCUMENT H2U34W1H1B1600 REV. NO. B PAGE 7 OF 15 8. Frequency tuning and Matching circuit 8-1. Chip antenna tuning scenarioǺ 8-2. Matching circuit烉 With the following recommended values of matching and tuning components, the center frequencies will be about 2442 MHz at our standard 80x40 mm 2 evaluation board. However, these are typical reference values which may need to be changed when circuit boards or part vendors are different. System Matching Circuit Component Location Description Vend…

Text truncated - open the document above for the full version.

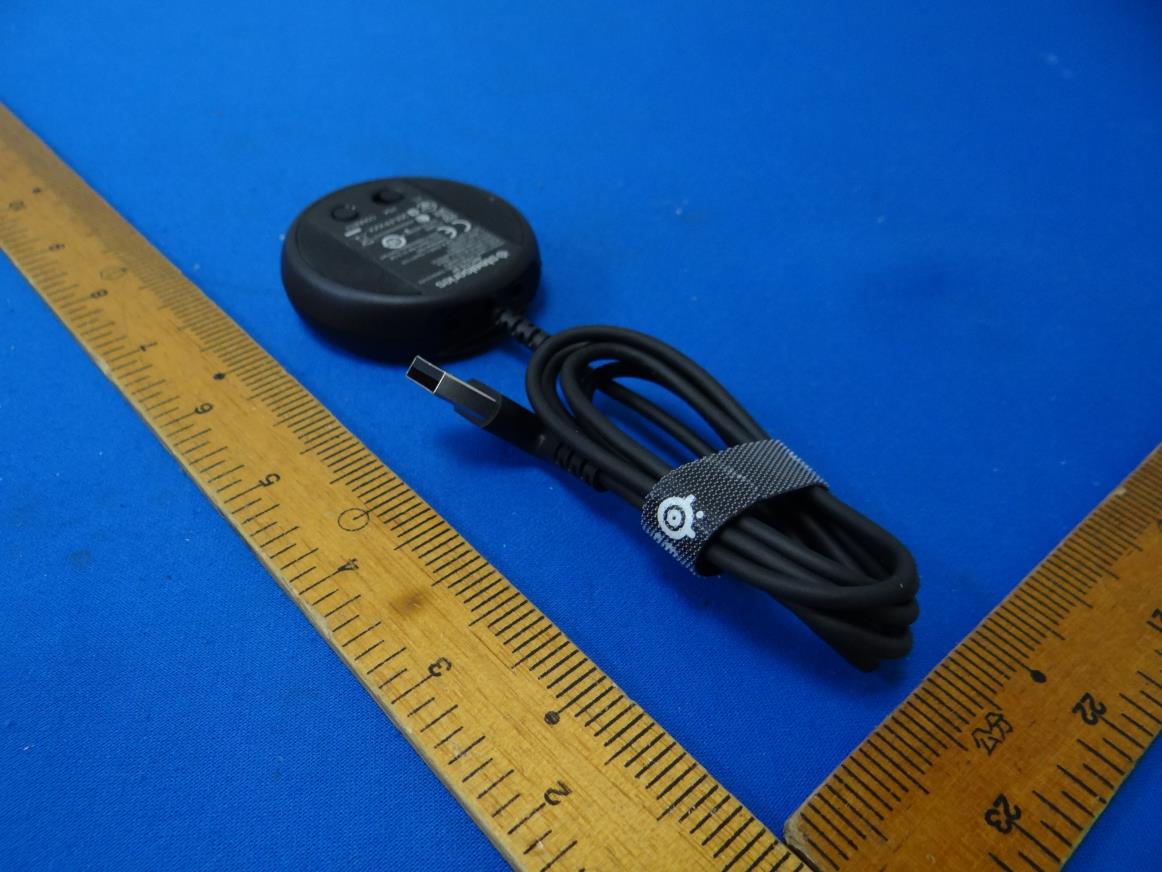

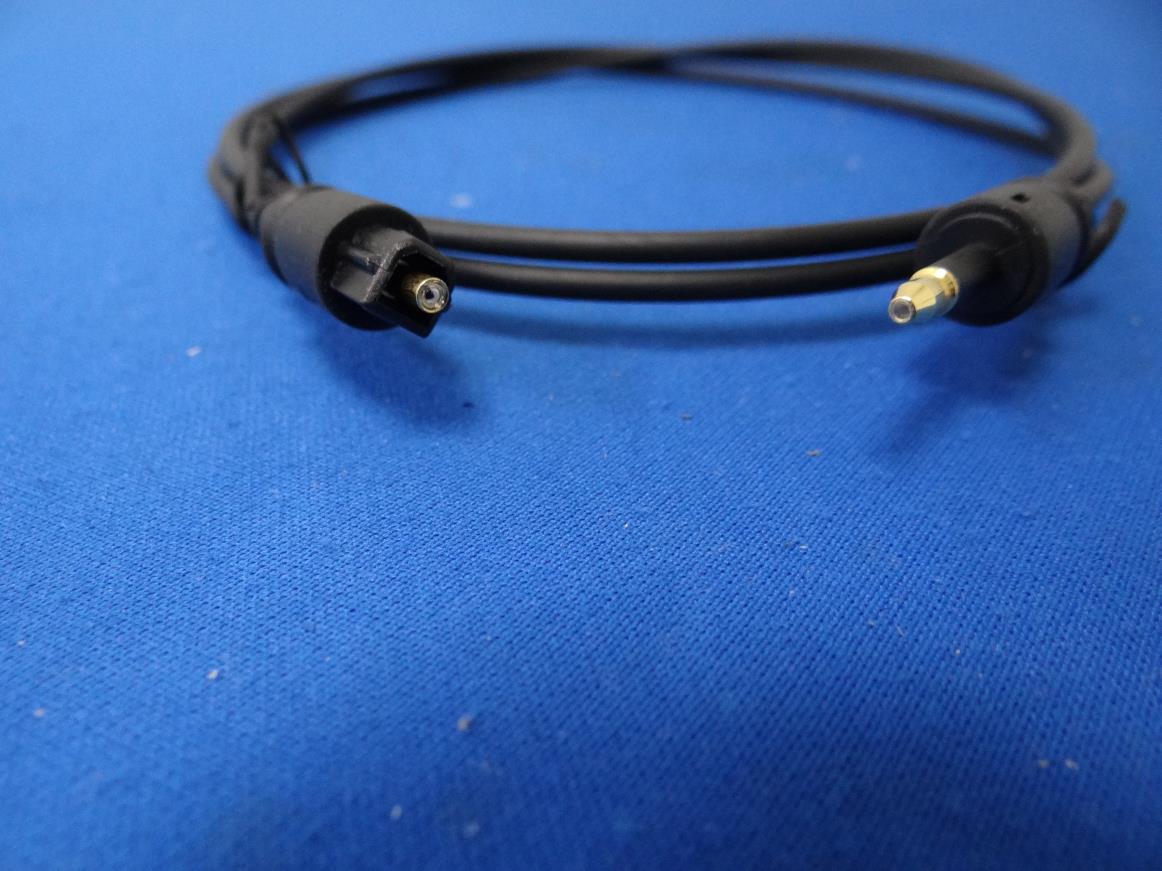

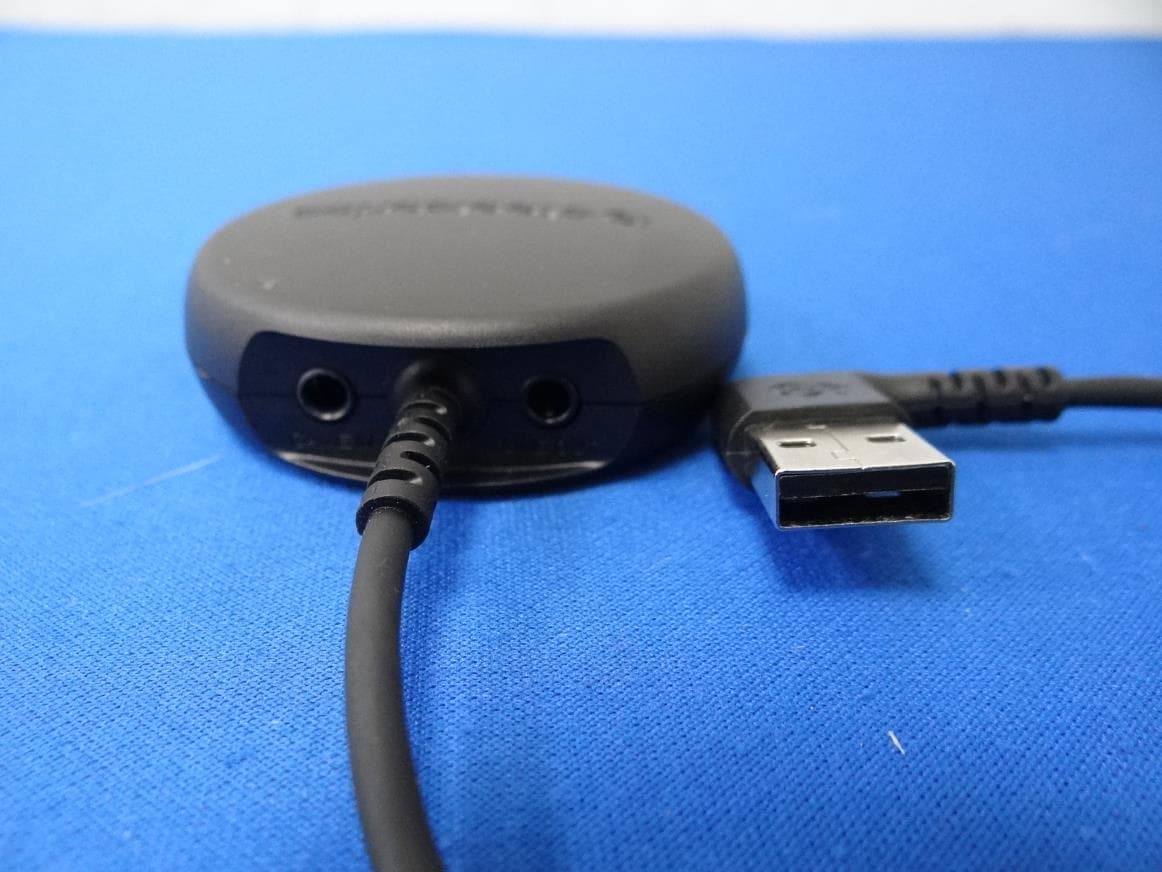

CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 1 of 6 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 2 of 6 CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 6 of 6 CABLE: Toslink to 3.5mm optical audio cable

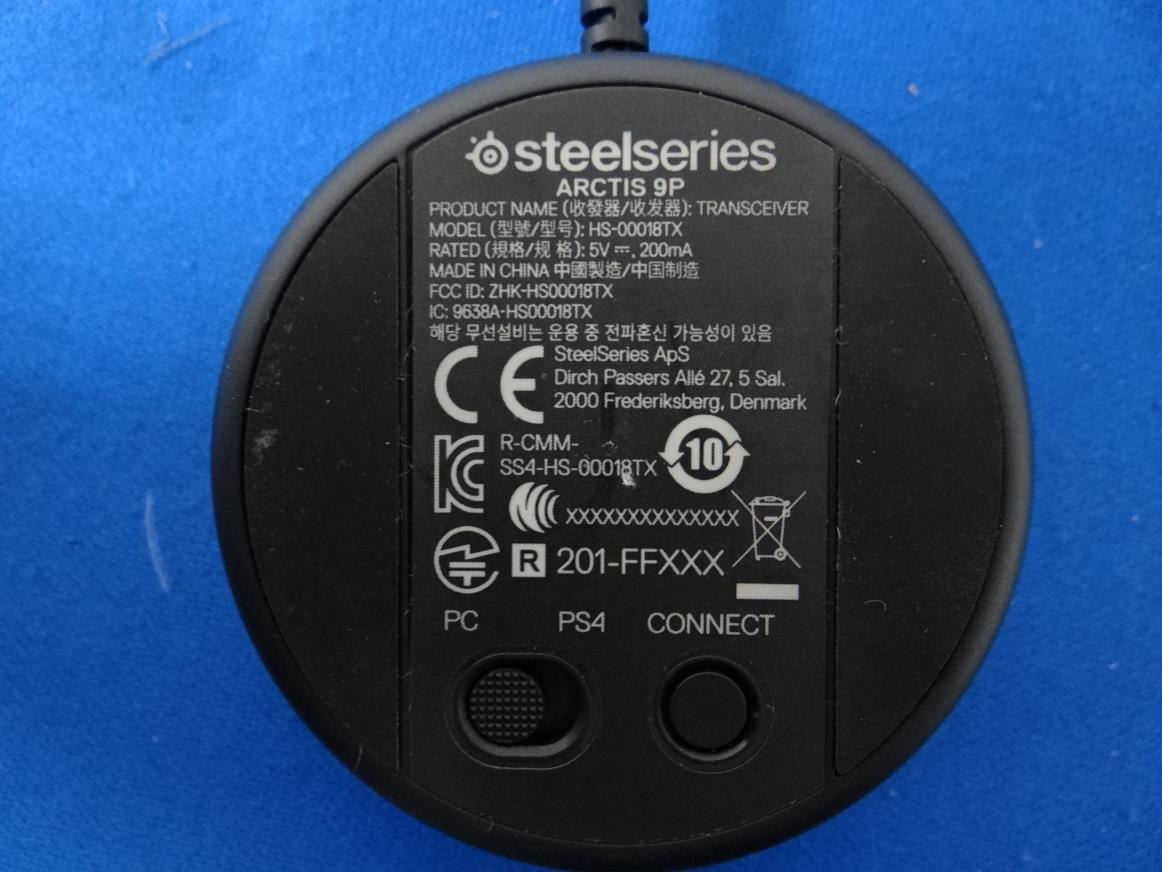

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 3 of 6 CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 4 of 6 Antenna position (ANT A) RF VMI Chip Antenna position (ANT B) CERPASS TECHNOLOGY CORP. Report No.: 1905292 Cerpass Technology Corp. Issued Date : Apr. 22, 2020 Page No. : 5 of 6

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 41 of 42 FCC ID. : ZHK-HS00018TX 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1093) LIMIT KDB 447498 D01 § 4.3(a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10- *f(GHz) is the RF channel transmit frequency in GHz *The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz VMI 2.4G: 2403.35MHz ~ 2479.35MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 0.51 dBm (1.125mW) at 2479.35MHz (with 3.4 dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 42 of 42 FCC ID. : ZHK-HS00018TX TEST RESULTS According to the KDB447498: The SAR test exclusion thresholds Level: [(max. power of channel, including tune-up tolerance, mW) /(min. test separation distance, mm)] * sqrt (freq. in GHz) < 3 Calculation Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Max. Tune up power (mW) Distance (mm) SAR test exclusion thresholds (mW) 2403.35-2479.35 0.51 2.51 1.78 5 10.00 Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 1 of 42 FCC ID. : ZHK-HS00018TX FCC RADIO TEST REPORT Applicant : SteelSeries ApS. Address : 656 W Randolph St., Suite 3E Chicago, IL 60661, USA Equipment : Transceiver Model No. : HS-00018TX Trade Name : FCC ID : ZHK-HS00018TX I HEREBY CERTIFY THAT : The sample was received on Aug. 05, 2019 and the testing was completed on Apr. 20, 2020 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 2 of 42 FCC ID. : ZHK-HS00018TX Contents 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 7 2.5 General Information of Test ........................................................................................................ 8 2.6 Measurement Uncertainty .......................................................................................................... 8 3. Test Equipment and Ancillaries Used for Tests ............................................................................... 9 4. Antenna Requirements ..................................................................................................................... 11 4.1 Standard Applicable ................................................................................................................. 11 4.2 Antenna Construction and Directional Gain ............................................................................. 11 5. Test of AC Power Line Conducted Emission ................................................................................. 12 5.1 Test Limit .................................................................................................................................. 12 5.2 Test Procedures ....................................................................................................................... 12 5.3 Typical Test Setup .................................................................................................................... 13 5.4 Test Result and Data ................................................................................................................ 14 5.5 Test Photographs ..................................................................................................................... 16 6. Test of Spurious Emission (Radiated) ............................................................................................ 17 6.1 Test Limit .................................................................................................................................. 17 6.2 Test Procedures ....................................................................................................................... 17 6.3 Typical Test Setup .................................................................................................................... 18 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 19 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 19 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 21 6.7 Restricted Bands of Operation ................................................................................................. 27 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 28 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 29 7. Test of Spurious Emission (Conducted) ......................................................................................... 31 7.1 Test Limit .................................................................................................................................. 31 7.2 Test Procedure ......................................................................................................................... 31 7.3 Test Setup Layout .................................................................................................................... 31 7.4 Test Result and Data ................................................................................................................ 31 8. On Time, Duty Cycle and Measurement methods ......................................................................... 34 8.1 Test Limit .................................................................................................................................. 34 8.2 Test Procedure .........................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 16 of 42 FCC ID. : ZHK-HS00018TX 5.5 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 28 of 42 FCC ID. : ZHK-HS00018TX 6.8 Test Photographs (30MHz ~ 1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 29 of 42 FCC ID. : ZHK-HS00018TX 6.9 Test Photographs (1GHz ~ 25GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFQ1905292-483 Cerpass Technology Corp. Issued Date : Apr. 23, 2020 T-FD-506-0 Ver 1.2 Page No. : 30 of 42 FCC ID. : ZHK-HS00018TX Side View
