DATE : 2021-12-29 FCC ID: ZHK-HS34 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., Taoyuan City, 33848, Taiwan(R.O.C.) Name: Nina Hsu For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with us. Signature FCC grantee contact person information. Name/Title: Chirky Lin / Regulatory Matter Manager Company Name: SteelSeries ApS. Address: 656 W Randolph St., Suite 3E Chicago, IL 60661, USA TEL: +886 2 82263858#317 FAX: +886 2 82263626 Email: [email protected]

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZHK-HS34 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: long-term confidentiality Exhibit Type File Name Block Diagram Block diagram_HS34.pdf Operational Description 10-Operational Description_Wireless Headset.pdf Schematic Diagrams Schematic_HS34.pdf Justification for internal photos: The EUT use special screw, the Circuit board(s) or internal components are inaccessible to the user The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: short-term confidentiality Exhibit Type File Name External Photos External Photos.pdf User’s Manual User manual_HS34.pdf Test Set-up Photos Test Setup Photos.pdf Internal Photos Internal Photos.pdf Planned release date STC: 180days after grant issued. Sincerely, Chirky Lin/ Regulatory Matter Manager SteelSeries ApS

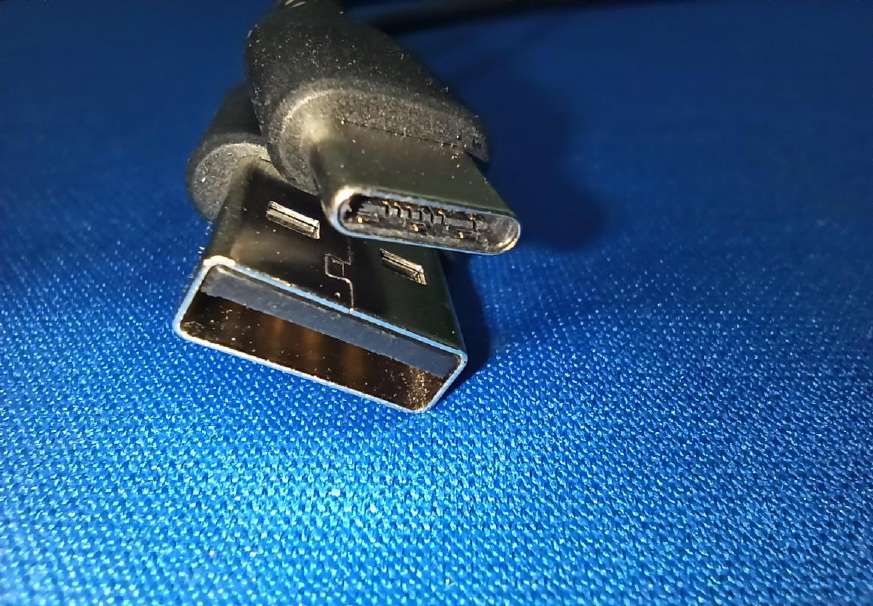

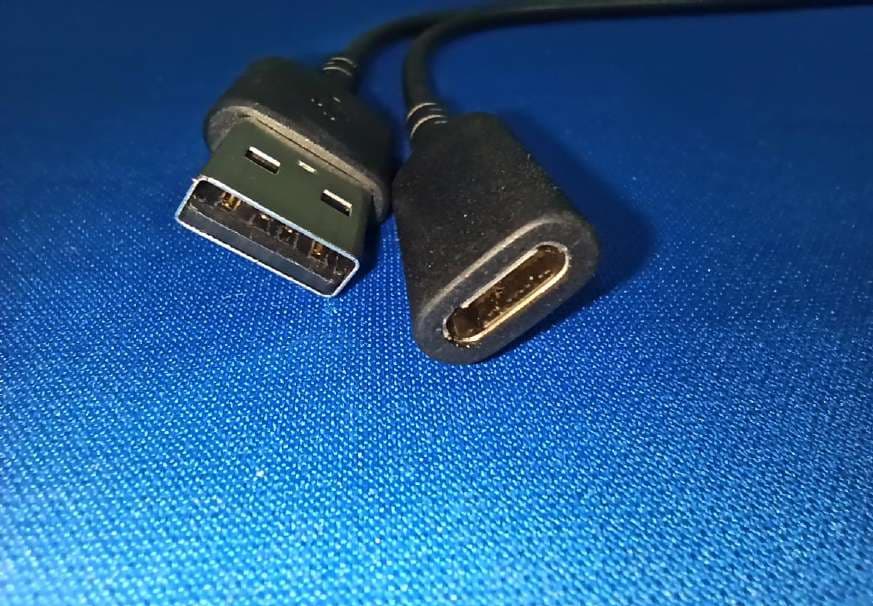

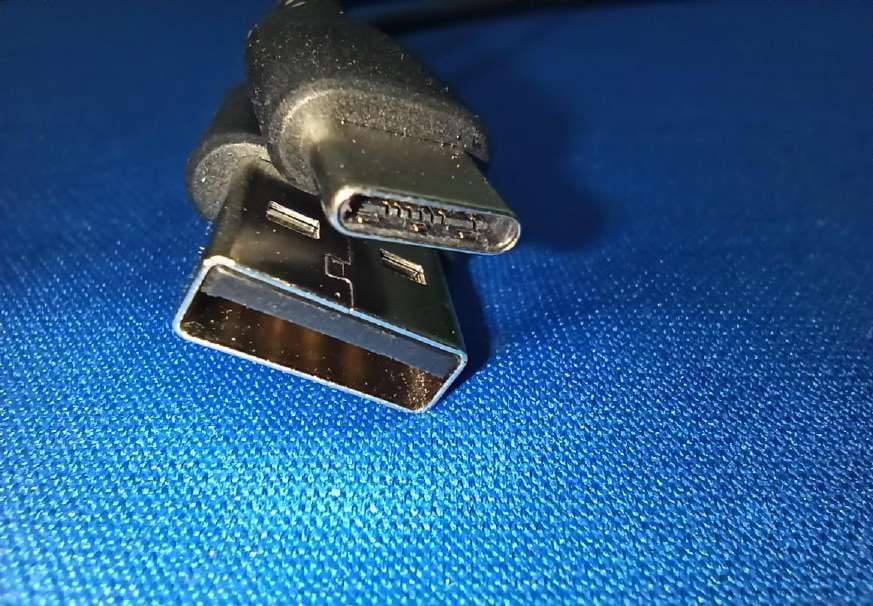

CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 4 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 5 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 6 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 18 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 30 of 31 HS26, HS34 USB-C to USB-A charging cable Brand: SteelSeries, Model: usb_cabel01 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 31 of 31 HS26, HS34 USB-C to USB-A Extension Cable Brand: SteelSeries , Model: c_a_cable01

Label & Location Label here

CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 19 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 20 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 21 of 31 HS34 Antenna position CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 22 of 31 HS34 RF Chip CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 23 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 24 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 25 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 26 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 27 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 28 of 31 HS34 CERPASS TECHNOLOGY CORP. Report No.: 21090136 Cerpass Technology Corp. Issued Date : Dec. 22, 2021 Page No. : 29 of 31 HS26, HS34 Battery Brand: HUIZHOU EVERPOWER TECHNOLOGY CO.,LTD Model: PL603033

CERPASS TECHNOLOGY CORP. Report No.: 21090136-TRFCC01 Cerpass Technology Corp. Issued Date : Dec. 24, 2021 T-FD-506-0 Ver 1.5 Page No. : 55 of 56 FCC ID. : ZHK-HS34 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1093) LIMIT KDB 447498 D01 § 4.3(a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where *f(GHz) is the RF channel transmit frequency in GHz * Power and distance are rounded to the nearest mW and mm before calculation *The result is rounded to one decimal place for comparison *The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion 12.2 EUT Specification Frequency band (Operating) 2.4GHz: 2402MHz ~ 2480MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 0.32 dBm (1.076mW) at 2402MHz (with 3.72 dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. CERPASS TECHNOLOGY CORP. Report No.: 21090136-TRFCC01 Cerpass Technology Corp. Issued Date : Dec. 24, 2021 T-FD-506-0 Ver 1.5 Page No. : 56 of 56 FCC ID. : ZHK-HS34 12.3 TEST RESULTS According to the KDB447498: The SAR test exclusion thresholds Level: [(max. power of channel, including tune-up tolerance, mW) /(min. test separation distance, mm)] * sqrt (freq. in GHz) < 3 Calculation Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Max. Tune up power (mW) Distance (mm) SAR test exclusion thresholds (mW) 2402-2480 0.32 0.82 1.21 5 10.00 Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 21090136-TRFCC01 Cerpass Technology Corp. Issued Date : Dec. 24, 2021 T-FD-506-0 Ver 1.5 Page No. : 1 of 56 FCC ID. : ZHK-HS34 FCC RADIO TEST REPORT Applicant : SteelSeries ApS Address : 656 W Randolph St., Suite 3E Chicago, IL 60661, USA Equipment : Wireless Headset Model No. : Main model: HS34 Series model: HS26 Trade Name : FCC ID : ZHK-HS34 I HEREBY CERTIFY THAT : The sample was received on Sep. 23, 2021 and the testing was completed on Nov. 28, 2021 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 21090136-TRFCC01 Cerpass Technology Corp. Issued Date : Dec. 24, 2021 T-FD-506-0 Ver 1.5 Page No. : 2 of 56 FCC ID. : ZHK-HS34 CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 11 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 12 4. Antenna Requirements ..................................................................................................................... 14 4.1 Standard Applicable ................................................................................................................. 14 4.2 Antenna Construction and Directional Gain ............................................................................. 14 5. Test of AC Power Line Conducted Emission ................................................................................. 15 5.1 Test Limit .................................................................................................................................. 15 5.2 Test Procedures ....................................................................................................................... 15 5.3 Typical Test Setup .................................................................................................................... 16 5.4 Test Result and Data ................................................................................................................ 17 5.5 Test Photographs ..................................................................................................................... 19 6. Test of Spurious Emission (Radiated) ............................................................................................ 20 6.1 Test Limit .................................................................................................................................. 20 6.2 Test Procedures ....................................................................................................................... 21 6.3 Typical Test Setup .................................................................................................................... 22 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 24 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 24 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 26 6.7 Restricted Bands of Operation ................................................................................................. 38 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 39 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 40 7. Test of Spurious Emission (Conducted) ......................................................................................... 42 7.1 Test Limit .................................................................................................................................. 42 7.2 Test Procedure ......................................................................................................................... 42 7.3 Test Setup Layout .................................................................................................................... 42 7.4 Test Result and Data ................................................................................................................ 42 8. On Time, Duty Cycle and Measurement methods ......................................................................... 47 8.1 Test Limit .................................................................................................................................. 47 8.2 Test Procedure ............................................…
