ZHK-HS40TXTransceiver

ARCTIS NOVA 3P WIRELESS PRODUCT INFORMATION GUIDE TABLE OF CONTENTS General ................................................................................................ 3 Product Overview ................................................................................ 4 Quick Start Guide ................................................................................ 6 Setup .................................................................................................. 7 Power .................................................................................................. 8 Dongle Pairing ..................................................................................... 8 Bluetooth ............................................................................................ 9 Quick-Switch ...................................................................................... 9 ChatMix .............................................................................................. 9 Multimedia Controls ............................................................................ 10 Microphone ......................................................................................... 11 Perfect Fit ........................................................................................... 12 Translations ......................................................................................... 14 Deutsch ............................................................................................................ 14 Español ............................................................................................................. 14 Français ............................................................................................................ 14 Italiano .............................................................................................................. 14 Polski ................................................................................................................. 14 Português ......................................................................................................... 14 日本語 .............................................................................................................. 14 简体中文 .......................................................................................................... 14 繁體中文 .......................................................................................................... 14 한국어 ............................................................................................................... 14 Regulatory ........................................................................................... 30 3 GENERAL PACKAGE CONTENTS Arctis Nova 3P Wireless Headset Detachable ClearCast Microphone Microphone Pop Filter USB-C Wireless 2.4 GHz Dongle USB-C to USB-C Charging Cable (30 cm / 12”) SYSTEM COMPATIBILITY PlayStation 5 PC Nintendo Switch Quest Handheld Android iOS ARCTIS COMPANION APP Complete your setup with fast access to custom sound settings from your smartphone with the Arctis Companion App. Enjoy over 100+ game audio presets in-game or on the go. DOWNLOAD NOW – steelseries.com/arctis-companion-app STEELSERIES GG Use Engine inside SteelSeries GG to set custom equalizer settings and control your mic. GG also has other amazing apps like Sonar, a breakthrough in gaming sound, that allows you to hear what matters most, through cutting-edge audio tools. DOWNLOAD NOW – steelseries.com/gg DOWNLOAD NOW DOWNLOAD NOW GG Home Moments Engine Sonar ARCTIS NOVA 3X WIRELESS 4 PRODUCT OVERVIEW HEADSET 1 Microphone Mute Button 2 Volume Wheel and Multi-Function Button 3 LED Ring 4 Power Button 5 USB-C Charging Jack 6 Detachable ClearCast Microphone Jack 7 Airweave Ear Cushions* 8 Elastic Headband* 9 Detachable ClearCast Microphone 7 8 9 1 2 3 4 5 6 5 USB-C WIRELESS 2.4 GHZ DONGLE 10 Pairing Button ACCESSORIES* 11 USB-C to USB-C Charging Cable* 12 Microphone Pop Filter 10 1112 *Find accessories and replacement parts at steelseries.com/gaming-accessories 6 QUICK START GUIDE Arctis Nova 3P Wireless can easily switch between a dongle and Bluetooth connection for seamless usability. Need to take a call while you’re gaming? Want to switch from your phone to your Console? Get started here. POWER ON/OFF ON: Press and hold the Power Button (4) for 1 second to power the headset On. You will hear a Power On Sound Effect. OFF: Press and hold the Power Button (4) for 2 seconds to power the headset Off. 2.4 G MODE 1 Plug the USB-C Wireless 2.4 GHz Dongle into your PlayStation, PC or other compatible device directly. 2 Once the headset is turned on you will hear the connected sound effect and the LED Ring (3) on the headset will blink slowly. BLUETOOTH MODE 1 To switch to Bluetooth mode, press the Power Button (4) on the headset and you will enter pairing mode. 2 Go to your main device’s Bluetooth settings and pair to the “Arctis Nova 3P Wireless” device. Once successfully paired the blue LED Ring (3) will go from fast blinking to blinking slowly. 3 Now that you’re setup you can switch between 2.4 GHz mode and Bluetooth mode seamlessly with the press of the Power Button (4) . 7 SETUP *USB-C to USB-A Adapter (not included) needed for docked mode. PLAYSTATION 5 AUDIO SETTINGS PS5 SETTING > SOUND > MICROPHONE Input Device SteelSeries Arctis Nova 3P Wireless PS5 SETTING > SOUND > AUDIO OUTPUT Output Device SteelSeries Arctis Nova 3P Wireless PS5 SETTING > SOUND > AUDIO OUTPUT Output to Headphones All Audio PS5 SETTING > SOUND > VOLUME > HEADPHONES Set to Max PS5 PC Android iPhone 15/16 USB-C Tablet Switch* Mac Any BT Device 2.4 GHz 8 POWER CHARGING To charge the headset, connect the USB-C to USB-C Charging Cable* (11) from the Headset’s USB-C Charging Jack (5) to any USB power source. The color of the power LED indicates the battery level. Green 100–51 % Yellow 50–15 % Orange 14–6 % Red 5–1 % DONGLE PAIRING Note: The headset and dongle come paire…

Text truncated - open the document above for the full version.

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 11/6/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: ZHK-HS40; ZHK-HS40TX; ZHK-HS40TXX Per section 2.911(d)(7) of the FCC rules, GN Audio USA Inc. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: FRN: 0033478405 Company Name: GN Audio USA Inc. Physical U.S. Company Address: 900 Chelmsford Street, Tower II, 8th Floor, Lowell, MA 01851, USA Agent name: Chirky Lin Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Chirky Lin Printed name: Click here to enter text. Title: SENIOR REGULATORY MANAGER Title: Click here to enter text. Company Name: GN Audio USA Inc. Company Name: Click here to enter text. Date: 11/6/2024 Date: Click here to enter a date.

Covered Equipment Certification Attestation Letter 11/6/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: ZHK-HS40TX GN Audio USA Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes certifying that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. GN Audio USA Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Chirky Lin Title: Senior Regulatory Manager Company Name: GN Audio USA Inc. Date: 11/6/2024

ATE : 2024-11-6 FCC ID: ZHK-HS40TX Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., Taoyuan City, 33848, Taiwan(R.O.C.) Name: Nina Hsu For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with us. Signature FCC grantee contact person information. Name/Title: Chirky Lin / SENIOR REGULATORY MANAGER Company Name: GN Audio USA Inc. Address: 900 Chelmsford Street, Tower II, 8th Floor, Lowell, MA 01851, USA TEL: +886-2-8227-1999# 334 FAX: +886-2-8227-1050 Email: [email protected] 900 Chelmsford Street, Tower II, 8th Floor, Lowell, MA 01851, USA

December 17, 2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: ZHK-HS40TX Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of 180 days days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☒ Short Term Internal Photos ☐ Permanent* ☒ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☐ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☒ Short Term User’s Manual ☐ Permanent* ☒ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Chirky Lin Title: Senior Regulatory Manager Company Name: GN Audio USA Inc.

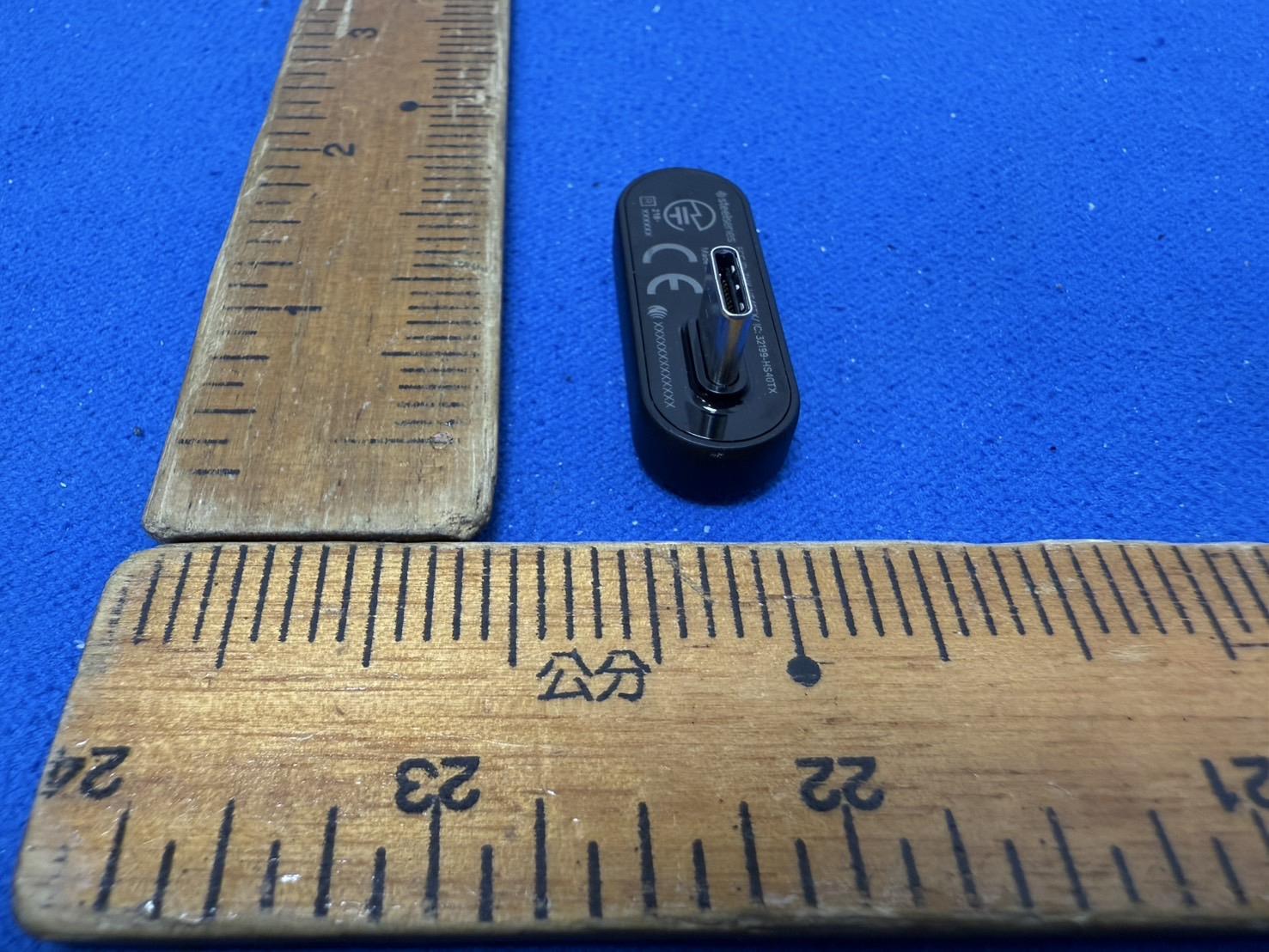

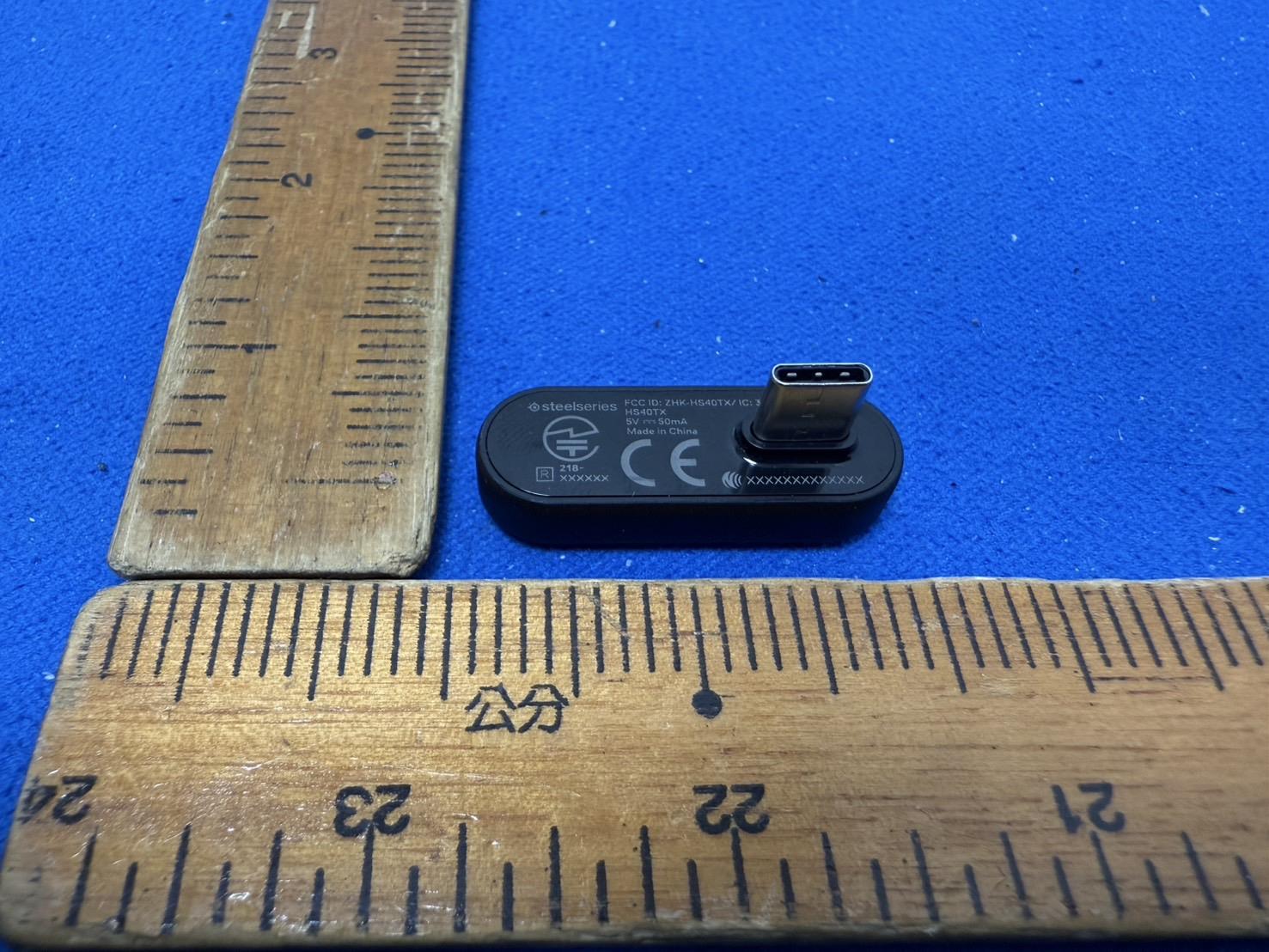

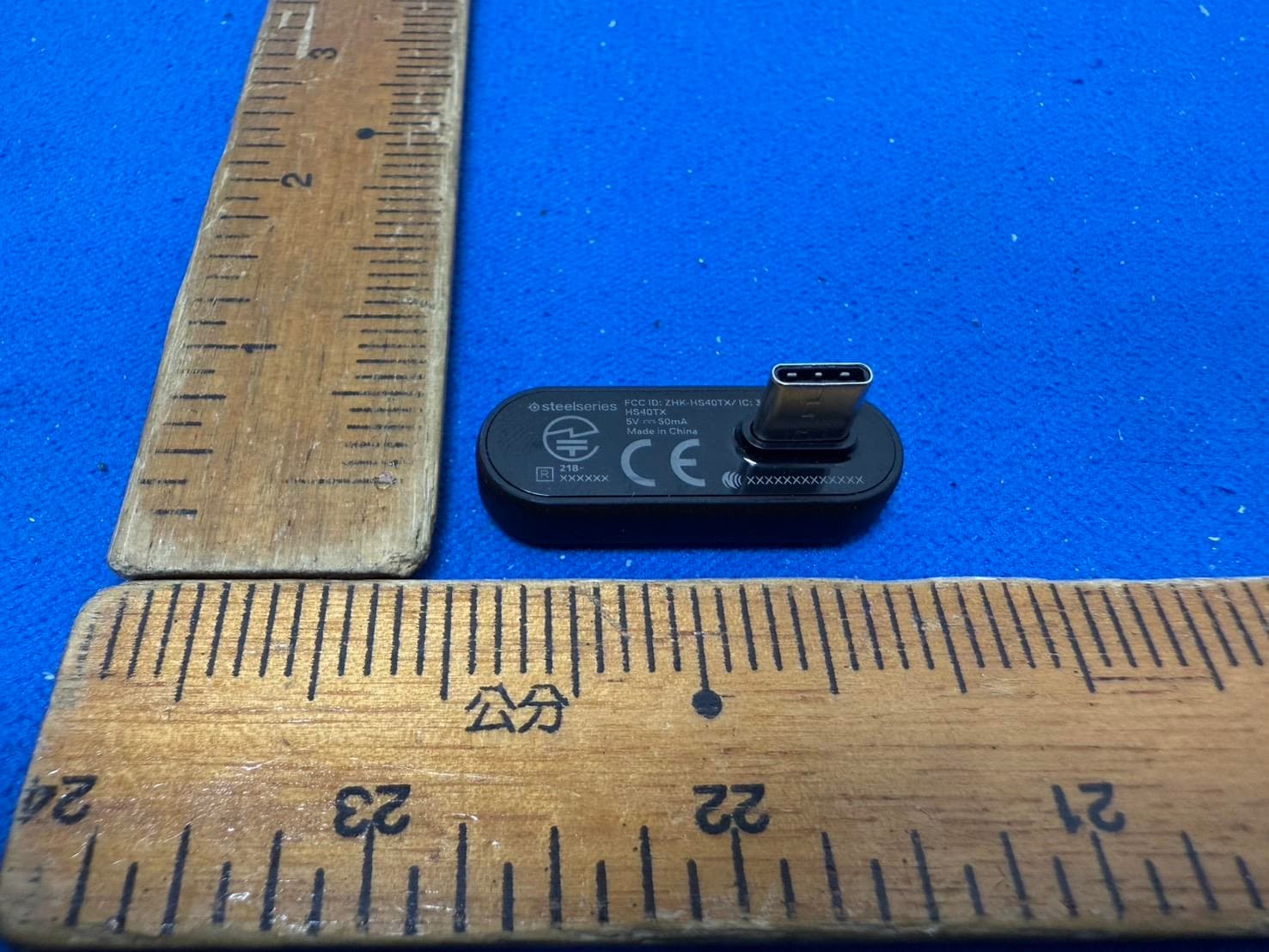

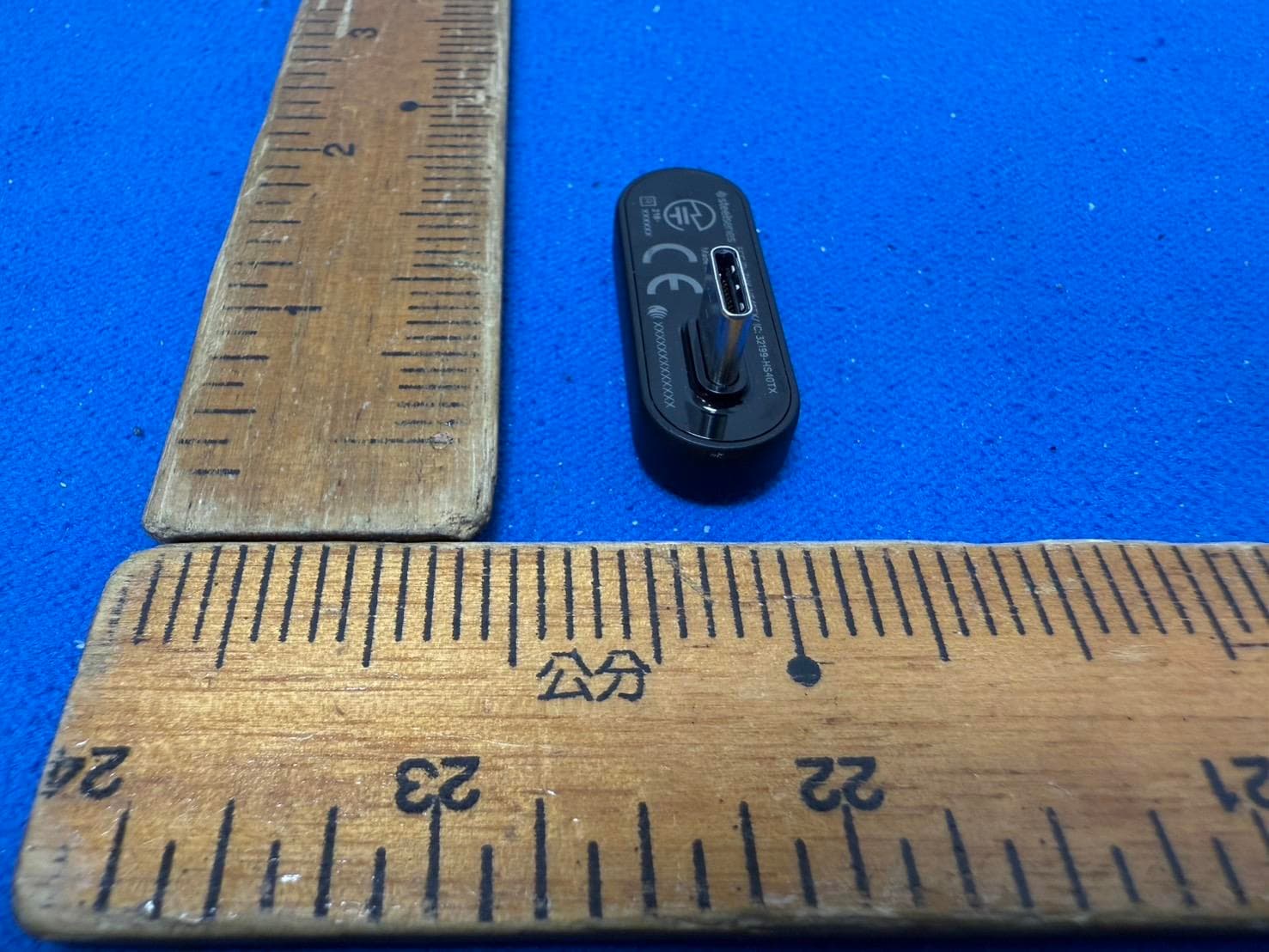

Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A1 of A11 Report No.:24100319 CR03111004-A Photographs of EUT Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A2 of A11 Report No.:24100319 CR03111004-A Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A3 of A11 Report No.:24100319 CR03111004-A Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A4 of A11 Report No.:24100319 CR03111004-A Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A10 of A11 Report No.:24100319 CR03111004-A USB-A to USB -C Adapter Brand: SANJI ELECTRONICS CO, LTD ,Model: XUC-005ABQ0-N0A1 Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A11 of A11 Report No.:24100319 CR03111004-A

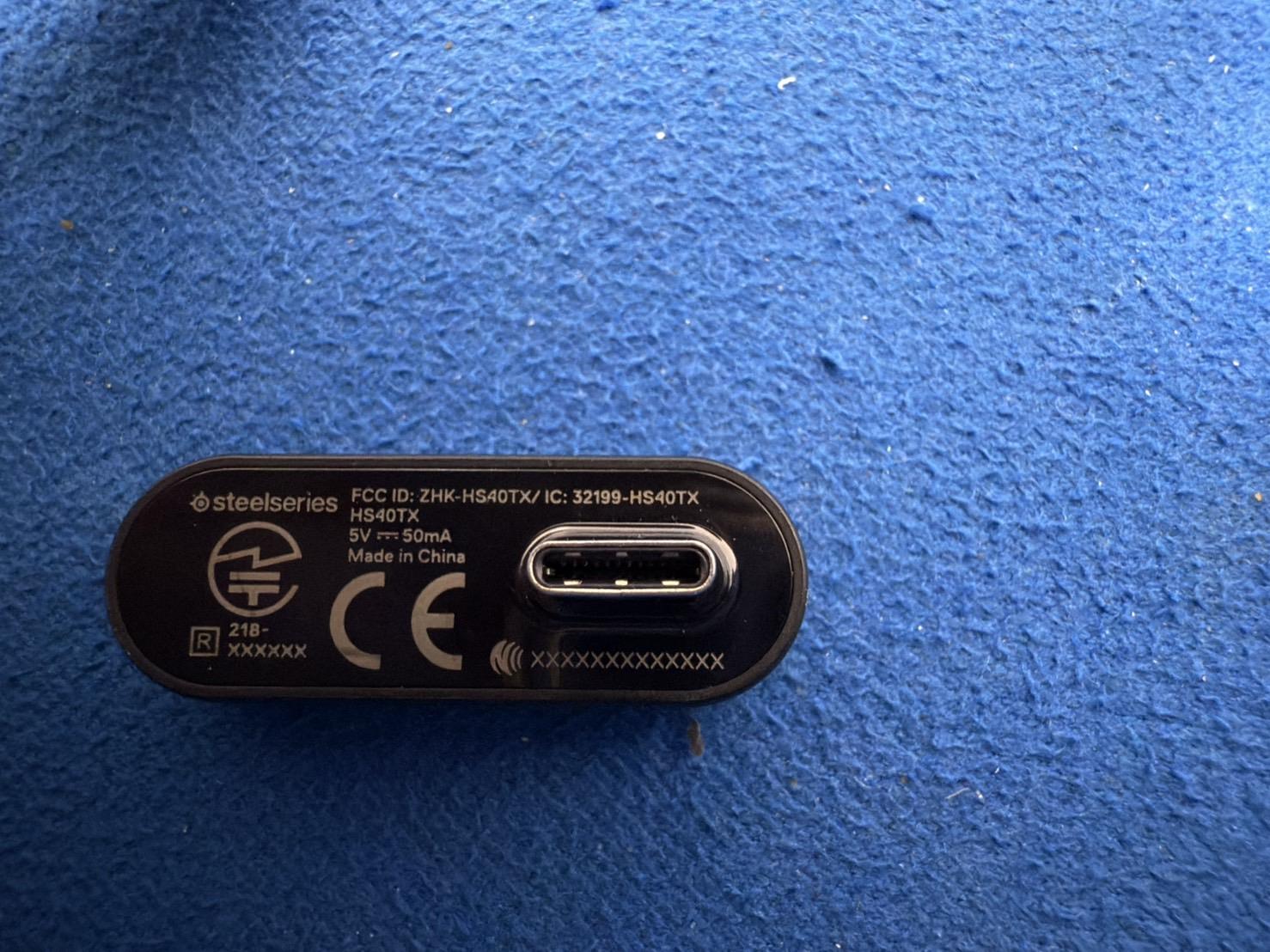

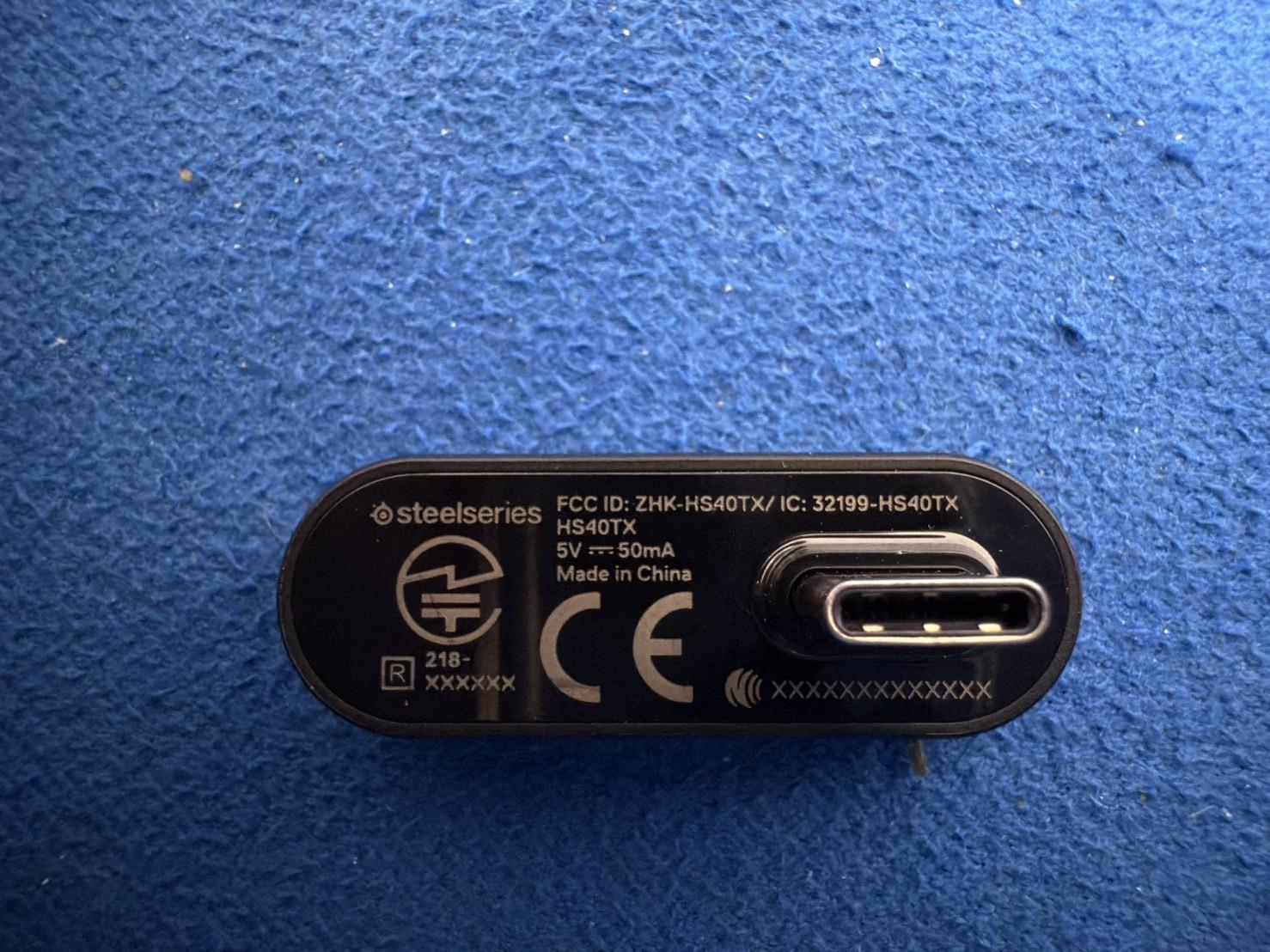

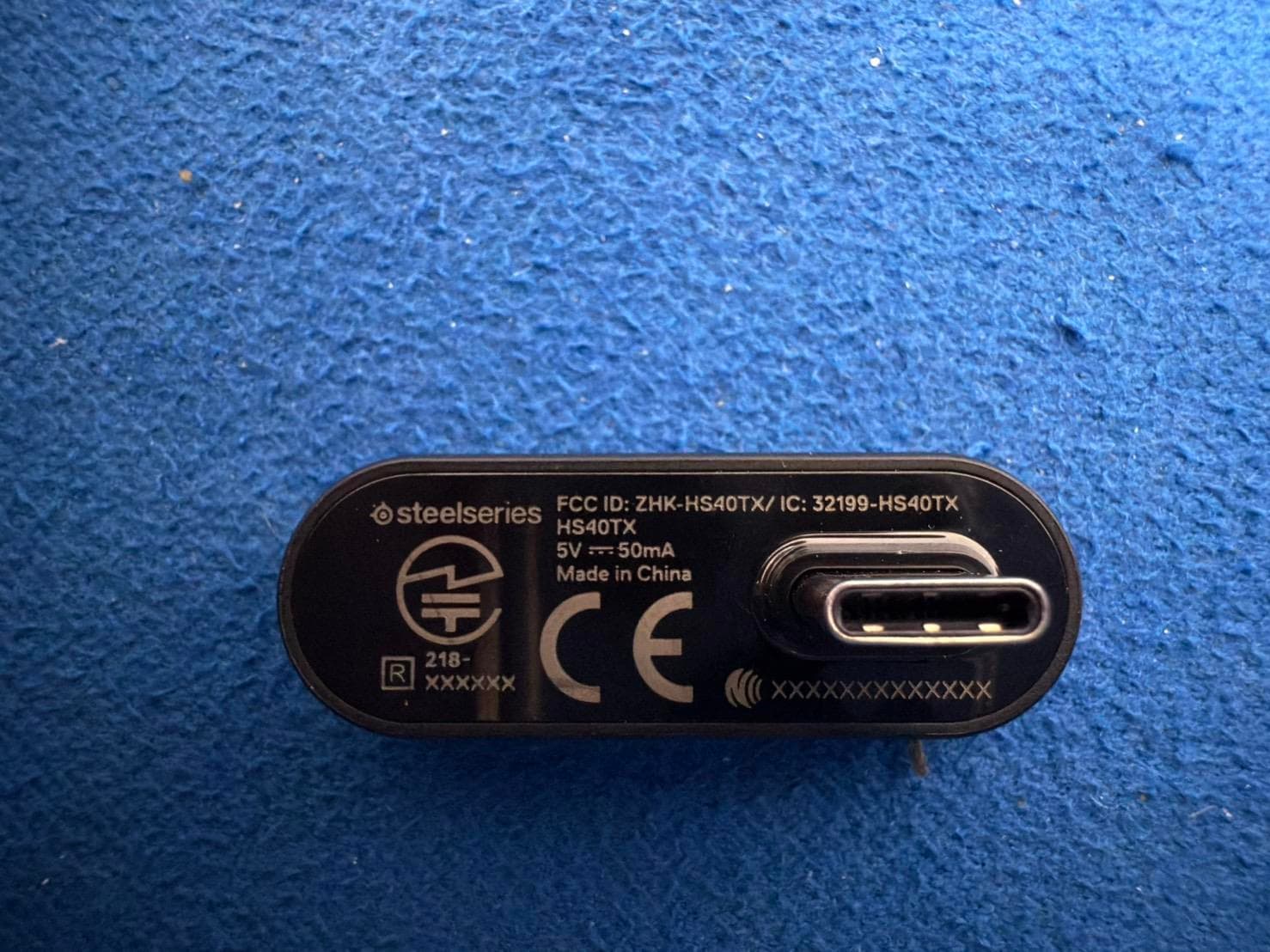

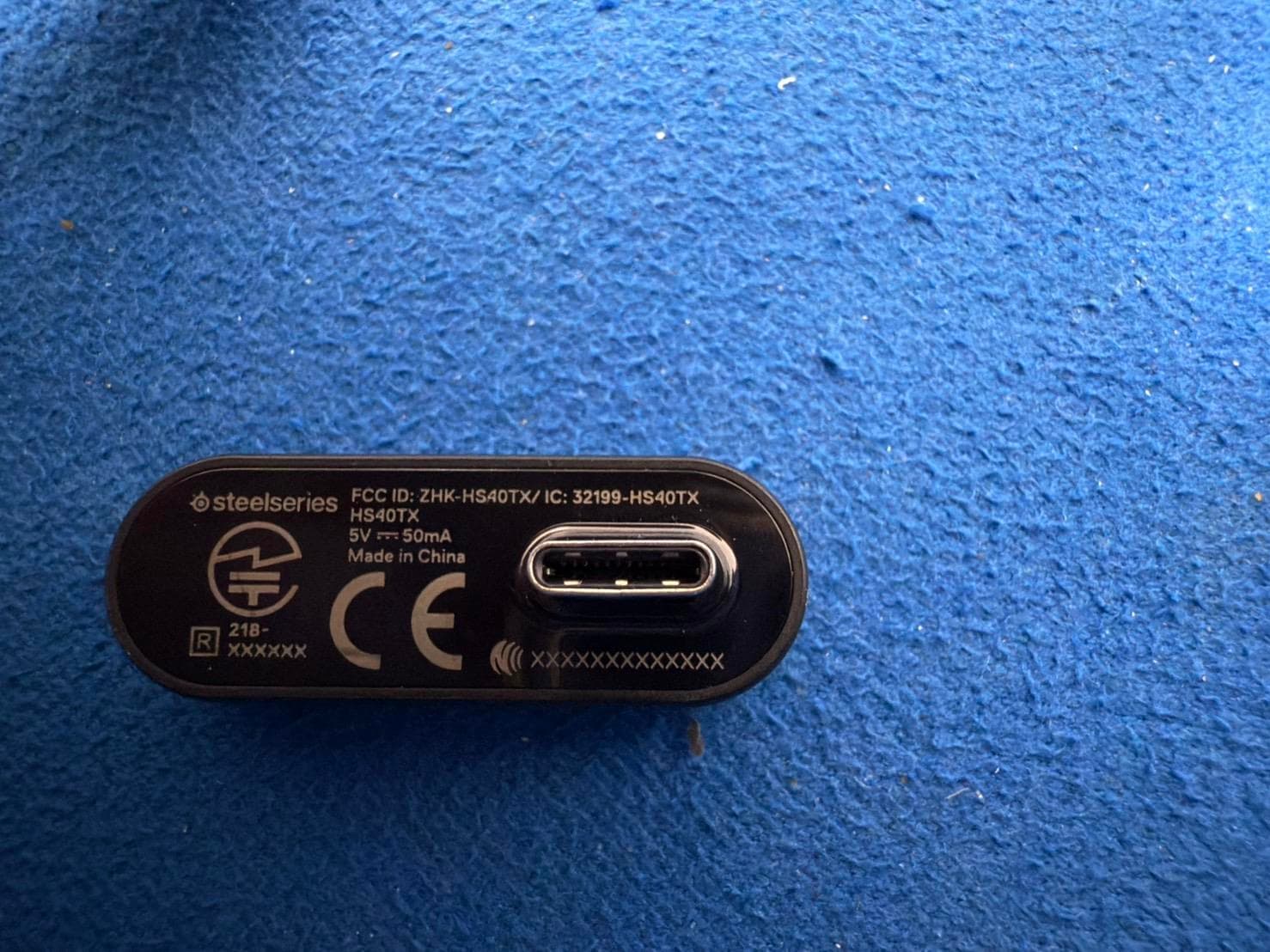

Label & location

Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A5 of A11 Report No.:24100319 CR03111004-A Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A6 of A11 Report No.:24100319 CR03111004-A Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A7 of A11 Report No.:24100319 CR03111004-A RF Chip Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A8 of A11 Report No.:24100319 CR03111004-A Cerpass Technology Corp. Issued Date: Jun. 10, 2025 Page No. A9 of A11 Report No.:24100319 CR03111004-A Antenna position

CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 1 of 33 FCC ID. : ZHK-HS40TX SAR TEST REPORT Applicant : GN Audio Taiwan Ltd. Address : 4F.-4, No. 186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235603, Taiwan Equipment : Transceiver Model No. : HS40TX Trade Name : FCC ID. : ZHK-HS40TX I HEREBY CERTIFY THAT : The sample was received on Oct. 24, 2024 and the testing was completed on Nov. 25, 2024 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Angelo Chang / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 2 of 33 FCC ID. : ZHK-HS40TX Contents 1. Summary of Maximum SAR Value..................................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 3. General Information of Test ............................................................................................................... 7 4. Remarks and comments .................................................................................................................... 8 5. Basic restrictions and Standards ...................................................................................................... 9 5.1 Test Standards ........................................................................................................................... 9 5.2 Reference Standards ................................................................................................................. 9 5.3 Environment Condition ............................................................................................................. 10 5.4 RF Exposure Limits .................................................................................................................. 10 6. Test & System Description ............................................................................................................... 11 6.1 SAR Definition .......................................................................................................................... 11 6.2 SAR Measurement System ...................................................................................................... 12 6.3 Probes ...................................................................................................................................... 13 6.4 Data Acquisition Electronics (DAE) .......................................................................................... 13 6.5 Robot ........................................................................................................................................ 14 6.6 SAM Phantom .......................................................................................................................... 15 6.7 Device Holder ........................................................................................................................... 16 6.8 Test Equipment and Ancillaries Used for Tests ........................................................................ 17 6.9 Annual Internal Check of Dipole .............................................................................................. 18 7. The SAR Measurement Procedure .................................................................................................. 19 7.1 System Performance Check .................................................................................................... 19 8. SAR Measurement Procedure ......................................................................................................... 23 8.1 Test Procedures ....................................................................................................................... 23 8.2 RF Exposure Positions ............................................................................................................. 26 8.3 Measurement Evaluation ......................................................................................................... 27 9. Wi-Fi SAR Exclusion and Results ................................................................................................... 28 9.1 Measured Conducted Average Power ..................................................................................... 28 9.2 Antenna Location ..................................................................................................................... 29 9.3 SAR Test Results Summary ..................................................................................................... 30 9.4 SAR Measurement Variability .................................................................................................. 31 10. Simultaneous Transmission Analysis ............................................................................................ 32 10.1 Co-location ............................................................................................................................... 32 10.2 SPLSR Evaluation .................................................................................................................... 32 11. Measurement Uncertainty ................................................................................................................ 33 CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 3 of 33 FCC ID. : ZHK-HS40TX Appendix A. DASY Calibration Certificate Appendix B. System Performance Check Appendix C. Measured Conducted Pow…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 1 of 2 Tissue Calibration Result : 6.1.3 Limit σεr (e')σεr (e')1g10g% 245021.31.8438.31.839.22.22%-2.30%±5%2024/11/25 Measured Values (W/kg)Target Values (W/kg)Deviation[%] Measured. Date Frequency (MHz) Liquid Temp Result of System Performance Check : 6.1.7 Limit 1g 10g 1g 10g 1g 10g % 2450 914 12.3 5.79 13 6.1 -5.38% -5.08% ±10% 2024/11/25 Measured. Date Frequency (MHz) Dipole S/N Measured SAR Values (W/kg)Target SAR Values (W/kg)Deviation[%] Appendix B. System Performance Check CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 2 of 2 System Performance Check Report System Check_Head_2450MHz Dipole Frequency [MHz] TSL Power [dBm] D2450V2 - SN914 2450.0 Head 24.0 Exposure Conditions Phantom Section, TSL Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 10 CW, 2450 7.41 1.84 38.3 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date ELI V5.0 (20deg probe tilt) 1211 HSL2450 EX3DV4 - SN3927, 2024-07-31 DAE4 Sn1379, 2024-08-07 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2024-11-25 2024-11-25 psSAR1g [W/Kg] 12.5 12.3 psSAR10g [W/Kg] 5.78 5.79 Power Drift [dB] 0.01 0.01 Power Scaling Disabled Disabled TSL Correction No correction No correction CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 1 of 2 2402 GFSK 0 1M 10.35 10.50 9.08 2441 GFSK 39 1M 10.32 10.50 9.05 2480 GFSK 78 1M 9.87 10.00 8.60 2402 π/4-DQPSK 0 2M 7.65 8.00 6.38 2441 π/5-DQPSK 39 2M 7.72 8.00 6.45 2480 π/6-DQPSK 78 2M 7.29 7.50 6.02 2402 8DPSK 0 3M 7.71 8.00 6.44 2441 8DPSK 39 3M 7.77 8.00 6.50 2480 8DPSK 78 3M 7.31 7.50 6.04 EIRP Power Target power Conducted Power FrequencyModulationChannelData Rate 2402 GFSK 0 1M 6.78 7 5.51 2440 GFSK 19 1M 6.86 7 5.59 2480 GFSK 39 1M 6.84 7 5.57 2402 GFSK 0 2M 7.47 8 6.2 2440 GFSK 19 2M 7.52 8 6.25 2480 GFSK 39 2M 7.03 8 5.76 Target power FrequencyModulationChannelData Rate Conducted Power EIRP Power Appendix C. Measured EIRP Power CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 2 of 2 \ Modulation Type On Time (ms) Period Time (ms) Duty Cycle (%) GFSK-DH5 2.91 3.80 77% Considerations Related to Bluetooth for Setup and Testing CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 1 of 2 HS40TX 1 SRD GFSK 0 2402 Front 0 10.35 10.5 9.08 77 0.493 0.66 SRD GFSK 39 2441 Front 0 10.32 10.5 9.05 77 0.444 0.60 SRD GFSK 78 2480 Front 0 9.87 10.0 8.6 77 0.458 0.61 SRD GFSK 0 2402 Left 0 10.35 10.5 9.08 77 0.048 0.07 SRD GFSK 0 2402 Right 0 10.35 10.5 9.08 77 0.05 0.07 SRD GFSK 0 2402 Top 0 10.35 10.5 9.08 77 0.393 0.53 SRD GFSK 0 2402 Bottom 0 10.35 10.5 9.08 77 0.168 0.23 Conducted Power (dBm) Plot.NoBandModeChannel Frequency (MHz) Test Position Gap (mm) Tune-up (dBm) Duty Cycle (%) SAR 1g (W/Kg) Reported SAR 1g (W/Kg) EIRP Power (dBm) Appendix D. SAR Measurement Data CERPASS TECHNOLOGY CORP. Report No.: 24100319-TRFCC06 Cerpass Technology Corp. Issued Date : Jan. 17, 2025 T-FD-601-0 Ver 2.0 Page No. : 2 of 2 .Measurement Report for HS40TX 01 SRD_GFSK_CH0_Front_0mm Model, Manufacturer Dimensions [mm] HS40TX 38.0 x 14.0 x 8.0 Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL FRONT, 0.00 ISM 2.4 GHz Band Bluetooth, 10032-CAA 2402.000, 0 7.41 1.84 40.6 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date ELI V5.0 (20deg probe tilt) -1211 HSL2450 Charge EX3DV4 - SN3927, 2024-07-31 DAE4 Sn1379, 2024-08-07 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 60.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Surface Detection VMS + 6p VMS + 6p Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2024-11-25 2024-11-25 psSAR1g [W/kg] 0.534 0.493 psSAR10g [W/kg] 0.214 0.198 Power Drift [dB] -0.04 -0.15 M2/M1 [%] 78.4 Dist 3dB Peak [mm] 8.0

文档密级：Internal 歌尔保密资料，未经授权禁止扩散 20 Dongle： 1. Antenna form: monopole antenna. 2. Antenna matching: L2 and 33nH inductance, L4 series 1nH; It's 3.6nH at C73. 3. TRP/TIS: The average TRP is 5.7dB and the average TIS is - 88.2dB when plugged into an ordinary computer; Plug-in metal laptop TRP average 7.3dB, TIS average -89.6dB. DVT dongle data Competing Dongle： 1. TRP/TIS: The average value of TRP when plugged into an ordinary computer is 5.4dB; Insert metal laptop TRP average 6.5dB, TIS average -89dB. Conclusion: DVT dongle is slightly better than its competitors in objective laboratory data. L2 C29 L4 C73 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 Dongle IC S11： DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 22 dongle Antenna FrequencyEfficiency(dB)Authentication reference gain(dBi) 2.402GHz -3.46-1.27 2.44GHz -3.69-1.49 2.48GHz -3.51-1.34 Free space Passive test： DVT dongle antenna data The antenna gain required for authentication shall be based on this table 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 Dongle metal computer status test environment ： cable was used to connect the dark room with passive fixtures DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 24 Antenna ChannelTRP (dBm)TIS 0 6.91-89.12 39 7.05-89.65 78 7.38-89.34 metal computer Active test& Antenna pattern(PS 1#)： Y X Z DVT dongle antenna data Conclusion: OTA testing of DVT dongle meets the requirements. 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 25 Antenna ChannelTRP (dBm)TIS 0 7.09-89.64 39 7.3-89.83 78 7.6-89.85 metal computer Active test& Antenna pattern(PS 2#)： Y X Z DVT dongle antenna data Conclusion: OTA testing of DVT dongle meets the requirements. 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 26 Antenna ChannelTRP (dBm)TIS 0 7.04-89.32 39 7.68-89.59 78 7.36-89.63 metal computer Active test& Antenna pattern(XBOX 1#) ： Y X Z DVT dongle antenna data Conclusion: OTA testing of DVT dongle meets the requirements. 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 27 Conclusion: OTA testing of DVT dongle meets the requirements. Antenna ChannelTRP (dBm)TIS 0 7.24-89.76 39 7.74-90.25 78 7.69-90.03 metal computer Active test& Antenna pattern(XBOX 2#) ： Y X Z DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 Dongle plastic computer status test environment ： cable was used to connect the dark room with passive fixtures DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 29 plastic computer ： Active test & Antenna pattern(PS 1#)： Y X Z Front view Top view Antenna ChannelTRP (dBm)TIS 05.35-87.65 395.92-88.32 786.03-88.66 DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 30 plastic computer ： Active test & Antenna pattern(PS 2#)： Y X Z Antenna ChannelTRP (dBm)TIS 05.79-87.78 396.01-88.49 785.67-87.92 DVT dongle antenna data Front view Top view 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 31 plastic computer ： Active test & Antenna pattern(XBOX 1#) ： Y X Z Antenna ChannelTRP (dBm)TIS 06.06-88.57 396.2-88.62 785.9-87.95 DVT dongle antenna data Front view Top view 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 32 plastic computer ： Active test & Antenna pattern(XBOX 2#) ： Y X Z Antenna ChannelTRP (dBm)TIS 05.66-87.46 396.07-88.31 785.87-87.35 DVT dongle antenna data Front view Top view 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 33 Extension cable S11 &Active test (PS 1#)： AntennaFrequencyS11(dB)Limit(dB)Pass or Fail dongle 2.402GHz~2.48GHz<-10 <-10 pass dongle Antenna ChannelTRP (dBm)TIS 07.04-88.56 396.81-88.31 786.13-88.02 DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 34 Extension cable S11 &Active test(PS 2#) ： AntennaFrequencyS11(dB)Limit(dB)Pass or Fail dongle 2.402GHz~2.48GHz<-10 <-10 pass dongle Antenna ChannelTRP (dBm)TIS 06.65-88.42 396.71-88.79 786.3-88.17 DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 35 Extension cable S11 &Active test (XBOX 1#) ： AntennaFrequencyS11(dB)Limit(dB)Pass or Fail dongle 2.402GHz~2.48GHz<-10 <-10 pass dongle Antenna ChannelTRP (dBm)TIS 06.8-88.32 396.59-88.15 785.93-87.97 DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 36 Extension cable S11 &Active test (XBOX 2#) ： AntennaFrequencyS11(dB)Limit(dB)Pass or Fail dongle 2.402GHz~2.48GHz<-10 <-10 pass dongle Antenna ChannelTRP (dBm)TIS 06.69-88.45 396.43-88.27 785.78-87.76 DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 37 Extension cable （-Y） Antenna pattern(PS 1#)： Y X Z Front view Top view DVT dongle antenna data 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 38 Y X Z Front view Top view DVT dongle antenna data Extension cable （-Y） Antenna pattern(PS 2#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 39 Y X Z Front view Top view DVT dongle antenna data Extension cable （-Y） Antenna pattern(XBOX 1#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 40 Y X Z Front view Top view DVT dongle antenna data Extension cable （-Y） Antenna pattern(XBOX 2#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 41 Y X Z Front view Top view DVT dongle antenna data Extension cable （+Y） Antenna pattern(PS 1#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 42 Y X Z Front view Top view DVT dongle antenna data Extension cable （+Y） Antenna pattern(PS 2#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 43 Y X Z Front view Top view DVT dongle antenna data Extension cable （+Y） Antenna pattern(XBOX 1#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 44 Y X Z Front view Top view DVT dongle antenna data Extension cable （+Y） Antenna pattern(XBOX 2#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 45 Y X Z Front view Top view DVT dongle antenna data Extension cable （+Z） Antenna pattern(PS 1#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 46 Y X Z Front view Top view DVT dongle antenna data Extension cable （+Z） Antenna pattern(PS 2#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 47 Y X Z Front view Top view DVT dongle antenna data Extension cable （+Z） Antenna pattern(XBOX 1#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 48 Y X Z Front view Top view DVT dongle antenna data Extension cable （-Y） Antenna pattern(XBOX 2#)： 文档密级：Internal 歌尔保密资料，未经授权禁止扩散 49 DVT headphones a…

Text truncated - open the document above for the full version.
