ZHK-M00027Wireless Mouse

PRODUCT INFORMATION GUIDE PRIME MINI WIRELESS CONTENTS Welcome 2 SteelSeries Engine 3 Product Overview 5–6 Setup 7 Connecting via 2.4 GHz Wireless Connecting via Cable CPI Button Functions 8 Battery Level Indicator 9 Translations Español 10 简体中文 11 繁體中文 13 日本語 14 한국어 16 Deutsch 17 Русский 19 Français 21 Italiano 23 Português 25 Polskie 26 Regulatory 29 PRIMED FOR VICTORY Your new mouse is the result of our unyielding pursuit of perfection for over 20 years. We poured our hearts into creating the best possible gaming mouse by pushing the boundaries of performance through precision, comfort, and durability. The Prime Mini Wireless is our glory; now go chase yours. 2 STEELSERIES ENGINE STEELSERIES ENGINE To enjoy GameSense integration, program macros, and customize lighting effects and other mouse settings on your new Prime Mini Wireless mouse, download SteelSeries Engine at steelseries.com/engine 3 find help at support.steelseries.com PACKAGE CONTENTS Prime Mini Wireless Mouse USB Type-C to USB Type-A Cable (6'10" / 2.08 m) Extension Adapter USB Type-C Dongle Product Information Guide SYSTEM REQUIREMENTS / COMPATIBILITY PC Mac Xbox STEELSERIES ENGINE SOFTWARE REQUIREMENTS Platforms Windows 7+ Mac OS X 10.13+ 160 MB of free hard drive space for installation 4 11 3 7 10 7 7 8 2 9 56 4 PRODUCT OVERVIEW 1 Split Trigger Design Main Mouse Buttons 2 Scroll Wheel 3 Side Buttons 4 USB Type-C to USB Type-A Super Mesh Data/Charging Cable 5 USB Type-C Wireless Dongle 6 Extension Adapter 5 11 3 7 10 7 7 8 2 9 56 4 find accessories and replacement parts at steelseries.com/gaming-accessories 7 Virgin Grade PTFE Mouse Feet 8 CPI Button 9 Power Switch 10 TrueMove Air Sensor 6 4 6 5 5 2.4 GHz 2.4 GHz To further customize your mouse, or re-pair a Wireless Dongle 5 , download SteelSeries Engine software from steelseries.com/engine SETUP find help at support.steelseries.com CONNECTING VIA 2.4 GHZ WIRELESS CONNECTING VIA CABLE 7 CPI BUTTON FUNCTIONS CPI VALUE Quick press the CPI Button 8 to change the CPI level. A solid color will appear on the Scroll Wheel 2 for three seconds to signify the CPI level. Level 1 400 CPI Purple Level 2 800 CPI Blue Level 3 1200 CPI Green Level 4 2400 CPI Yellow Level 5 3200 CPI Red POLLING RATE Long press the CPI Button 8 to change the polling rate once. A flashing color will appear on the Scroll Wheel 2 for three seconds to signify the polling rate level. Long press again to cycle through polling rates. Level 1 1000 Hz Red Level 2 500 Hz Yellow Level 3 250 Hz Green Level 4 125 Hz Blue FACTORY RESET Press and hold the CPI Button 8 and both Mouse Buttons 1 together for five seconds. The Scroll Wheel 2 will flash pink three times before all settings will be reset to the factory settings. 8 9 BATTERY LEVEL INDICATOR During use, the mouse will flash red when 5 % or less battery remains. When turning on or waking from sleep, the mouse will flash a color to indicate remaining battery level: Red0–5 % battery Yellow6–10 % battery Green11–100 % battery When charging, the lighting will flash green for 5 seconds before resuming default lighting. 10 ESPAÑOL CONTENIDO DE LA CAJA Ratón Prime Mini Wireless Cable USB tipo C a USB tipo A (6’10” / 2,08 m) Adaptador de extensión Llave USB tipo C Guía informativa del producto REQUISITOS DEL SISTEMA/ COMPATIBILIDAD PC / Mac / Xbox REQUISITOS DE SOFTWARE DEL MOTOR STEELSERIES Plataformas Windows 7 o superior Mac OS X 10.13 o superior 160 MB de espacio libre en disco duro para la instalación DESCRIPCIÓN GENERAL DEL PRODUCTO 1 Botones principales del ratón con diseño de gatillo dividido 2 Rueda de desplazamiento 3 Botones laterales 4 Cable de carga/datos Super Mesh USB tipo C a USB tipo A 5 Adaptador inalámbrico USB tipo C 6 Adaptador de extensión 7 Pies de ratón de Virgin Grade PTFE 8 Botón CPI 9 Interruptor de alimentación 10 Sensor de aire TrueMove * Podrás encontrar accesorios y piezas de repuesto en steelseries.com/gaming-accessories CONFIGURACIÓN CONEXIÓN VÍA INALÁMBRICA 2,4 GHZ Para personalizar aún más tu ratón o volver a emparejar el adaptador inalámbrico 5 , descarga el software SteelSeries Engine de steelseries.com/engine CONEXIÓN POR CABLE información más detallada de los productos en steelseries.com/prime-wireless FUNCIONES DEL BOTÓN CPI VALOR CPI Pulsa rápidamente el botón CPI 8 para cambiar el nivel CPI. Aparecerá un color fijo en la rueda de desplazamiento 2 durante tres segundos para indicar el nivel CPI. 11 Nivel 1 400 CPI Púrpura Nivel 2 800 CPI Azul Nivel 3 1200 CPI Verde Nivel 4 2400 CPI Amarillo Nivel 5 3200 CPI Rojo TASA DE SONDEO Mantén pulsado el botón CPI 8 para cambiar la tasa de sondeo una vez. Aparecerá un color parpadeante en la Rueda de desplazamiento durante 2 tres segundos para indicar el nivel de tasa de sondeo. Vuelve a pulsarlo de nuevo para recorrer las tasas de sondeo. Nivel 1 1000 Hz Rojo Nivel 2 500 Hz Amarillo Nivel 3 250 Hz Verde Nivel 4 125 Hz Azul RESTABLECIMIENTO DE FÁBRICA Mantén pulsados 8 el botón CPI 1 y los dos botones del ratón al mismo tiempo durante cinco segundos. La Rueda 2 de desplazamiento parpadeará en rosa tres veces antes de que todos los ajustes se restablezcan a los valores de fábrica. INDICADOR DE NIVEL DE BATERÍA El ratón parpadeará en rojo cuando se esté utilizando y solo quede el 5% de la batería. Al encenderse o salir del modo de reposo, el ratón parpadeará en un color indicativo del nivel de carga de la batería: Rojo0–5 % batería Amarillo6–10 % batería Verde11–100 % batería Durante la carga, la iluminación parpadeará 5 segundos en verde antes de recuperar la iluminación estándar. 简体中文 包装内容 Prime Mini Wireless 鼠标 USB Type-C 到 USB Type-A 连接线 (6’10” / 2.08 m) 扩展适配器 USB Type-C 适配器 产品信息指南 系统要求/兼容性 PC/Mac/Xbox 12 STEELSERIES ENGINE 软件要求 平台 Windows 7+ Mac OS X 10.13+ 160 MB 可用硬盘空间供安装使用 产品概览 1 分离式设计按键 2 滚轮 3 侧键 4 USB Type-C 到 USB Type-A 卓越编织数据/充电线 5 USB Type-C 无线适配器 6 扩展适配器 7 Virgin Grade PTFE 鼠脚 8 CPI 按键 9 电源开关 10 TrueMove Air 传感器 * 如需配件和更换部件，请访问 steelseries.com/gaming-accessories 设置 连接 VIA 2.4…

Text truncated - open the document above for the full version.

DATE : 2021-05-17 FCC ID: ZHK-M00027 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., Taoyuan City, 33848, Taiwan(R.O.C.) Name: Leslie Chiu For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with us. Signature FCC grantee contact person information. Name/Title: Chirky Lin / Regulatory Matter Manager Company Name: SteelSeries ApS. Address: 656 W Randolph St., Suite 3E Chicago, IL 60661, USA TEL: +886 2 82263858#317 FAX: +886 2 82263626 Email: [email protected]

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZHK-M00027. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: long-term confidentiality Exhibit Type File Name Block Diagram Block Diagram.pdf Operational Description Operational Description.pdf Schematic Diagrams Schematics.pdf Justification for internal photos: The EUT use special screw, the Circuit board(s) or internal components are inaccessible to the user The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: short-term confidentiality Exhibit Type File Name External Photos External Photos.pdf User’s Manual User Manual.pdf Test Set-up Photos Test Setup Photos.pdf Internal Photos Internal Photos.pdf Planned release date STC: 180days after grant issued. Sincerely, Chirky Lin/ Regulatory Matter Manager SteelSeries ApS

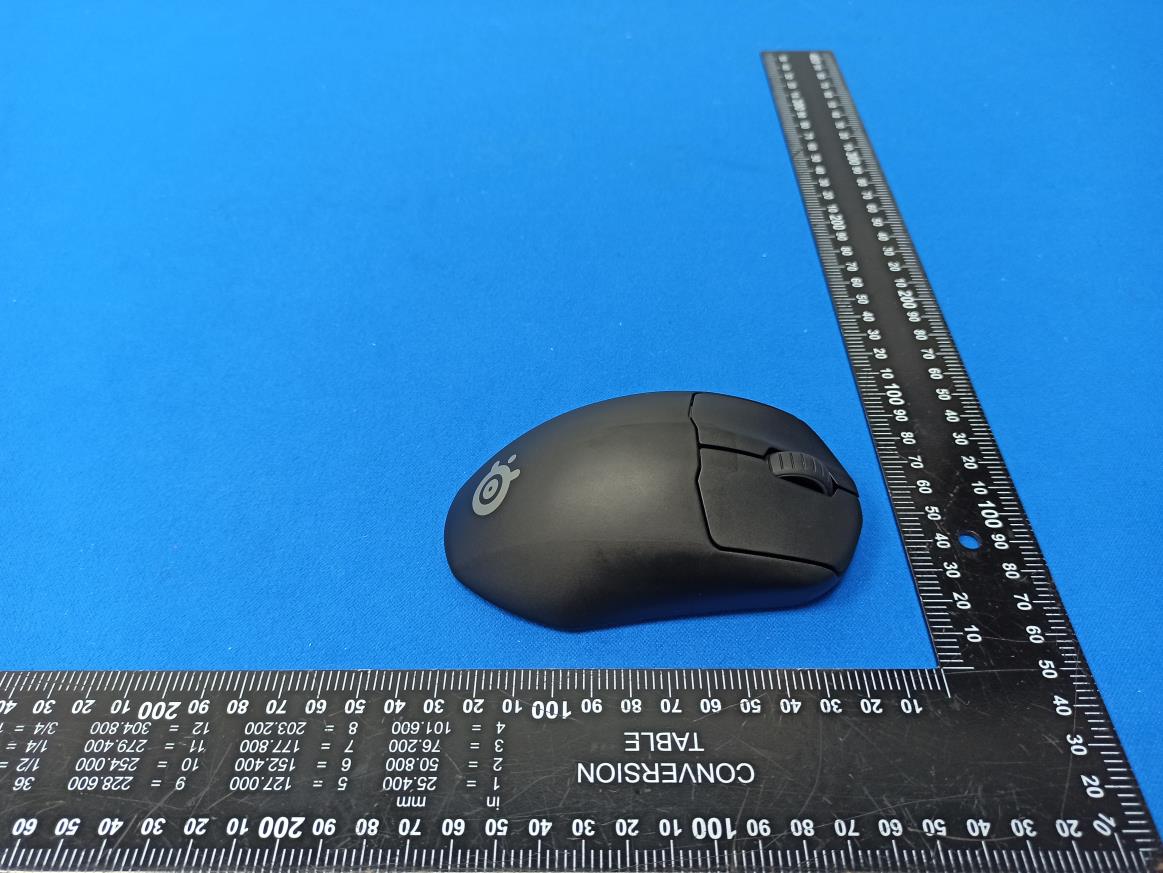

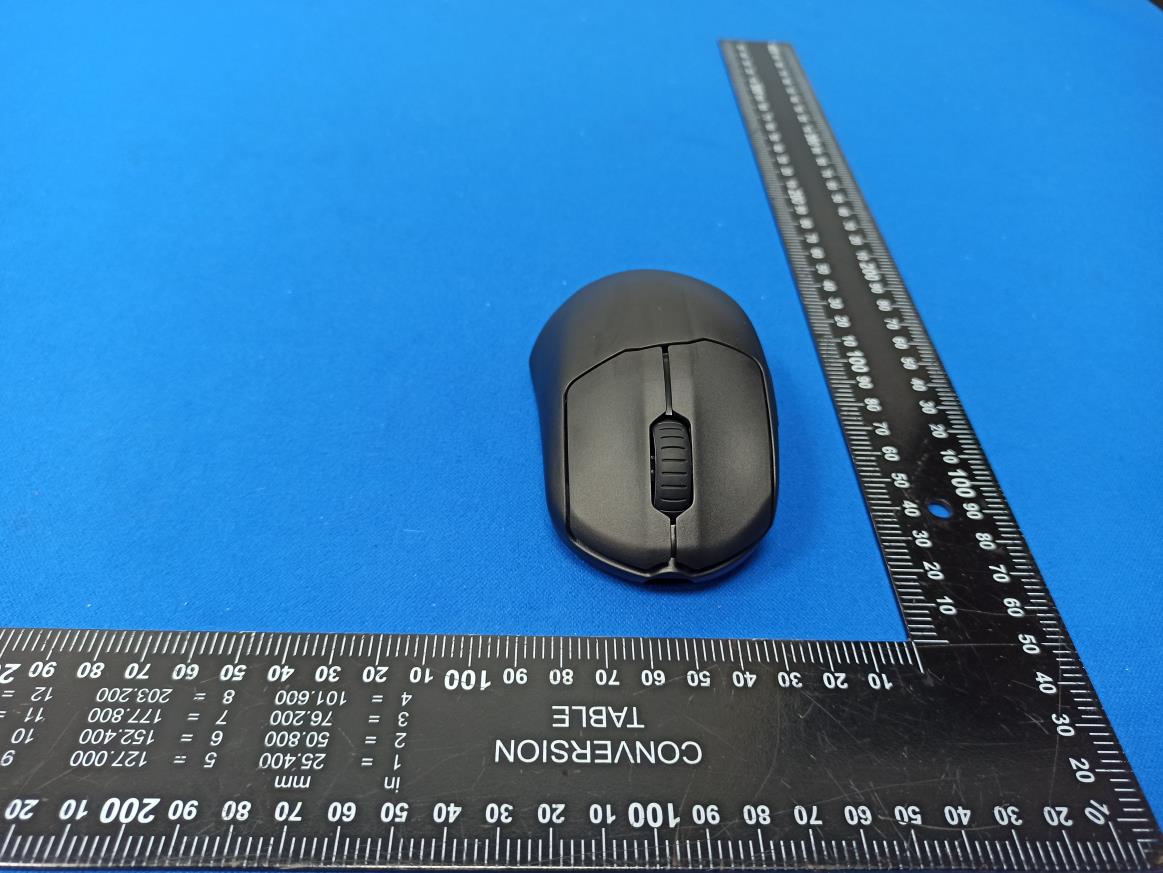

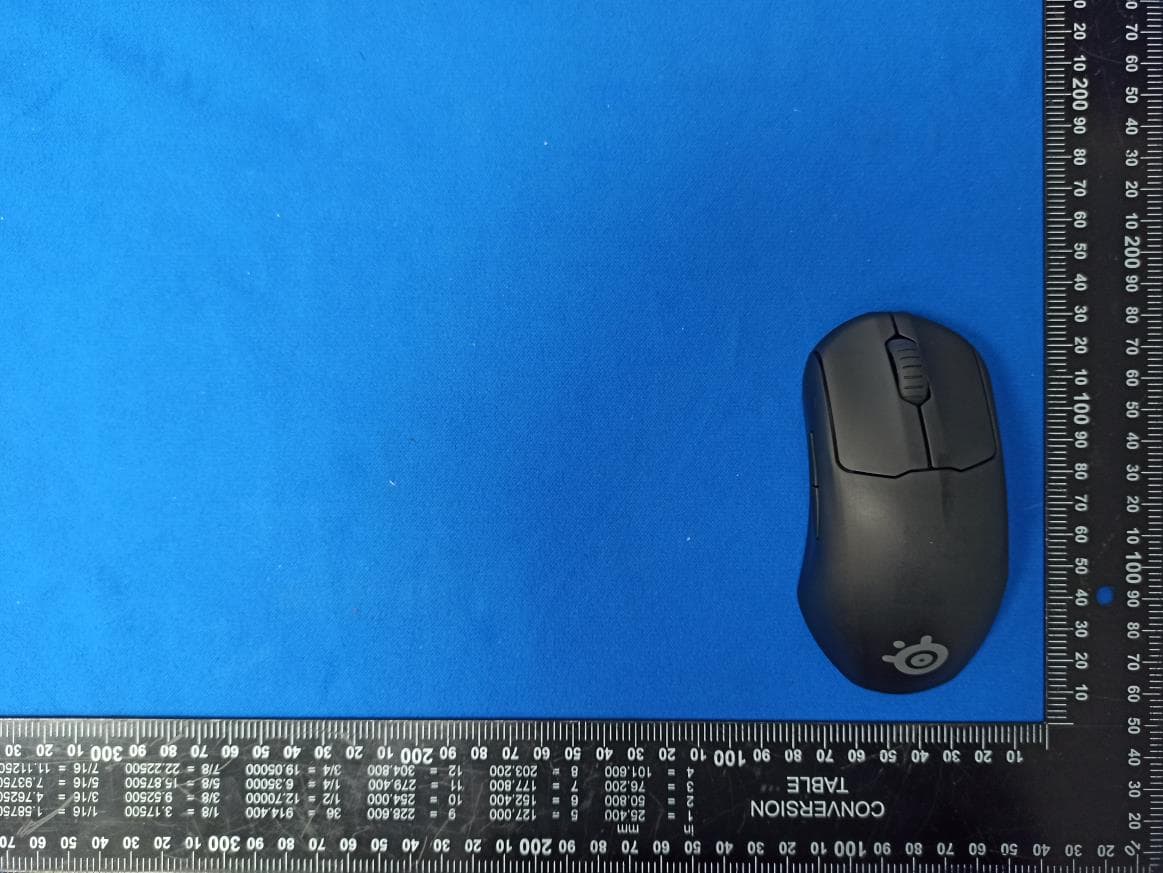

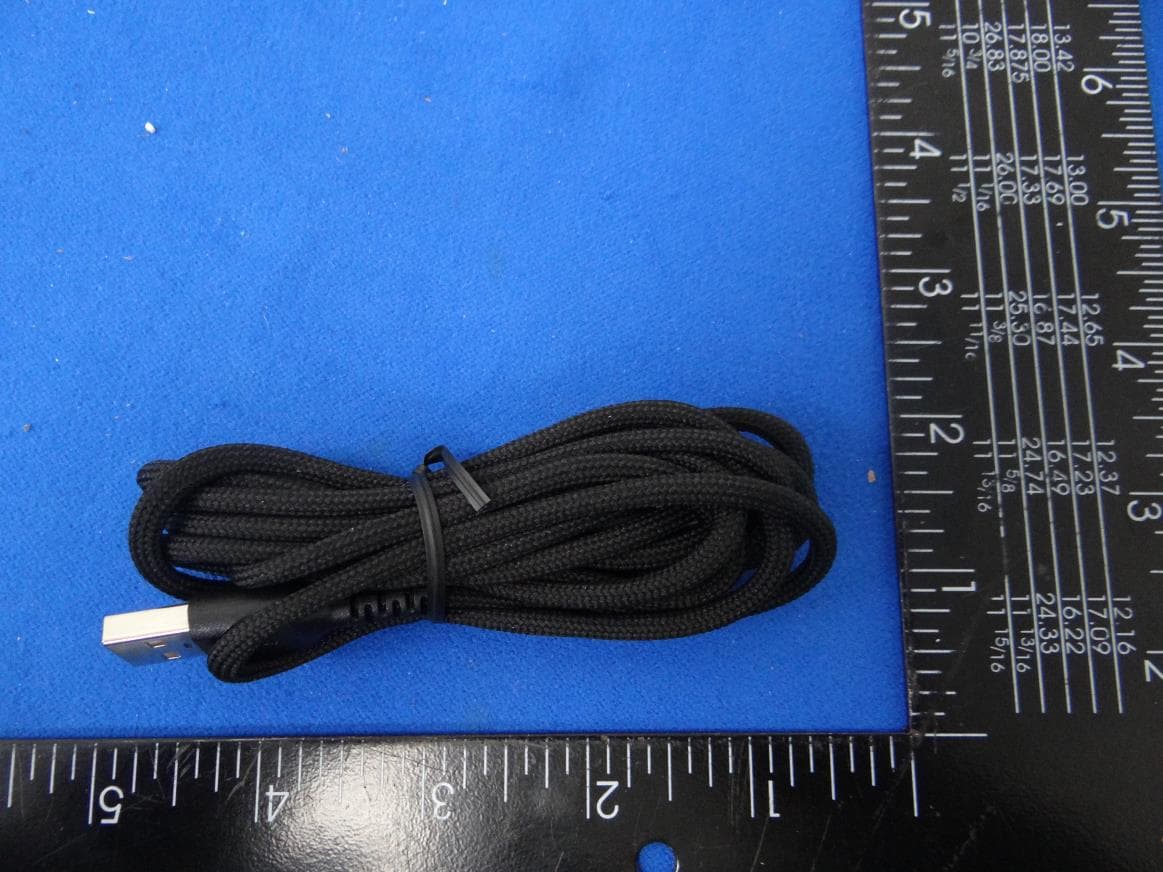

CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 1 of 9 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 2 of 9 CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 3 of 9 CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 4 of 9 CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 9 of 9 USB TYPE-C Cable: Brand:YUE YANG, Model:YY-032-99A

Des.: Silk-printing regulatoryDesigned: CarolScale: 1:1Unit: mmP/N: Prime Mini Wireless Gaming Mouse

CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 5 of 9 CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 6 of 9 CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 7 of 9 Antenna position CERPASS TECHNOLOGY CORP. Report No.: 21040002 Cerpass Technology Corp. Issued Date : May. 10, 2021 Page No. : 8 of 9 Battery: Brand:BPI, Model:PL 542630 RF Chip

CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 44 of 45 FCC ID. : ZHK-M00027 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1093) LIMIT KDB 447498 D01 § 4.3(a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where *f(GHz) is the RF channel transmit frequency in GHz * Power and distance are rounded to the nearest mW and mm before calculation *The result is rounded to one decimal place for comparison *The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz 2.4GHz: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is -0.67 dBm (0.857mW) at 2402MHz (with 3.03 dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 45 of 45 FCC ID. : ZHK-M00027 12.3 Test Results According to the KDB447498: The SAR test exclusion thresholds Level: [(max. power of channel, including tune-up tolerance, mW) /(min. test separation distance, mm)] * sqrt (freq. in GHz) < 3 Calculation Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Max. Tune up power (mW) Distance (mm) SAR test exclusion thresholds (mW) 2402-2480 -0.67 -0.17 0.96 5 10.00 Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 1 of 45 FCC ID. : ZHK-M00027 FCC RADIO TEST REPORT Applicant : SteelSeries ApS. Address : 656 W Randolph St., Suite 3E Chicago, IL 60661, USA Equipment : Wireless Mouse Model No. : M-00027 Trade Name : FCC ID. : ZHK-M00027 I HEREBY CERTIFY THAT : The sample was received on Apr. 09, 2021 and the testing was completed on May. 06, 2021 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 2 of 45 FCC ID. : ZHK-M00027 CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 7 2.5 General Information of Test ........................................................................................................ 8 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 10 4. Antenna Requirements ..................................................................................................................... 12 4.1 Standard Applicable ................................................................................................................. 12 4.2 Antenna Construction and Directional Gain ............................................................................. 12 5. Test of AC Power Line Conducted Emission ................................................................................. 13 5.1 Test Limit .................................................................................................................................. 13 5.2 Test Procedures ....................................................................................................................... 13 5.3 Typical Test Setup .................................................................................................................... 14 5.4 Test Result and Data ................................................................................................................ 15 5.5 Test Photographs ..................................................................................................................... 17 6. Test of Spurious Emission (Radiated) ............................................................................................ 18 6.1 Test Limit .................................................................................................................................. 18 6.2 Test Procedures ....................................................................................................................... 19 6.3 Typical Test Setup .................................................................................................................... 20 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 22 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 22 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 24 6.7 Restricted Bands of Operation ................................................................................................. 30 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 31 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 32 7. Test of Spurious Emission (Conducted) ......................................................................................... 34 7.1 Test Limit .................................................................................................................................. 34 7.2 Test Procedure ......................................................................................................................... 34 7.3 Test Setup Layout .................................................................................................................... 34 7.4 Test Result and Data ................................................................................................................ 34 8. On Time, Duty Cycle and Measurement methods ......................................................................... 37 8.1 Test Limit .................................................................................................................................. 37 8.2 Test Procedure ................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 17 of 45 FCC ID. : ZHK-M00027 5.5 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 31 of 45 FCC ID. : ZHK-M00027 6.8 Test Photographs (30MHz ~ 1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 32 of 45 FCC ID. : ZHK-M00027 6.9 Test Photographs (1GHz ~ 25GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 21040002-TRFCC01 Cerpass Technology Corp. Issued Date : May. 10, 2021 T-FD-506-0 Ver 1.4 Page No. : 33 of 45 FCC ID. : ZHK-M00027 Side View
