ZID-AP301-PT10PHONE TOASTER

Phone ToasTer 휴대전화  사용 전 "사용설명서"를 반드시 읽고 정확하게 사용하여 주세요. 제품의 사양 및 외관은 품질향상을 위하여 예고없이 변경될 수도 있습니다. www.aprilstone.com www.instagram.com/aprilstone_official English 3 PHONE TOASTER User Manual 2 Mobile Phone Wireless ChargingISterilizer Features Mobile Phone Sterilization by UV-C LED 6 UV-C LeDs are placed 360 ̊ to kill 99.9% of toxic bacteria from the mobile phone in 5 minutes. UV-C LeD with strong sterilizing power destroys the Dna of bacteria and viruses, and neutralizing them. Phone ToasTer is designed in a closed structure that blocks UV-C LeD, it is safe because the LeD will not operate if the phone slot is not closed. Mobile Phone Wired/Wireless Fast Charging at the same time as UV sterilization, the phone charges wirelessly at high speed. Mobile phone sterilization and charging proceed at the same time, so it prevents bacteria and saves time. also, an UsB charging terminal is mounted, it allows fast charging of the mobile phone via wire. It allows charging multiple mobile phones quickly at the same time with wired/wireless fast charging. High Quality Bluetooth Speaker equipped with the latest version of Bluetooth 5.1 chipset, stable data transmission with low power is possible with smart devices. With an output of 8W rated, various contents are reproduced more realistically. enjoy high quality audio by connecting wirelessly to smart devices such as smartphones, tablets and laptops. Analog Alarm Clock The current time and alarm can be easily set using the dial, and the time can be viewed even in dark places with the light switch. Table of Contents Precautions for Safety 4 Product Composition and Specifications 5 Product Composition -----------------------------------------------------------------5 Product specifications ----------------------------------------------------------------5 Part Names and Functions 6 Front side ---------------------------------------------------------------------------------6 Top/Left/Back sides -------------------------------------------------------------------7 Sterilization/Wireless Charging 8 Checking the operation status -----------------------------------------------------9 Using the Bluetooth Speaker 10 Using the Alarm Clock 10 setting the time/alarm -------------------------------------------------------------10 Turn on the clock light --------------------------------------------------------------10 Wired Charging of Mobile Phone 10 Troubleshooting 11 54 Mobile Phone Wireless Charging I SterilizerPHONE TOASTER  User Manual Product Composition and Specifications Please check the components and specifications before using the product, and use it correctly. Product Composition PHONE TOASTERPower AdapterUser Manual Product Specifications Product NamePHONE TOASTER Model NameAP301-PT10 Sterilization Method6 UV-C LEDs (Max. 20,000 hours of use) Input PowerDC 12 V, 2 A (Max. 30 W) Temperature Operation-10 °C ~ 50 °C Storage-40 °C ~ 85 °C Size (WxHxD)232 mm x 154 mm x 110 mm Weight PHONE TOASTER : 1180 g ± 20 g Maximum Size of Mobile Phone80.8 mm x 172.3 mm x 11.9 mm Wireless Charging 9 V, 1.7 A, 15 W, Fast Charging Frequency: 125 KHz USB ChargingUSB-A Type, 9 V, 1.7 A, 18 W, Fast Charging Bluetooth Speaker 8 W/4 Ω, 5.0VER BDR, EDR Frequency: 2.4 GHz Precautions for Safety This is to keep the user safe and prevent pr operty damage. Please read carefully before using the product and use it correctly. Warning Failure to observe the warnings may result in death or serious injury. Do not look directly at the UV-C LED or let UV rays hit your skin. ■ Direct contact with the light from the UV-C LeD may be harmful to the human body. Do not touch the product or power adapter in operation with wet hands. ■ electric shock may result. Do not allow electro-conductive materials (i.e. metal, liquid, etc.) to come into contact with the power adapter or USB connection terminal. ■ a fire may result from corrosion of the connection terminal or a temporary short circuit. Do not place the product in a high temperature environment, or near heat sources, heating cookware, or high pressure containers. ■ It may cause heat or fire in the product. Be careful not to let children or pets suck or bite the product. ■ There is a risk of suffocation due to damage on the product or small parts. Do not disassemble, repair, or modify at your discretion. ■ There is a risk of product failure or electric shock. Caution Failure to observe the precautions may result in personal injury or property damage. Do not drop the product or give strong impact to it. ■ The product may be damaged. Do not apply excessive force to the sterilization/charging lever. ■ The product may be damaged. Do not force your phone into the slot. ■ The product and mobile phone may be damaged. Remove accessories such as thick cases and straps from the phone and insert it. ■ The product may not operate normally. Do not insert anything other than mobile phones into the product. ■ The product may malfunction. Do not use the product for any purpose other than its intended use. ■ The product may malfunction. Be careful when cleaning the product. ■ Be sure to disconnect the power adapter before cleaning the product. ■ Do not put the product into water. ■ Do not use thinner, alcohol or cleaning spray. ■ When cleaning the product’s connection terminal, wipe it with a cotton swab or soft cloth. 76 Mobile Phone Wireless Charging I SterilizerPHONE TOASTER  User Manual Top/Left/Back Sides 1 2 3 4 5 6 NumberNameFunctions 1 Mobile Phone SlotInsert the phone for sterilization/wireless charging. 2 Alarm Stop ButtonTurn off the alarm sound. 3 Sterilization/Charging Lever Start or stop sterilization and wireless charging of the phone. 4 Power ButtonTurn the product on or off. 5 USB Charging TerminalConnect the USB-A cable to charge the phone. 6 Power Adapter Connection Terminal Connect the power adapter to supply power to the product. Part Names and Functions Front Side 123 4 5 7 6 8 NumberNameFunctions 1 Speaker Output the sound from a devi…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name SK NETWORKS CO., LTD. Address 4, Maesan-ro 52beon-gil, Paldal-gu, Suwon-si, Gyeonggi-do, Republic of Korea Grantee Code ZID FCC ID ZID-AP301-PT10 Authorized Contact Name Jonggeun Lee Contact Email [email protected] Contact Phone +82 10 4587 2006 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020-12-18 Print Name: Jonggeun Lee Title: Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

FCC Confidentiality Request Letter December 18, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID : ZID-AP301-PT10 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SK Networks Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SK Networks Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune-up procedure Short-Term 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual FCC Confidentiality Request Letter The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, (Sign) Name/Title : Jonggeun Lee / Manager Company Name : SK Networks Co., Ltd.

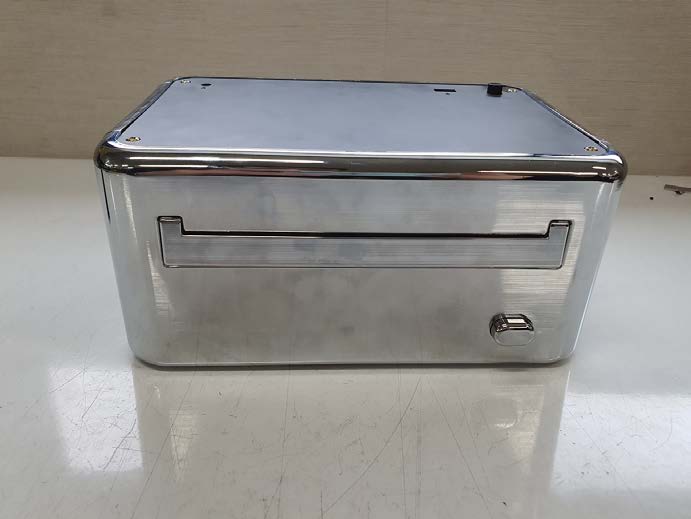

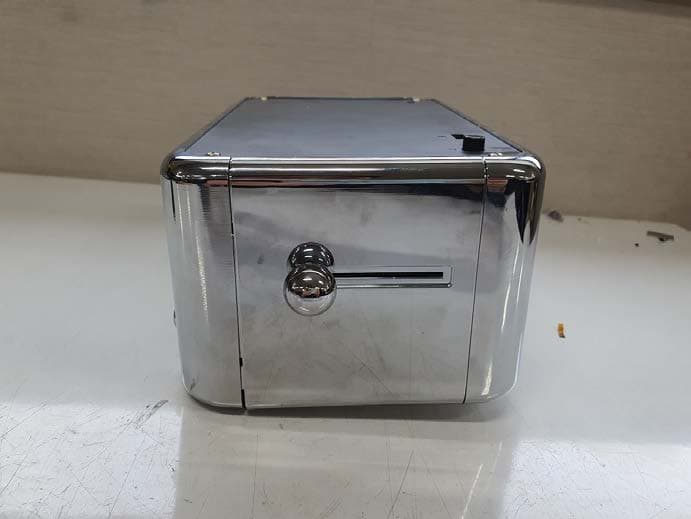

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

NAME : PHONE TOASTER MODEL : AP301-PT10 MFD : Nov-2020 INPUT : 12V 2A A/S(Korea): 070-5147-3993 FCC ID : ZID-AP301-PT10 WARNING : FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 006-xxxxxx KC ID : R-R-SKn-PT10 [Label Location]

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001473 Page: 2 of 19 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission ----------------------------------------- 6 3. 20 ㏈ Bandwidth ----------------------------------------------------------------------------------------- 14 4. AC Power Line Conducted Emission ---------------------------------------------------------------- 16 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001473 Page: 3 of 19 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : SK NETWORKS CO., LTD. Address : 4, Maesan-ro, 52beon-gil, Paldal-gu, Suwon-si, Gyeonggi-do, South Korea, 16460 Contact Person : Lee, Jong-geun Phone No. : +82 70 7800 3670 1.3. Details of Manufacturer Company : Devated Co., Ltd. Address : 15, Bodojin-ro 30beon-gil, Seo-gu, Incheon, Republic of Korea, 22847 1.4. Description of EUT Kind of Product PHONE TOASTER Model Name AP301-PT10 Power Supply DC 12 V Operation Mode 15 W Frequency Range 110.1 ~ 150 ㎑ Antenna Type Loop Coil Antenna H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001473 Page: 4 of 19 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Spectrum Analyzer R&S FSV30 103100 Jun. 18, 2020 Annual Jun. 18, 2021 Signal Generator R&S SMBV100A 255834 Ju n. 03, 2020 Annual Ju n. 03, 2021 Amplifier H.P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 396 Mar. 21, 2019 Biennial Mar. 21, 2021 Test Receiver R&S ESU26 100109 Feb. 18, 2020 Annual Feb. 18, 2021 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE SFX086-NMNM-5M (5 m) 20200324001 Aug. 10, 2020 Semi- annual Feb. 10, 2021 Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 Aug. 10, 2020 Semi- Annual Feb. 10, 2021 Test Receiver R&S ESCI 7 100911 Feb. 19, 2020 Annual Feb. 19, 2021 Two-Line V-Network R&S ENV216 100190 May 08, 2020 Annual May 08, 2021 Shield Room SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A N.C.R. N/A N.C.R. ▶ Support Equipment Description Manufacturer Model FCC ID Samsung Mobile Phone Samsung Electronics Co., Ltd. SM-G970 A3LSMG970U SWITCHING ADAPTER Shenzhen Sorghum red Electronics Technology Co., Ltd. G024A120200ZZUV - 1.6. Sample Calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) + (AMP (㏈)) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001473 Page: 5 of 19 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C Section Test Item(s) Result 15.209 Radiated Emission, Spurious Emission and Field Strength of Fundamental Complied 2.1049 20 ㏈ Bandwidth Complied 15.207 AC Power Line Conducted Emission Complied Note; Due to the frequency range of the device is less than 1㎒, so we perform Middle frequency according to 15.31 requirement. 1.8. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty 20 ㏈ Bandwidth ± 9.66 ㎑ AC Conducted Emission ± 3.45 ㏈ Radiated Disturbance, 9㎑ to 30㎒ ± 3.59 ㏈ Radiated Disturbance, below 1 ㎓ ± 5.88 ㏈ Uncertainty figures are valid to a confidence level of 95 %. 1.9. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001473 2020.12.15 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001473 Page: 6 of 19 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. Field Strength of Fundamental and Spurious Emission 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001473 Page: 7 of 19 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.2. Limit 2.2.1. Radiated emission limits, general requirements According to §15.209(a), except as provided elsewhere in this subpart, t…

Text truncated - open the document above for the full version.

Test setup photo of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photos of Conducted test 5. Photos of AC Power line emission Test 6. Photos of MPE Test Test PC Probe EUT
