ZIG-PTT726AMOBILE INTERNET DEVICE-BLUETOOTH PORTION

- 1 - winaccord Personal Touch Tablet/MID Preliminary Spec 2011-09-30 - 2 - Table of content - GETTING STARTED Important Safety Precautions 3 Cleaning the Panel 3 Cleaning the Personal Touch Tablet 3 Introduction 4 Buttons Overview 5 Accessories 5 What’s in the Box 6 Charging the Battery 6 Power On/Off and Unlock Tablet 6  -FUNCTIONNING OF THE TABLET Navigation 7 Home Screen 7 Application Launcher Screen 7 Status Bar 8 Onscreen Keyboard 9  - SETTINGS Set Up Wi-Fi Connection 10 Set up 3G Function Set Date and Time 11 Set Up Email 12 Set Up Calendar 13 Create Shortcuts on Home Screen 14 Create Widgets on Home Screen 14 Change Wallpapers 14 Install Third-Part Applications from micro SD 15  - CONNECTIONS Browser 16 Wi-Fi 17 Bluetooth 17 PC Connection 18 Connect to TV set (optional) 19 - APPLICATIONS Camera (optional) 20 Clock 21 Calculator 22 Downloads 23 Gallery 24 Music 25 Video Player 26 File Browser 27 - LICENCE NOTICE AND TRADEMARK ACKNOWLEDGEMENT 28 -PRODUCT SPECIFICATION 29 - 3 - - GETTING STARTED Important Safety Precautions Always follow these basic safety precautions when using your Personal Touch Tablet. This will reduce the risk of fire, electric shock and injury. Warning: To reduce the risk of fire of shock hazard, do not expose this product to rain or water. Warning: To prevent the risk of electric shock, do not remove the cover. There are no user-serviceable parts inside. Opening will void your warranty. Unplug the Personal Touch Tablet before performing maintenance. Keep your Personal Touch Tablet out of direct sunlight and heat sources. Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to the point where the power cord is attached to the Personal Touch Tablet. Only use the AC adapter included with the Personal Touch Tablet. Using any other power adapter will void your warranty. Unplug the power cord from the outlet when the unit is not in charging condition. Cleaning the Panel Treat the screen gently. The screen is made of glass and can be scratched or broken. To clean fingerprints or dust from the screen, it is recommended to use a soft, non-abrasive cloth such as a camera lens cloth to clean the screen. If you use a commercial Cleaning Kit, do not apply the cleaning liquid directly to the screen. Clean the screen with cleaning cloth moistened with the liquid. Cleaning the Personal Touch Tablet Clean the outer surface of the Personal Touch Tablet (excluding the screen) with a soft cloth dampened with water. - 4 - Introduction Welcome to the Personal Touch Tablet! The Personal Touch Tablet includes these key features: Displays Alarm, AppInstaller, Browser, Calculator, Calendar, Camera, Clock, Email, File Browser, Gallery, HDMI Switch, Music, Setting, Video Player and etc Displays digital photos, Play Music and Video Wi-Fi function to connect with your AP router for internet browsing Micro Secure Digital™ (micro SD) slot for external storage Capacitive touch screen for all user operations 4GB Internal Memory USB2.0 OTG for connection to the PC or USB flash drive - 5 - Buttons Overview Accessories Power Adapter (depending on the regional requirement, the plug may look different) - 6 - USB Cable What’s in the Box Personal Touch Tablet AC Power Adapter (5V/2A) USB Cable Quick Start Guide Charging the Battery Plug the AC power adapter into the Personal Touch Tablet and into a wall outlet. Icon will be turn flashing with charging sign while the battery is charging. When charging is completed, the battery icon will turn into a steady green. * It is strongly recommended you fully charge the device for about 4-6 hours before use. * When charging battery, the better indicator for a fully charged battery is a steady green battery icon on the notification bar. A flashing battery icon means the battery is still being charged, even when 100% has been displayed for battery level on the Settings About device Status screen. Power on/off and Unlock Personal Touch Tablet The Personal Touch Tablet is easy to set up. Just follow these steps: 1. To power on the device, press and hold Power button for 2 seconds to turn on tablet. 2. Wait until a screen with a lock and speaker icon show up, gently tap the “Lock” icon and slide it toward the speaker icon to unlock tablet. 3. To power off the device, press and hold the Power button for 2 seconds until a MID options message show up on screen where you can choose Power off option to power off the device. Note: The screen with the lock icon will time out in 10 seconds if you do not unlock it. In case it happens, the Power button can be pressed briefly to make it show up again. - 7 - - FUNCTIONNING OF THE TABLET Navigation Tablet has five home screens by default. You can tailor shortcuts or widgets to home screen to fit your needs by using Add to Home screen function. For more information, refer to “Create Shortcuts on Home Screen” on page 14. Home Screen A typical Home screen with wallpaper, status bar, and few applications at the bottom. * The background wallpaper may be different from model to model A shortcut to browser A shortcut to application Launcher screen. A shortcut to system Settings Application Launcher Screen A typical application Launcher screen is shown below. One icon represents one application which can be run by tapping on the icon. - 8 - *The screen icon may be different from model to model Status Bar On the top corner of the screen, the status bar mainly indicates Home icon, Wi-Fi status, battery level, current time and volume, etc. Icon Action On any functional screen, tap this icon to go to Home screen Shows the status of micro SD (this icon shows micro SD is removed.) Wi-Fi connection and signal strength Shows 3G signal status (optional) Battery level. Will turn orange when battery is low and turn red when battery is very low. Current time Volume down Volume up On any functional screen, tap this icon to go back…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of M55-V961-113 113 01.BLOCK DIAGRAM Custom 114 Sunday, October 16, 2011 PTT-726A TitleSize Document Number Rev Date: Sheet of M55-V961-113 113 01.BLOCK DIAGRAM Custom 114 Sunday, October 16, 2011 PTT-726A TitleSize Document Number Rev Date: Sheet of M55-V961-113 113 01.BLOCK DIAGRAM Custom 114 Sunday, October 16, 2011 PTT-726A LDO +2.5V DC-DC3 +1.8V DC-DC1DC-DC2 +1.25V +3.3V Battery1 cell3.7VDC_IN5V 2A DCDC Charger PWR_ENPWR_ENPWR_ENPWR_EN DDRII2 PCS 64Mx16bit OTG 8bitx3DE,CLK LCD7' CPT800X600 Linux Debug SDIOWIFI/BT ADC_KEYVBAT_DETOption for RES touch IR Codec GPIOMOTOR etc. TF CARDHDMI JACK NAND & NOR SPI Nor For Boot2PCS NAND with TSOP-48 CoreCPU DAC/USB/SATA MODULEGPIO,NAND,LCD...DDRII&Codec VCCx2_EN VCC5V USB,HDMI VGH,VGL,AVDD G SensorMagnetic SensorCAP/RES TOUCH 24MHz 32.768KHz RTC LDO +3.3VRTC POWER 1 、 DDRII can be used 2 PCS 64Mx16bit,2 PCS 128Mx16bit,4 PCS 128Mx8bit,8 PCS 256Mx4bit.Recommand 2 PCS 64Mx16bit. 2 、 Many NAND types are available(TSOP-48 or LGA52 package). You can use two NANDs (4 CE total) and 1 PCS I-NAND (SDIO interface).This board only reversed for TSOP,If you need,you can add other type package.3 、 USB 2.0. USB_A is a OTG type. USB_B is USB_Host only. DDRII Controller DQ0-DQ31,A0-A13,BA0-BA2,WEN,CKECK/CKN,CSN,RASN,CASN,UDM_A,LDM_A,ODT,LDQS_A/LDQSN_A,UDQS_A/UDQSN_A,UDM_B,LDM_B,LDQS_B/LDQSN_B,UDQS_B/UDQSN_B NAND ControllerSupport general NAND & I-nand(SDIO)IO_0-IO_7,RB0,RB1,CE0,CE1,REN_WR,WEN_CLK,CLE,ALE.SPI NOR FlashInterface. USB_A OTGVBUS,ID,DP,DM,TXTTUNE USB_B HOSTVBUS,DP,DM,TXTTUNERGB Interface24bit RGBR0-R7,G0-G7,B0-B7,UART & I2CUART_A,I2C_AUART_B,I2C_B TCON VCOM,CPH1,OEV1,CPV1OEH,STV1,STH1,BL&LED_CS IRU601/RMII/FEC_A 8bit FEC&8bit ITU601&RMII Interface&GPIOC_0-12(Can be used for interrupt)SATA ControllerRXM/RXP,TXM/TXP,SATA_REXT ADC 6 channelCH0-CH3:for TouchCH4:for ADC_KEY RTC 32.768KHz OSC24MHz IRRemote JTAG&I2S Codec HS_LEFT&HS_RIGHTLINE_LEFT&LINE_RIGHTCVBS & YPbPrVDAC_R,VDAC_G,VDAC_B(Up to 1080p). CVBSHDMI Interface HPD,SDA,SCL,CECTX_CKN/TX_CKP,TX_0N/TX_0P,TX_1N/TX_1P,TX_2N/TX_2PRMII&ITU601&FEC_B1 、 RMII Interface 2 、 ITU601 Interface 3 、 8bit FEC_B Interface 4 、 GPIOD_12-23 SDIO InterfaceSD_A(For SD/MMC/TF Card) GPIO POWER core:1.28VDDRII:1.8VGPIO:3.3V AML8726-M BGA Support up to 128Mx32bit DDRII SDIO & ISO7816ISO7816 InterfaceSDIO(can be used for wifi) GP_INPUT3 GP_Input Demod test point resevered UART-Bluetooth [email protected]@[email protected]@[email protected]@600mA Step DownStep DownStep DownDC-DC4Step Up CAMERA3G MODULE Extended GPIO Application RT8015 3.3V 3G MODULE MAX 1.1A DC-DC6Step Down PWR_EN VCCx3_EN AVDD:[email protected] DC-DC5Step Up LED+ Backlight 10V@120mA DC-DC6 PWR_ENPWR_EN Step Up

Win Accord Ltd. Cover Letter December 28, 2011 Timco Engineering, Inc., 849 NW State Road 45, P.O. Box 370, Newberry, Florida 32669. We, the undersigned hereby declare, that the following radio equipment: Applicant : Win Accord Ltd. Address : 7F, Garden City Cyber Port, Nanhai Road A, No.1079, Nanshan District,Shenzhen, China Brand Name : N/A Model Nos. : PT07101-46- XXX (X=a-z,0-9,A-Z), PTT-726A, ETOOS 700C, R73A FCC ID : ZIG-PTT726A Product Description: Tablet PC There is an approved HSUPA MiniPCI Express Card module included in this device that its Product Name is HSUPA MiniPCI Express Card, FCC ID is Q78-MF210, Model number is MF210 and the manufacturer is ZTE Corporation.The HSUPA MiniPCI Express Card is electrically identical to the original grant,And it was tested in the submitted SAR Report for compliance for RF Exposure compliance and meets the required limits
The end user has no manual instructions to remove or install the HSUPA MiniPCI Express Card. BEST REGARDS, Fuqi Qiu (Engineer) Win Accord Ltd. December 28, 2011

Win Accord Ltd.
Date:December 21,2011 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: ZIG-PTT726A To Whom It May Concern: This letter is to ascertain that Win Accord Ltd. Product (Model Name:PT07101-46-XXX ) has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Fuqi Qiu /Engineer Win Accord Ltd. 7F, Garden City Cyber Port, Nanhai Road A, No.1079, Nanshan District,Shenzhen,China

Win Accord Ltd. FCC ID: ZIG-PTT726A POWER OF ATTORNEY December 21, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Win Accord Ltd., hereby authorize Most Technology Service Co., Ltd. (Terry YANG/ Manager) located at No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park ,Nanshan, Shenzhen, Guangdong ,China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on January 31, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Win Accord Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Name:Fuqi qiu Title:Engineer Company: Win Accord Ltd. Date: December 21, 2011

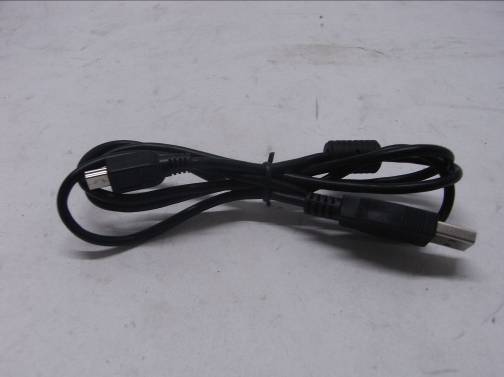

FCC ID: PTT-726A Report No.:MOST111007E2 Page 34 of 46 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: PTT-726A Report No.: MOST111007E2 Page 35 of 46 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: PTT-726A Report No.: MOST111007E2 Page 36 of 46 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE FCC ID: PTT-726A Report No.: MOST111007E2 Page 37 of 46 PHOTO OF POWER SUPPLY FCC ID: PTT-726A Report No.: MOST111007E2 Page 38 of 46 PHOTO OF USB LINE PHOTO OF HDMI LINE FCC ID: PTT-726A Report No.: MOST111007E2 Page 39 of 46 PHOTO OF THE ENTIRE SAMPLE

FCC ID: PTT-726A Report No.: MOST111007E2 Page 40 of 46 PHOTO OF BATTERY INTERNAL PHOTO OF POWER SUPPLY - 1 FCC ID: PTT-726A Report No.: MOST111007E2 Page 41 of 46 INTERNAL PHOTO OF POWER SUPPLY - 2 FCC ID: PTT-726A Report No.: MOST111007E2 Page 42 of 46 INTERNAL PHOTO OF SAMPLE - 1 FCC ID: PTT-726A Report No.: MOST111007E2 Page 43 of 46 INTERNAL PHOTO OF SAMPLE -2 INTERNAL PHOTO OF SAMPLE - 3 FCC ID: PTT-726A Report No.: MOST111007E2 Page 44 of 46 INTERNAL PHOTO OF SAMPLE - 4 INTERNAL PHOTO OF SAMPLE - 5 FCC ID: PTT-726A Report No.: MOST111007E2 Page 45 of 46 INTERNAL PHOTO OF SAMPLE - 6 INTERNAL PHOTO OF SAMPLE - 7 INTERNAL PHOTO OF SAMPLE -8 FCC ID: PTT-726A Report No.: MOST111007E2 Page 46 of 46 ------END OF REPORT------

Operation Description
The input stream a into 5 V power of the tablet computer. Power use RT8020 transformation 1.8 V and a 3.3 V and a EUP3412 turn 1.3 V power supply and AML8726-MD main integrated circuit chips. The major integrated circuit chips working frequency is to 1 G. The chip can directly control, nand flash memory, SD, TF card, OTG, WIFI, function control button. The clock frequency 24 MHz, WIFI working frequency, 25MHz frequency for 380 MHz DDR.
MID tablet computer power supply by power adapter that its output is DC5 V / 2 A. The antenn is internal internal fixed and its gain is 2.5 dBi.

55 44 33 22 11 D D C C B B A A PWR_EN33 PWR_EN PWR_EN13 PWR_EN13 FB1V3_SAVE PWR_EN FB1V3_SAVE PWR_EN18 PWR_EN33 PWR_EN33 TouchKEY_INT CHG_STATUS CHG_STATUS CHRG_NO NTC TouchKEY_INT CHRG_NO PWR_EN18 PWR_EN VBAT VCCx GND VCC5V DC5V_IN DC5V_IN1 DC_IN VCC2.5VA VCCx VCC_RTC VCC_RTC1 VCCx VCCK VBAT GND GND GND GND GND VCC_RTC1 DC_IN GND GND VCC_RTC1 GNDVCCx BAT- VCC_RTC1 VCCx VCC3.3V VCCx VCC3.3V VCC1.8V VCCx GND GND DC_IN VCCx2VCCx2 VCC1.8V VCC1.8V VBAT DC_IN VCCx GND P3.3V GND GND P3.3V GND VCC3.3V VCC3.3V GND VCCx2 GND GND VCCx VCC3.3V GND VBAT VBAT DC_IN VCC3.3V VCC3.3V GND GND P3.3V VCC3.3V GND GND DC_IN VCCx GND GND PGND GND VCC3.3V HDMI_PW VCC5V GND PWR_HOLD RTC_GPO PWR_KEY_DET VCCK_SAVE PWR_HOLD NTC TouchKEY_INT SW_I2C_SDA VCCx2_EN VCCx2_EN ADC_KEY CHG_STAP SW_I2C_SCL DC_DET PWR_EE TitleSize Document Number Rev Date: Sheet of M55-V961-113 113 02.Power and key Custom 214 Sunday, October 16, 2011 PTT-726A TitleSize Document Number Rev Date: Sheet of M55-V961-113 113 02.Power and key Custom 214 Sunday, October 16, 2011 PTT-726A TitleSize Document Number Rev Date: Sheet of M55-V961-113 113 02.Power and key Custom 214 Sunday, October 16, 2011 PTT-726A Battery 5V/2A Input G9091-250T11URT9193T-25PBSOT-23-5 VCC5V BOOST For CVBS & USB RTC Power DAC 2.5V L2/L3/L4/L5/L6 DC R <0.2 Ω When use RT9193T,C177 is needed. 3.33V MAX 1A FB=0.6V TO DecoderUse 1.25VMAX 1A FOR AUDIO AMP/VCC5V FOR HDMI/USB SYSTEM 1.25V Power KEY FB=0.5V 1.85V 3.33V 1.5V on0.4Voff MAX 1A FB=0.6V FB=0.6V MAX0.6A SYSTEM3.3V SYSTEM &DDRII 1.8V TOUCH KEY VOL+ VOL- Close to CPU 0V CHARG Add Two LED 20110130 R166100KR166100K FB55 60R/1206/3A FB55 60R/1206/3A C161 0.1uF C161 0.1uF C148 1nFC148 1nF FB60 0R/0805 FB60 0R/0805 1 2 D60ESDP E0402N D60ESDP E0402N 12 T73T73 1 Q5 3904 Q5 3904 1 23 FB59 0R/0805FB59 0R/0805 1 2 R43120K_1%R43120K_1% R92 22 R92 22 U13RT9266-P(G)EU13RT9266-P(G)E EN 1 EXT 2 GND 3 LX 4 VDD 5 FB 6 R102100KR102100K + C48522uF_6.3V + C48522uF_6.3V 12 R107330K_1%R107330K_1% T14T14 1 R110Res 510 0402 5% SMDR0402R110Res 510 0402 5% SMDR0402 C4790.1uFC4790.1uF R108 110K_1% R108 110K_1% R1360R/NCR1360R/NC R207 NCR207 NC R123 2.2K R123 2.2K C158NC/22pfC158NC/22pf D1 NC/CMS02/3A D1 NC/CMS02/3A T46T46 1 T18T18 1 R1251KR1251K K1Tact Switch/TD-25XATD-25XA-WAK1Tact Switch/TD-25XATD-25XA-WA 12 34 C4860.1uFC4860.1uF Q113904Q113904 1 23 C194 1uF C194 1uF R100 4.7K R100 4.7K FB56 60R/1206/3A FB56 60R/1206/3A C321 22uF_10V C321 22uF_10V R9110KR9110K R142 NC/4.7K R142 NC/4.7K T23T23 1 R94 47K R94 47K R144 NC/0R R144 NC/0R MARK2MARK2 1 C48122uFC48122uF T29T29 1 FB62 0R/0805FB62 0R/0805 1 2 D89 NC/ESDPE0402N D89 NC/ESDPE0402N 12 R11110K R0402 R11110K R0402 H5H5 1 T74T74 1 C404 10nF C404 10nF D29ESDP E0402N D29ESDP E0402N 12 R115 NC/1206 R115 NC/1206 K3Tact Switch/TD-25XATD-25XA-WAK3Tact Switch/TD-25XATD-25XA-WA 12 34 MARK3MARK3 1 D4BAT54CD4BAT54C 1 3 2 Thermal PAD U67 RT8020 Thermal PAD U67 RT8020 VIN2 1 LX2 2 GND 3 FB1 4 NC1 5 EN1 6 VIN1 7 LX1 8 GND 9 FB2 10 NC2 11 EN2 12 EPAD 13 J5 DC-056 J5 DC-056 321 4 5 T16T16 1 R317 4.7K R317 4.7K R97 47K R97 47K L34 4.7uH_1.5A L34 4.7uH_1.5A C178 22uF C178 22uF + C18322uF_16V_TB + C18322uF_16V_TB 12 C177 NC/22nF C177 NC/22nF R23 NC/Res 10K 0402 5% SMD R23 NC/Res 10K 0402 5% SMD R8647KR8647K 12 3 D16 BAV99 12 3 D16 BAV99 R117150K_1%R117150K_1% MARK4MARK4 1 R110KR110K R89 2K R89 2K T24T24 1 C235 1nF 0402+80%-20% /50 C0402C235 1nF 0402+80%-20% /50 C0402 H1H1 1 C4820.1uFC4820.1uF T37T37 1 U6ZEN065A230AZEN056U6ZEN065A230AZEN056 VIN 1 GND 2 VOUT 3 H4H4 1 R1164.7KR1164.7K D5NC/SS34DO214ACD5NC/SS34DO214AC C175 0.1uF C175 0.1uF BAT-1BAT-1 1 C179 0.1uF C179 0.1uF + C48722uF_0805 + C48722uF_0805 12 D28NC/ESDP E0402N D28NC/ESDP E0402N 12 D25NC/RED/3mm/DIPLED0805D25NC/RED/3mm/DIPLED0805 C155 0.1uF C155 0.1uF D7 CRS08 D7 CRS08 R10347KR10347KQ6PMBT3906Q6PMBT3906 1 23 C5722u 1210 +80%-20% /25VC1210C5722u 1210 +80%-20% /25VC1210 C154 0.1uF C154 0.1uF H2H2 1 R42936K_1%R42936K_1% R882KR882K Q4AO3415 SOT-23SOT23AQ4AO3415 SOT-23SOT23A 1 23 R209Res 4.7K 0402 1% SMDR0402R209Res 4.7K 0402 1% SMDR0402 T2T2 1 R104 4.7K R104 4.7K R42875K_1%R42875K_1% R9347KR9347K C169 NC/22pf C169 NC/22pf R1204.7KR1204.7K R11 NC/4.7K R11 NC/4.7K U16 EUP3412 U16 EUP3412 EN 1 VIN 2 VIN 3 GND 4 FB 5 MODE 6 SW 7 SW 8 PGND 9 PGND 10 EPAD 11 R1264.7KR1264.7K C16522uF_6.3VC16522uF_6.3V H3H3 1 D30NC/ESDP E0402N D30NC/ESDP E0402N 12 C1630.1uFC1630.1uF L4 3.3uH_1.5A L4 3.3uH_1.5A R90 100 R90 100 SW2 Button SW2 Button 1 2 3 4 C25622uF_6.3VC25622uF_6.3V 12 R9847KR9847K Q12 PMBT3906 Q12 PMBT3906 1 23 FB26BEAD/121Y/0603/1A SMDL0603FB26BEAD/121Y/0603/1A SMDL0603 R2161.2K_1%R2161.2K_1% T75T75 1 R217Res 1K 0402 5% SMDR0402R217Res 1K 0402 5% SMDR0402 R113 10K R113 10K Q7 3904 Q7 3904 1 23 C4880.1uFC4880.1uF C15122uF_6.3V_TBC15122uF_6.3V_TB T9T9 1 R61Res 0.1R 1206 1% SMD1206RR61Res 0.1R 1206 1% SMD1206R L35 4.7uH_1.5A L35 4.7uH_1.5A R10 NC/1K R10 NC/1K R11991K_1%R11991K_1% R19 NC/4.7K R19 NC/4.7K T26T26 1 U19EUP8207-4.2SOP8AU19EUP8207-4.2SOP8A VCC 2 CHRG 5 COMP 1 NTC 8 GND 4 BAT 6 SENSE 7 GATE 3 GND 9 C477 NC/22pf C477 NC/22pf R87 470K R87 470K R1214.7KR1214.7K SW1SwitchSW1Switch R131 47R R131 47R D51 BAT54C D51 BAT54C 1 3 2 D44 BAT54C D44 BAT54C 1 3 2 T7T7 1 R141470KR141470K C149 0.1uF C149 0.1uF D17BAT54CD17BAT54C 1 3 2 D22 BAT54C D22 BAT54C 1 3 2 C780.1u 0402 +80%-20% /25VC0402C780.1u 0402 +80%-20% /25VC0402 L16.8uH/1.7A/5D18IND-6X6L16.8uH/1.7A/5D18IND-6X6 R1221K/0603R1221K/0603 R22 Res 10K 0402 5% SMD R22 Res 10K 0402 5% SMD R218Res 2K 0402 1% SMDR0402R218Res 2K 0402 1% SMDR0402C16022uF_6.3VC16022uF_6.3V T6T6 1 J95Pin 1.0mm Pitch 母座 /90 度 /SMD WAFER-A1001-SV5 J95Pin 1.0mm Pitch 母座 /90 度 /SMD WAFER-A1001-SV5 1 1 2 2 3 3 4 4 g1 g1 G2 g2 5 5 R96 100K R96 100K C156 0.1uF C156 0.1uF FB61 0R/0805 FB61 0R/0805 1 2 R168 4.7K R168 4.7K R112 22R112 22 T8T8 1 R66Res 10K 0402 5% SMDR0402R66Res 10K 0402 5% SMDR0402 BAT+1BAT+1 1 T25T25 1 D2 CMS01 D2 CMS01 Q8 AO3415 Q8 AO3415 3 1 2 R43091K_1%R43091K_1% T10T10 1 T65T65 1 + C18022uF_6.3V_TB + C18022uF_6.3V_TB 12 R105 4.7K …

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: Win Accord Ltd. Address: 12F., No. 225, Sec. 5, Nanjing E. Rd., Songshan Dist, Taipei City 105, Taiwan Product Name: Mobile internet device Model Name: PT07101-46-XXX (X=a-z,0-9,A-Z), PTT-726A, ETOOS 700C, R73A Brand Name: N/A FCC ID: ZIG-PTT726A Report No.: MOST111007E2 Date of Issue: December. 05, 2011 Issued by:Most Technology Service Co., Ltd. Address: No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel: 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: ZIG-PTT726A Report No.:MOST111007E2 Page 2 of 45 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY............................................................................................................... 3 2. GENERAL INFORMATION............................................................................................................................ 4 2.1 Product Information...................................................................................................................................... 4 2.2 OBJECTIVE................................................................................................................................................. 5 2.3 TEST STANDARDS AND RESULTS............................................................................................................ 5 2.4 ENVIRONMENTAL CONDITIONS............................................................................................................... 5 3. TEST FACILITY............................................................................................................................................. 6 3.1TEST FACILITY............................................................................................................................................. 6 3.2 GENERAL TEST PROCEDURES................................................................................................................ 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS..................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST....................................................................................................... 8 4.1 SUPPORT EQUIPMENT.............................................................................................................................. 8 4.2 TEST EQUIPMENT LIST............................................................................................................................. 9 5. 47 CFR Part 15C 15.249 Requirements..................................................................................................... 10 5.1 SPURIOUS EMISSION TEST.................................................................................................................... 10 5.2 BAND EDGE.............................................................................................................................................. 21 5.3 LINE CONDUCTED EMISSION TEST....................................................................................................... 24 APPENDIX 1.................................................................................................................................................... 30 PHOTOGRAPHS OF TEST SETUP................................................................................................................ 30 APPENDIX 2.................................................................................................................................................... 33 PHOTOGRAPHS OF EUT...............................................................................................................................33 FCC ID: ZIG-PTT726A Report No.:MOST111007E2 Page 3 of 45 1. VERIFICATION OF CONFORMITY Equipment Under Test: Mobile internet device Brand Name: N/A Model Number: PT07101-46-XXX(X=a-z,0-9,A-Z) Series Model Number: PTT-726A, ETOOS 700C, R73A Difference description: The series models are different in model name with the same functions. FCC ID: ZIG-PTT726A Win Accord Ltd. Applicant: 12F., No. 225, Sec. 5, Nanjing E. Rd., Songshan Dist, Taipei City 105, Taiwan Win Accord Ltd. Manufacturer: 7F.,Garden City Cyber Port, Nanhai Road A,No.1079,Nanshan Dist., Shenzhen, China Technical Standards: 47 CFR Part 15 Subpart C File Number: MOST111007E2 Date of test: November. 10, ~ November. 29, 2011 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested by MOST for compliance with the requirements set forth in FCC rules and the Technical Standards mentioned above. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment and the level of the immunity endurance of the equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tested by (+ signature): Zhang Ling Decemb er. 05, 2011 Review by (+ signature): July Wen Decemb er. 05, 2011 Approved by (+ signature): Terry Yang Decemb er. 05, 2011 FCC ID: ZIG-PTT726A Report No.:MOST111007E2 Page 4 of 45 2. GENERAL INFORMATION 2.1 Product Information Product Mobile internet device Trade Name N/A Model Number PT07101-46-XXX(X=a-z,0-9,A-Z) Series Number: PTT-726A, ETOOS 700C, R73A Description Differences: The series models are different in model name with the same functions. Power Supply DC 5V by AC/DC adapter 100~240V 50/60Hz DC 3.7V by battery Frequen…
