ZJGS201Remote Control

S201 Rem ote Control Manual Features: Working Voltage: DC12V (1pc 27A/12V) Working Current: 10ma/12V Power: 10mw/12V Modulation Mode: ASK( Amplitude Modulation) Emissive Frequency: 433MHZ Transmission Distance : >100M Size: 58×30×12mm Code type: fixed code Serial Code Usage: Motor, Car, home security alarm, short-distance remote control products, Industrial control products and other similar products. Operation: - Alarm mode: when press this button, it means Alarm on. - Chime mode: when press this button, it means Chime on. - Off: to disalarm the unit no matter what Alarm or Chime is available. FCC information： NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 TECHKO ROBOTICS INDUSTRIAL LIMITED 2011-05-05 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZJGS201 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: David Dong / Manager Contact information / address: Address: 1201 Connaught Commercial Building, 185 Wan Chai Road, Hongkong

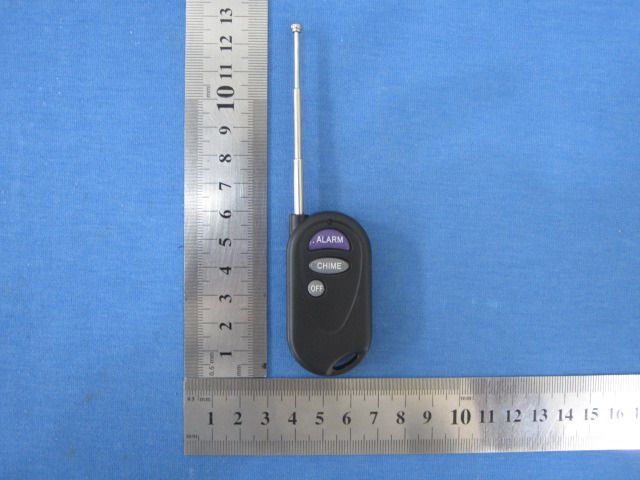

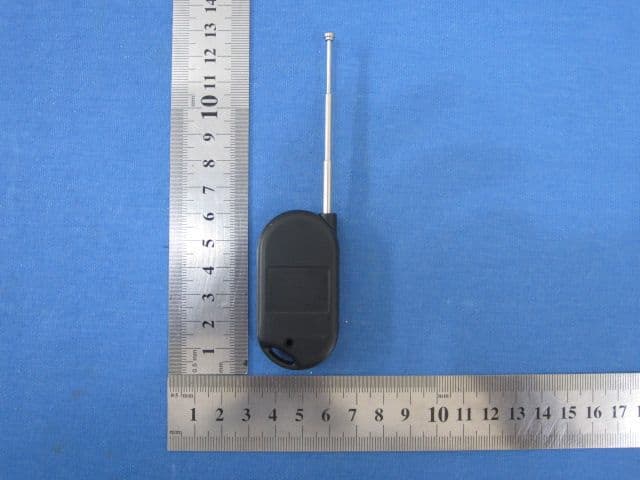

Report No: GTSE11030016001 Global United Technology Services Co., Ltd. Project No.: GTSE110300160RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 20 of 22 8 EUT Constructional Details

26mm(Length)*16mm(Width) Model No.: S201 Input: 1pc 27A DC 12V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: ZJGS201

Label Location

Report No: GTSE11030016001 Global United Technology Services Co., Ltd. Project No.: GTSE110300160RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 21 of 22 Report No: GTSE11030016001 Global United Technology Services Co., Ltd. Project No.: GTSE110300160RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 22 of 22 ------end------

Global United Technology Services Co., Ltd. Report No: GTSE11030016001 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover PageFCC REPORT Applicant: TECHKO ROBOTICS INDUSTRIAL LIMITED Address of Applicant: 1201 Connaught Commercial Building, 185 Wan Chai Road, Hongkong Equipment Under Test (EUT) Product Name: Remote Control Model No.: S201 FCC ID: ZJGS201 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231:2010 Date of sample receipt: 29 Apr., 2011 Date of Test: 04 May to 17 May 2011 Date of report issue: 19 May 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: GTSE11030016001 Global United Technology Services Co., Ltd. Project No.: GTSE110300160RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 22 2 Version Version No. Date Description 00 2011-05-19 Original Prepared By: Collin.He Date: 2011-05-19 Project Engineer Check By: Hans.Hu Date: 2011-05-19 Reviewer Report No: GTSE11030016001 Global United Technology Services Co., Ltd. Project No.: GTSE110300160RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 22 3 Contents Page 1 COVER PAGE......................................................................................................................................................... 1 2 VERSION.................................................................................................................................................................. 2 3 CONTENTS.............................................................................................................................................................. 3 4 TEST SUMMARY.................................................................................................................................................... 4 5 GENERAL INFORMATION................................................................................................................................... 5 5.1 CLIENT INFORMATION....................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 5 5.3 TEST MODE....................................................................................................................................................... 5 5.4 TEST FACILITY................................................................................................................................................... 6 5.5 TEST LOCATION................................................................................................................................................ 6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 6 5.7 TEST INSTRUMENTS LIST.................................................................................................................................. 7 6 TEST RESULTS AND MEASUREMENT DATA................................................................................................ 8 6.1 ANTENNA REQUIREMENT:................................................................................................................................. 8 6.2 RADIATED EMISSION......................................................................................................................................... 9 6.2.1 Field Strength Of The Fundamental Signal......................................................................................... 11 6.2.2 Spurious Emissions................................................................................................................................. 13 6.3 20DB BANDWIDTH........................................................................................................................................... 15 6.4 DWELL TIME:................................................................................................................................................... 17 7 TEST SETUP PHOTO.......................................................................................................................................... 19 8 EUT CONSTRUCTIONAL DETAILS................................................................................................................. 20 Report No…

Text truncated - open the document above for the full version.

Report No: GTSE11030016001 Global United Technology Services Co., Ltd. Project No.: GTSE110300160RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 19 of 22 7 Test Setup Photo Radiated Emission(below 1G) Radiated Emission(above 1G)
