ZJPBC03BC03FBluetooth Speaker

Users’ Manual of BC03 The picture is only provided for reference. Please refer to the actual unit! 1 Table of Contents 1. Preface ................................................................. 2 2. Accessories .......................................................... 2 3. Introduction of Product ....................................... 2 4. Precautions .......................................................... 3 5. Introduction of Product Panel.............................. 4 6. Instructions of Operations ................................... 6 7. Report on the Equipment Compatibility ............. 8 8. Main Technical Parameters ................................. 9 9. Guidance on Simple Troubleshooting ............... 10 2 1. Preface To the users: Welcome to become the user of Shengtianlong electrical appliance and thanks for patronage! Please read this Users’ Manual carefully before use to make full use of the play functions and know well about the system connection and usage. At the same time, you will find that you can find your requirements about the product met in the aspects of design, workmanship and human-based operations, etc. Please keep this Users’ Manual well for future reference. Unpacking Please unpack it carefully and make sure the following accessories are contained in it; put them well and prevent them from missing. 2. Accessories □ Player 1 piece □Users’ Manual 1 piece □ MICRO USB charge lead 1 piece □ 3.7V/ 800mA lithium battery 1 piece 3. Introduction of Product This product is a kind of portable Bluetooth audio system supporting the music play features, and designed with digital signal processing technique, suitable for the different occasions like office and home, etc. and it may be connected wirelessly to most other equipment and cell phones with Bluetooth features to play the music in them in high quality. 3 4. Precautions First thanks for buying the digital combination audio produced by this company! Please refer to this Users’ Manual before use to use it properly. The contents stated herein may be modified from time to time for better service as the product properties and functions are changed without prior notice. For the sound performances of the product, never use it in too cold, too hot, too dusty or humid places, especially: 1. Moist or underwater conditions 2. Near the heater or hi-temperature services 3. Solarization 4. Places apt to fall 5. Never disassemble the combination audio; otherwise, it may invalidate the warranty. Warnings 1. Please protect the product from water like water drops or splash. Do not put water containers like vase onto the product to avoid any unexpected accidents. 2. Please check if the voltage of the power grid is the same with that specified on the power adapter of this unit. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is 4 encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 5. Introduction of Product Panel Definitions of Keypads and Ports: There are 3 keys, 2 ports and 1 switch defined as below: 1. : Hands-free microphone 2. －: Press it shortly to volume down and press it for a longer time to volume down rapidly. 3. +:Press it shortly to volume up and press it for a longer time to volume up rapidly. 4. □: Long press “□” button for more than 3 seconds to enter into pair status. Press it shortly in Bluetooth play state to pause or play the music. Press this button shortly in time of incoming calls to answer the call in hands-free mode; Press it shortly in hands-free mode to hang up; and press it for a longer time in time of incoming calls for more than 3 seconds to refuse the calls and press it shortly twice to dial the phone number called last time. 5 1. OFF/ON: Power switch 2. DC 5V: DC 5V MICRO USB charge with the lithium battery charge hole. (The hole beside it is the red charge indicator lamp of 3.7 V lithium battery) 3. AUX IN: Input hole for 3.5mm plug to connect the external sound source LED INDICATOR LAMP: LED (Blue): The blue LED indicator lamp will flicker during the Bluetooth connection and pair and will keep ON after successful connection and pair. LED (Red): When AUX IN line is inserted during the Bluetooth connection and play, it will switch over to AUX feature and the red LED indicator lamp will keep ON. Hands-free microphone: : It is located at the left top side of the unit, look like a hole. Remarks: It’s proposed to call within 3 meters away from the product to ensure the normal hands-free quality! Charge Mode: Connect one end of micro USB line supplied together with the product to the computer and the other end of it to DC 5V hole on the back of the product to charge. The red LED charge indicator lamp will turn on, and push “OFF/ON” switch on the back of product to “ON” to start up. Remarks: 6 A. When one end of the MICRO USB connecting cable is connected to the computer in any state and at any time, an…

Text truncated - open the document above for the full version.

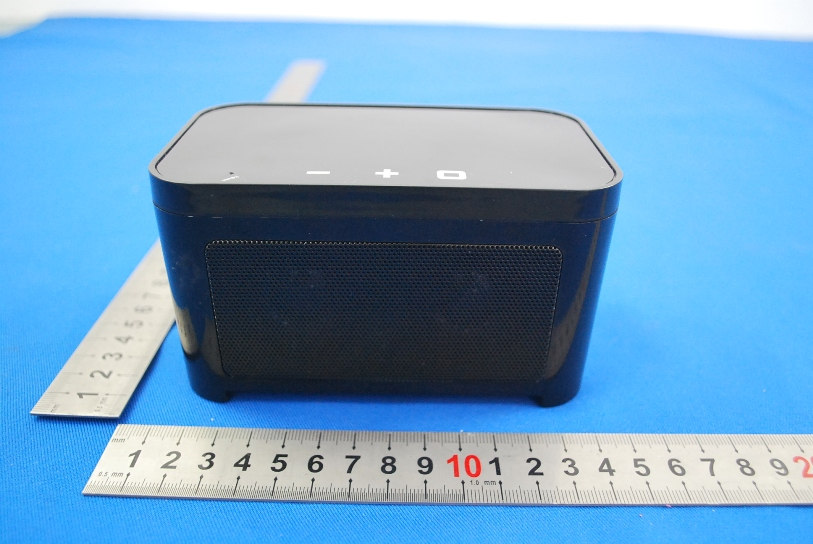

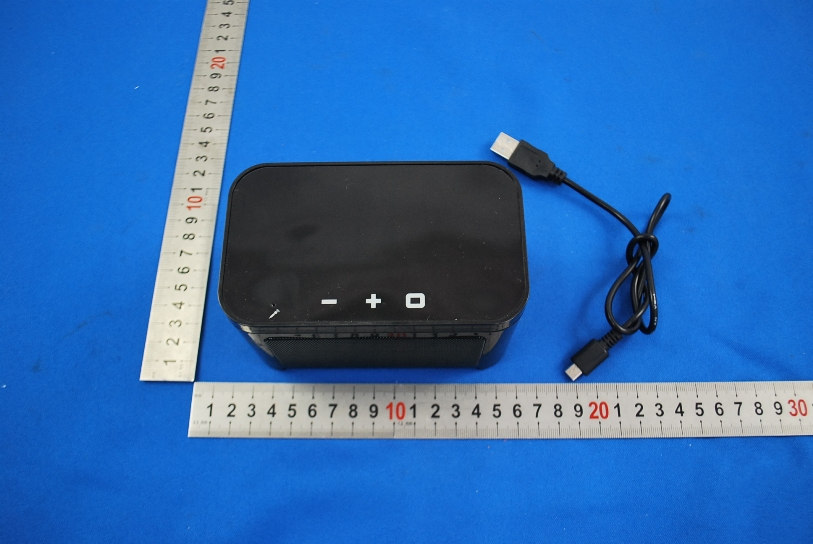

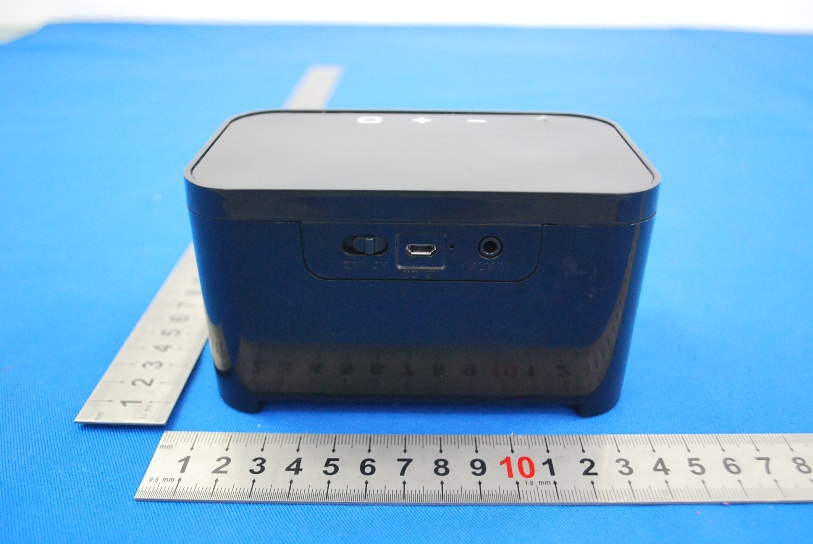

1 Photographs - EUT Constructional Details Test Model No.: BC03

图纸编号 业务审核 工程审核 FCC贴纸 BC03F 2012.12.25 尺寸：39.8*24.8mm 材质：80克铜版纸背胶过哑膜 颜色： 黑底白字 黑色主机贴纸 Model No.:BC03F Input: DC 5V 1.5A Power Output: 3W+3W Shenzhen Sky Dragon Audio-Video Technology co.,Ltd. Model No.:BC03F Input: DC 5V 1.5A Power Output: 3W+3W Shenzhen Sky Dragon Audio-Video Technology co.,Ltd. 尺寸：20*12mm 材质：不干胶过光膜 颜色：黑底白字 粘贴位置：与主机贴纸居中对齐

1 Photographs - EUT Constructional Details Test Model No.: BC03

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130100036301 Page: 1 of 70 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No.: SZEM1301000363RF Applicant: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Manufacturer: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Factory: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Product Name: Bluetooth Speaker Model No.(EUT): BC03 Add Model No.: BC03F FCC ID: ZJPBC03BC03F Standards: 47 CFR Part 15, Subpart C (2012) Date of Receipt: 2013-01-21 Date of Test: 2013-01-23 to 2013-01-30 Date of Issue: 2013-02-27 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100036301 Page: 2 of 70 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: BC03, BC03F Only the model BC03 was tested, since the PCB layout, main board, circuit diagram and construction were identical for the above models. The only difference is model name. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100036301 Page: 3 of 70 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on re…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: BC03) 1.1 Conducted Emission 1.2 Radiated Emission 1.3 Radiated Spurious Emission
