ZJPBC07MIGBT212Bluetooth Speaker

User Instruction for the Bluetooth Hands-free Speaker Model: BC07 Please keep this manual well for future use and this company will not notify you about any updated versions. 1 TABLE OF CONTENTS Introduction .......................................................................................................... 2 Precautions ......................................................................................................... 2 Definitions of Keypads and Jacks ........................................................................ 3 Start Up ............................................................................................................... 4 Power Off ............................................................................................................ 4 Bluetooth Pair Mode ............................................................................................ 4 Precautions ......................................................................................................... 5 Search Mode ....................................................................................................... 5 Standby Mode ..................................................................................................... 5 Connection Mode ................................................................................................ 5 Users use Hands-free Function ........................................................................... 6 Answer Calls ....................................................................................................... 6 Hang up Calls ...................................................................................................... 6 Refuse Calls ........................................................................................................ 6 Aux-in Mode ........................................................................................................ 6 LED Indicator Lamp ............................................................................................. 6 Mobile phones Supporte ...................................................................................... 7 Product Specification ........................................................................................... 8 2 Introductio n This pr oduct is a ki nd of Bl uetooth sound sy stem supporti ng stereo musi c, hands-free for an swering calls, equipped with digital signal pr ocessing technology, echo and noise removal feature. It is applied to the different circumst ances like office and house, etc., and it may be co nnected to most other equipment and mobile phones supporting Bluetooth fe ature by means of wireless for hi-quality hands-free calls an d play the stereo music from other equipment and mobile phones. Precautions First thanks fo r buying the di gital sound sy st em produced by this company! Please refer the User’s Instruct ions before using it properl y. The conten ts stated herein may be modified from ti me to time for better service as the product properties and fu nctions ar e changed and this company will not no tify you otherwise. For the sound perfo rmances of the product, never use it in too cold, too ho t, to o dusty or humid places, espe cially: 1. Moist or underwater places 2. Near th e heater or hi-temperature service 3. Solarization 4. Places apt to fall 5. Never disassemble the combination au dio Otherwise, it may inv alidate the warranty. NOTE: This equipment ha s been te sted and fo und to co mply with the limits for a Class B digital device, pursuant to Part 15 of th e FCC rules These limits are designed to provide reasonable protection against harmful interference in a residential in stallation. This equipment generates, uses, and can radiate ra di o frequency energy and, if not installed and used in accorda nce with the instructions may cause harmful interference to radio communica tions. However, there is no guarantee that in terference will no t occur in a particular in stallation. If this equipment do se ca use harmful in terfer ence to radio or tel ev ision reception, which can be de termined by turning th e equipment off and on, th e user is en courage d to try to correct the in terference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment 3 Warning: 1. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 2. Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Definitions of Keypads and Jacks There are 5 keys and 3 jacks defined as below: : Press it shortly to power ON/ OFF. : Press it shortly when there are incoming calls to talk by hands-free feature; and press it shortly in hands-free call status to hang up; press it shortly when there are incoming calls for more than 3 seconds to refuse the incoming calls; PAIR/ : Press “PAIR/” key for more than 3 seconds in SEARCH mode for PAIR status; press it in Bluetooth Plan status to pause the music play; : Press it shortly for Volume Up and press it for a longer time to tune up the volume rapidly; : Press it shortly for Volume Down and press it for a longer time to tune down the volume rapidly; USB (1000mA) Jack: Suitable for charging jacks of iPod/iPhone and other models of mobile phones; DC IN Jack: DC 9V input source jack AUX IN Jack: 3. 5mm jack to connect the input jack of external sound source; LED INDICATOR LAMP: LED (Red): The red power indicator LED will keep ON in standby sta…

Text truncated - open the document above for the full version.

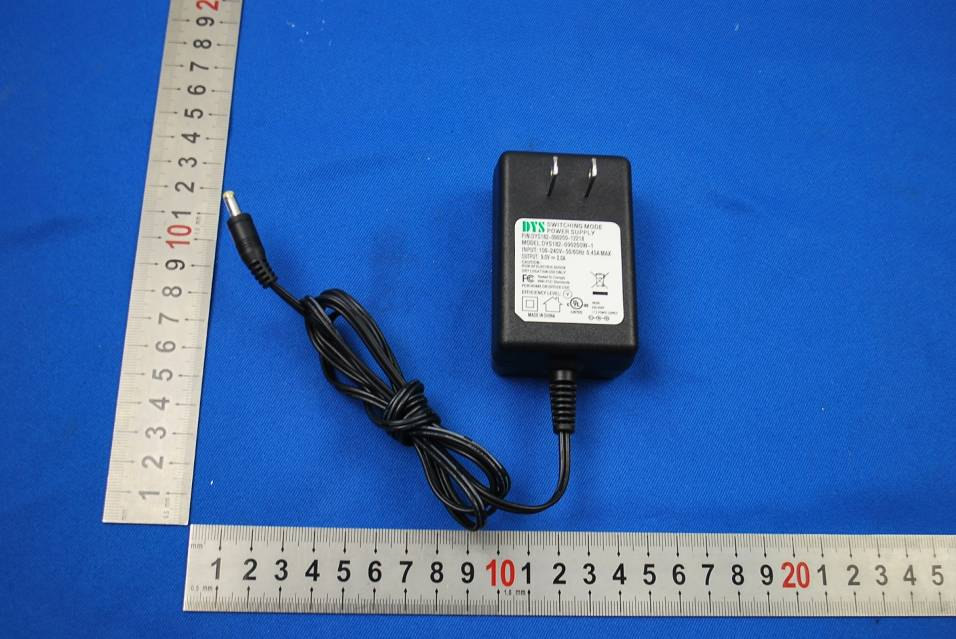

1 Photographs - EUT Constructional Details Test Model No.: BC07 Adapter:

图纸编号 业务审核 工程审核 FCC贴纸 BC07 2012.09.25 尺寸：27.5*15.5mm 材质：不干胶过光膜 颜色：黑底白字 粘贴位置：底部与主机贴纸底部对齐，与 主机贴纸相距5mm左右。 图纸编号 业务审核 工程审核 主机贴纸 BC07 2012.10.26 1 BC07 BC07

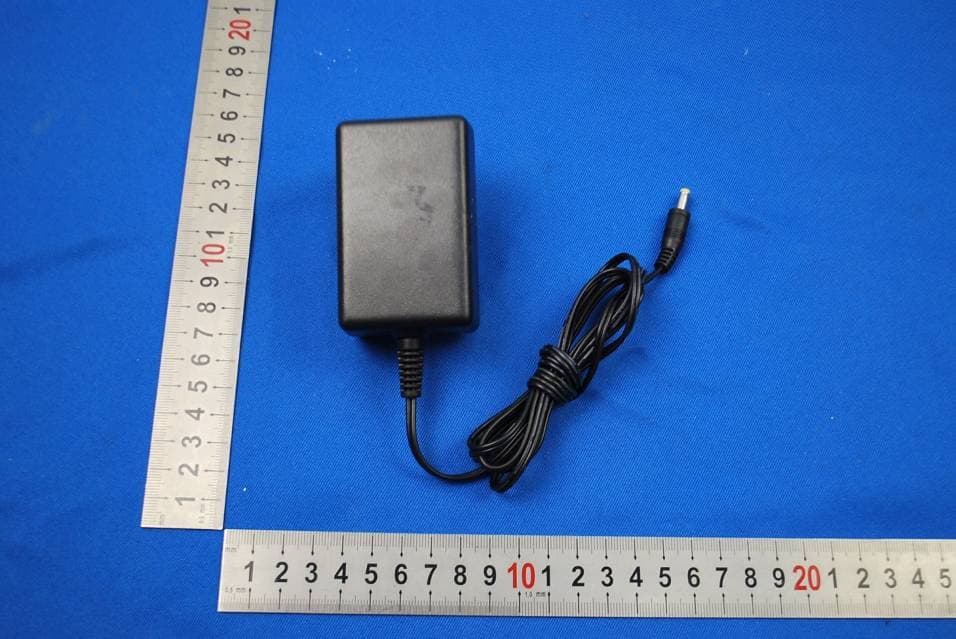

1 Photographs - EUT Constructional Details Test Model No.: BC07 Adapter

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120900543302 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page SAR Evaluation Report Application No: SZEM1209005433RF Applicant: Shenzhen SKY DRAGON Audio-video Technology Co. LTD Manufacturer: Shenzhen SKY DRAGON Audio-video Technology Co. LTD Factory: Shenzhen SKY DRAGON Audio-video Technology Co. LTD Product Name: Bluetooth Speaker Model No.(EUT): BC07 Add Model No.: MIG-BT212 Standard: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1093 (2011) KDB447498D01 FCC ID: ZJPBC07MIGBT212 Date of Receipt: 2012-09-27 Date of Test: 2012-10-08 to 2012-11-09 Date of Issue: 2012-11-22 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM120900543302 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents 1 COVER PAGE..............................................................................................................................................................1 2 CONTENTS..................................................................................................................................................................2 3 GENERAL INFORMATION........................................................................................................................................3 3.1 CLIENT INFORMATION...........................................................................................................................................3 3.2 GENERAL DESCRIPTION OF EUT.........................................................................................................................3 3.3 TEST LOCATION....................................................................................................................................................4 3.4 TEST FACILITY......................................................................................................................................................4 3.5 DEVIATION FROM STANDARDS.............................................................................................................................4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................................4 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER......................................................................................4 4 SAR EVALUATION...............................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120900543301 Page: 1 of 74 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1209005433RF Applicant: Shenzhen SKY DRAGON Audio-video Technology Co. LTD Manufacturer: Shenzhen SKY DRAGON Audio-video Technology Co. LTD Factory: Shenzhen SKY DRAGON Audio-video Technology Co. LTD Product Name: Bluetooth Speaker Model No.(EUT): BC07 Add Model No.: MIG-BT212 FCC ID: ZJPBC07MIGBT212 Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2012-09-27 Date of Test: 2012-10-08 to 2012-11-09 Date of Issue: 2012-11-22 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120900543301 Page: 2 of 74 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: BC07, MIG-BT212 Only the model BC07 was tested, since the electrical circuit design, layout, components used and internal wiring were identical for all above models. Only different on model names and color. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120900543301 Page: 3 of 74 “This document is issued by the Company subject to its General Conditions of Service printe…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: BC07) 1.1 Conducted Emission 1.2 Radiated Emission 1.3 Radiated Spurious Emission
