ZJPBC09MIGBT213Bluetooth Speaker

Table of Contents Introduction...................................................................................................... 2 Precautions....................................................................................................... 2 Warning............................................................................................................. 2 Contents List.................................................................................................... 3 Definitions of Keypads and Jacks............................................................... 3 LED indicator lamp......................................................................................... 4 Hands-free microphone................................................................................. 4 Some Initialize d states................................................................................... 4 Power on function........................................................................................... 5 Start Up.............................................................................................................. 5 Power Off.......................................................................................................... 5 Bluetooth Pair Mode....................................................................................... 5 Precautions....................................................................................................... 6 Search Mode..................................................................................................... 6 Standby Mode.................................................................................................. 6 Connection Mode............................................................................................ 7 Users use Hands-free Function................................................................... 7 Aux-in Mode...................................................................................................... 7 Equipment Support......................................................................................... 8 Product Specification..................................................................................... 8 Model N o.: BC09 Bluetooth Speaker User Manual This image is for illust ration purposes only and may differ from the actual product. Read this manual before use, keep this information in a handy place for future reference . Eve ry effort has been made to ensu re that the information in this manual is accu rate at time of printing . Definitions of Keypads and Jacks There are 5 keys, 2 jacks and one switch defined as below: 1. : Press it shortly to power ON/ OFF. 2. : Press it shortly when there are inco ming calls to talk by hands-free feature; and press it shortly in hands-free call status to hang up; press it sh ortly when there are incoming calls for more than 3 seco nds to refuse the incoming ca lls; 3. : Press “” key for more than 3 se co nds in SEARCH mode for PAIR status; Press “” key shortly in Bluetooth playing status to st op or pause musi c; 4. : Press it shortly for Volume Down and press it for a lo nger time to tune down the volume rapidly; 5. : Press it sh ortly for Volume Up and press it for a longer time to tune up the volume rapidly; 6. : MIC for speak the phone; 1. DC/BATT: Swit ch for cha nging the DC5V an d Built-in li thium ba ttery; 2. DC 5V: DC 5V power su pply, built-in lithium battery power supply jack (Besi de is the LED indica te light for the Lithium Battery Charging); 3. AUX IN: 3. 5mm jack to connect the input jack of external sound so urce; LED indicator lamp: LED (Red): The red power indica tor LED will keep ON in st andby status; LED (Green): The green LED indica tor lamp will keep ON in startup st atus; LED (Blue): The blue LED indica tor lamp will flick er during the Bluetooth connect ing and pairing and then will keep ON after it; Hands-free microphone : It’s desi gned to locate in the left as a small hole; Note: The use r is reco mmended to keep within 5m from the product to keep the normal se rvi ce quality! Some Initialized states Ini tializat ion: The red LED in di cat or lamp keeps ON. Introduction The Je nkins J5 Portable Wireless Speaker is a Bluetooth enabled so und syst em supporting st ereo musi c, and hands-free ca ll answering. In addition it is equipped with digital si gnal proce ssing tech nology, and an ech o and noise removal feature. Ideal for use in the home and office , the J5 works with Smartphone’s, tablets and other Bluetooth devi ces. The portable speaker comes with a built-in lithium battery touch panel button and ca n be rech arged vi a a USB connect ion. The J5 also incl udes an AUX Input for st andard MP3 or other audio devi ce co nnect ion. Precautions First thanks for buying the digital sound syst em produce d by this co mpany! Please refer the User’s Inst ruct ions before usi ng it properly. The content s stated herein may be modified from time to time for better servi ce as the product properties and funct ions are ch anged and this co mpany will not notify you otherwise. For the sound performances of the product , never use it in too cold, too hot , too dusty or humid places, esp eci ally: 1. Moist or underwater place s 2. Near the heater or hi-temperature servi ce 3. Polariza tion 4. Place s apt to fall 5. Neve r disass emble the co mbination audio Otherwise, it may invalidate the warranty Warning: 1. Apparatus sh all not be exp ose d to dripping or sp lash ing and no object s filled with liquids, such as vase s, shall be placed on the apparatus. 2. Where the mains plug or an appliance coupler is used as the disco nnec t devi ce, the disconnect devi ce shall remain readily operable. Contents List 1. Speaker 1 piece 2. USB Cable 1 piece 2 3 4 NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to …

Text truncated - open the document above for the full version.

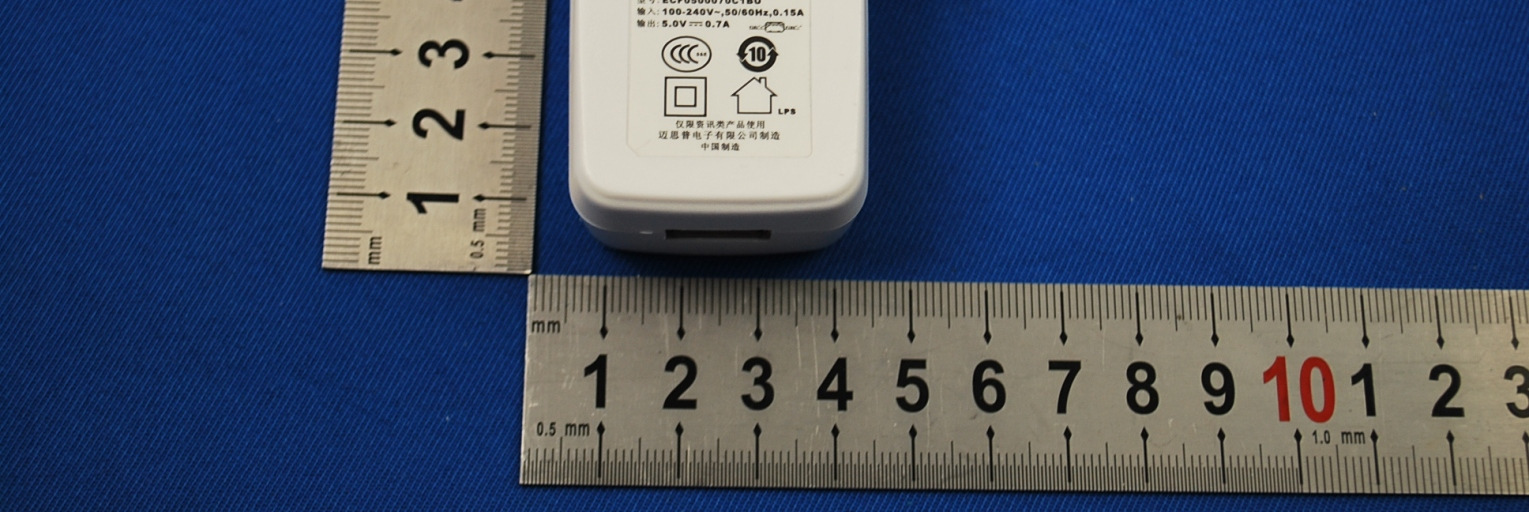

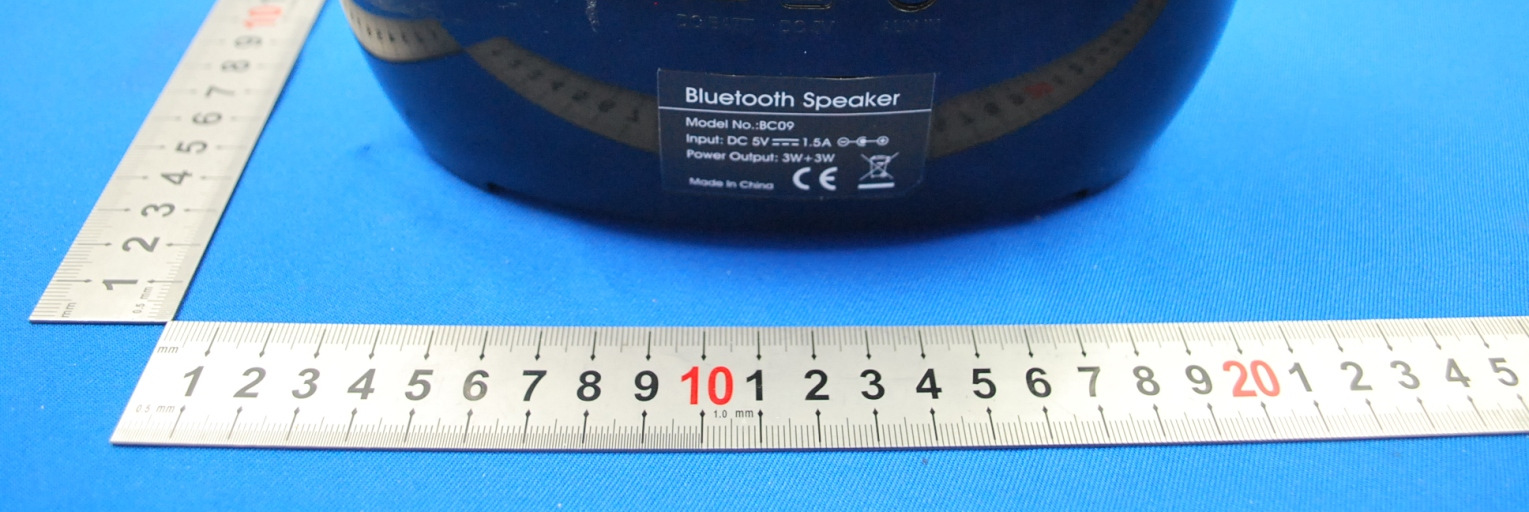

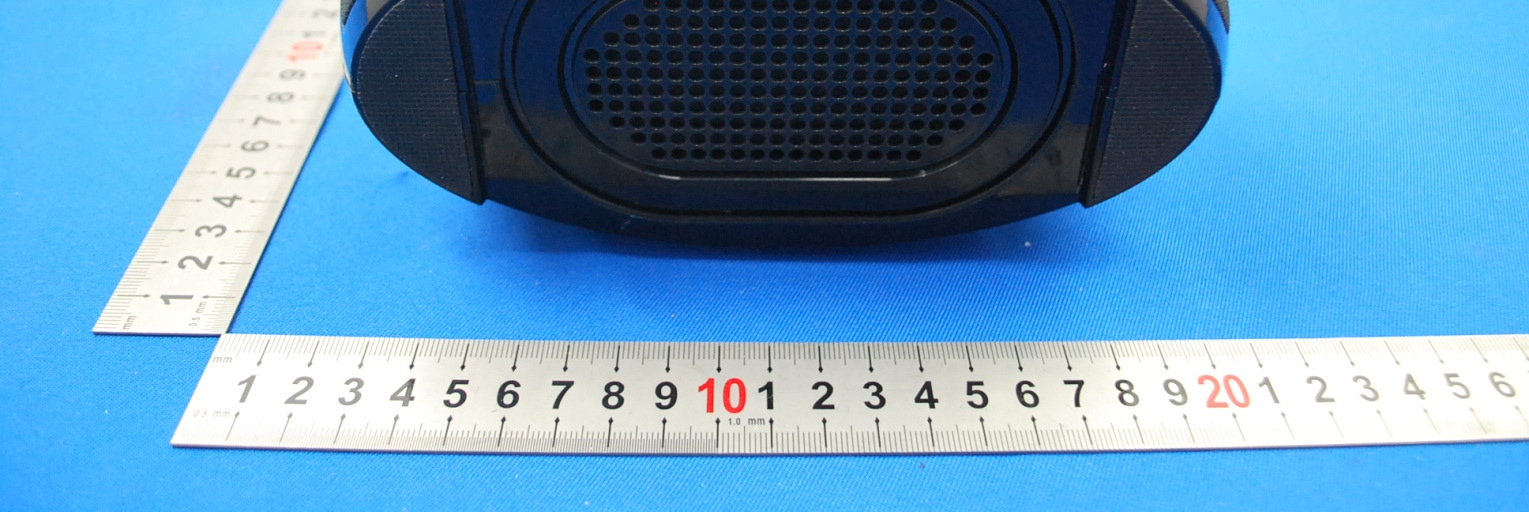

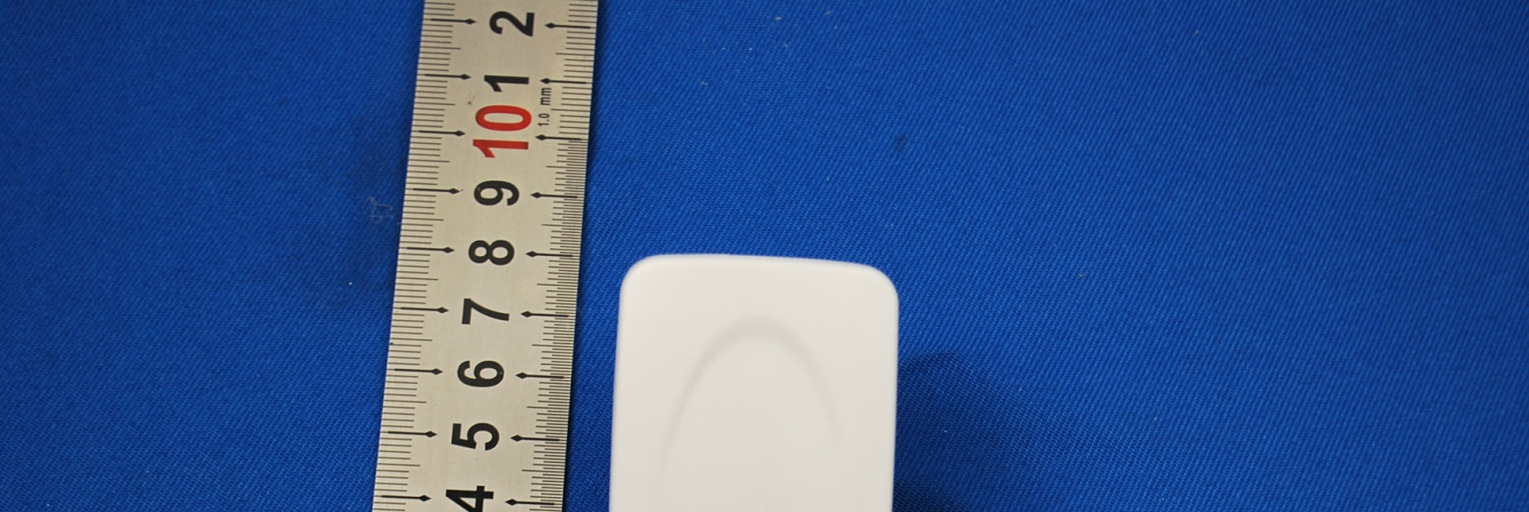

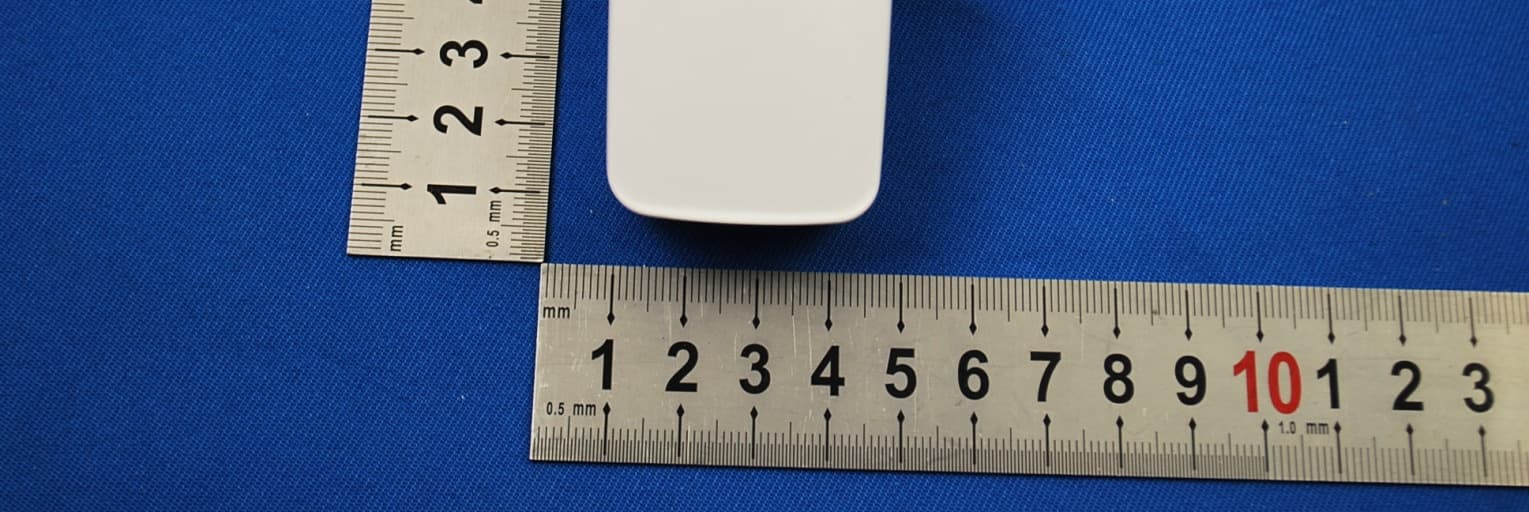

1 Photographs - EUT Constructional Details Test Model No.: BC09

图纸编号 业务审核 工程审核 美工 BC09 2012.09.10 FCC贴纸 尺寸：27.5*15.5mm 材质：不干胶过光膜 颜色：黑底白字 粘贴位置：底部与主机贴纸底部对齐，与 主机贴纸相距5mm左右。 图纸编号 业务审核 工程审核 美工 BC09 2012.10.26 主机贴纸 size:49.5*29.8mm 材质：80克双铜背胶过哑膜 颜色：黑底白字 1 BC09 BC09

1 Photographs - EUT Constructional Details Test Model No.: BC09

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120900543401 Page: 1 of 75 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1209005434RF Applicant: Shenzhen SKY DRAGON Audio-video Technology Co.LTD Manufacturer: Shenzhen SKY DRAGON Audio- video Technology Co.LTD Factory: Shenzhen SKY DRAGON Audio- video Technology Co.LTD Product Name: Bluetooth Speaker Model No.(EUT): BC09 Add Model No.: MIG-BT213 FCC ID: ZJPBC09MIGBT213 Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2012-09-29 Date of Test: 2012-10-08 to 2012-11-15 Date of Issue: 2012-11-28 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120900543401 Page: 2 of 75 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: BC09, MIG-BT213 Only the Model BC09 was tested, since the electrical circuit design, layout, components used and internal wiring were identical for all above models. Only different on model number and color. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120900543401 Page: 3 of 75 “This document is issued by the Company subject to its General Conditions of Service printed…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: BC09) 1.1 Conducted Emission 1.2 Radiated Emission
