ZJPBC161BTSP10BLUETOOTH SPEAKER

BC161 BLUETOOTH SPEAKER TM User Manual WELCOME CONNECT TO BC161 Speak er 3.5mm STEREO (wired audio) OR CHARGE NAKAMICHI BT10 Speak er USB BLU ETOOTH (Wireless audio) Thank you for purchasing BC161 portable Bluetooth Speaker. BC161 portable Bluetooth Speaker delivers impactful wireless audio without the hassle of cables and docking stations. It ’s the perfect companion to any phone, music playe r, tablet or laptop! CONTENTS IMPORTANT SAFETY NOTE POWER UP GET CONNECTED GET LISTENING TROUBLESHOOTI NG SPECIFI CATIONS SAFE TY INFORMATION BC161 BLUETOOTH SPEAKERANATOMY BC161 Speaker IMPORTANT SAFETY NOTE 34 hhfo LED Light Indicator Play/Pause/Call Pick U p Volume Increase Volume Decrease Power Switc h USB Charging Port/Audio-in Jac k POWER SWITCH Press and Hold this button for 3 Seconds to turn on the device . MUSIC PLAY/ MUSIC PAUSE BUTTON Use this button to control music play or pause. BLUETOOTH PAIRING RESET Press and Hold the PLAY/PAUSE button for 5 seconds to reset the Bluetooth pairing . VOLUME CONTROL Press and Hold the PLUS and MINUS buttons to Increase and Decrease volume . - Read, follow and keep these instructions . - Pay attention to all warnings . - Do not use this device near wate r. - Clean only with a soft, dry cloth . - Do not block ventilation openings . - Install in accordance with the manufacture r’s instructions. - Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) which produce heat . WARNING: To reduce the risk of fire or electrical shock, do not expose this device to rain or moisture . - Protect the charging cables from being walked on or pinched, particularly at the plugs and the point where it exits from the device . - Only use attachments/accessories specified by the manufacture r. - Unplug this device during lightning storms or when unused for long periods of time . - Do not expose this device to liquids and ensure that no objects filled with liquids, such as vases, are placed on the device . WARNING: No open flame sources -such as candles- should be placed on the product . For best results, fully charge your BC161 Speaker before use. POWER UPGET CONNECTED FOR A FULL CHARGE Plug NAKAMICHI BTSP10 Speaker into your wall charger or computer via micro USB cable. WHEN BATTERY IS LOW The LED LIGHT flashes RED. WHEN BATTERY IS CHARGING The LED LIGHT illuminates RED. WHEN FULLY CHARGED The LED LIGHT will turn OFF. NOTE: For best performance, charge the device before using. It takes 3 hours to give your speaker an 80% charge. A full charge takes approximately 4 - 5 hours. 56 CONNECTION OPTIONS Connect speaker wirelessly via Bluetooth or 3.5mm stereo input. 3-1 CONNECT WIRELESSLY Your NAKAMICHI Speaker can wirelessly stream audio from any Bluetooth device within 33 feet. GET LISTENINGGET CONNECTED 3-2 PREPARE YOUR SPEAKER FOR PAIRING 1.Press and hold the POWER switch for at least 3 seconds. 2. Wait for the LED LIGHT to flash BLUE. You will hear a prompt indicating it is ready to pair. 3-3 PREPARE YOUR PHONE OR DEVICE Turn on Bluetooth. ON AN IPHONE®, IPOD®, OR IPAD® Go to SETTINGS > GENERA L > and enable BLUETOOTH ON ANDROID®, Go to SETTINGS >CONNECTIONS> and enable BLUE TOOTH ON A BLACKBER RY® Go to SETTINGS/OPTIONS >BLUE TOOTH and enable BLUE TOOTH 3-4 MAKE THE CONNECTION Go to your device’s Bluetooth settings. ADD, SEARCH or SCAN FOR DEVICE S When “NAKAMICHI BTSP10” appears, select it . IF ASKED FOR A PASSCODE Enter “0000 ” When pairing is successful, you will hear a tone and the LED LIGH T will turn BLUE. This is a one-time event per device. To pair your NAKAMICHI Speaker to another device, repeat steps 3.2 to 3.4 . 3-5 PLUG & PLAY No Bluetooth? Connect via 3.5mm Aux input. Connect the 3.5mm Aux-in cable to the device and the LED LIGH T will turn GREEN. Play audio from any device with a 3.5mm audio jack or audio output . When BC161 Speaker connects, via 3.5mm stereo input mode, the speake r’s control panel functions such as MUSIC PL AY/ PAUSE and TRACK CONTROLS will not work. These functions can only be controlled from your audio source . 78 4-1 GET THE BEST SOUND For best listening results, make sure your BC161 Speaker is resting on its base and speaker grill facing upwards. Peel o ff the protective film from its base before use . When connected wirelessly via Bluetooth, it ’s best to maximize the volume on your phone/device and to control volume use the speake r. When connected via 3.5mm stereo input, your phone/device may distort the audio signal if turned up too loud. 4-2 CONNECTION PRIORITY Incoming and outgoing calls will always take precedence over audio playback when connected via Bluetooth. Audio content via 3.5mm stereo input will override wireless audio via Bluetooth . SPECIFICATIONSTROUBLESHOOTING TROUBLESHOOTING 1. HEARING DISTORTION A. Lower the volume on your NAKAMICHI Speaker and/or phone/device. (See section 4.1 GET THE BEST SOUND) B. Make sure it’s charged. Check for low battery, then charge your speaker via USB. 2. NOT LOUD ENOUGH? A. Turn up the volume on your phone/device or your Nakamichi Speaker. B. Make sure it’s charged. 3. UNABLE TO PAIR WITH BLUETOOTH DEVICE? A. Confirm that your phone/device is Bluetooth compatible. B. Follow Section 3.1 GET CONNECTED instructions in this guide. 4. EXPERIENCING SIGNAL LOSS OR DROPOUTS VIA BLUETOOTH? A. Move your Nakamichi Speaker closer to your phone/device. B. Make sure it’s charged. C. Turn off your speaker and phone/device, then power up and reconnect. FREQUENCY RESPONSE: 100 Hz – 20,000 Hz SIGNAL TO NOISE RATIO: ≥60dB SPEAKER DIAMETER: 1.55” MAXIMUM POWER OUTPUT: 3W BLUETOOTH: 3.0 CHARGING TIME: 4 – 5 Hours SIZE: 3.1” x 2.9” x 3.1” WEIGHT: 10.2ounces BLUETOOTH RANGE: 33ft (10m) BLUETOOTH VERSION: 3.0 + EDR 910 H BATTERY/CHARGER HAZARDSAFETY INFORMATION WARNING Please read these safety warnings and cautions carefully to ensure your personal safety and prevent property damage . Fire and Electric Shock Hazard • Do not expose your BC161 Speak…

Text truncated - open the document above for the full version.

Shenzhen SkyDragon Audio-Video Technology Co., Lt d Authority to Act as Agent Date: July 4, 2014 To Whom It May Concern: We , the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Hellen Wang in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all matters relating to all processes requ ired in FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We certify that we are not subject to denial of federal bene fits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes F CC benefits. Thank you, Agency Agreement Expiration Date: ___12 months_____ By: ______Cindy Shi _______ (Signature 1 ) (Print name) Title: ______ Assistant Manager______________ On behalf of: ____ Shenzhen SKY DRAGON Audio-video Technology Co.,LTD________ (Company Name) Te lephone: ______0755-29995433 ____________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Shenzhen SkyDragon Audio-Video Technology Co., Lt d Re quest for Confidentiality Date: July 4, 2014 Subject: Confidentiality Request for: FCC ID:ZJPBC161BTSP10 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: __________ Shenzhen SKY DRAGON Audio -video Technology Co.,LTD _ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "co mpetition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sh ort-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authoriz ation and prior to marketing. This is to avoid premature release of sensi tive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public . ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE fo r Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ Cindy Shi (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently requ ire review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

MMooddeell // IItteemm CCoonnffiirrmmaattiioonn LLeetttteerr We Shenzhen SKY DRAGON Audio-video Technology Co.,LTD declare that our product . : BBCC116611 and its below model (s) / item(s): CK161b, CK161b-B, CK161b-R, CK161b-S, CK1621b-G are identical on circuitry design, PCB layout, electrical components used, internal wiring and functions with the model/item No.: BC161 which we chose to be tested by SGS and only different on the brand and color . CCoommppaannyy CChhoopp: Shenzhen SKY DRAGON Audio-video Technology Co.,LTD AAuutthhoorriizzeedd ssiiggnnaattuurree __________________________________________________ PPoossiittiioonn:: Assistant Manager JJuullyy 1111,, 22001144 ddaattee

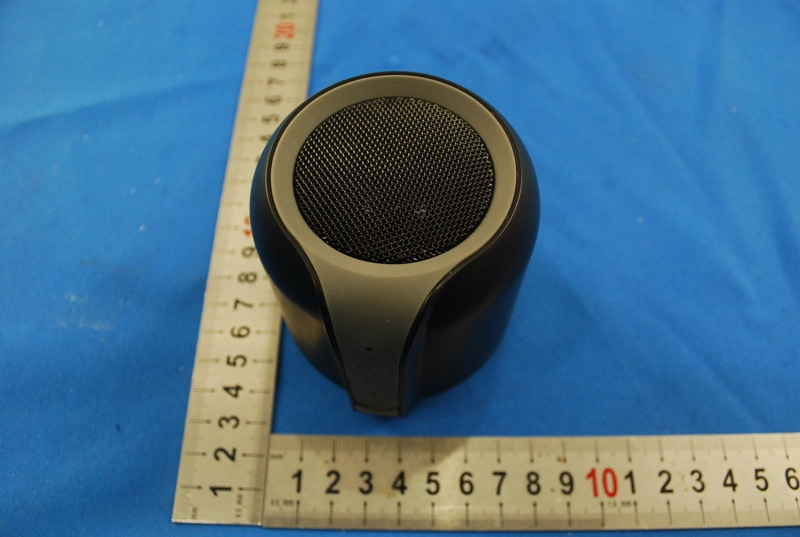

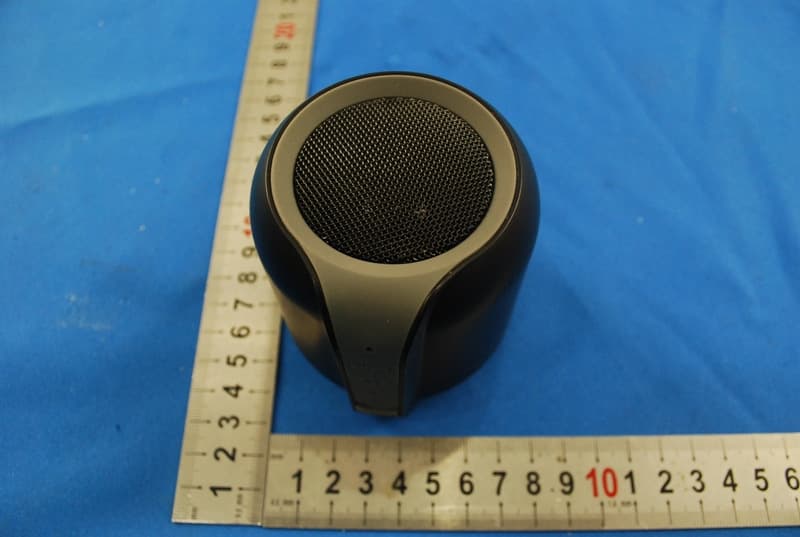

1 Photographs - EUT Constructional Details Test model No.: BC161

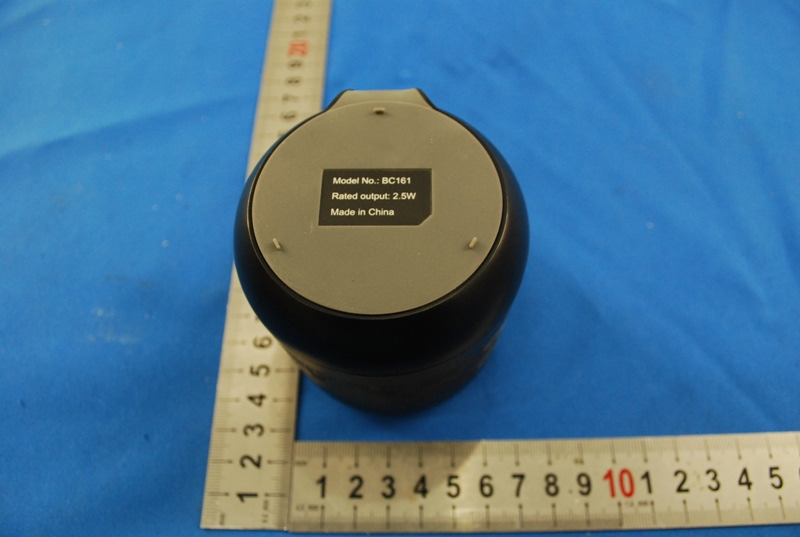

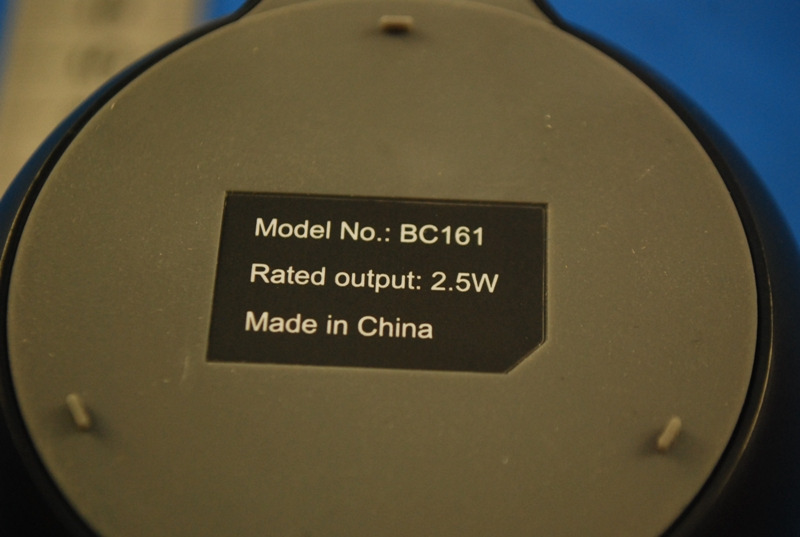

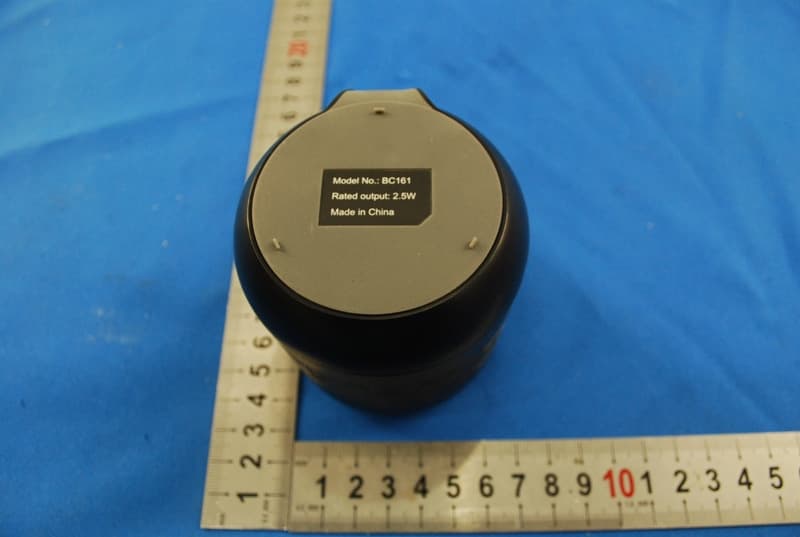

主机贴纸A0 2014.06.30 BC161 Bluetooth Speaker FCC ID:ZJPBC161BTSP10 Input:DC 5V 1.5 A BC161 主机贴纸粘贴位置——底面预留位置 3 . 5 2 15.3 主机贴纸 1:1 尺寸: 25.3*15.3mm 颜色：黑底印刷877C 材质：80g铜版纸背胶过哑膜 Made in china Model No.: CK161b

1 Photographs - EUT Constructional Details Test model No.: BC161

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM140700344302 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1407003443RF Applicant: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Manufacturer: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Factory: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Product Name: Bluetooth Speaker Model No.(EUT): BC161 Trade Mark: SAMESAY FCC ID: ZJPBC161BTSP10 Standards: 47 CFR Part 1.1307(2013) 47 CFR Part 2.1093 (2013) KDB447498D01 General RF Exposure Guidance v05 Date of Receipt: 2014-07-02 Date of Test: 2014-07-11 to 2014-07-18 Date of Issue: 2014-07-24 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM140700344302 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE ..................................................................................................................................................... 1 2 CONTENTS ......................................................................................................................................................... 2 3 GENERAL INFORMATION ................................................................................................................................ 3 3.1 CLIENT INFORMATION ......................................................................................................................................... 3 GENERAL DESCRIPTION OF EUT ................................................................................................................................... 3 3.2 TEST LOCATION .................................................................................................................................................. 3 3.3 TEST FACILITY.................................................................................................................................................... 4 3.4 DEVIATION FROM STANDARDS ............................................................................................................................. 4 3.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................................... 4 3.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .......................................................................................... 4…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM140700344301 Page: 1 of 88 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1407003443RF Applicant: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Manufacturer: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Factory: Shenzhen SKY DRAGON Audio-video Technology Co., LTD Product Name: Bluetooth Speaker Model No.(EUT): BC161 Trade Mark: SAMESAY FCC ID: ZJPBC161BTSP10 Standards: 47 CFR Part 15, Subpart C (2013) Date of Receipt: 2014-07-02 Date of Test: 2014-07-11 to 2014-07-18 Date of Issue: 2014-07-24 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM140700344301 Page: 2 of 88 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Restricted bands around fundamental frequency (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM140700344301 Page: 3 of 88 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup Test model No.: BC161 1.1 Conducted Emission 1.2 Radiated Emission Below 1GHz 1.3 Radiated Spurious Emission
