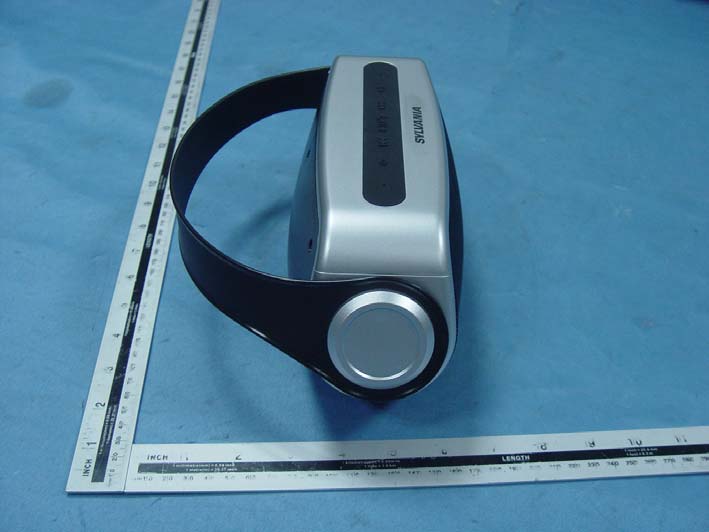

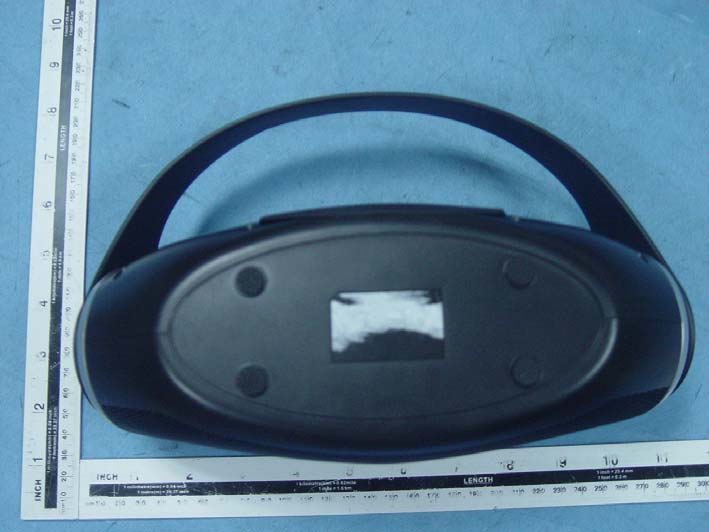

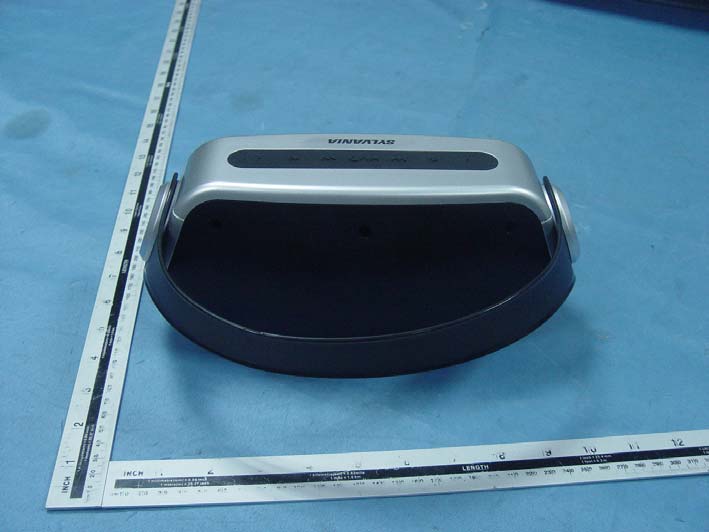

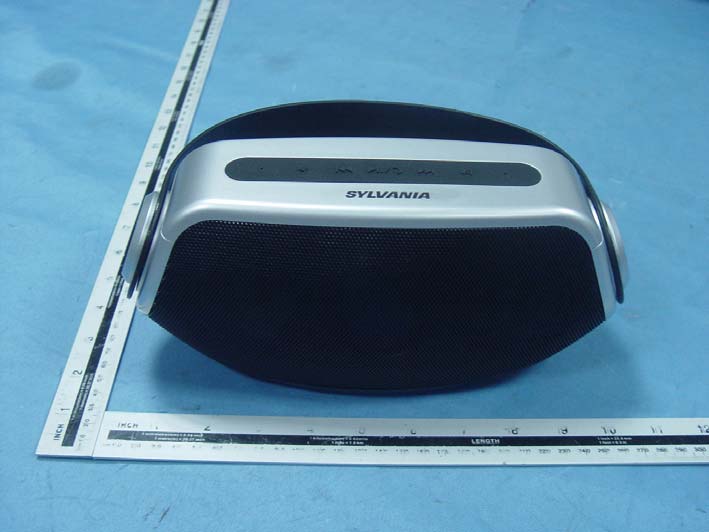

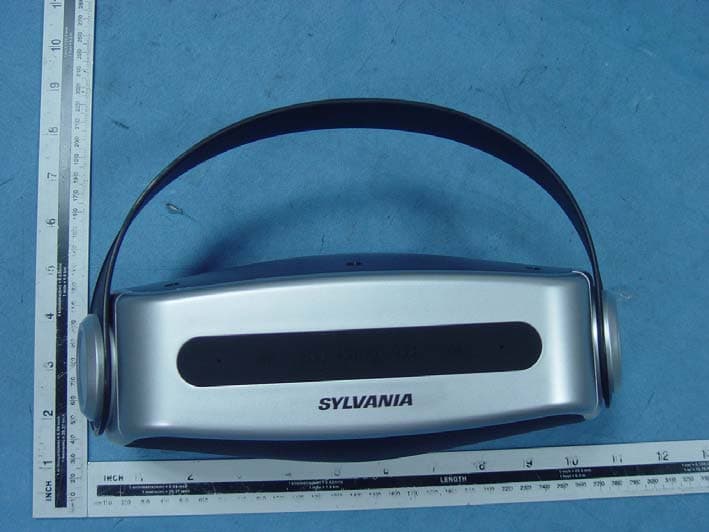

ZJPBC229FSP233Bluetooth Speaker

SP233 Users’ Manual Congratulations Congratulation on your purchase. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record. Package Contents Bluetooth Speaker x 1 Instruction manual x 1 USB cable x 1 Features Bluetooth sound system supporting stereo music Hands-free for answering calls Equipped with digital signal processing technology Safety Precaution Readkeep and follow these instructions. Heed all warnings on the product and in the instruction manual. For your safety, read and follow this manual carefully to ensure proper use of the product and avoid any danger or physical damage. Place the unit on a flat surface and ventilated condition. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc. to avoid overheating and malfunction. No naked flame sources, such as lighted candles, should be placed on the apparatus. The apparatus shall not be exposed to dripping or splashing, no objects filled with liquids, such as vases, shall be placed on the apparatus. Keep the appliance away from rain and any moisture. D not place the unit in moist and humid conditions, which could lead to malfunction. 1 2 When the unit is suddenly moved from a cold environment to a warm one, if moisture forms inside it, it may not operate properly. To correct this problem wait about one hour for the moisture to evaporate. Do not expose the unit under direct sunlight or nearby objects that radiate heat to avoid damaging the unit The apparatus should be used in moderate climate. The plug of the appliance shall remain readily operable. Do not pull on the connection cord, but rather on the plug, to separate the appliance from the mains. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance Technical Specification Bluetooth specifications: Bluetooth V3.0 Working frequency scope: 2.402GHz- 2.480GHz unlicensed ISM band Maximum connecting distance: 10 meters Output power: 2.5W X2 RMS Supporting Profiles: HFPV1.5 A2DPV1.2AVRCPV1.0 Dimensions:258× 101×170 (mm) (L x W x H) Charging voltage: 5 V DC Charging current: 400 mA max. 3 Installation and Maintenance Top View 1. : Blue LED indicator lamp 2. : Volume Down button 3. Short press in Bluetooth mode to select the previous music 4 Press the key for more than 3 seconds in search mode for pair status; Short press for play and pause in the music mode; Short press to pick up and cancel the phone in the hand free mode. 5 Short press in Bluetooth mode to select the next music 6 Volume Up button 7MIC Back View 1234567 2134 1 2DC 5V Charge jack 3ON OFFPower on/off 4AUX IN JACK3.5mm audio input LED INDICATOR LAMPS: Blue lamp on the topWhen a Bluetooth Connection is being established, the Blue LED will flash. After connection, the Blue LED flashes once every three seconds. Blue lamp on the topThe blue indicator lamp will keep ON during the Aux in Mode. Red lamp on the back: The red LED stays lit while charging the 3.7 V lithium battery. The red LED turns off once the battery is fully charged. Startup: Switch the “ON/OFF” switch at the back of the machine “ON “ to power the machine. 1) During the first use, the blue LED lamp will flicker to access to PAIR mode. 2) Following initial pairing the Blue LED will flash once every second to access SEARCH mode. Subsequent Bluetooth connection will then be made automatically. Bluetooth Pair Mode 1.Press “ ” for more than 3 seconds, the blue LED will flash. 2.Activate the Bluetooth function of your Bluetooth device. So that the device starts to search for the SP233. 3.Select “SP233” when it appears in the Bluetooth search. 4.In case of some kinds of cell phones, users have to key in the identification code “0000”and press ENTER key to match the product and mobile phone and after success, the blue LED will flash slowly. Bluetooth Connection Memory List: When the paired equipment number exceeds the maximum capacity & 4 units, the product will automatically clear the first equipment in its memory. In Bluetooth music play mode, users can: 1. Shortly press“ ” or “ ”key or press for a longer time to adjust the volume. 2. Shortly press “ ” key to play/pause the music play. 4 5 Users use Hands-free Function: Answer Calls The speaker will ring up when there are incoming calls during music play, just press “ ” key shortly to answer. Hang up calls Press “ ” key shortly during hands-free call to hand up calls and then return to the music play mode. Refuse Calls When there are incoming calls, just press for a longer time “ ” key for more than 3 seconds to refuse calls .The caller is directed to the voicemail of the smartphone. AUX IN MODE: When AUX-IN line is connected to AUX-IN Jack, the system will automatically pause the Bluetooth, the blue LED turns on and the unit enters into AUX-IN model. Then users can press “ ” or “ ” to adjust the volume. When user disconnected AUX-IN line completely out of AUX-IN jack, the unit will re-enter into the Bluetooth SEARCH MODE and search for the equipment connected to last time. . Mobile phones Support This device supports most mobile phones and related Bluetooth devices for playing music. Power off Switch the ON/OFF switch at the back of the device to “OFF” to switch off the Bluetooth Speaker Troubleshooting Speaker does not respond (no power): Make sure unit is complete…

Text truncated - open the document above for the full version.

Shenzhen SKY DRAGON Audio-video Technology Co.LTD 2014-04-29 To: SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We , Shenzhen SKY DRAGON Audio-video Technology Co.LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: Bluetooth Speaker Model name: BC229F FCC ID: ZJPBC229FSP233 We affirm that between SIEMIC and Shenzhen SKY DRAGON Audio-video Technology Co.LTD. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Cindy Shi / Engineering Assistant Contact information / address: B16,Laneway 3,Liuxian,2RD,District71, Baoan,shenzhen,China

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 Shenzhen SKY DRAGON Audio-video Technology Co.LTD 2014-04-29 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZJPBC229FSP233 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature: Client’s name / title: Cindy Shi / Engineering Assistant Contact information / address: B16,Laneway 3,Liuxian,2RD,District71, Baoan,shenzhen,China

,))ૉ঻ ' 2014.03.01 BC229F BC229F ,))ૉ঻ডૉѹ৥ تؾ͹SSߕૅ͹ЉٴਇଋҰਔோ਩͹௲ڂग؁ডૉѹ৥͹ЊПߑૉ঻ڂୂ٘ث௷ͫЊПߑૉ঻ब૥SS٘՘澞 BC229F FCC ID:ZJPBC229FSP233 BC229F FCC ID:ZJPBC229FSP233

Antenna

FCC ID : ZJPBC229FSP233 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. GFSK Mode Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2402 3.61 2.30 0.71 3.0 2441 2.48 1.77 0.55 3.0 2480 2.43 1.75 0.55 3.0 ∏/4-DQPSK Mode Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2402 2.33 1.71 0.53 3.0 2441 1.64 1.46 0.46 3.0 2480 2.43 1.75 0.55 3.0 8QPSK Mode Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 2402 2.42 1.75 0.54 3.0 2441 1.72 1.49 0.47 3.0 2480 2.53 1.79 0.56 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A
