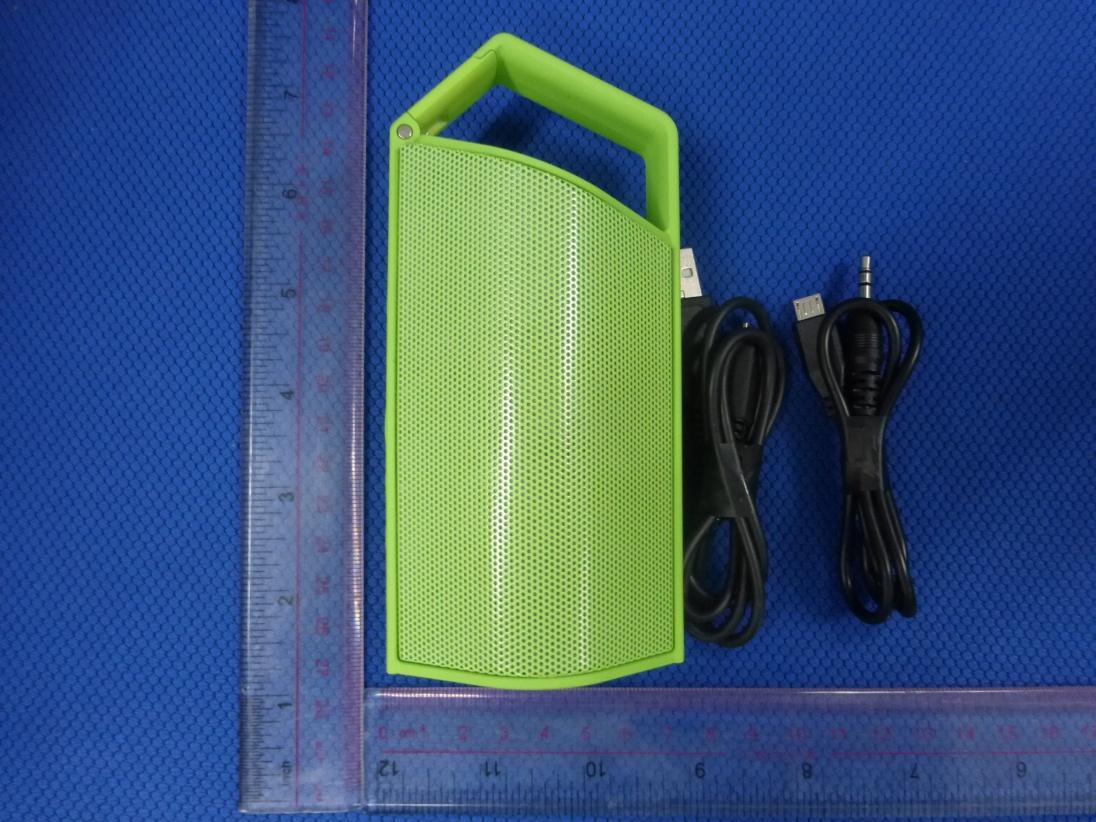

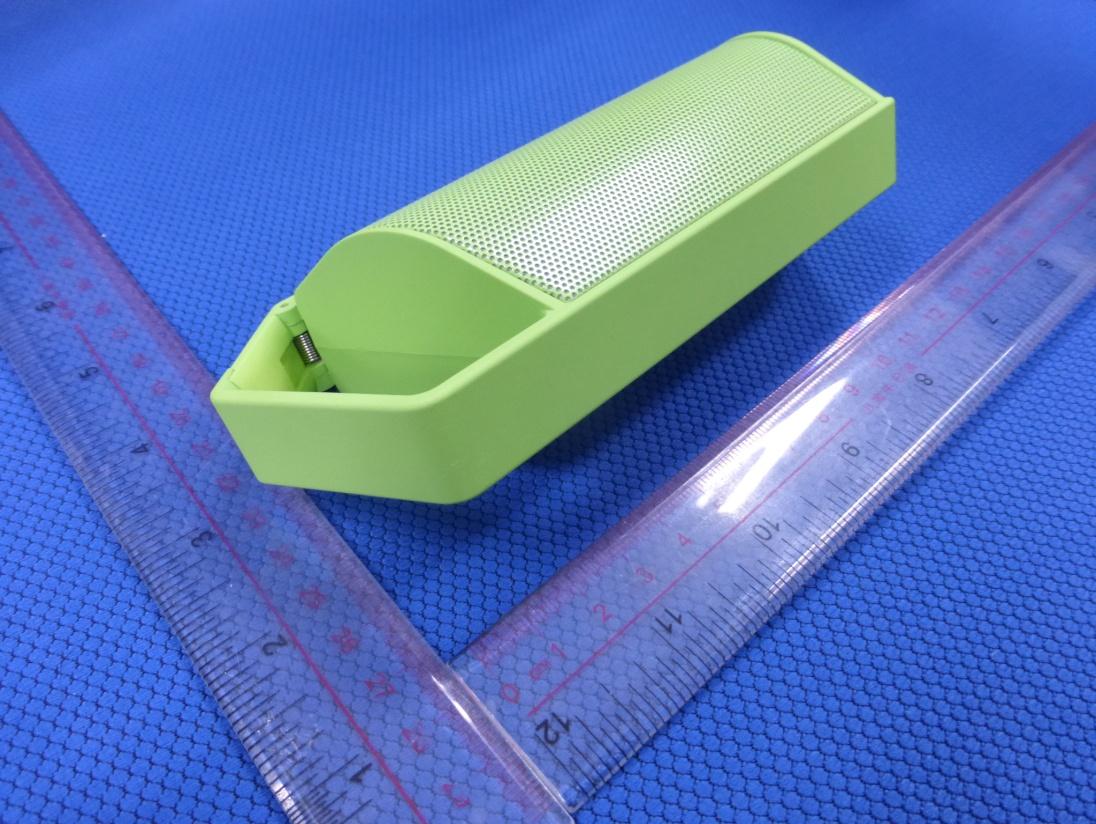

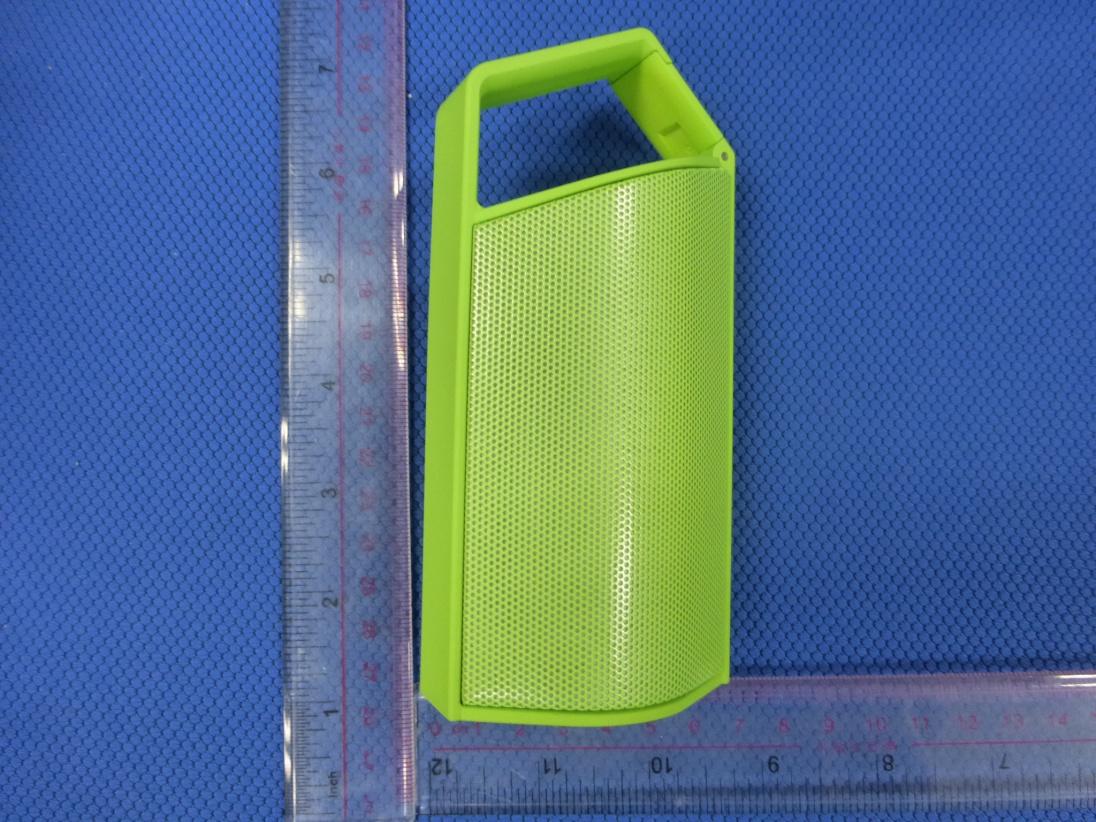

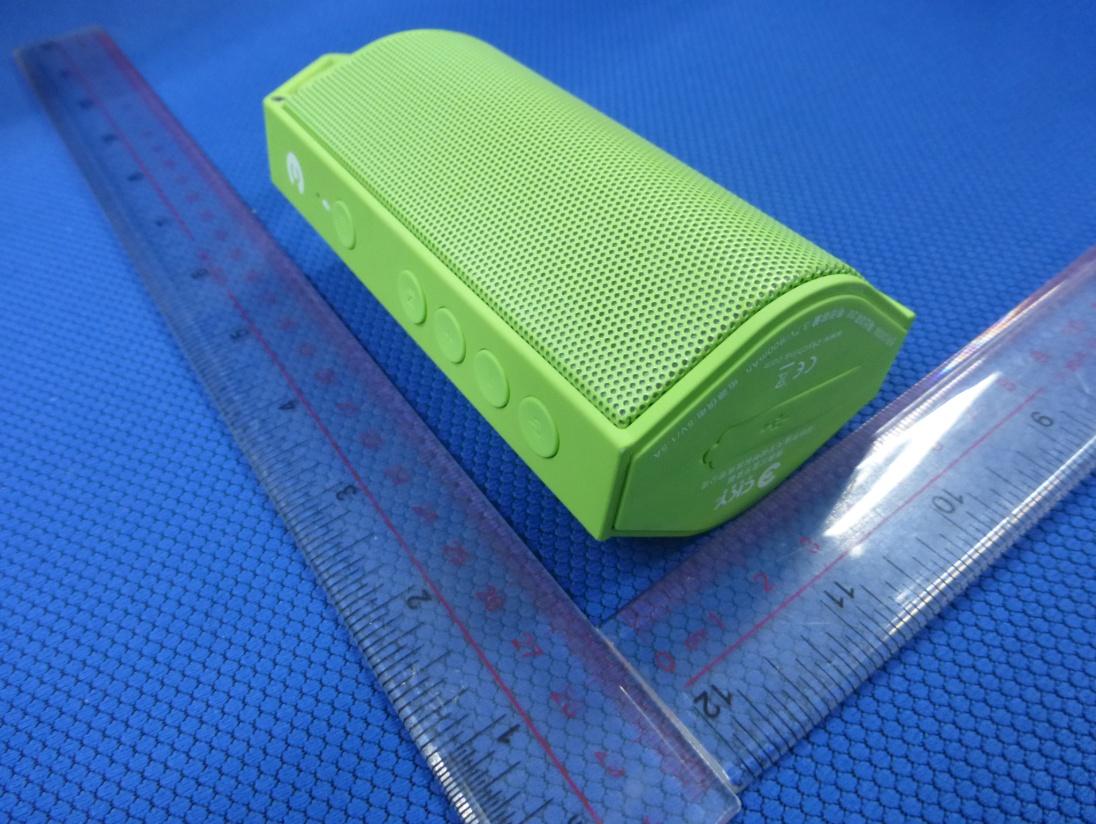

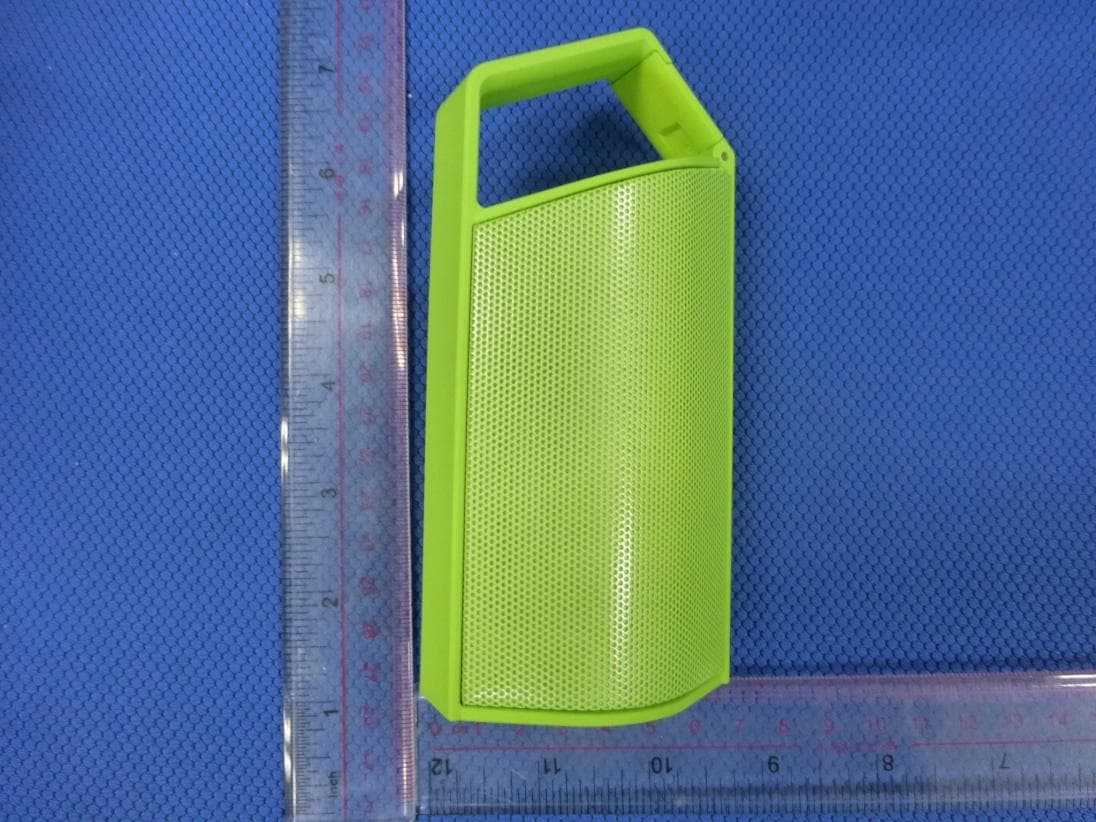

ZJPCK0081505Bluetooth Speaker

Manual of Users Model: CK008 The picture is only used as a reference, if th ere is offset with the actual device, please refer to the actual device indeed! 1 Directory 1 Preface------------ ----------------- ----------------- ----------2 2 Attachments------ ----------------- ------------------ ---------2 3 Product introduction------ ------------------ --------------2 4 Attention-------- ------------------ ----------------- ----------2 5 Panel introduction------------ ----------------- ------------3 6 Operation instructions---- ------------------- -------------5 7 Device compatibility.----- -------------------- -------------8 8 Major technical parameters ----------------- --------------8 9 Simple trouble solutions--- ------------------- ------------8 2 1. Preface To our users: Welcome to join the family of CKY! Your purchasement is highly appreciated by us! To make full use of your playe r’s function, pl ease read this manual carefully before us e. This will make it easy for you to master the connecting method and using essent ials of this system. You will also find that, we make varietie s of exploration, in our design, manufacturing process, operationa l hommination etc., all to meet your requirements. Please keep this manual we ll for future inqueries. Open the package Please open the package care fully, confirm the following attachments, and place them in one place so as not to lose. 2. Attachments - Device 1 - Manual of users 1 - Micro USB charging wire 1 - Micro USB audio wire 1 3 3. Product introduction This product is a portable audi o with support of Bluetooth playback, TF card and external audio input amplification, using digital signal processing tec hnology, suitable for variable environments such as office, ho me etc., which can have wireless connection to most mobiles and other devices supporting Bluetooth function to play music. In addi tion, the body func tions as magic Lantern shine! 4. Attention First, thank you for using our digital audio products! Before use, please read the manua l for proper use of this product. For better service, th is manual of users may change its content without further notification, accord ing to the change of products’ performance and functions. To keep good performance, do not us e in places where is too cold, too hot, dusty or humid. More attention should be paid to the following conditions: 1 、 Wet or underwater situations 2 、 Heater or high temperature situations 3 、 Exposure to the sun 4 、 Easily fallen 4 5 、 Do not disassemble the combined audio without authorization, otherwise the warranty will be off. Warning 1 、 Please pay attention to waterp roofing, products should avoid water or water splashing. Objects filled with liquid such as vase cannot be placed on the body to avoid accident. 2 、 To avoid fire or electric shock accidents, please check whether the power grid voltage is the same as the device specified. 5. Panel introduction Buttons and hub definition: 5 buttons in total; 2 hubs in total, are defined as follows: 5 1 、。： hub: handsfree phone 2、 ： button: mode-switch by short press lantern 3、 ： button: Bluetooth play state, short press for play and pause; long press for Bluetooth pairing. With incoming call, short press for answer and hang up, long press for rejection to answer the phone 4、 ＋ ： button: short press the Bluetooth, TF / SD for next song, long press for volume up 5、 － ： button: short press the Bluetooth, TF / SD back to the previous song, long press for volume down 6、 ： button: long press for on and off, short press for function conversion 1、 。： hub: handsfree phone 2、 。： hub: reset 3 、 MICRO USB ： For external audio input and play, 5V DC charging 4 、 MICRO TF ∕ SD ： TF / SD play hub Power supply mode: Power supply by 3.7 V fully-charged lithium battery inside the device, long press " " button to turn on the device. 6 Notes: A. because the 3.7 V lithium battery inside the device has its self-consumption, so users are advised to use the device with 3 to 5 hours’ full charge to 3.7 V lithium battery after buying, and ensure its use with at least charge once each month! B. whatever the function and time period with the device, as long as the MICRO USB connection wire of the device plug in the computer, the other end plug in the USB hub at the bottom of the device, 3.7 V lithium battery inside the device can be charged (the battery needs about 3 hours’ charge from 0 to 100% full). C. power adapter of DC 5V (500 ~ 1500 mA) output can normally charge the device. D. during the process of charging, current consumption of the device is huge, which will cause the device not to use normally. Please get the device fully charged, unplug the MICRO USB charging wire and then use the device. 6. Operation instructions Startup: fully charge 3.7 V lithium battery inside the device, long press " " button on the device, the device will pronounce "welcome to use CKY Bluetooth audio". ● Bluetooth pairing play mode: After startup, the device then pronounces "Bluetooth is on, waiting for connection". 1). Put the mobile away at a distance of 3 meters 2). Activate the mobile's Bluetooth function, use the mobile to search for Bluetooth devices (please refer to the specific mobile instructions); 3). From the available devices, select "CK008" and click for connection, the device then pronounces "connection made". 4). If the mobile needs to enter password, please enter "0000" and press the confirm button, to get pairing of the device and the mobile. 5). press back button on the mobile to exit the mobile menu, ensure no obstacles between the mobile and the device within 10 meters, then you can play music with this device. 6). Short press " " button to play and pause the music. Short press "+" or "-" button for up and down selections. 7 Bluetooth connection mode: Before use, if there is no earphone symbol appeared on some mobile screens, please activate Bluetooth connection with the following steps. (1) select "CK008" within the pairing list of the …

Text truncated - open the document above for the full version.

CK008 FCC ID: ZJPCK0080515 black label colour: White+PT172C

BT antenna

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation for CK008 1. Introduction CK008 is a Bluetooth Speaker, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r02, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance = 0.64mW Distance = 5 mm f = 2.480 GHz [0.64/5] * SQRT(2.480) =0.20 0.20 ≤ 3.0 Therefore, excluded from SAR testing. TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: Phoebe Hu/ EMC Project Manager Felix Li/EMC Project Engineer Date: 2015-06-17 Date: 2015-06-17

Report Number: 68.950.15.085.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 26 FCC- TEST REPORT Report Number : 68.950.15.085.01 Date of Issue: Jun 17, 2015 Model : CK008, CK008b Product Type : Bluetooth Speaker Applicant : Shenzhen SKY DRAGON Audio-video Technology Co.LTD Address : B16,Laneway 3,Liuxian 2RD,District71,Baoan,shenzhen,China Production Facility : Shenzhen SKY DRAGON Audio-video Technology Co.LTD Address : B16,Laneway 3,Liuxian 2RD,District71,Baoan,shenzhen,China Test Result :  Positive  Negative Total pages including Appendices : 26 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 68.950.15.085.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 26 1 Table of Contents 1 Table of Contents ................................................................................................................................................................ 2 2 Details about the Test Laboratory ..................................................................................................................................... 3 3 Description of the Equipment under Test ........................................................................................................................ 4 4 Summary of Test Standards .............................................................................................................................................. 5 5 Summary of Test Results ................................................................................................................................................... 6 6 General Remarks ................................................................................................................................................................ 7 7 Test Setups .......................................................................................................................................................................... 8 8 Systems test configuration ................................................................................................................................................. 9 9 Technical Requirement .................................................................................................................................................... 10 9.1 Conducted Emission ................................................................................................................................................ 10 9.2 Conducted peak output power................................................................................................................................ 13 9.3 6dB bandwidth .......................................................................................................................................................... 14 9.4 Power spectral density ............................................................................................................................................. 16 9.5 Spurious RF conducted emissions ........................................................................................................................ 17 9.6 Band edge ................................................................................................................................................................. 21 9.7 Spurious radiated emissions for transmitter ......................................................................................................... 23 10 Test Equipment List ...................................................................................................................................................... 25 11 System Measurement Uncertainty ............................................................................................................................. 26 Report Number: 68.950.15.085.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 26 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdo…
